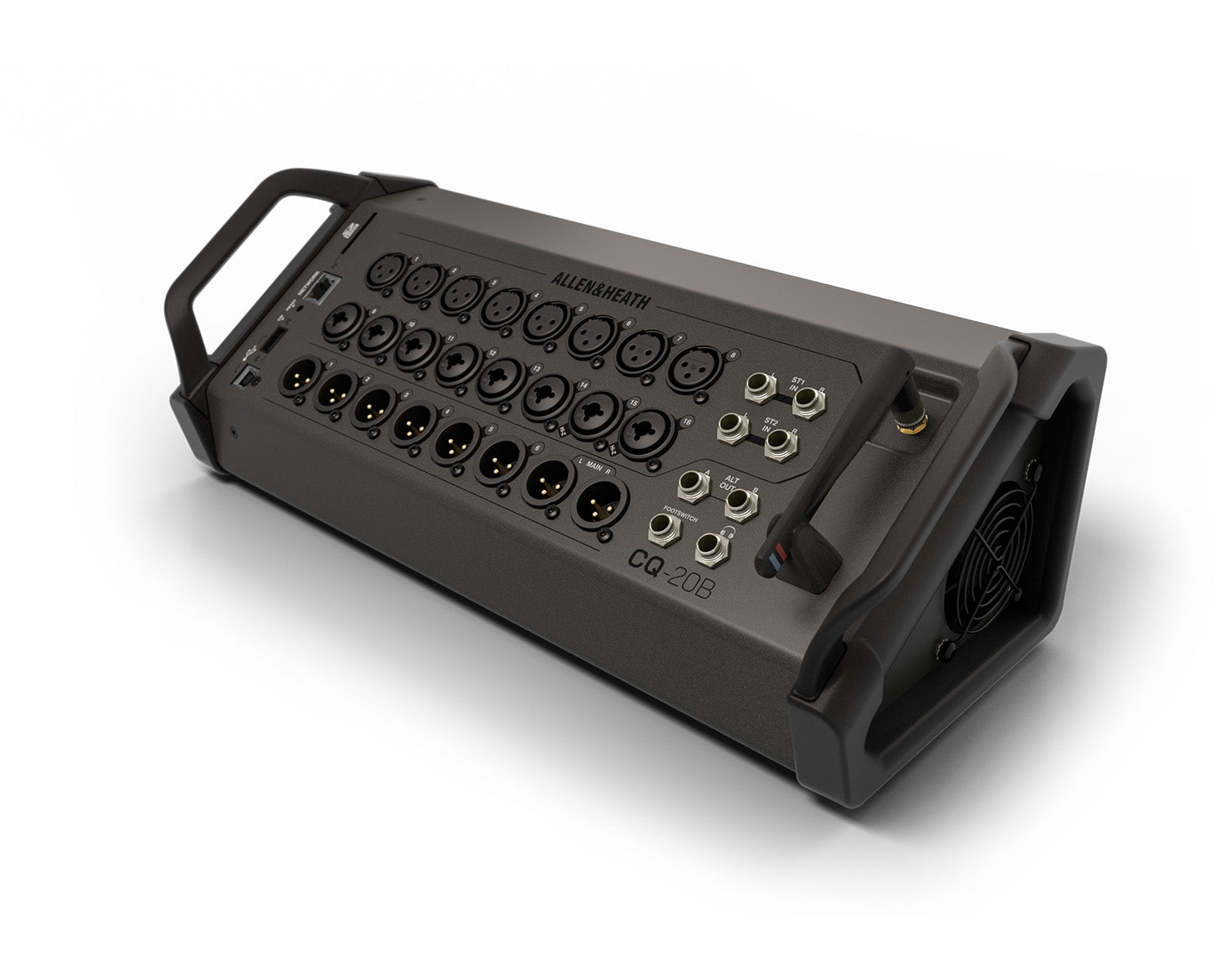

Designed for life on the stage, CQ-20B is the highest channel-count mixer in the range and is controlled via the free CQ MixPad app.

Although the CQ-20B is designed for life on the stage, you’re free to mix from anywhere in the venue via the free CQ MixPad app and the integrated dual-band Wi-Fi. CQ MixPad gives you control over all parameters of the mixer so you can soundcheck, mix and record from your mobile device or computer.

The CQ-20B is designed to be controlled via the intuitive CQ MixPad app and features powerful integrated dual-band Wi-Fi so you don’t need to connect an access point or router to use apps for control of the mixer. Just connect your devices to the CQ’s secure Wi-Fi network and you’re ready to go.

Product Features

• 20x Inputs to Mix
• (16x Mono/Linkable, 4x Stereo)
• Stereo MainLR Output
• 6x Aux Outputs
• (Linkable up to 3x Stereo)

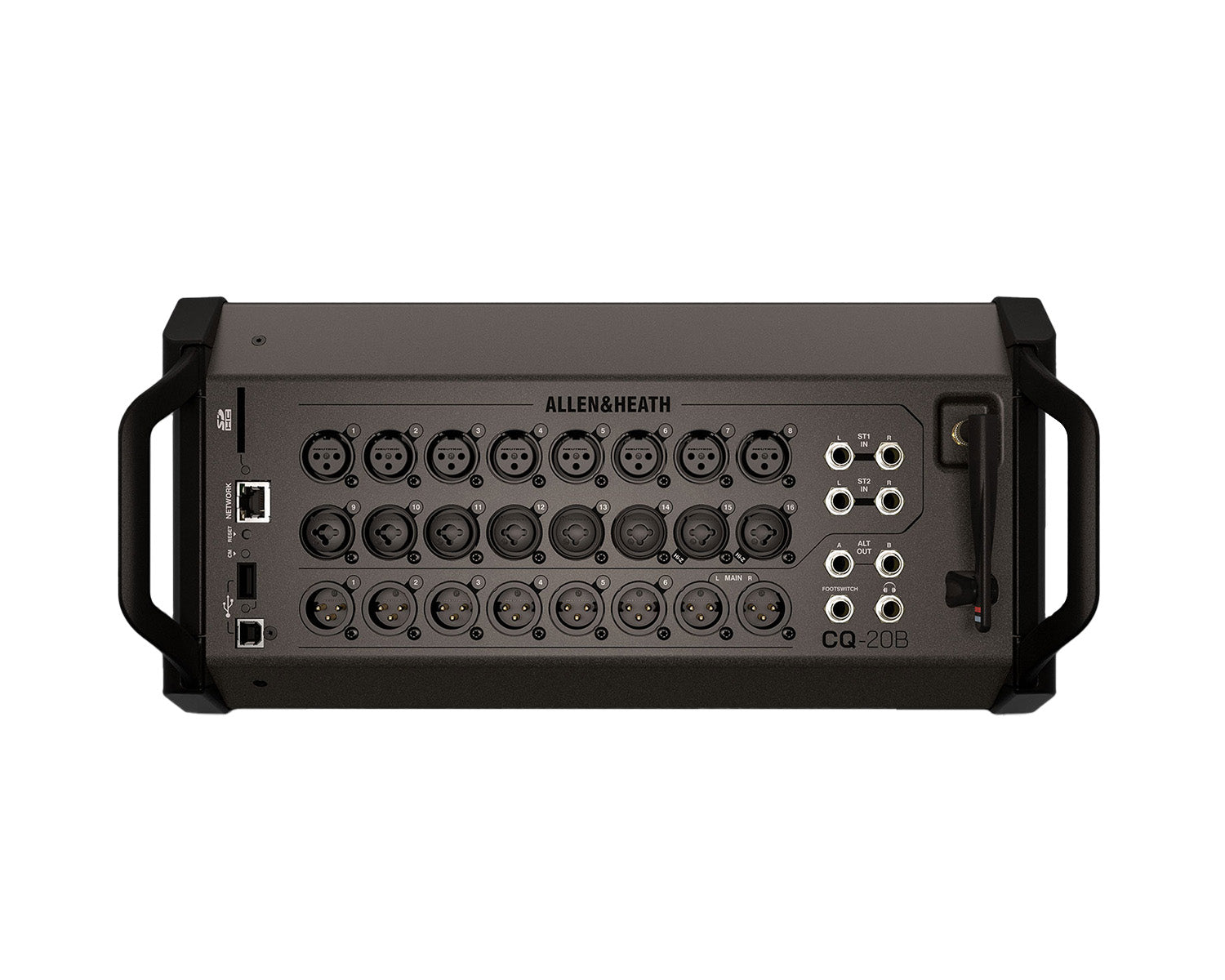

• 8x XLR Mic/Line Input Sockets
• 8x XLR/Jack ‘Combi’ Mic/Line Input Sockets
• (2 with Hi-Z option)
• 2x Stereo Line Input Sockets
• (each 2x TRS)
• 8x XLR Output Sockets
• 2x TRS Alt Out Sockets
• Stereo Headphone Output
• Dedicated Stereo USB Input to Mix
• Dedicated Stereo Bluetooth Input to Mix
• 96kHz Input/Output Processing
• 4x Multi-FX Engines
• Built-In Dual Band WiFi (CQ as Host)
• RJ45 Network Socket (CQ as Client)
• USB-A For Stereo Audio Record/Playback and Data
• USB-B For Multichannel Audio Record/Playback (24x24)
• SD Card Slot for Multichannel Audio Record/Playback (24x24)
• Configurable Single/Dual Footswitch Connection
• Configurable Chromatic Channel Meter LED
• Rack Mountable (Optional Kit Available)
• IEC Mains Connection with Worldwide PSU
• Control Via Free Apps – Windows/MacOS/iOS/Android

Product Specifications

Inputs

• Mic/Line Inputs: Balanced XLR, Balanced XLR/TRS Combi, fully recallable preamp
• Phantom Power: +48V (+3V / -2V)
• Input Sensitivity: -60 to +0dBu
• Line Inputs (Combi Sockets): -20dB Pad (Fixed)
• Analogue Gain: 0dB to +60dB, 1dB steps
• Maximum Input Level: +17dBu (XLR), +30dBu (TRS)
• Input Impedance: >1.5kΩ (XLR), >10kΩ (TRS)
• THD+N, Unity gain 0dB: 0.002% -92dBu (20Hz-20kHz, USB soundcard, @0dBu 1kHz)
• THD+N, Mid gain +30dB: 0.004% -88dBu (20Hz-20kHz, USB soundcard, @-30dBu 1kHz)
• Stereo Line Inputs
  • Stereo Line Input Connection: Balanced, 1/4" TRS Jack, Normalled (Left/Mono)
  • Input Sensitivity Nominal: +4dBu
  • Trim: +/-24dB
  • Maximum Input Level: +21dBu
  • Input Impedance: >10kΩ
  • Hi-Z Inputs: 1MΩ, JFET input stage, 0dB to +40dB gain
