240 Watt Commercial Mixer Amplifier provides the perfect solution for commercial and industrial applications requiring great sounding distributed audio coupled with power conservation and reduced operating expense. Capable of delivering high-quality sound over both Low-Z (4/8 Ohm) and High-Z (70/100 V) loudspeaker configurations offering extreme flexibility on every channel. CPA2401 is easy to install and operate – even for non-technical personnel. Simply put, the CPA2401 is ideal-suited for bars & restaurants, retail destinations, hotels, corporate, education or other venues needing background music and/or a public address system.

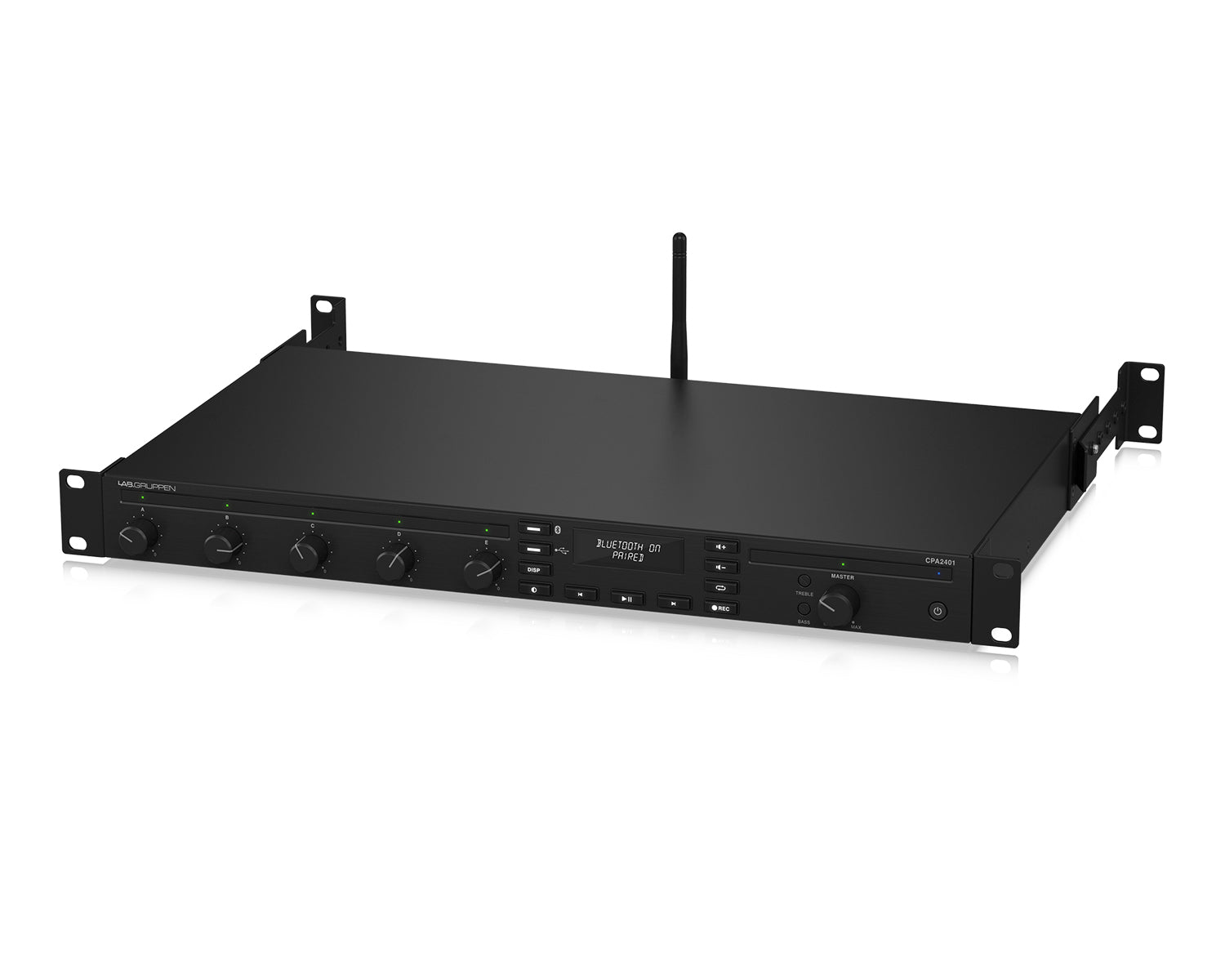

The CPA2401 comes equipped with rubber feet, enabling the amps to be placed on a desk, shelf or any clear surface without any additional installation requirements. However, optional rack mounting hardware is also supplied, allowing one or several models to be housed and protected inside an enclosure. This adds extensive flexibility as a single product can be housed in a half 19" rack or full rack enclosure as well as a pair of amplifiers can easily be mounted side-by-side in a single rack space. With the included brackets the unit can also be mounted to a wall or under a table/shelf.

Product Features

• 240 Watt mixer amplifier for commercial and industrial applications
• Low-Z (4/8 Ohm) and High-Z (70/100 V) operation with switchable high-pass filter
• 3 mic/line inputs plus 2 line inputs each with individual volume controls and output routing
• High-quality media playback via Bluetooth streaming
• USB media player with intuitive LCD navigation to play audio files via USB stick
• Individual front panel master volume and bass/treble controls
• Configurable priority and chime muting function for background music override
• Direct drive, constant power technology for superior audio performance and reliability
• GPI remote volume control using standard RJ-45 connector and Ethernet cable
• Auto Ramp circuitry for quiet and fast power up/down enables realworld energy savings
• Front panel power control button for direct access
• Aux output for expansion to additional amplifiers
• Rack-mountable 1U, 19" enclosure with brackets for rack mounting
• Euroblock type mic/line input and output connectors
• Convection-cooled, fan-less amplifier technology for low noise

Product Specifications

Maximum Output Power

• Maximum Output Power 4 or 8 Ω per channel: 240 W

Number of Amplifier Channels

• Number: 1

Minimum Load Impedance

• 4 Ω mode: 4 Ω
• 8 Ω mode: 8 Ω
• 70 V output mode: 20 Ω
• 100 V output mode: 42 Ω

Audio Outputs

• Amplifier output: 2-pin Euroblock connector, stereo
• Aux output: 3-pin Euroblock connector
• Aux output max level: 4.88 V (16 dBu)

Audio Inputs

• Mic/Line with priority/ ducking input: 1 x 5-pin Euroblock connector (channel A)
• Mic/Line with summed RCA: 2 x 3-pin Euroblock connector, 3 x stereo RCA
• Impedance:
  • Balanced mic/line: 20 kΩ
  • Unbalanced line and RCA: 10 kΩ
• Input sensitivity for max amplifier output or max aux output level:
  • Mic: 0.038 V (-26 dBu)
  • Balanced: 1.23 V (+4 dBu)
  • RCA: 0.62 V (-2 dBu) each for mono sum RCA
• Maximum input level: 4.88 V (+16 dBu)
• Microphone phantom voltage: 48 V

Controls

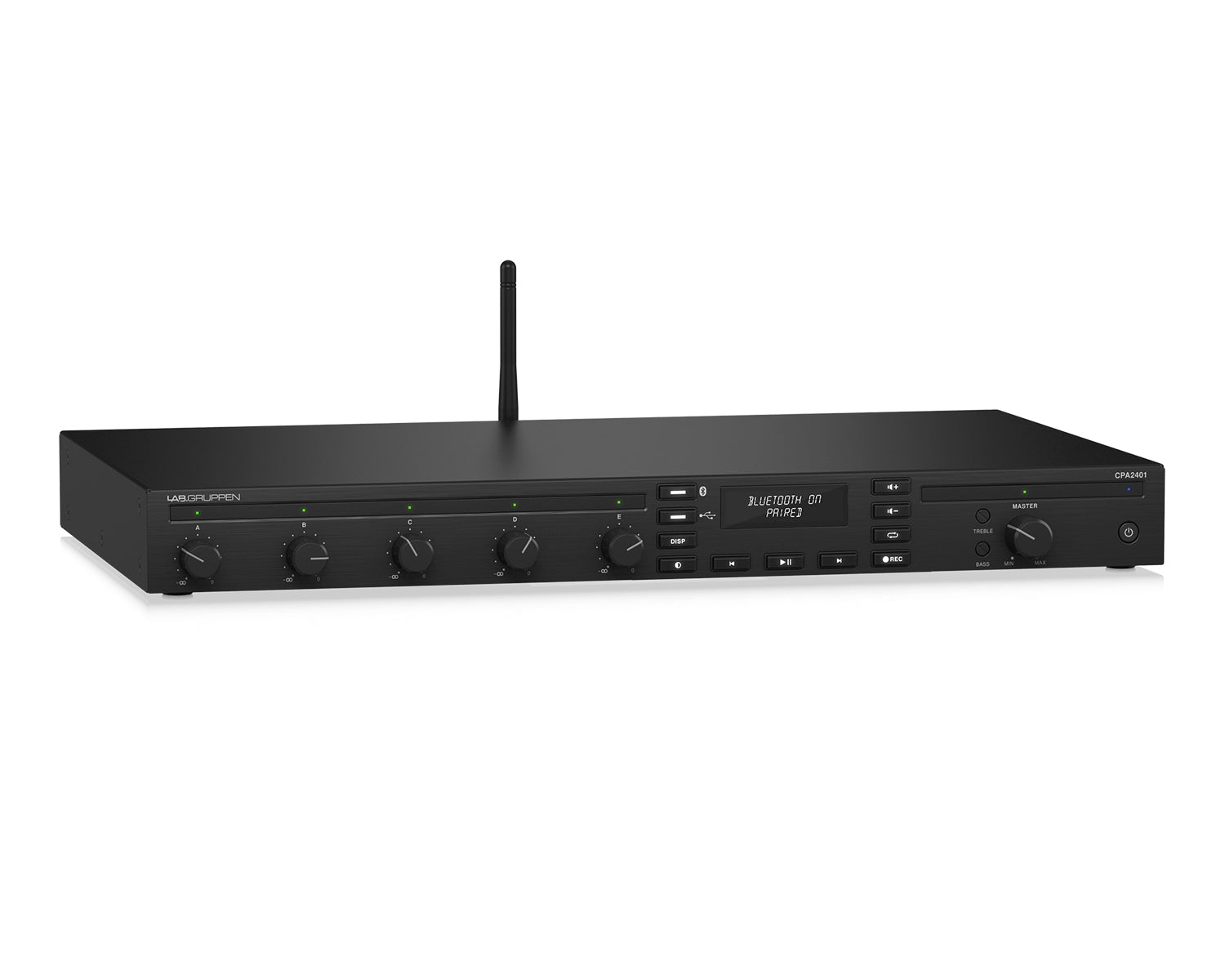

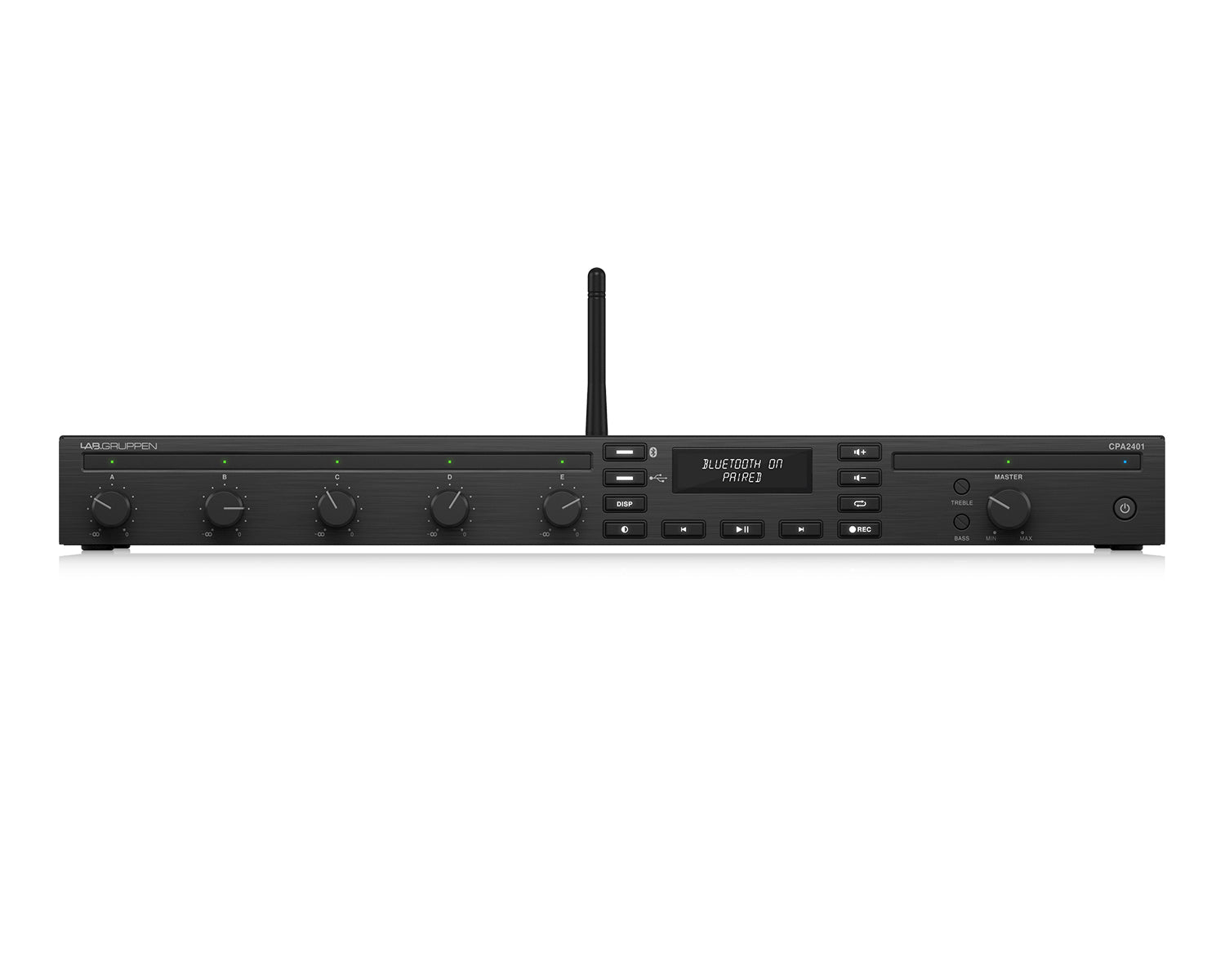

• Front: Power standby button, input and output gain control, tone controls - bass and treble, bluetooth audio controls

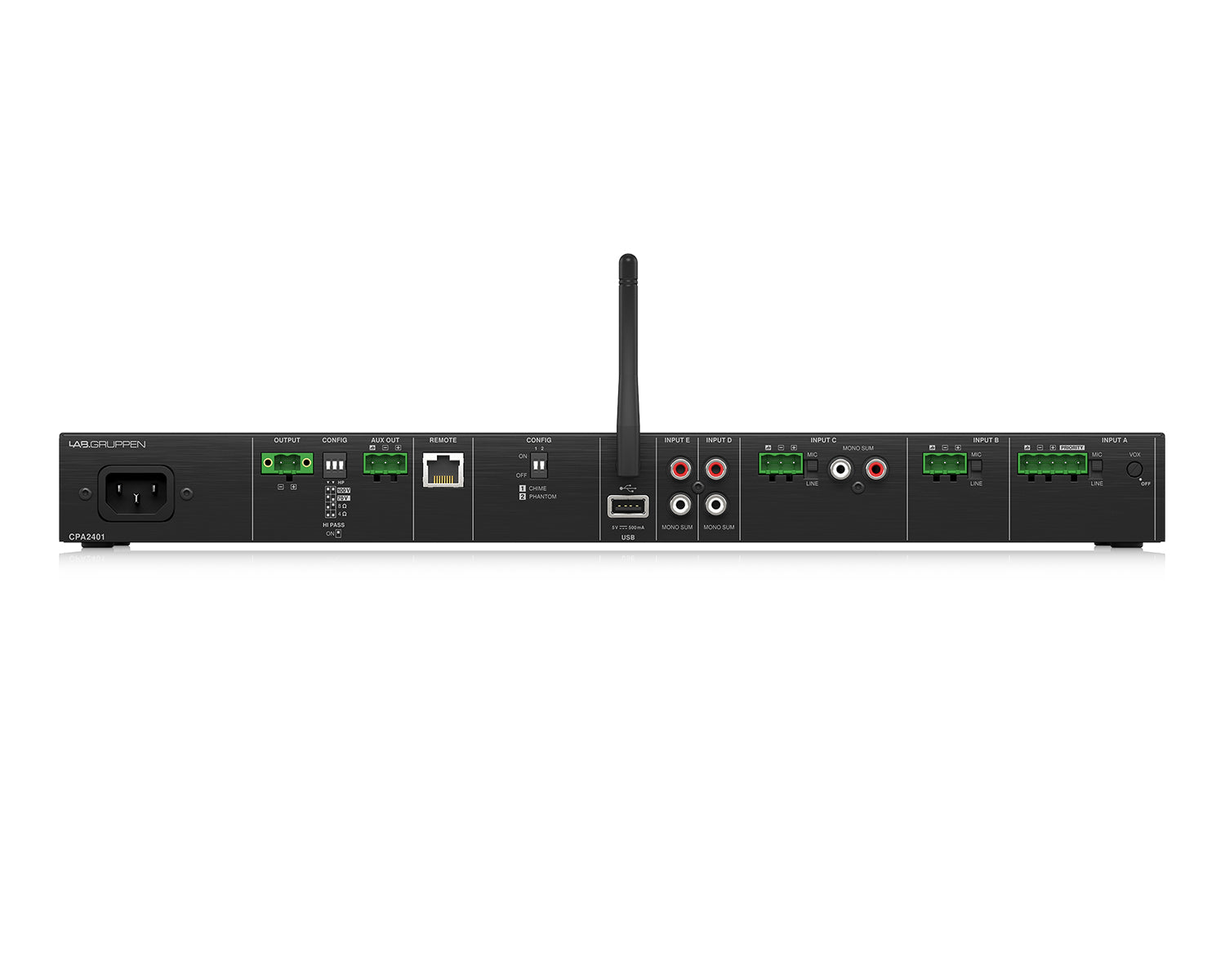

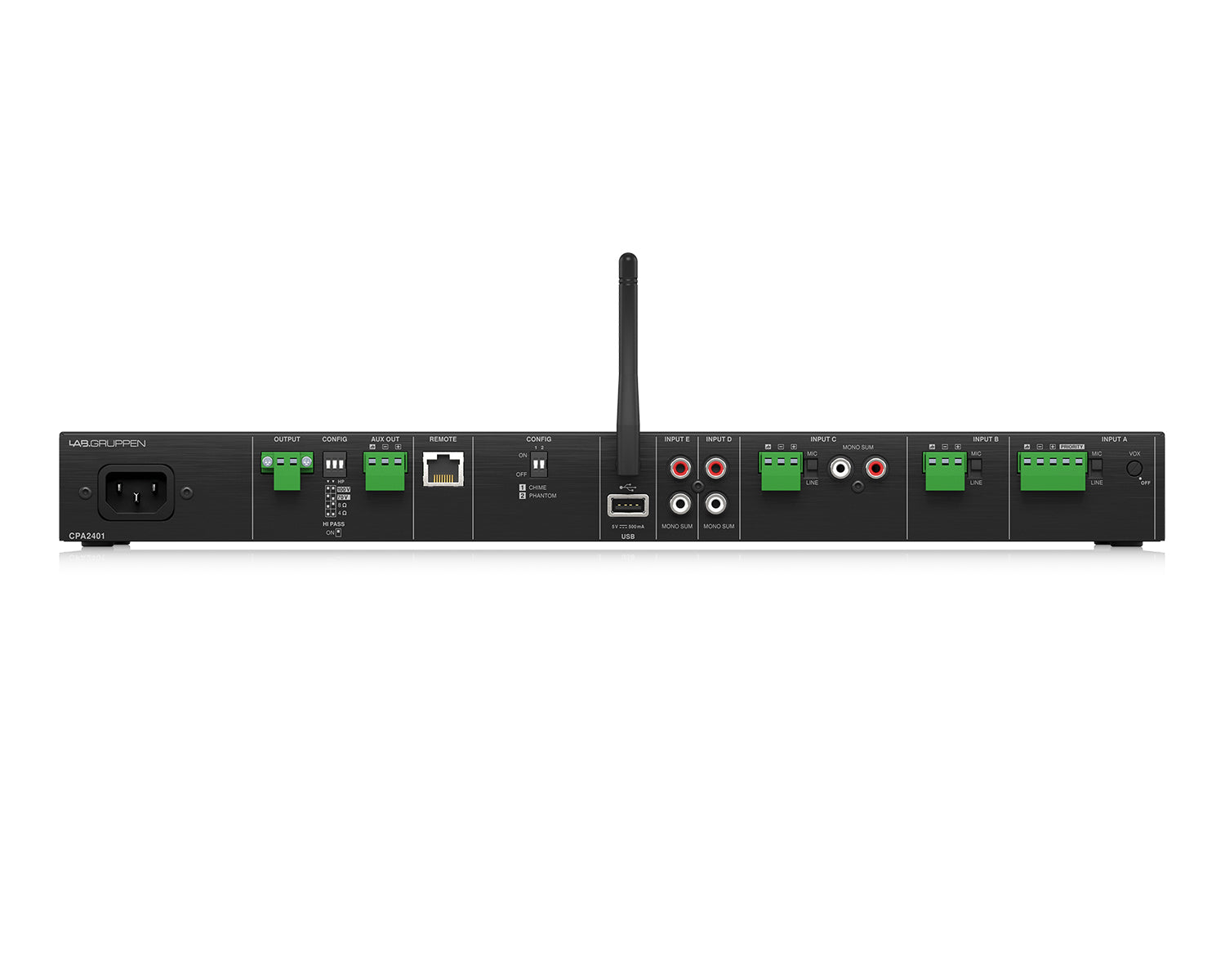

• Rear: Load config - (4 Ω/8 Ω/70 V/100 V), switchable 80 Hz high-pass filter, mic/line switch, vox/ducking threshold control, phantom voltage, input routing (2-channel models only)

Tone Controls

• Bass: ±10 dB @ 100 Hz
• Treble: ±10 dB @ 10 kHz

Indicators

• Power: On (blue), force standby (red), standby (yellow)
• Inputs:
  • Signal (green LED): >12.3 mV (-36 dBu)
  • >12.3 mV (-36 dBu): Clip
• Master:
  • Signal (green LED): >-50 dBu
  • Fault (red LED): Overheat, DC fault, over current, etc

Bluetooth

• Frequency range: 2402 - 2480 MHz
• Channel number: 79
• Bluetooth version: 4.2
• Reception range: Up to 15 m (45 ft)
• Output power: 10 dBm
• Supported codec: SBC
• Supported profiles: AVRCP 1.4, A2DP 1.2

USB Drive Requirements

• Type: USB 2.0
• Min capacity: 1.0 GB
• Min speed: 12 MB/s read, 7 MB/s write
• Supported file formats: AAC, WMA, MP3, WAV

System

• Output circuit type: Class D
• Remote connector: 1 x RJ45 Ethernet connector

Performance

• Distortion, 1/8 rated power: <0.5%
• Frequency response: 20 Hz to 20 kHz, +0.5/-2 dB
• Crosstalk (2 channel model): >70 dB
• Signal-to-noise: >95 dB
• High-pass filter: 80 Hz HPF

Circuit Protection

• Cooling: Convection-cooled, fanless
• Amplifier protection: Thermal protection, over current protection, DC protection
• Load protection: Controlled start and shutdown behaviour, DC-fault protection

Power Supply, Voltage (Fuse)

• Main voltage: 100-240 V~, 50/60 Hz
• Fuse: T 6.3 A L 250 V
• Power consumption 1/8th rated power @ 4 Ω: 60 W
• Mains connector: Standard IEC connector

Physical

• Dimensions (H x W x D): 44 x 437 x 248 mm (1.7 x 17.2 x 9.8")
• Weight: 3.2 kg (7 lbs)
• Finish: Brushed black anodized aluminium chassis with black painted steel bottom
