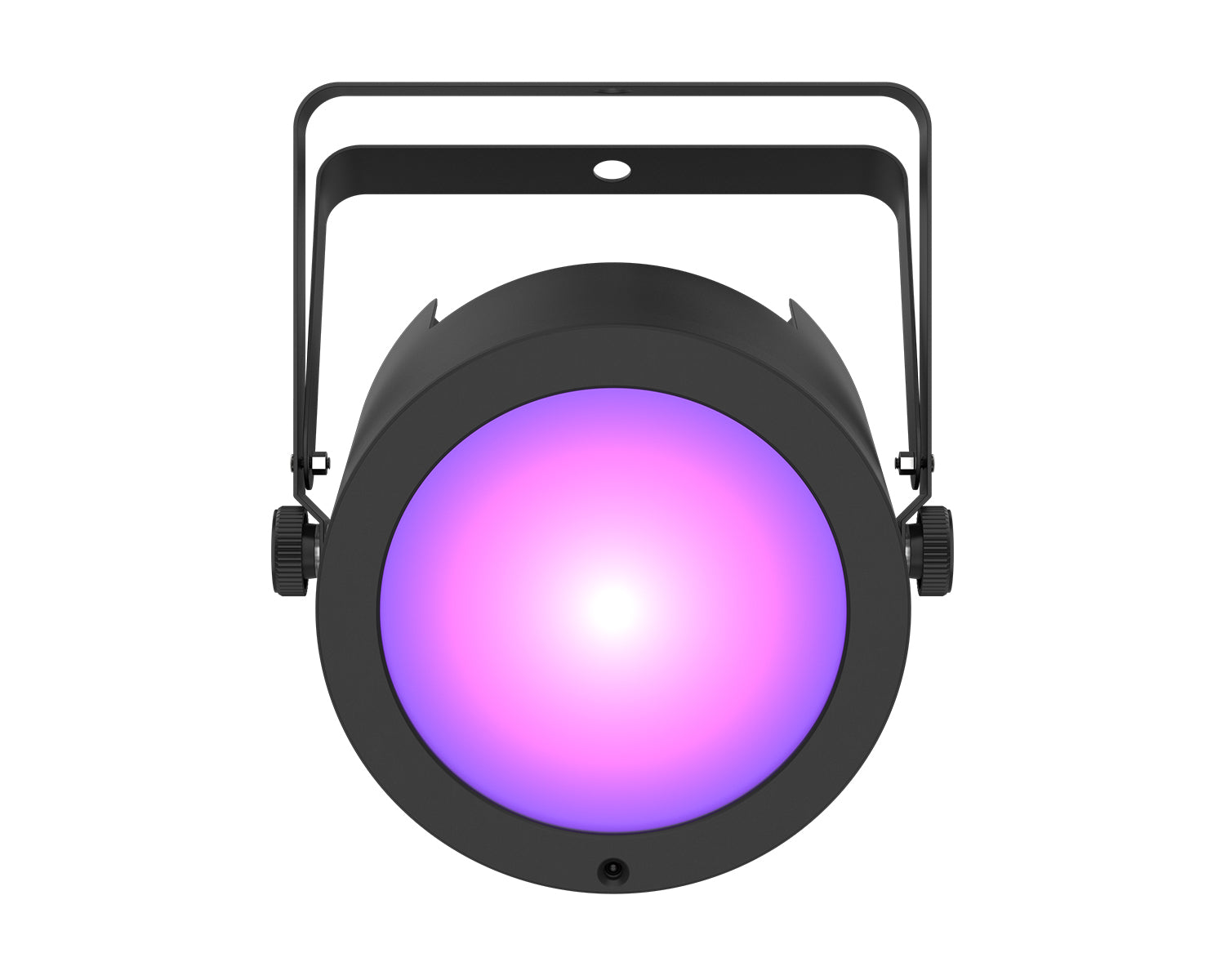

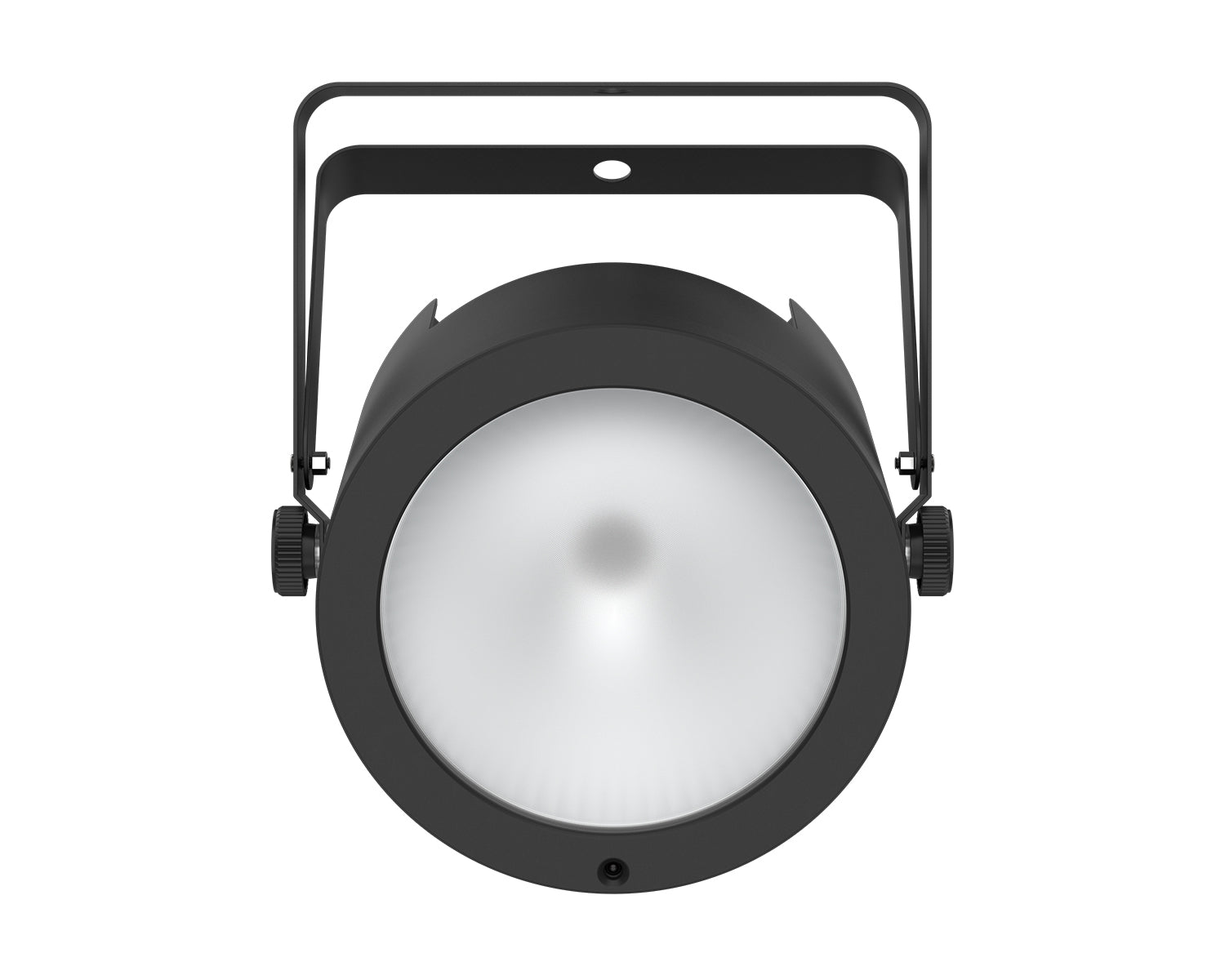

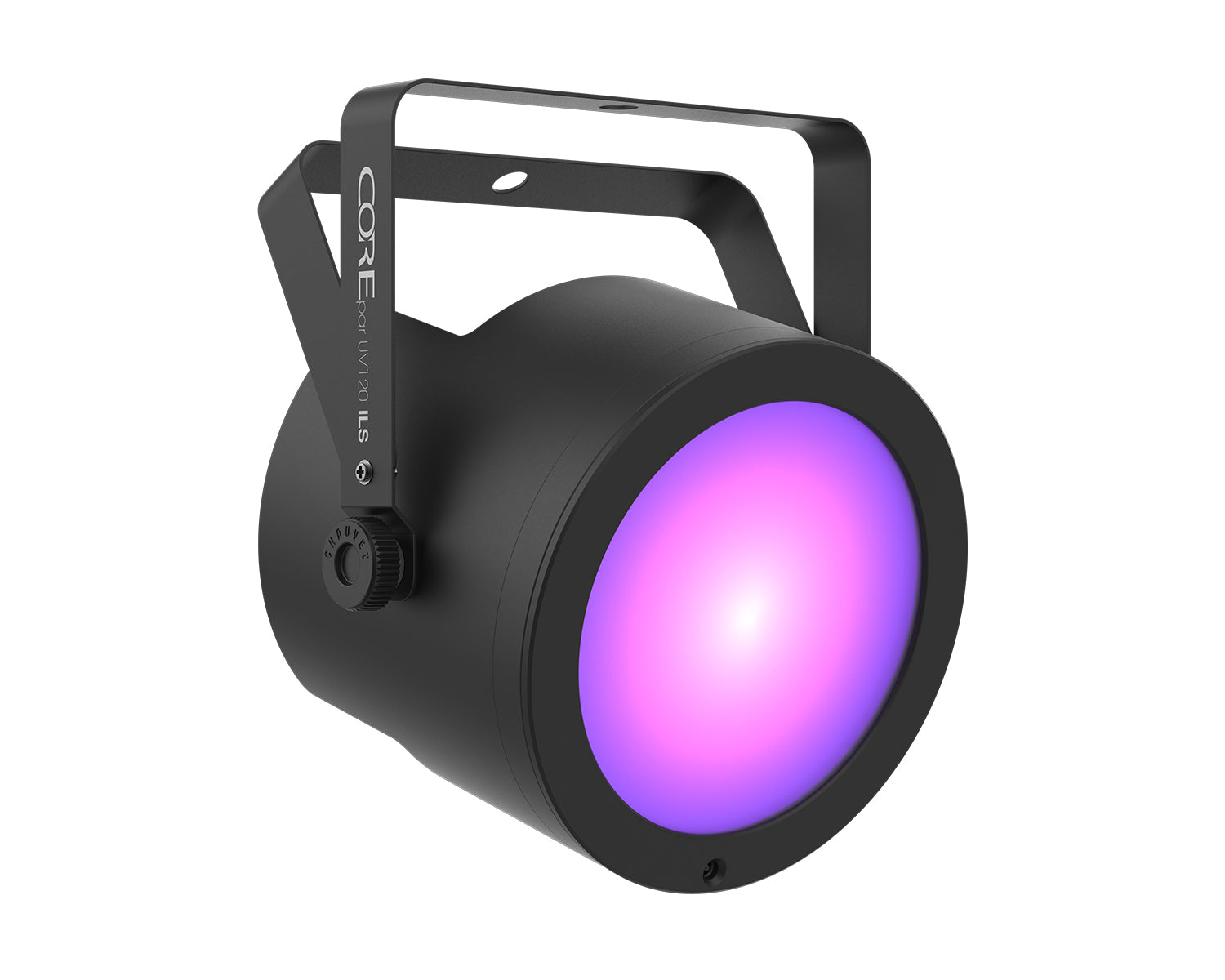

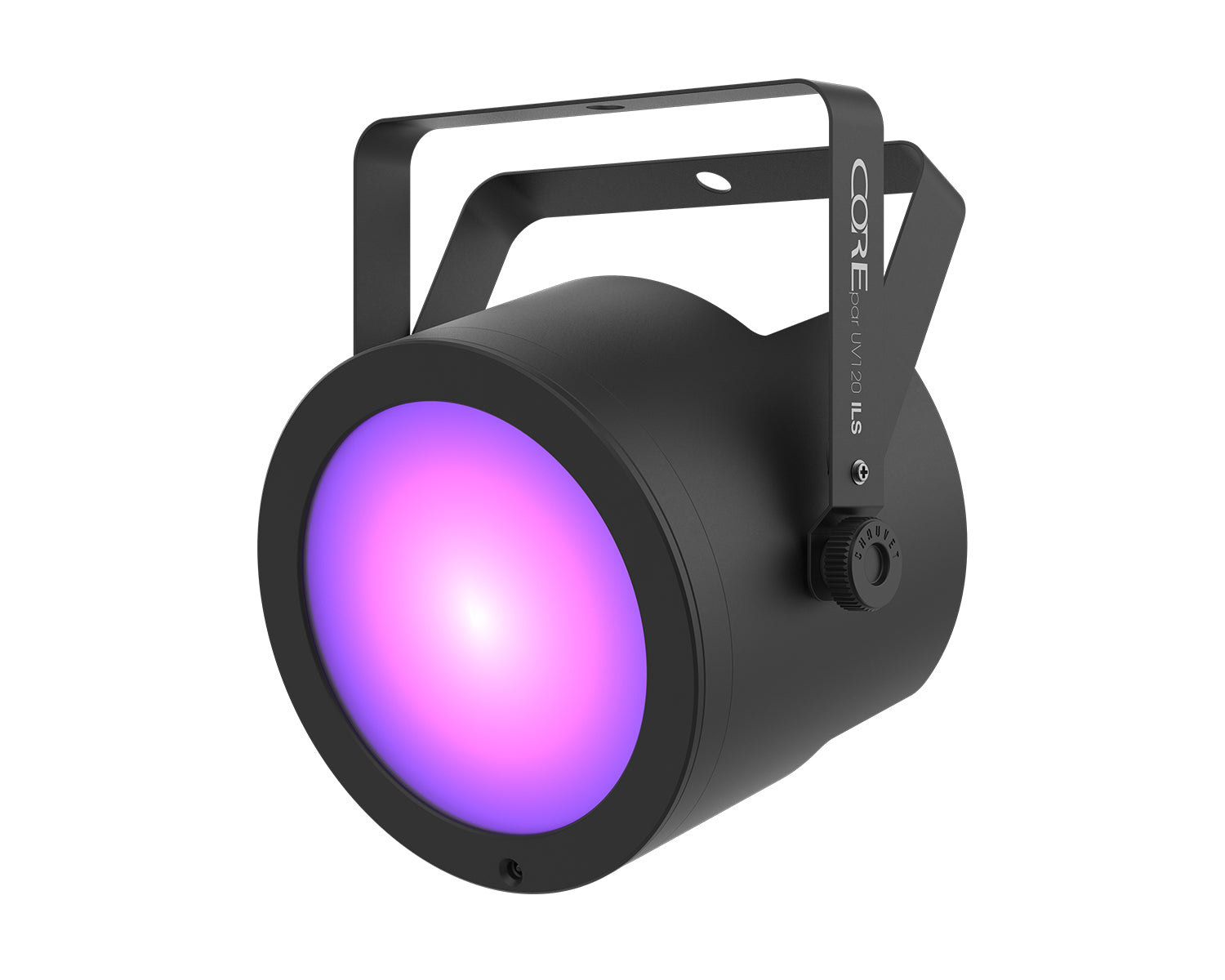

COREpar UV 120 ILS is a compact ultra-wide 120-watt UV wash with COB (Chip-on-Board) technology. Also on board is ILS compatibility which makes creating coordinated light shows across different fixture types easy. COREpar UV 120 ILS also has D-Fi USB compatibility for wireless Master/Slave or DMX control and high-frequency LED dimming lets you achieve flicker-free video operation. The included magnetic Fresnel lens allows the flexibility to go from an ultra-wide to narrow beam in seconds. Its sit-flat housing design hugs the floor and features power and DMX outlets on the side of the unit for easy connections. COREpar UV 120 ILS has a robust housing to withstand the harshness of traveling from gig to gig.

Product Features

• Compact ultra-wide UV wash with COB (Chip-on-Board) technology
• ILS compatibility for use in the ILS ecosystem
• D-Fi USB compatibility for wireless Master/Slave or DMX control
• Included magnetic Fresnel lens allows the flexibility to go from an ultra-wide to narrow beam in seconds
• Withstand the harshness of travelling from gig to gig with a robust housing

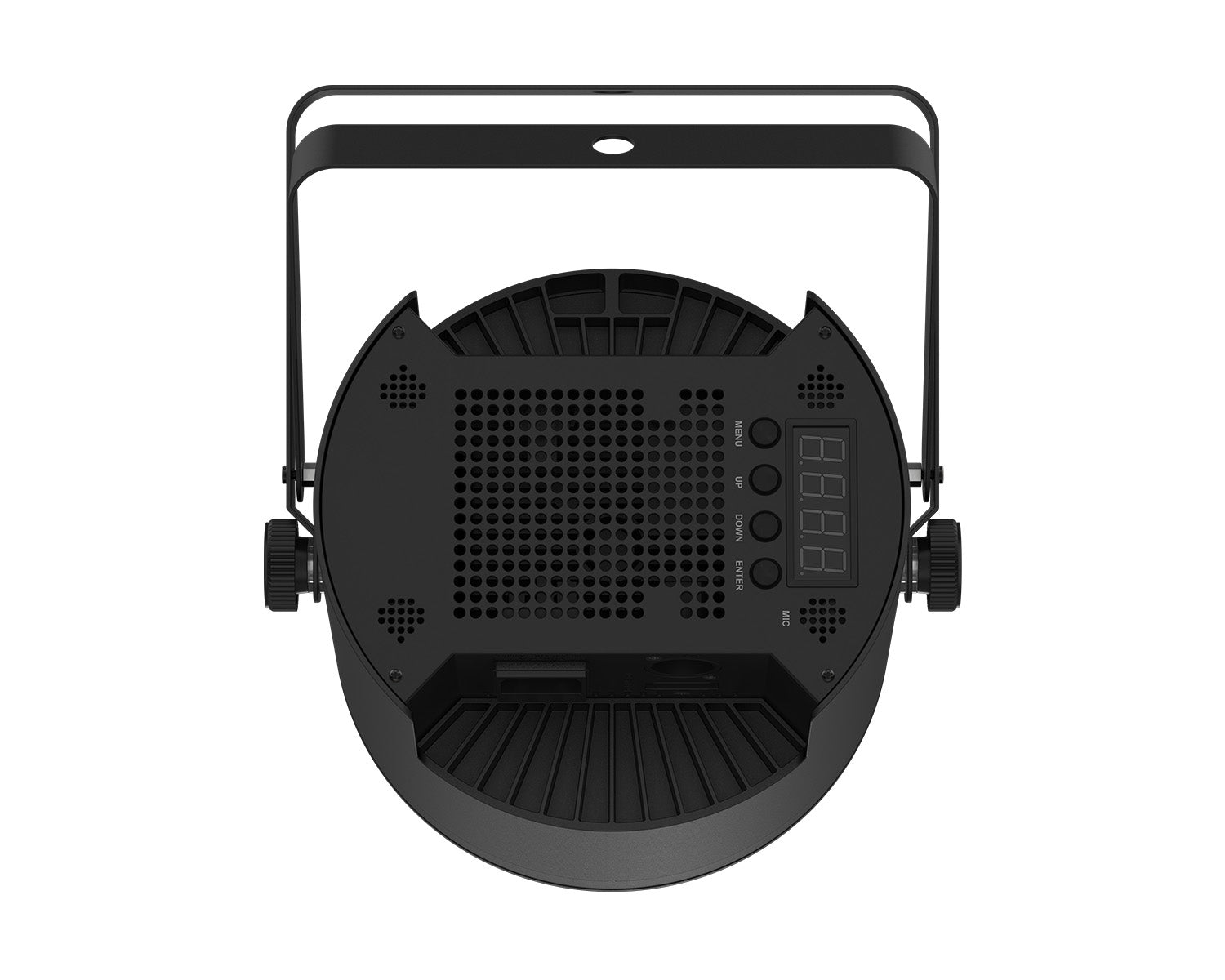

• Sit-flat housing design hugs the floor and features power and DMX outlets on the side of the unit
• Achieve flicker-free video operation with high-frequency LED dimming
• Save time running cables and extension cords by power linking multiple units
• Point-and-shoot operation of sound-activated and automated programs with the optional IRC-6 remote
• Fits best in the CHS-40 VIP Gear Bag

Product Specifications

General

• DMX Channels: 1 or 5
• DMX Connectors: 3-pin XLR
• Light Source: 1 COB LED (UV) 120 W, (3.34A), 50,000 hours life expectancy
• Strobe Rate: 0 to 20 Hz
• Beam Angle (with lens): 21°
• Field Angle (with lens): 34°
• Beam Angle (without lens): 44°
• Filed Angle (without lens): 94°
• Cable Length: 5 ft (1.5 m)
• Power Linking: 5 units @ 120 V; 9 units @ 230 V
• Input Voltage: 100 to 240 VAC, 50/60 Hz (auto-ranging)
• Power and Current: 119 W, 1.5 A @ 120 V, 60 Hz
• Power and Current: 118 W, 0.9 A @ 230 V, 50 Hz
• Bracket Mounting Hole: 13 mm
• Optional Controllers: IRC-6, D-Fi USB
• Approvals: CE, RoHS, UKCA

Physical & Dimensions

• Weight: 4.6 lb (2.1 kg)
• Size: 8.9 x 7.4 x 9 in (225 x 185 x 228 mm)

What's in the Box?

• COREpar UV120
• Power cord
• Magnetic Lens
• Quick Reference Guide
