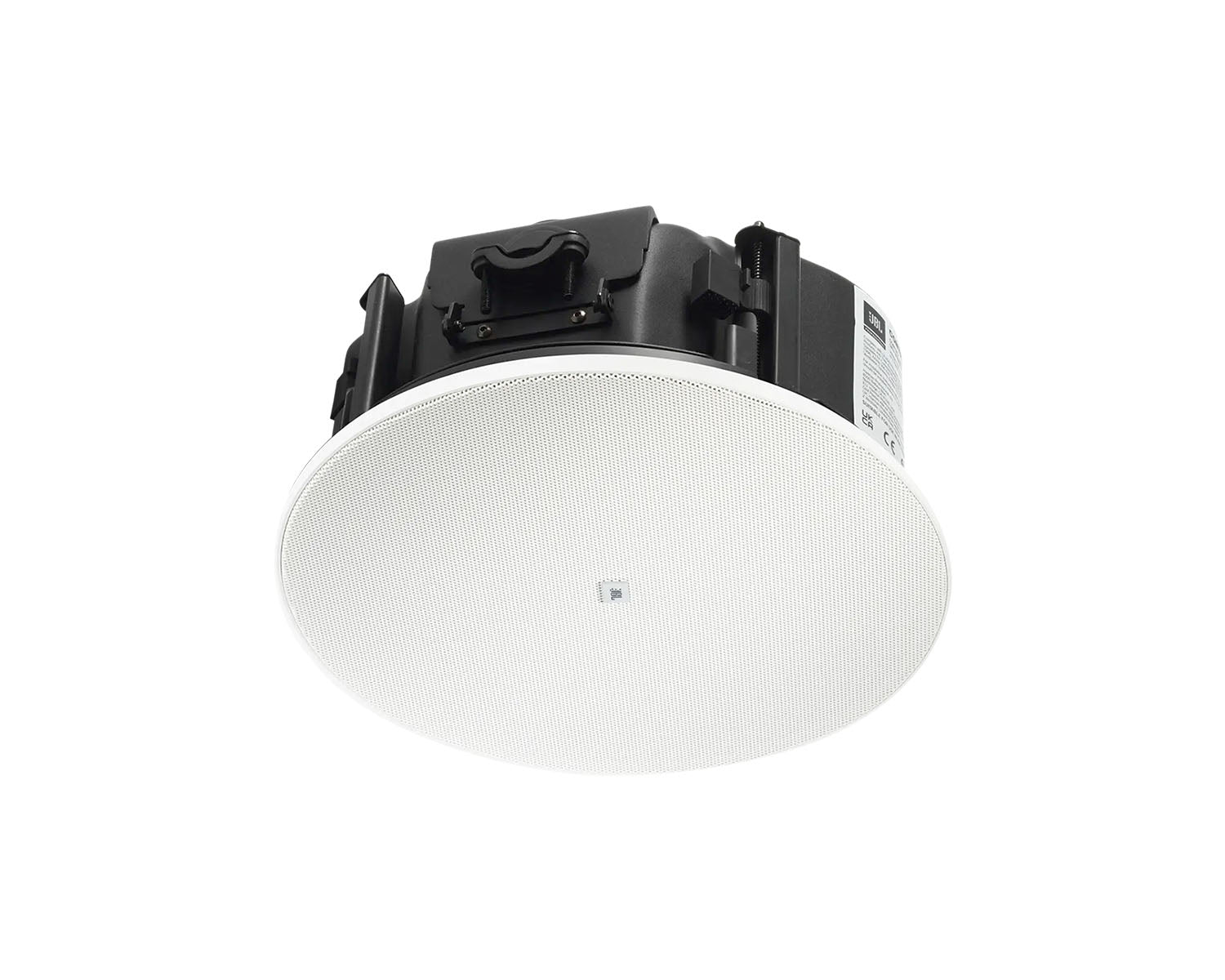

The JBL Control 426LP is a two-way coaxial ceiling loudspeaker, featuring a 6.5” woofer and a low-profile enclosure that is ideal for applications where ceiling plenum space is restricted. Integrated CRBI™ technology provides 110° of consistent, full, rich sound character that closely matches that of the Control 426C/T. A full-face magnetic grille blends seamlessly with modern decors and optional black and square grilles are available. Mechanical improvements include redesigned terminal covers with top and side cable entry ports and an extremely reliable new dogear design that works with a wide range of ceiling thicknesses. Like all Control 400 Enhanced Coverage models, the Control 426LP includes a transformer to support both 70V/100V and low impedance applications.

Product Features

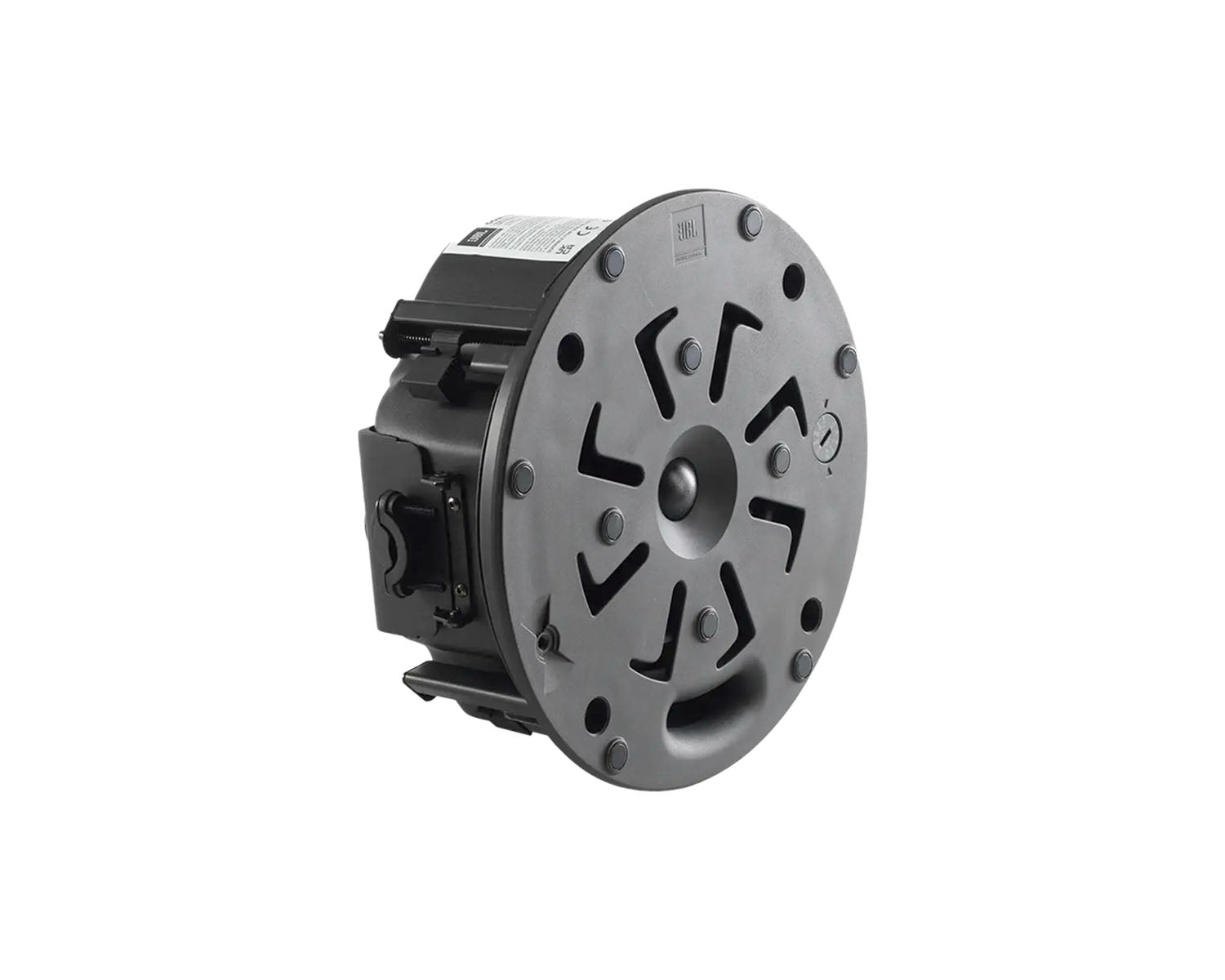

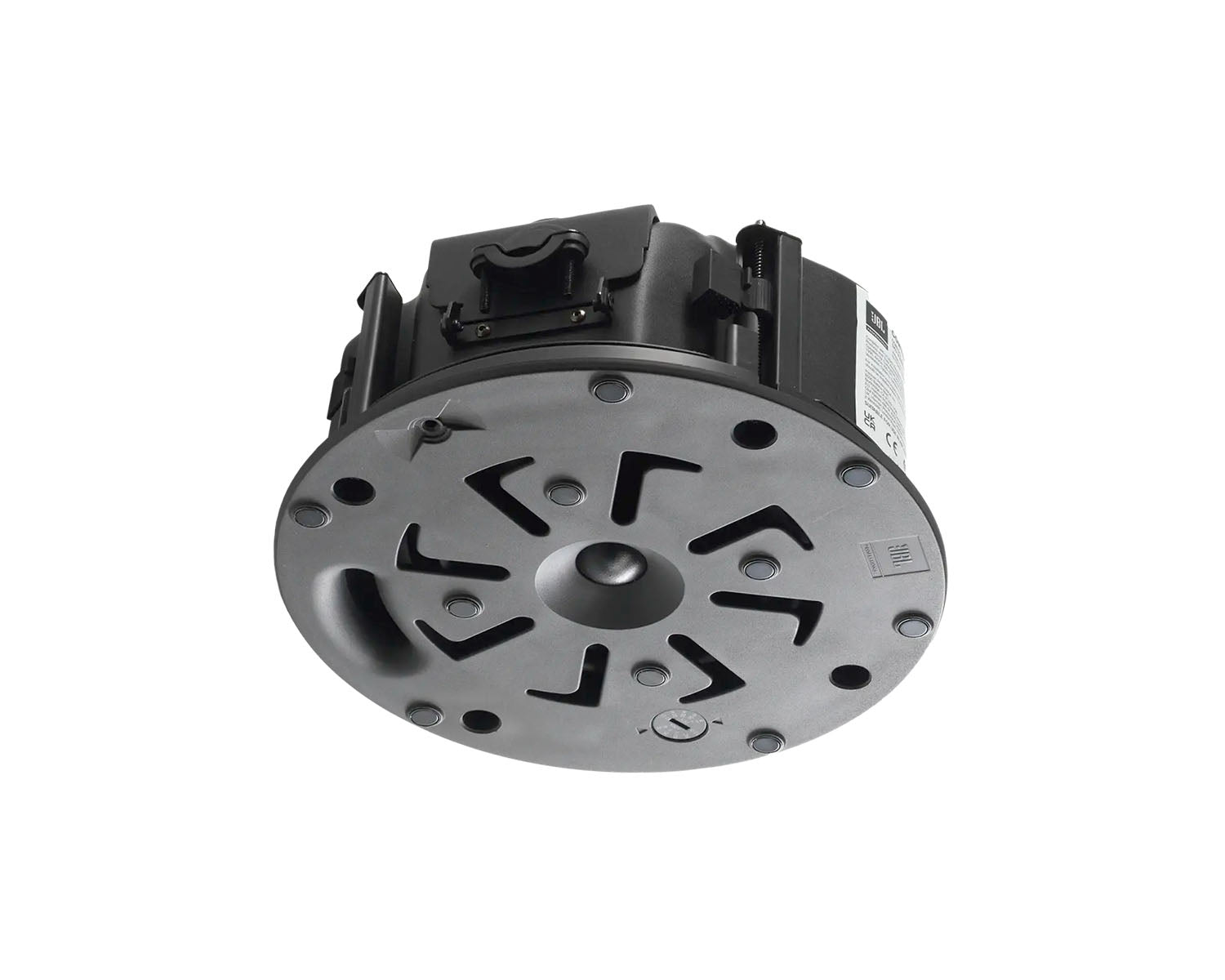

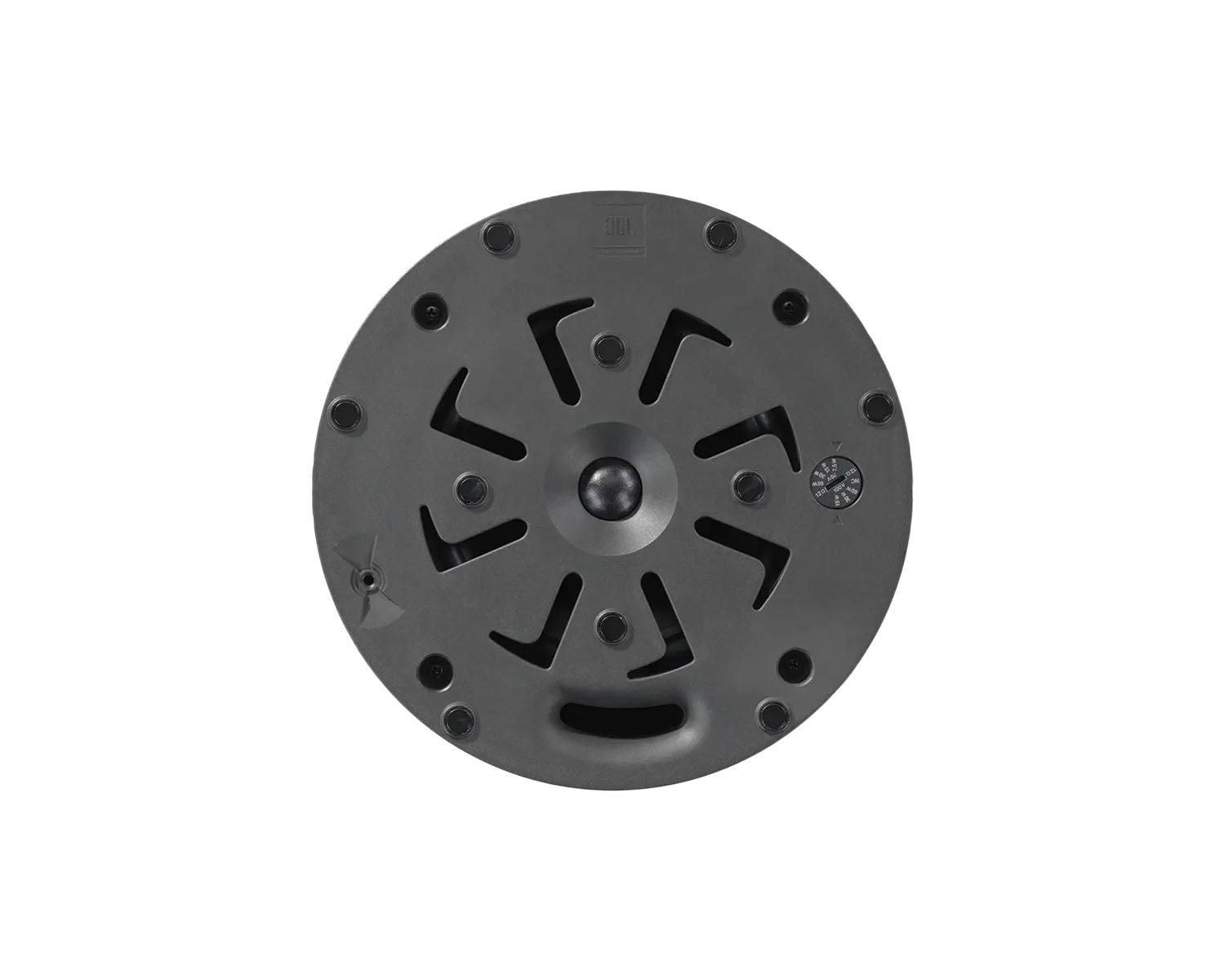

• Coaxially mounted 165 mm (6.5 in) woofer and 25 mm (1.0 in) soft-dome tweeter
• Low-profile enclosure (<100mm deep) for installing where ceiling plenum space is restricted
• CRBI™ technology for consistent sound coverage
• Built-in 70V/100V multi-tap transformer, plus 12-ohm direct input

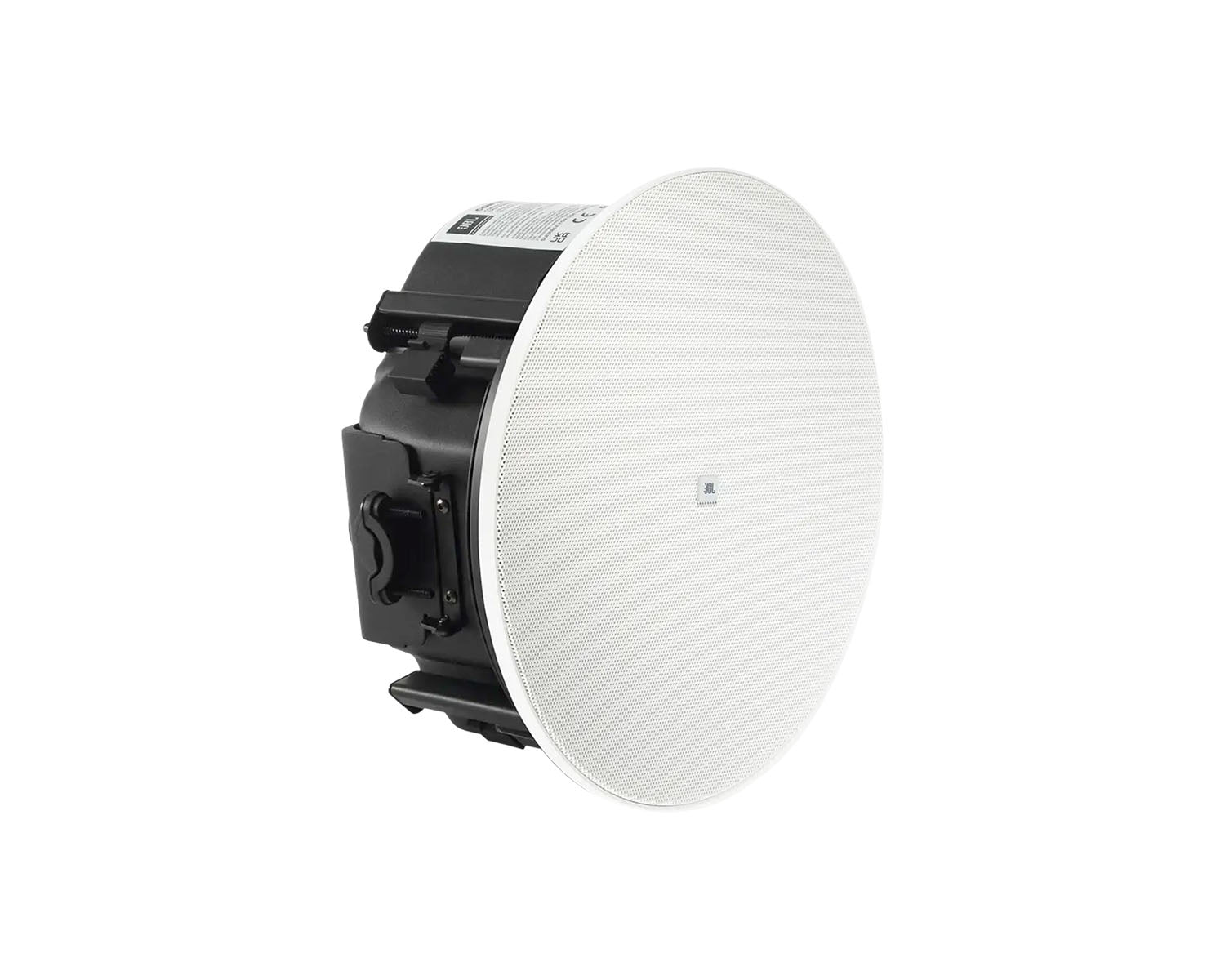

• Full-face, easily-paintable magnetic grilles
• Black and square magnetic accessory grilles available
• Top and side exit cable entry options

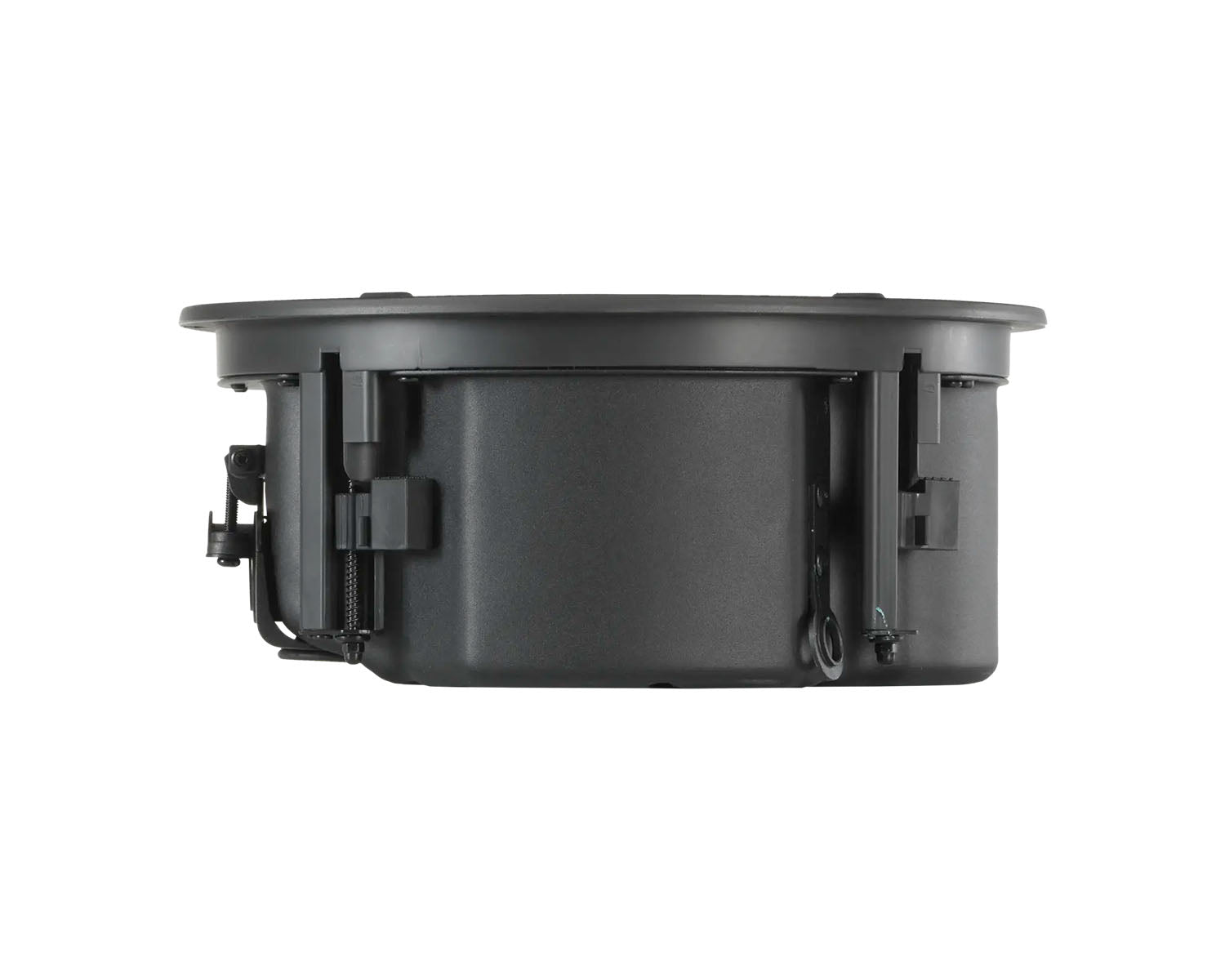

• Robust and adaptable dogears for wide range of ceiling thicknesses
• IP33 rated

Product Specifications

• Frequency Range (-10 dB):  95 Hz – 19 kHz
• Power Capacity:
  • 110 W (440 W Peak), Continuous Pink Noise (2 hrs)
  • 75 W (300 W Peak) Continuous Pink Noise Power (100 hrs)
• Sensitivity (1m/1W):  89dB
• Coverage Angle:  110° conical
• Maximum SPL (1m):  109 dB continuous pink noise (115 dB peak)
• Nominal Impedance:  12Ω
• Transformer Taps:
  • 70 V:  60 W, 30 W, 15 W & 7.5 W
  • 100 V:  60 W, 30 W, 15 W

• Drivers:
  • LF:  165 mm (6.5 in) with treated paper cone and high-performance magnet
  • HF:  25 mm (1.0 in) textile soft-dome with Neodymium magnet assembly
• Ceiling Cutout Size:  223 mm (8.8 in)
• Dimensions:
  • 107 mm (4.2 in) H x 253 mm (9.9 in) dia.

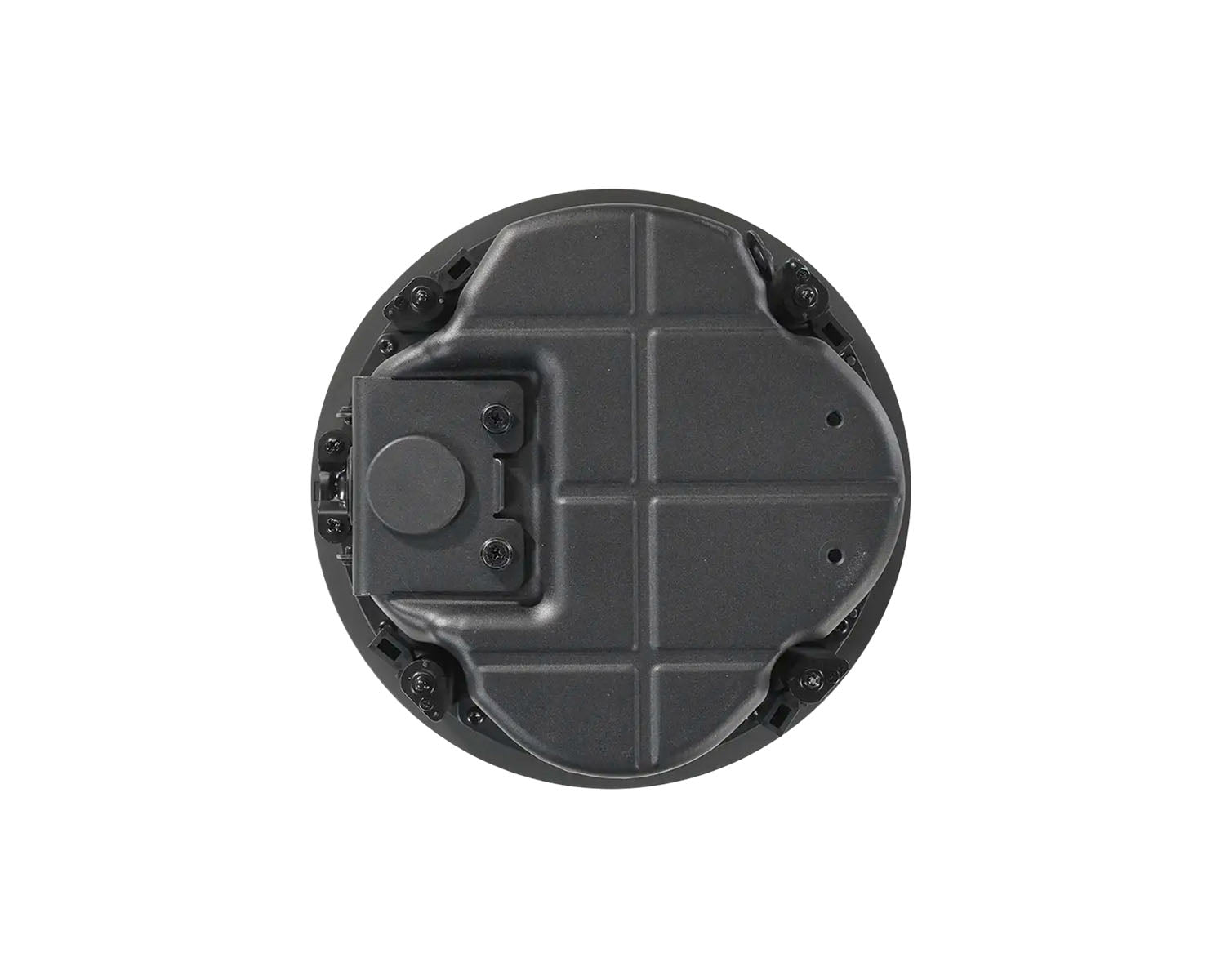

  • 98 mm (3.9 in) from bottom of ceiling tile to top of backcan
• Safety Agency Rating:  Suitable for use in air handling spaces per UL2043, NFPA 90A & NFPA 70, CSA C22.2 no. 205 and S7232/UL1480A Listed.
• Environmental:
  • IP rating: IP33 per EN/IEC 60529.
  • Operating temperature: 0° C to 45 °C.
• Optional Accessories:
  • JBL-MTC-426BG black (RAL9004) round grille
  • JBL-MTC-426SG white (RAL9003) square grille
  • JBL-MTC-426NC new construction bracket
  • JBL-MTC-426MR mud-ring construction bracket
  • JBL-MTC-48TRX4 tile rail for 4' x 4' ceiling tiles
• Colour:  Stock grille is white (RAL9003), paintable.
• Net Weight (each):  3.9 kg (8.6 lbs)
