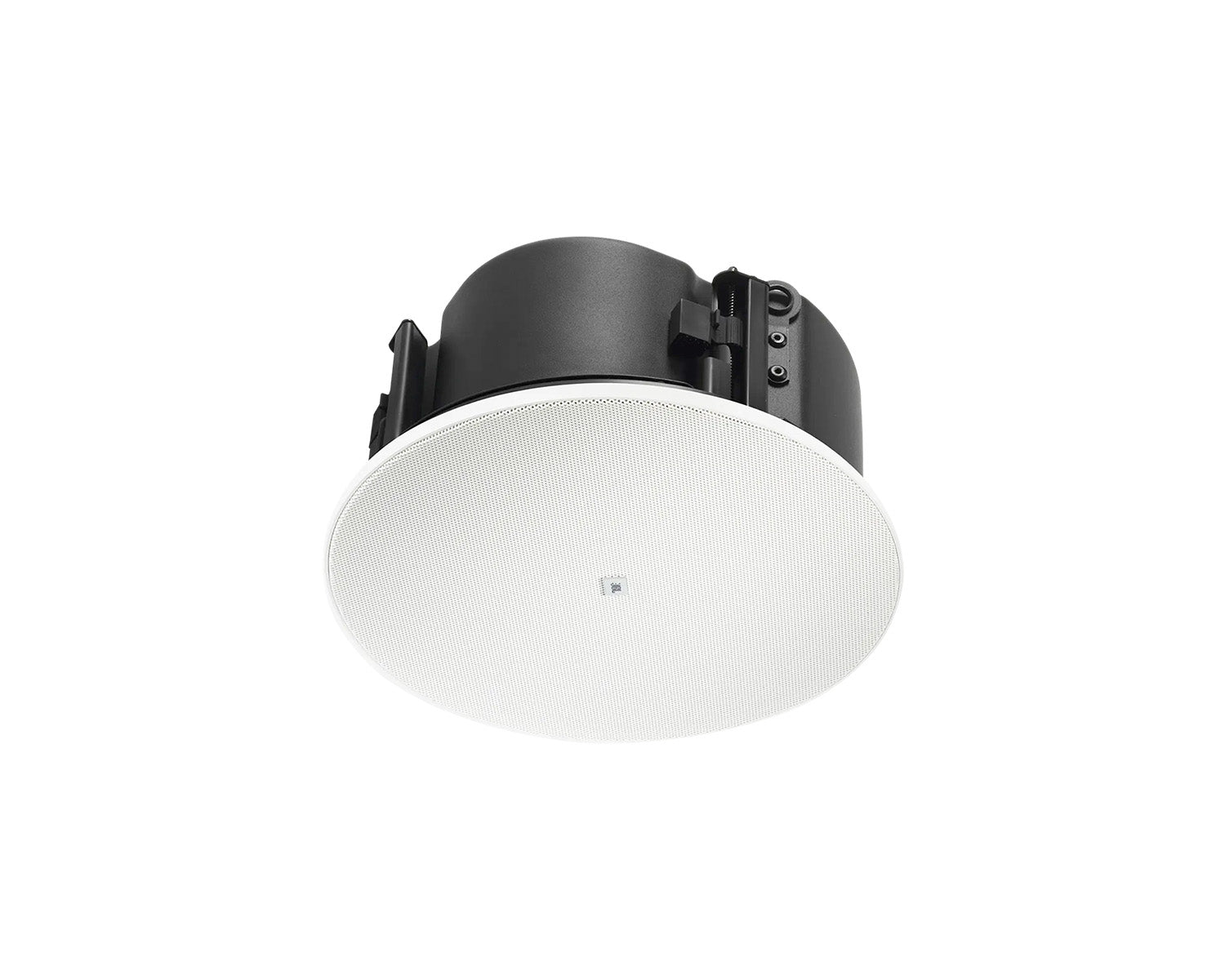

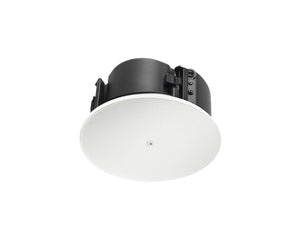

The JBL Control 424LP is a two-way coaxial ceiling loudspeaker, featuring a 4” woofer and a low-profile enclosure that is ideal for applications where ceiling plenum space is restricted. Integrated CRBI™ technology provides 130° of consistent, full, rich sound character that closely matches that of the Control 424C/T. A full-face magnetic grille blends seamlessly with modern decors and optional black and square grilles are available. Mechanical improvements include redesigned terminal covers with top and side cable entry ports and an extremely reliable new dogear design that works with a wide range of ceiling thicknesses. Like all Control 400 Enhanced Coverage models, the Control 424LP includes a transformer to support both 70V/100V and low impedance applications.

Product Features

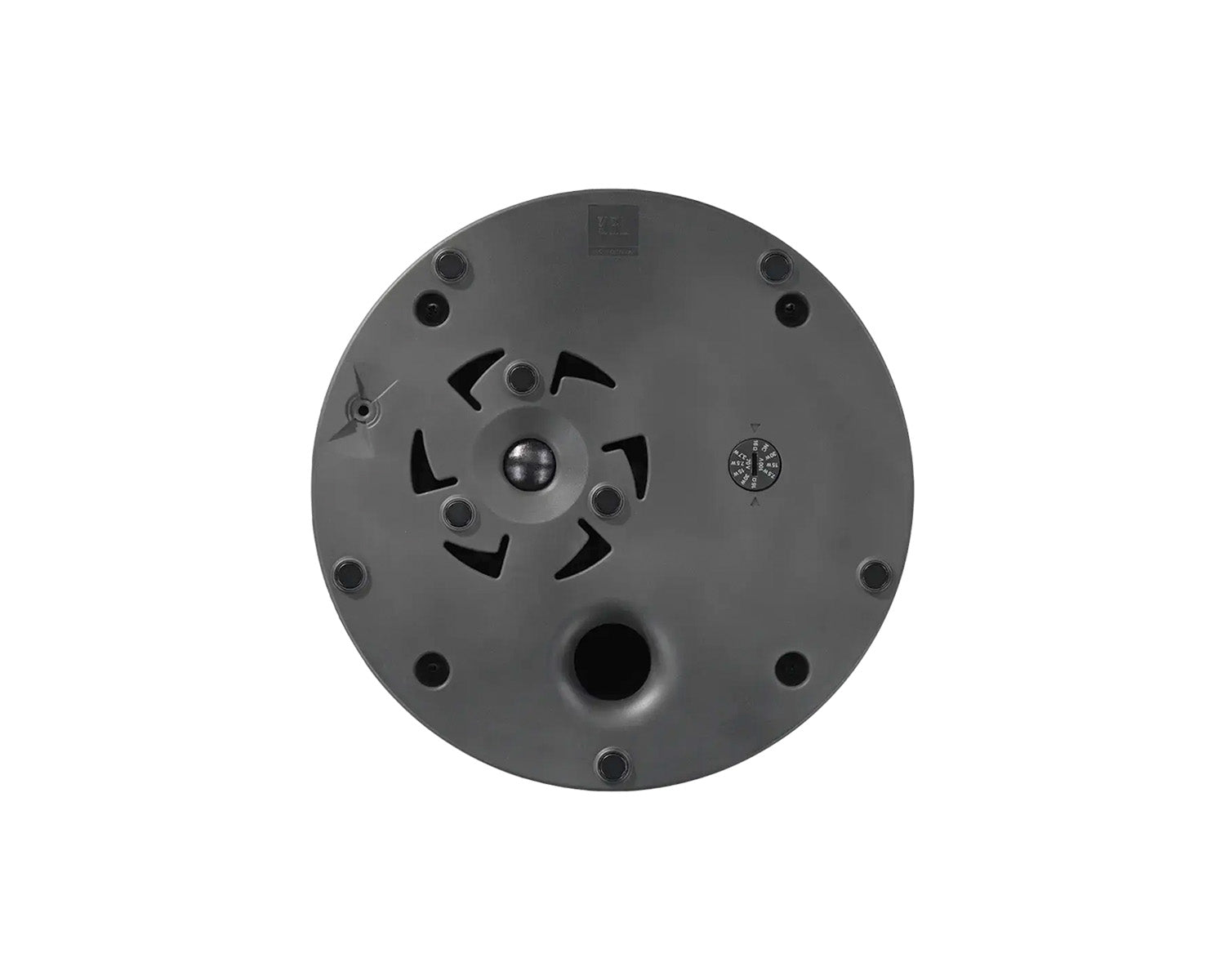

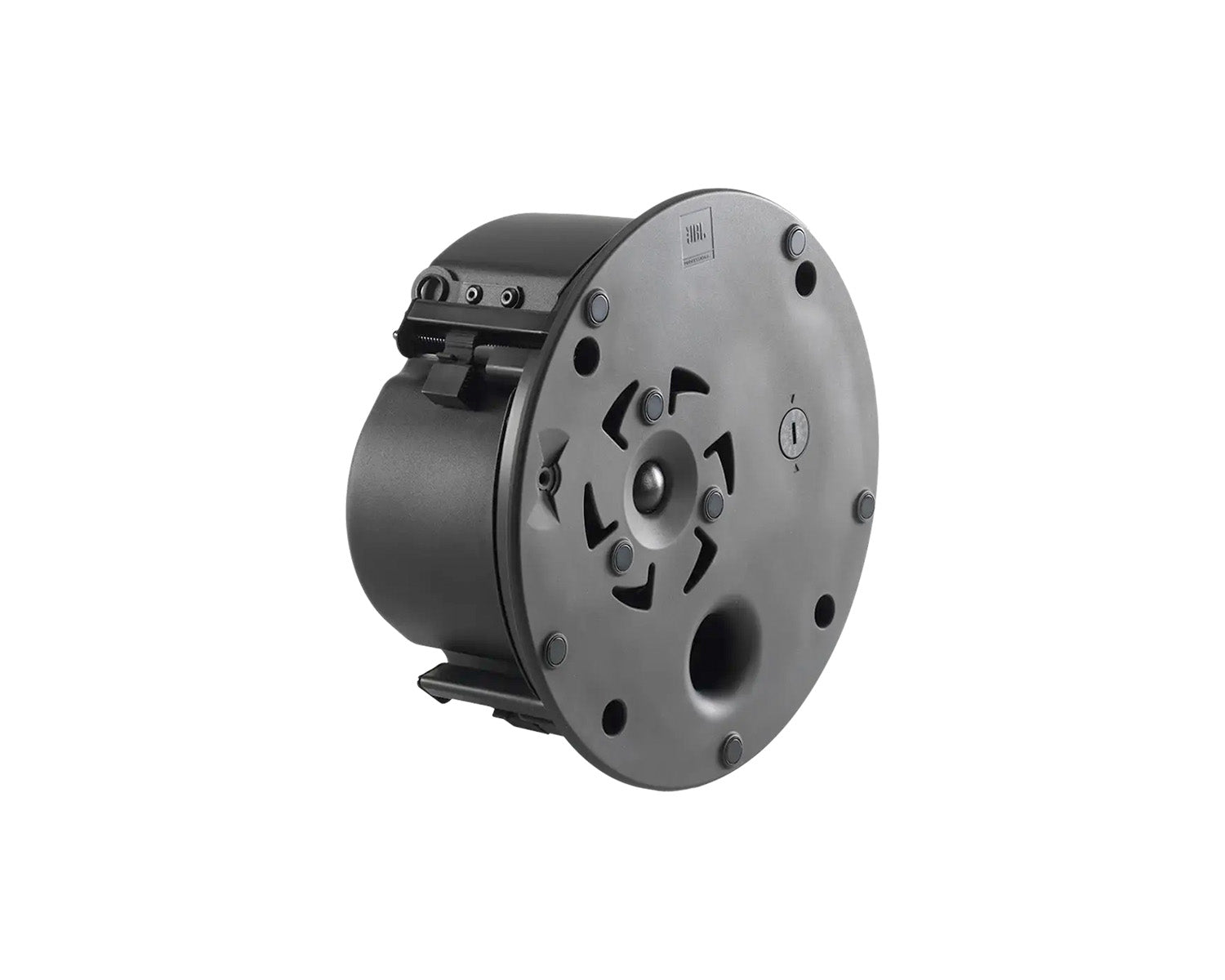

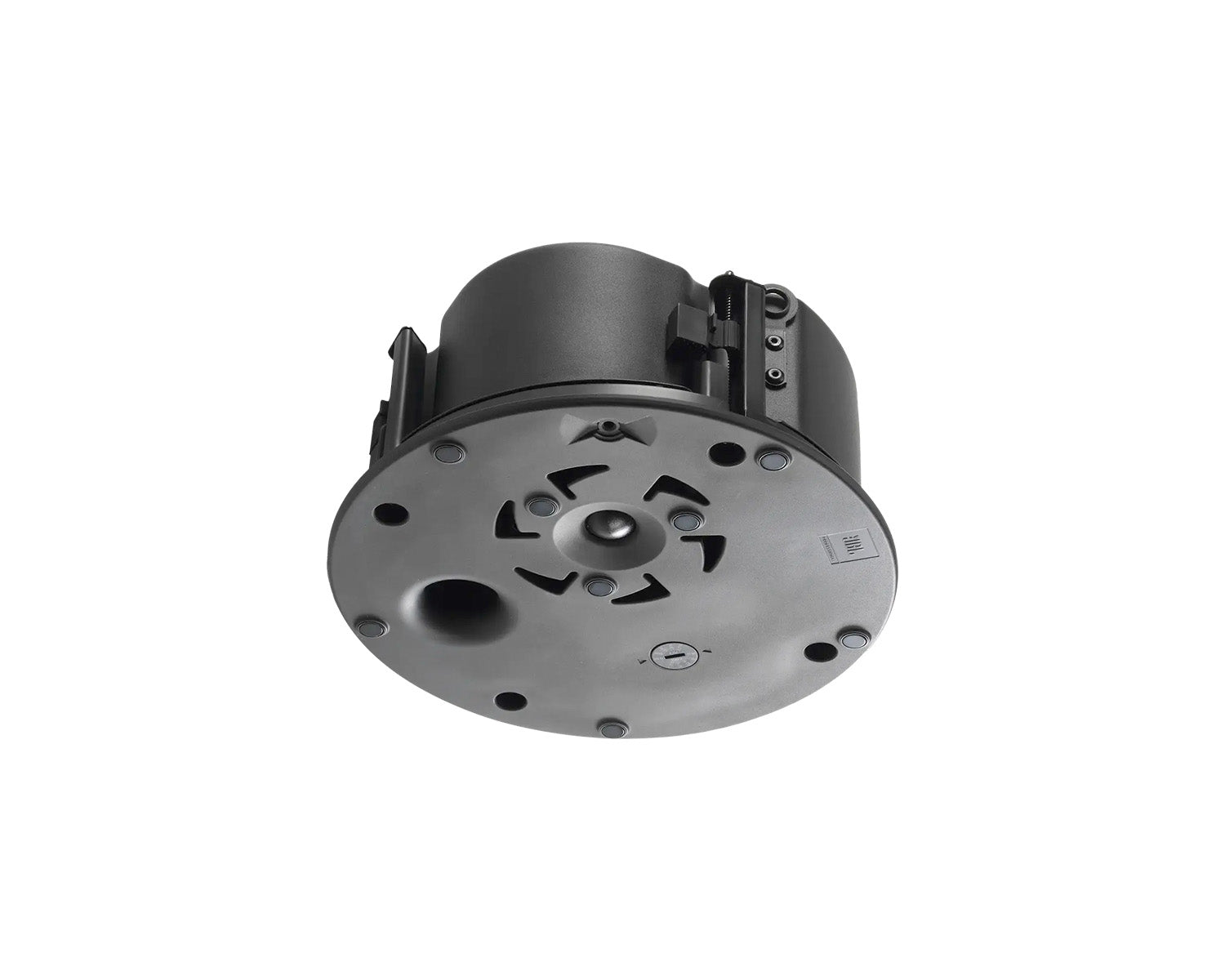

• Coaxially mounted 100 mm (4 in) woofer and 19 mm (0.75 in) soft-dome tweeter
• Low-profile enclosure (<100mm deep) for installing where ceiling plenum space is restricted
• CRBI™ technology for consistent 130° coverage across the listening area
• Built-in 70V/100V multi-tap transformer, plus 16-ohm direct input
• Full-face, easily paintable magnetic grilles

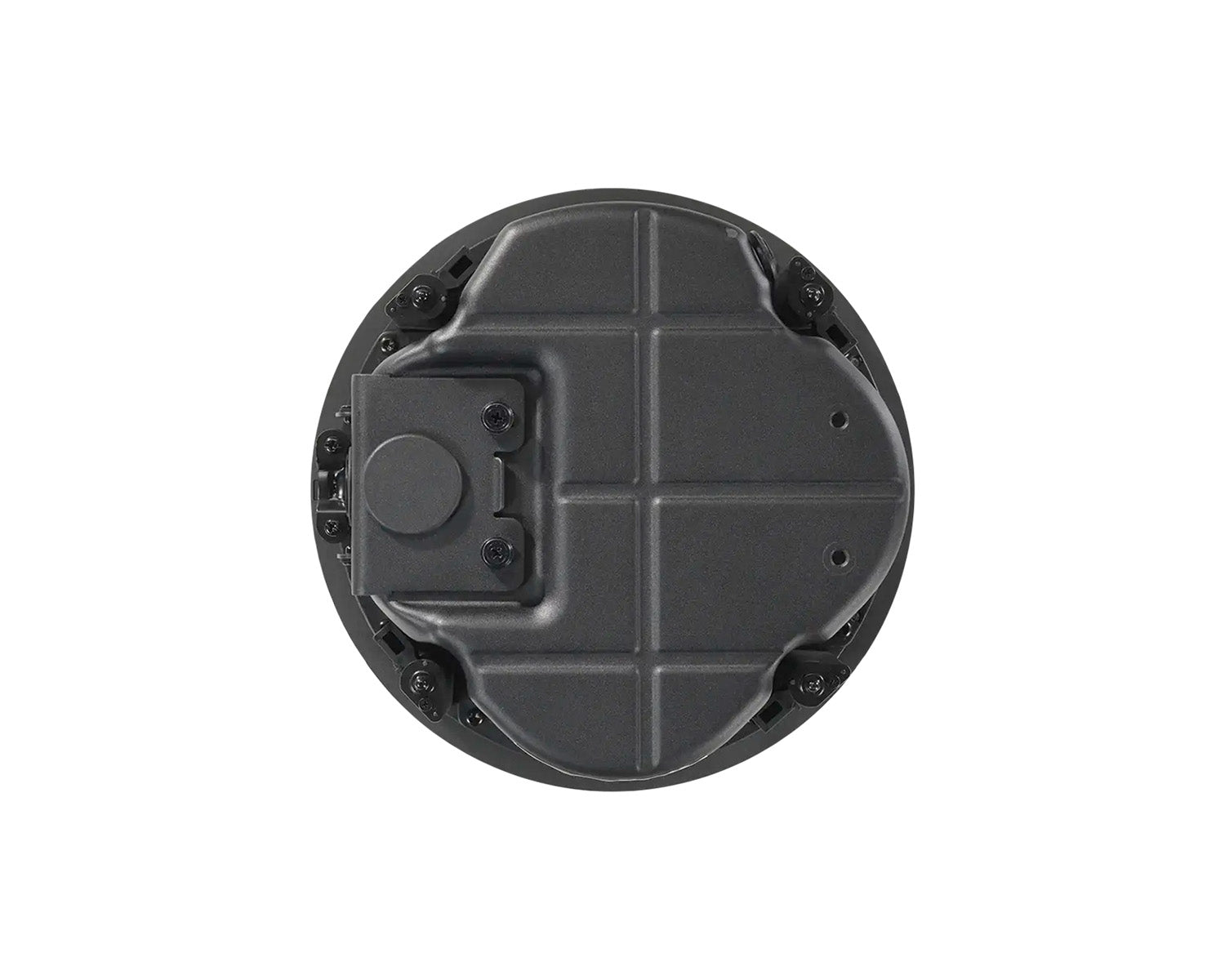

• Top and side exit cable entry options

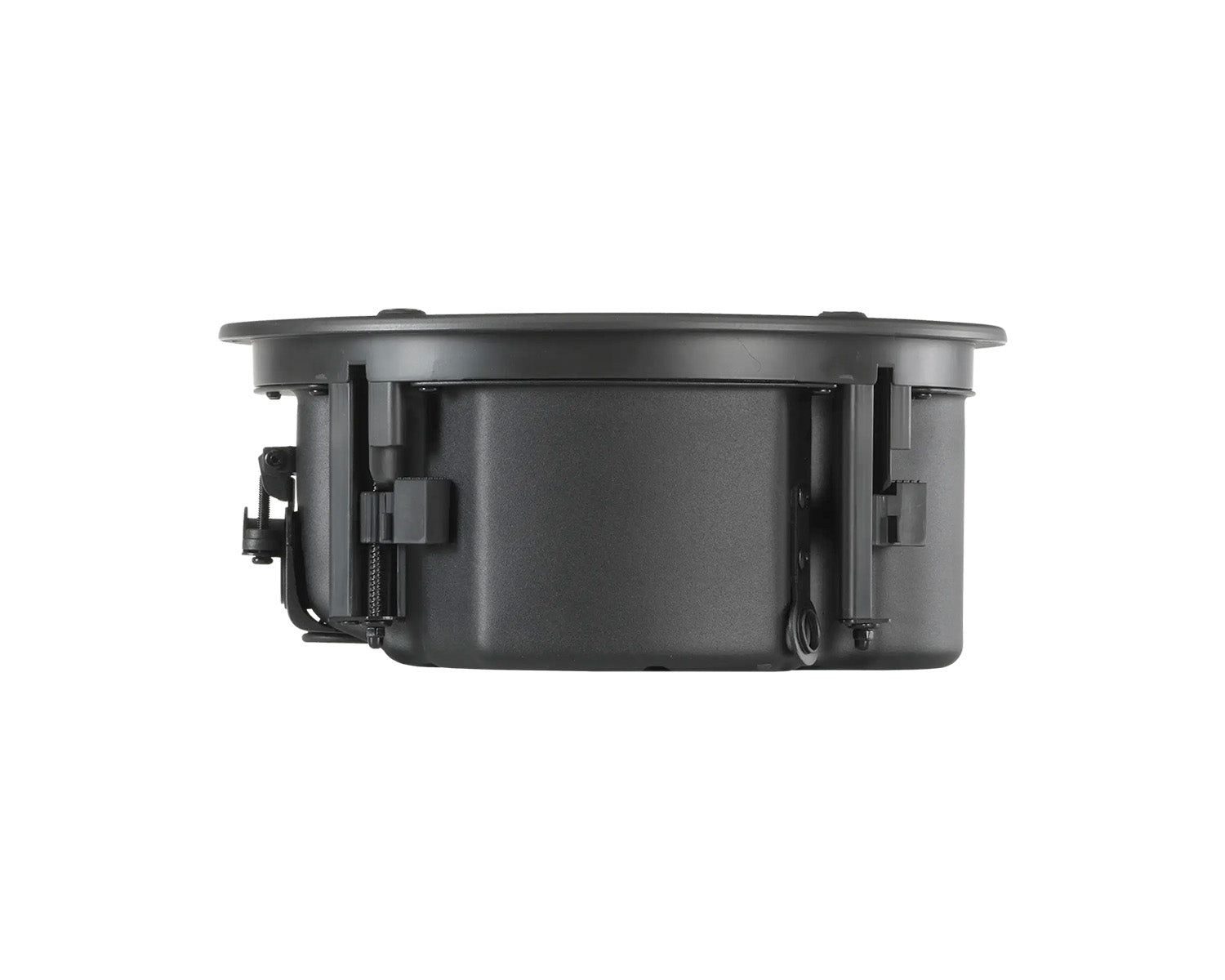

• Robust and adaptable dogears for wide range of ceiling thicknesses
• IP33 rated

Product Specifications

• Frequency Range (-10 dB):  75Hz - 18kHz
• Power Capacity:
  • 60W (240 W Peak), Cont. Pink Noise (2 hrs.)
  • 40 W (160 W Peak) Cont. Pink Noise Power (100 hrs.)
• Sensitivity (1m/1W):  85dB
• Coverage Angle:  130° conical
• Maximum SPL (1m):  103 dB continuous pink noise (109 dB peak)
• Nominal Impedance:  16Ω
• Transformer Taps:
  • 70 V:  30 W, 15 W, 7.5 W & 3.7 W
  • 100 V:  30 W, 15 W, 7.5 W

• Drivers:
  • LF:  100 mm (4 in) with treated paper cone and high-performance magnet
  • HF:  19 mm (0.75 in) textile soft-dome with Neodymium magnet assembly
• Ceiling Cutout Size:   224 mm (8.8 in)
• Dimensions:
  • 107 mm (4.2 in) H x 253 mm (9.9 in) dia.
  • 98 mm (3.9 in) from bottom of ceiling tile to top of backcan
• Safety Agency Rating:  Suitable for use in air handling spaces per UL2043, NFPA 90A & NFPA 70, CSA C22.2 no. 205 and S7232/UL1480A Listed.
• Environmental:
  • IP rating: IP33 per EN/IEC 60529.
  • Operating temperature: 0° C to 45 °C.
• Optional Accessories:
  • JBL-MTC-426BG black (RAL9004) round grille
  • JBL-MTC-426SG white (RAL9003) square grille
  • JBL-MTC-426NC new construction bracket
  • JBL-MTC-426MR mud-ring construction bracket
  • JBL-MTC-48TRX4 tile rail for 4' x 4' ceiling tiles
• Colour:  Stock grille is white (RAL9003), paintable.
• Net Weight (each):  3.0 kg (6.7 lbs)
