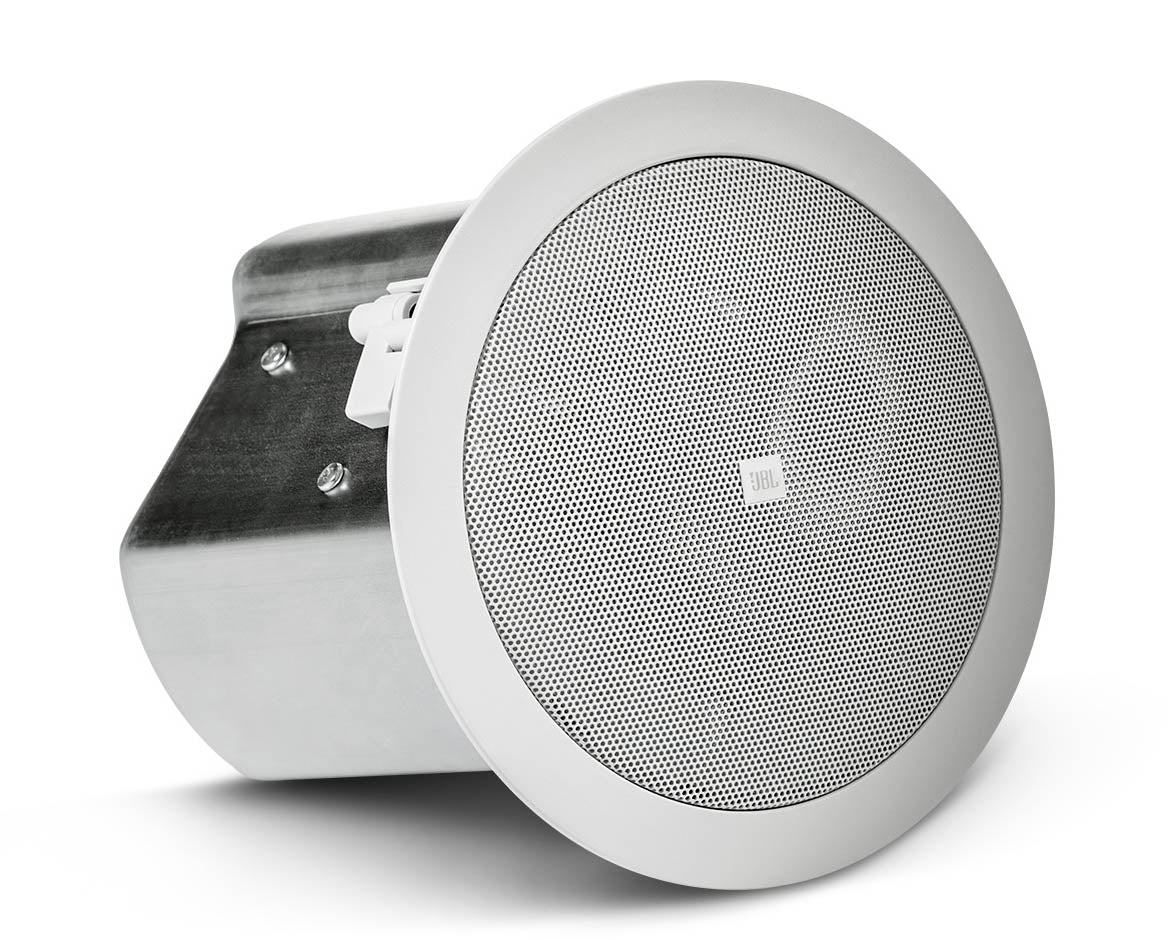

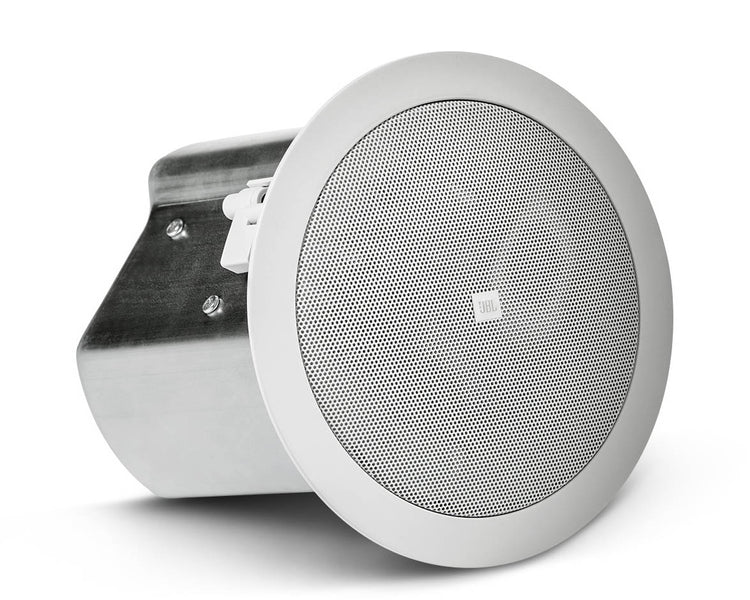

Control 14C/T is a full-range ceiling speaker consisting of a 100 mm (4 inch) high tech cone driver and a 19 mm soft-dome liquid cooled tweeter mounted in a vented, paintable baffle made of UV resistant UL94-V0 and UL94-5HB material, with a pre-attached blind-mount backcan for quick and easy installation.

Product Features

• Components:

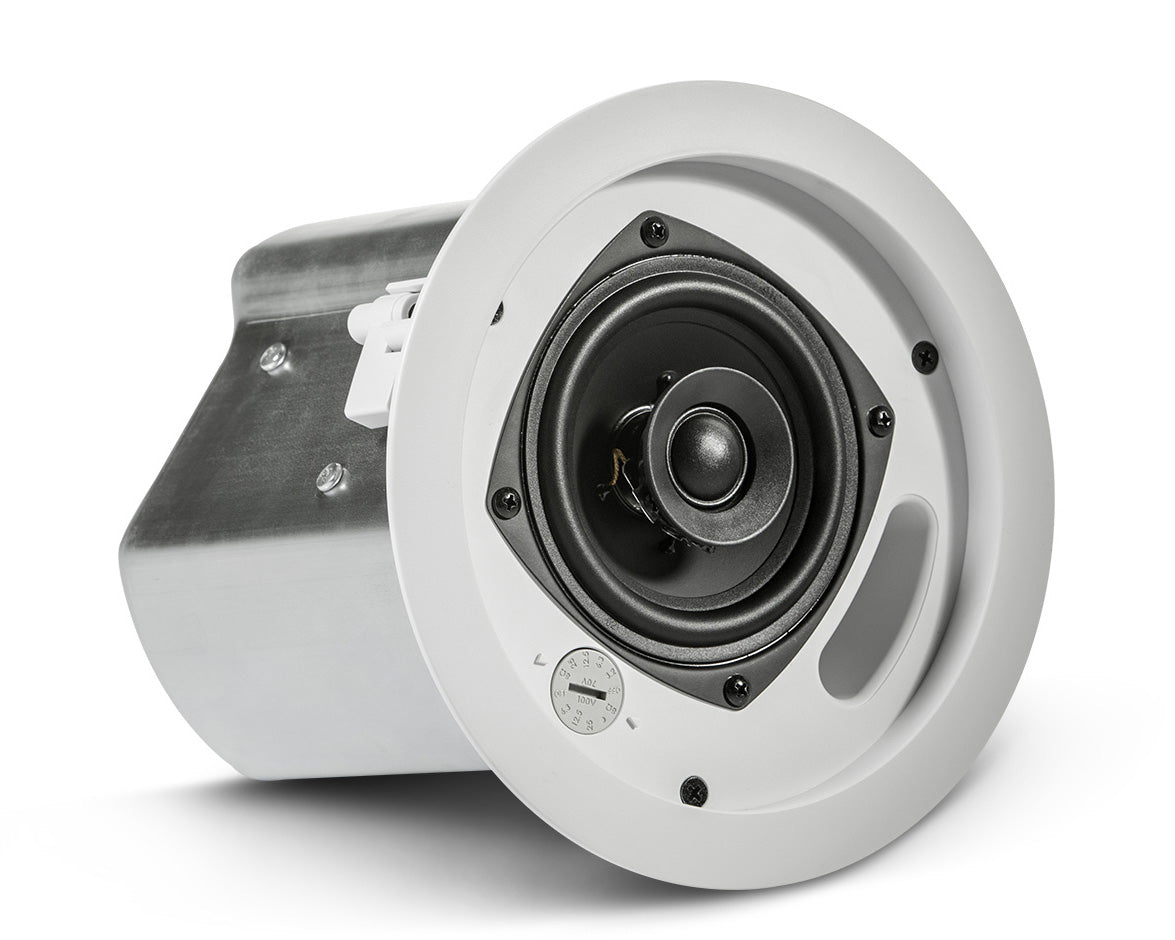

• 100 mm (4.0 in) high output driver with polypropylene coneand butyl rubber surround
• 19 mm (0.75 in) soft-dome liquid-cooled tweeter
• Blind-mount backcan for quick and easy install
• Dual conduit/cable clamps
• Combined 70V/100V and low impedance direct operation
  • 30 Watts at 8Ω nominal setting
  • 25W multi-tap at 70V/100V
• 74 Hz – 20 kHz bandwidth with wide 120° coverage

Product Specifications

General

• Frequency Range (-10 dB)74 Hz – 20 kHz
• Power Capacity (at low-Z)60 Watts Continuous Program Power
• 30 Watts Continuous Pink Noise
• Transformer Taps25 W, 12.5 W, 6.3 W @ 70V or 100V
• (plus 3.2 W @ 70V only)
• Frequency Response (±3 dB)100 Hz – 20 kHz
• Nominal Sensitivity87 dB
• Nominal Coverage Angle120° conical coverage
• Directivity Factor (Q)7.6
• Directivity Index (DI)8.1 dB
• Rated Maximum SPL102 dB @ 1 m (3.3 ft) average, 108 dB peak
• Nominal Impedance8 ohms (in direct/bypass 8Ω setting)
• Crossover Network12 dB/oct (2nd order) low-pass to LF driver,
• 12 dB/oct (2nd order) high-pass to HF driver
• LF Driver100 mm (4.0 inch) with polypropylene cone, butyl rubber surround, anodized aluminum voice coil former, high temperature voice coil
• HF Driver19 mm (3/4 in), highly-damped treated-silk dome, Kapton™ voice coil, liquid cooling, wide dispersion waveguide

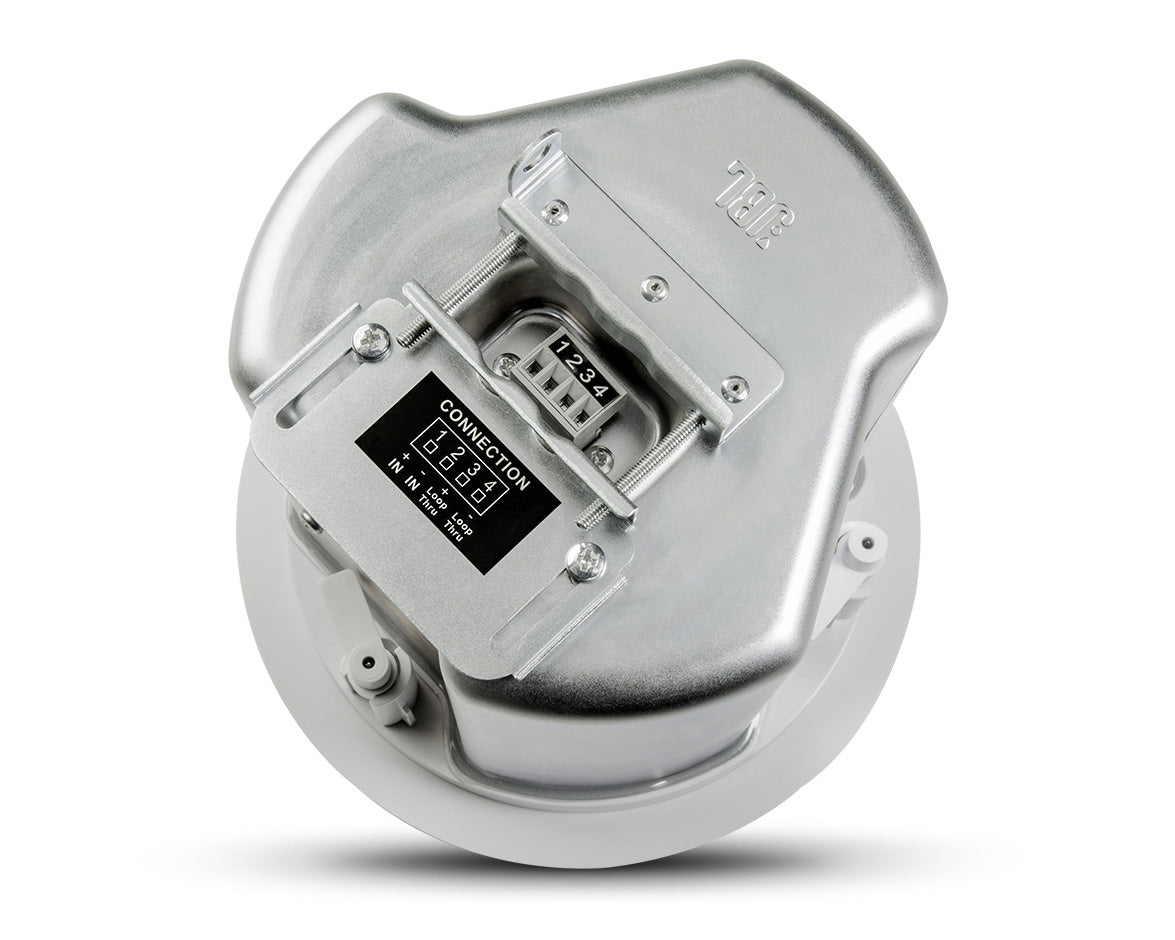

• Input ConnectorRemovable locking 4-pin connector with screw-down terminals.
• Max wire size 12 AWG (2.5 mm2)
• Connector WiringPin 1 = + In; Pin 2 = - In; Pin 3 = + Loop Thru; Pin 4 = - Loop Thru
• Strain ReliefsStrain relief for two cables or two flex conduits via coupled clamping mechanism
• MaterialsABS baffle with UL94-V0 and UL94-5VB flame class fire rating. Zinc-plated
• steel backcan
• Safety AgencyUL1480, UL2043, NFPA90 & NFPA70; S7232/UL Listed, Suitable for use in air handling spaces, Signaling Speaker; Transformer UL registered per UL1876; ROHS, C-tick N108, CE compliant; Baffle meets UL94-V0 and UL94-5VB flammability rating; In accordance with IEC60849/EN60849 systems
• Safety Seismic AttachmentOne point, top surface

Physical & Dimensions

• Diameter: 196mm
• Depth from back of baffle: 181mm
• Ceiling Cutout Size: Circular cutout with 170 mm (6.7 in) diameter (cardboard cutout template included)
• Ceiling Thickness Range: Up to 35 mm (1.4 in) with stock dog-ears. MTC-TCD thick-ceiling dog-ears available for up to 55 mm (2.2 in) ceiling thicknesses
• Net Weight: 2.2kg (4.8 lbs, one speaker)
• Shipping Weight: 8.2kg (17.9 lbs, pair in master carton)

What's in the Box?

• 1 C-ring support backing plate
• 2 tile support rails (for 2 ft or 600 mm tile spans; optional MTC-48TR extension available for larger 4 ft or 1200 mm tile spans)
• 1 Cutout Template
• 1 Paint Shield
• 1 Removable Locking Multi-pin Connector
• 1 Grille
