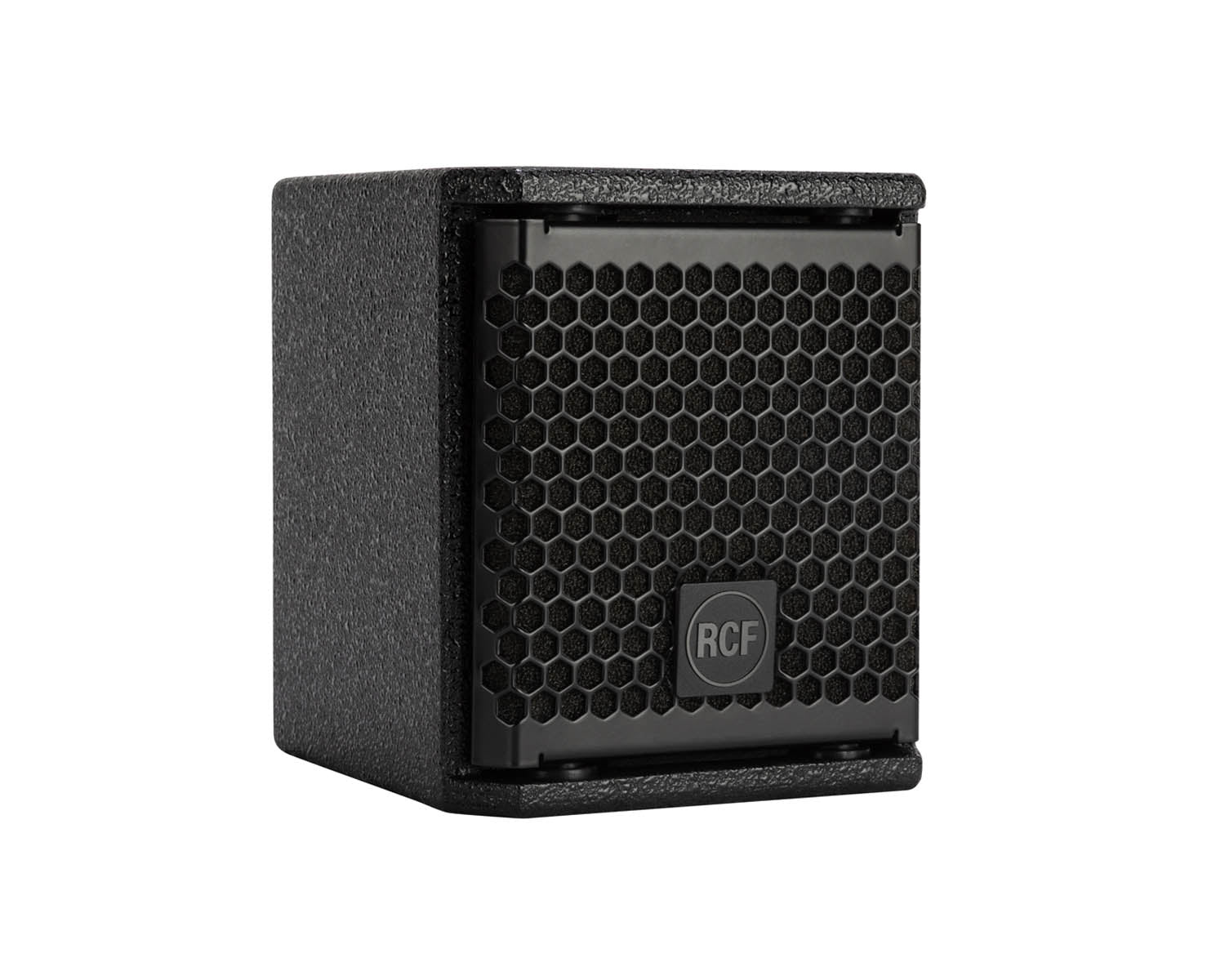

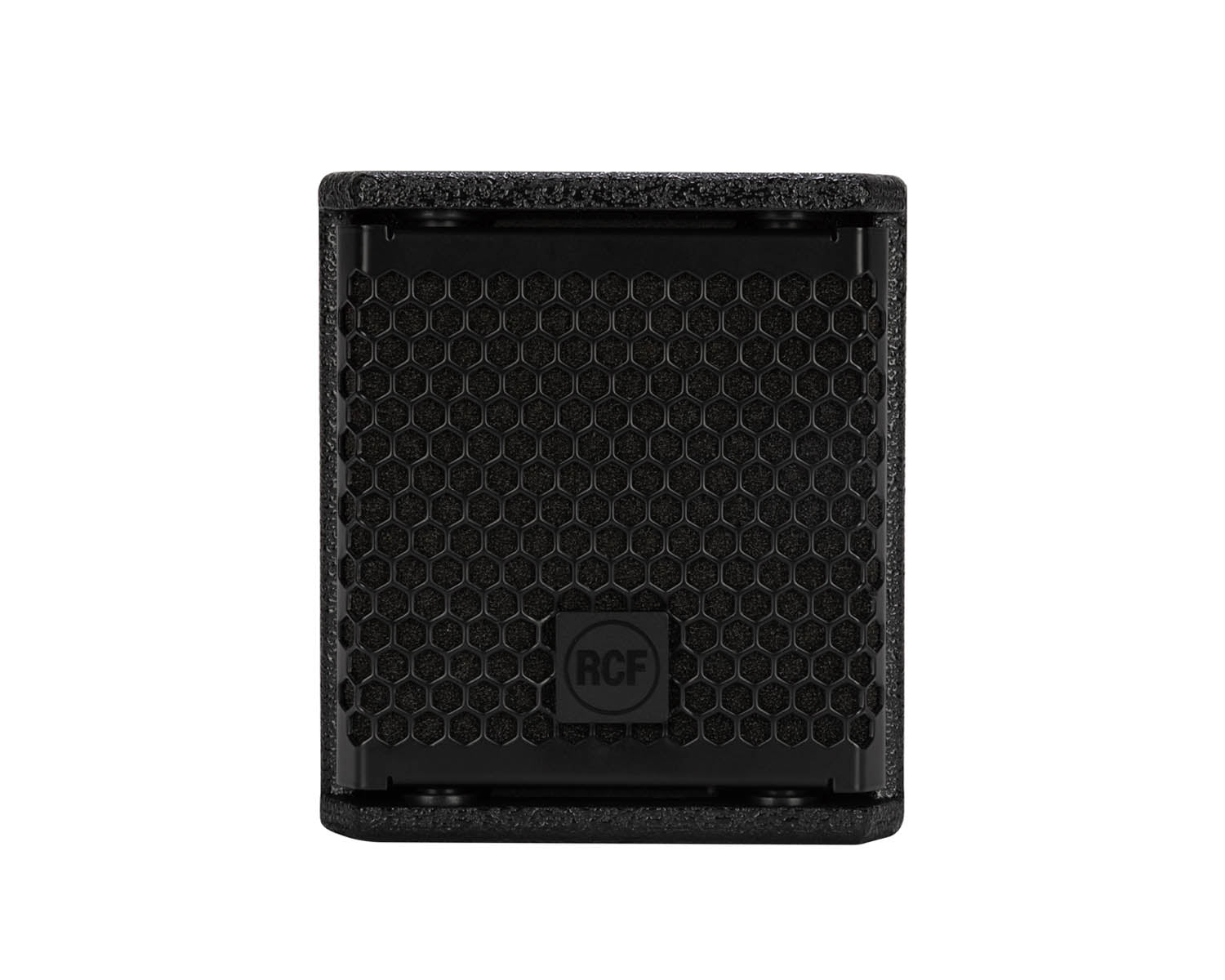

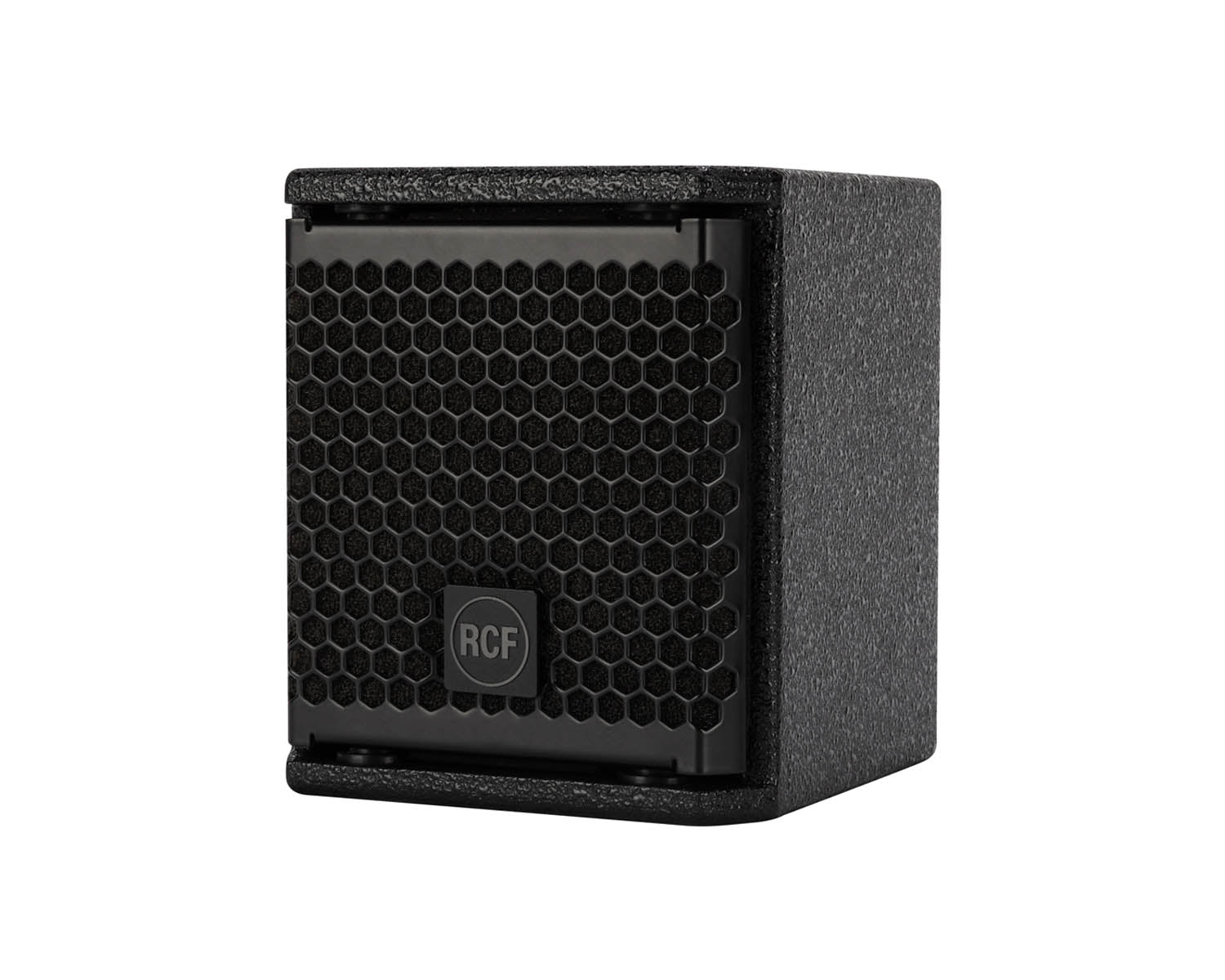

COMPACT M 04 is a multipurpose two-way full-range coaxial speaker system, suitable for a wide range of applications. Its balanced sound is a big asset in near-field applications for the best intelligibility. M 04 features high sensitivity, thanks to the use of oversized magnets, and a HI-FI sound quality, with smooth and wide frequency response. The SPL level of low-distortion audio the M 04 can provide goes far beyond expectations of such a compact solution. The elegant and compact design with accurate finishing makes M 04 suitable for almost any environment, even with architectural constraints. Included wall mount bracket allow the use of the M 04 on wall or ceiling installations.

Product Features

• 60W AES power handling
• 113 dB max SPL
• 90 ÷ 20000 Hz frequency range
• 120° x 120° constant directivity coverage angle
• 1 x 4" coax woofer
• 1 x 1" voice coil neodymium dome tweeter
• High quality plywood cabinet
• Wall mount bracket included

Product Specifications

Acoustical specifications

• FREQUENCY RESPONSE (-10DB): 90 Hz ÷ 20000 Hz
• MAX SPL @ 1M: 113 dB
• HORIZONTAL COVERAGE ANGLE: 120°
• VERTICAL COVERAGE ANGLE: 120°
• DIRECTIVITY INDEX Q: 6
• SYSTEM SENSITIVITY: 89 dB

Power section

• NOMINAL IMPEDANCE (OHM): 16
• POWER HANDLING: 60 W RMS
• PEAK POWER HANDLING: 240 W PEAK
• RECOMMENDED AMPLIFIER: 120 W
• CROSSOVER FREQUENCIES: 1800 Hz

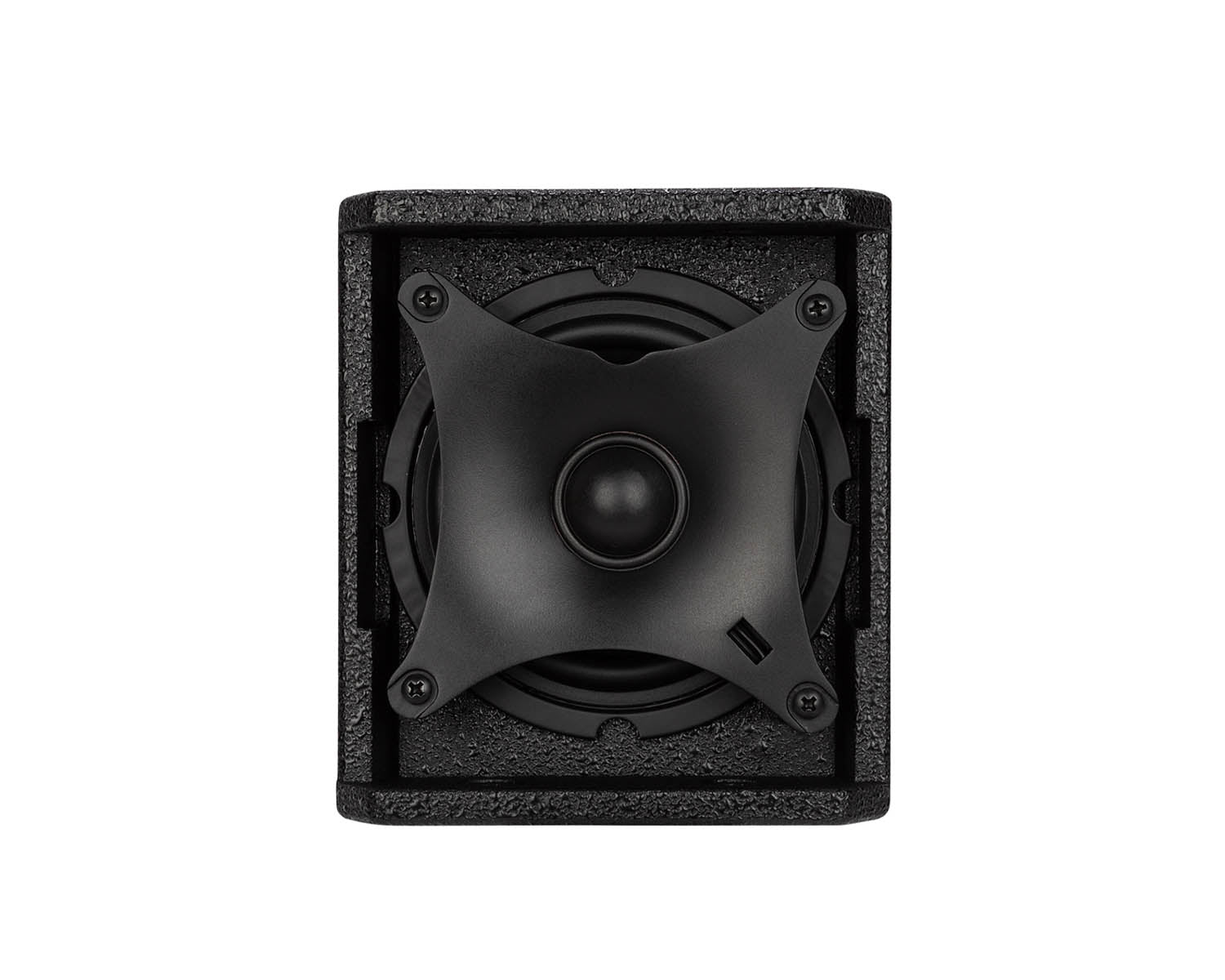

Transducers

• DOME TWEETER: 1.0\'\' neo, 1.0\'\' v.c
• NOMINAL IMPEDANCE (OHM): 16 ohm
• INPUT POWER RATING: 10 W AES, 20 W PROGRAM POWER
• SENSITIVITY (DB, 1W @ 1M): 91 dB
• WOOFER: 4.0\'\', 1.0\'\' v.c
• NOMINAL IMPEDANCE (OHM): 16 ohm
• INPUT POWER RATING: 60 W AES, 120 W PROGRAM POWER
• SENSITIVITY (DB, 1W @ 1M): 88 dB

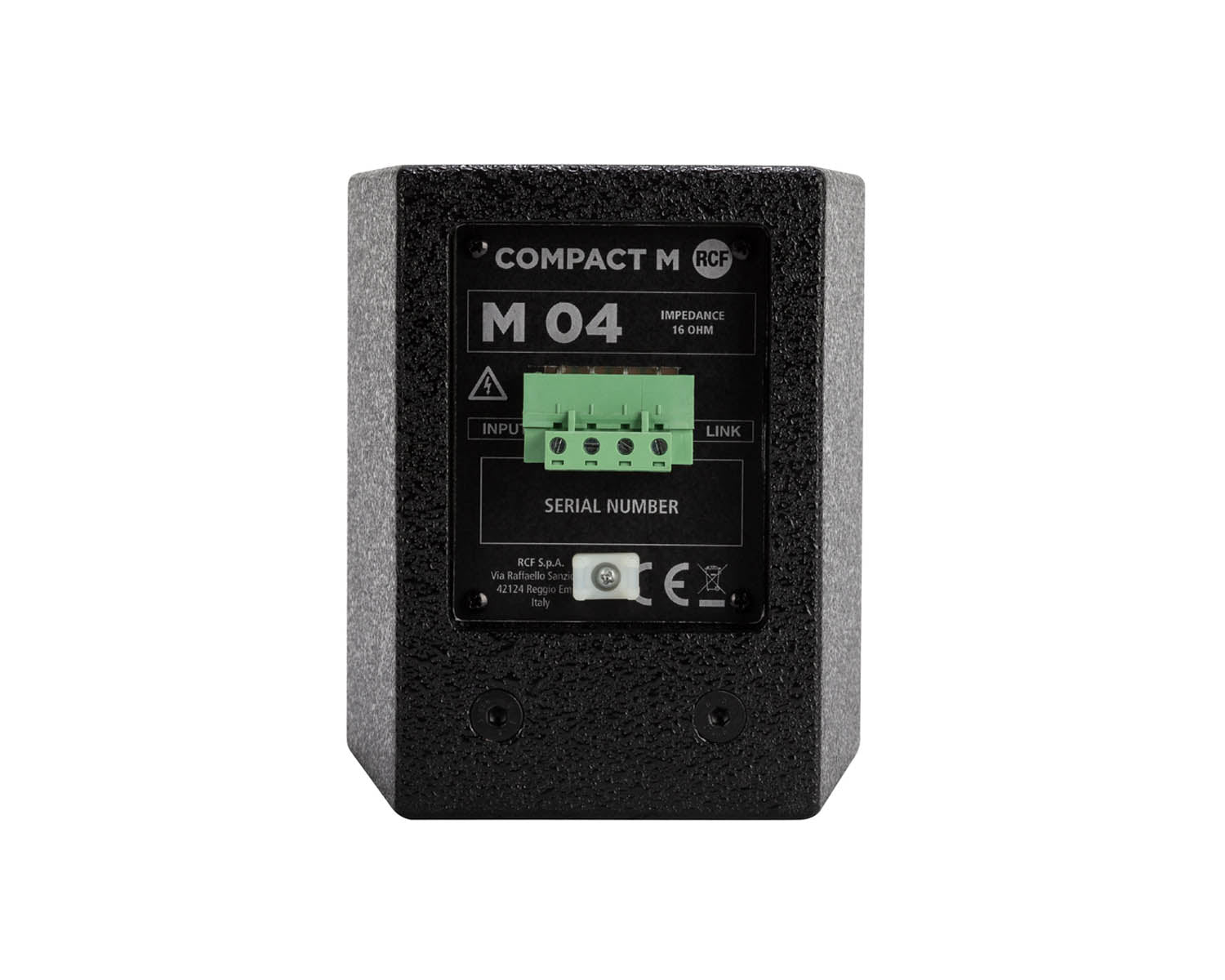

Input/Output section

• INPUT CONNECTORS: Euroblock
• OUTPUT CONNECTORS: Euroblock

Standard compliance

• CE MARKING: Yes

Physical specifications

• COLOUR: Black - RAL 9005
• HARDWARE: 2 x M6, 2 x M8
• GRILLE: Steel with clothing
• CABINET/CASE MATERIAL: Plywood

Size

• WIDTH: 132 mm / 5.2 inches
• DEPTH: 145 mm / 5.71 inches
• HEIGHT: 148 mm / 5.83 inches
• WEIGHT: 2.3 kg / 5.07 lbs

Shipping information

• PACKAGE WEIGHT: 2.9 kg / 6.39 lbs
• PACKAGE DEPTH: 150 mm / 5.91 inches
• PACKAGE WIDTH: 233 mm / 9.17 inches
• PACKAGE HEIGHT: 168 mm / 6.61 inches
