The CBT 100LA-1, with Constant Beamwidth Technology™, represents a breakthrough in pattern control consistency, utilizing complex analog delay beam-forming and amplitude tapering to accomplish superior, consistent vertical coverage without the narrow vertical beaming and out-of-coverage lobing that are typical of straight form-factor column speakers.

Product Features

• Patent-pending Constant Beamwidth Technology™ provides constant directivity up to the highest frequencies and reduces out-of-coverage lobing.
• Vertical pattern coverage switchable between 40° for medium-throw coverage and 15° for
• long-throw applications.
• Switchable voicing provides flat response in music mode or mid-range presence peak in speech mode.
• Dynamic SonicGuard™ overload protection
• Swivel (pan)/tilt wall bracket included.
• Built-in 70V/100V transformer, plus 8 ohm direct capability.

Product Specifications

General

• Components:

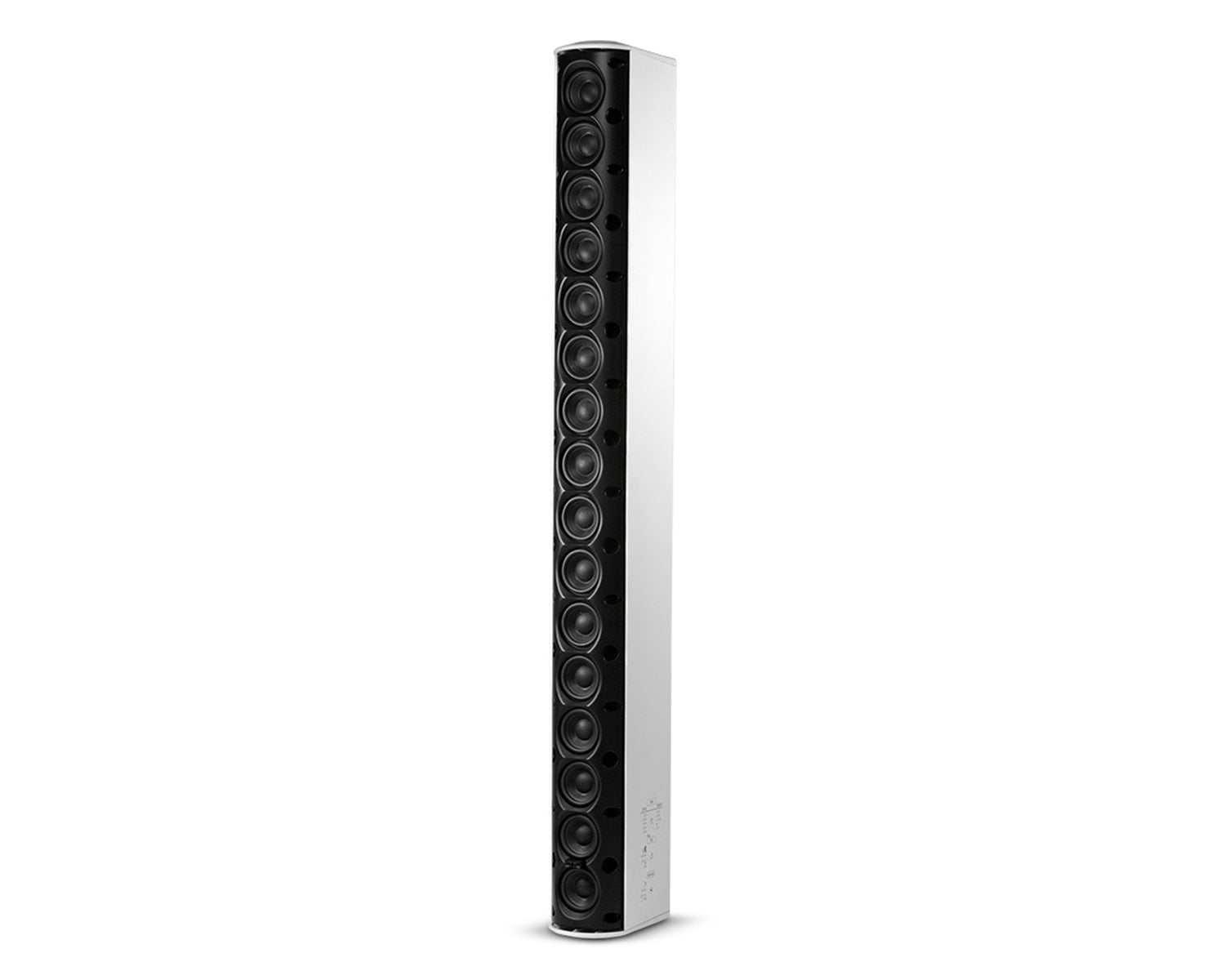

  • Sixteen 50 mm (2 in) Full-Range
• Frequency Range (-10 dB): 80 Hz – 20 kHz
• Vertical Coverage
  • Narrow Mode: 15° (2 kHz - 16 kHz) (±10°)
  • Broad Mode: 40° (1 kHz - 16 kHz) (±10°)
  • Horizontal 150° (ave, 1 kHz – 4 kHz, ±20°)
• Sensitivity (2.83V@ 1m):
  • Narrow:
    • (speech mode) 96 dB (2 kHz - 14 kHz)
    • (music mode) 93 dB (300 Hz - 18 kHz)
  • Broad:
    • (speech mode) 93 dB (2 kHz - 14 kHz)
    • (music mode) 90 dB (300 Hz - 18 kHz)
• Nominal Impedance: 8 ohms (in Thru mode)
• Power Capacity: (8 ohm setting):
  • 325 W (1300W peak), 2 hrs
  • 200 W (800W peak), 100 hrs
• Max SPL:
  • Narrow:
    • (speech mode) 121 dB cont ave (127 peak)
    • (music mode) 118 dB cont ave (124 peak)
  • Broad:
    • (speech mode) 118 dB cont ave (124 peak)
    • (music mode) 115 dB cont ave (121 peak)
• 70V/100V Transformer Taps: 120W, 60W, 30W (15W at 70V only), and 8Ω thru, via switch

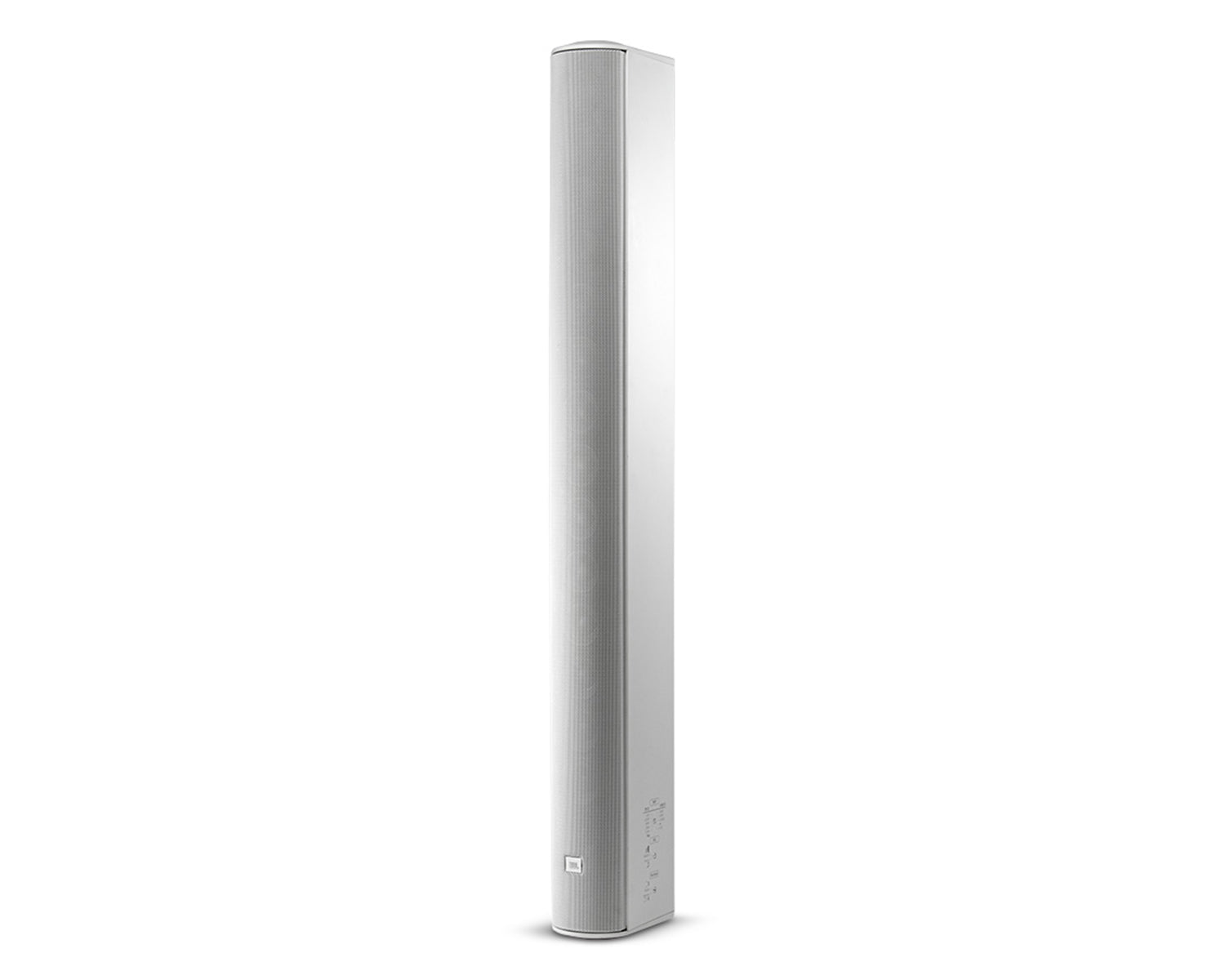

• Enclosure: Fiberglass reinforced ABS cabinet, painted aluminum grille
• Outdoor Capability: IP-55 rated, per IEC529, when installed with optional MTC-PC2 panel cover. UV, moisture and 200-hr ASTM G85 acid-air/salt-spray resistant.
• Colors: Black or White (-WH)
• Insert Points: 18 M6 insert points on back panel.
• Mounting: Included swivel (pan)/tilt wall bracket provides continuously variable +/-80 degree left-right swivel aiming (at no up/down tilt -- see Bracket Guide for maximum swivel range at various up/down tilt angles), continuously adjustable ±15 degree tilt, as well as 5 degree fixed increment points. Eighteen threaded mounting points located on back panel conform to industry standard rectangular 108 x 51 mm (4.25 x 2.0 in) pattern for OmniMount® 30.0 and other compatible third-party brackets. Threaded mounting points can be utilized for suspension.

Physical & Dimensions

• Height: 1000mm
• Width: 98.5mm
• Depth: 153mm
• Weight: 7.2kg
