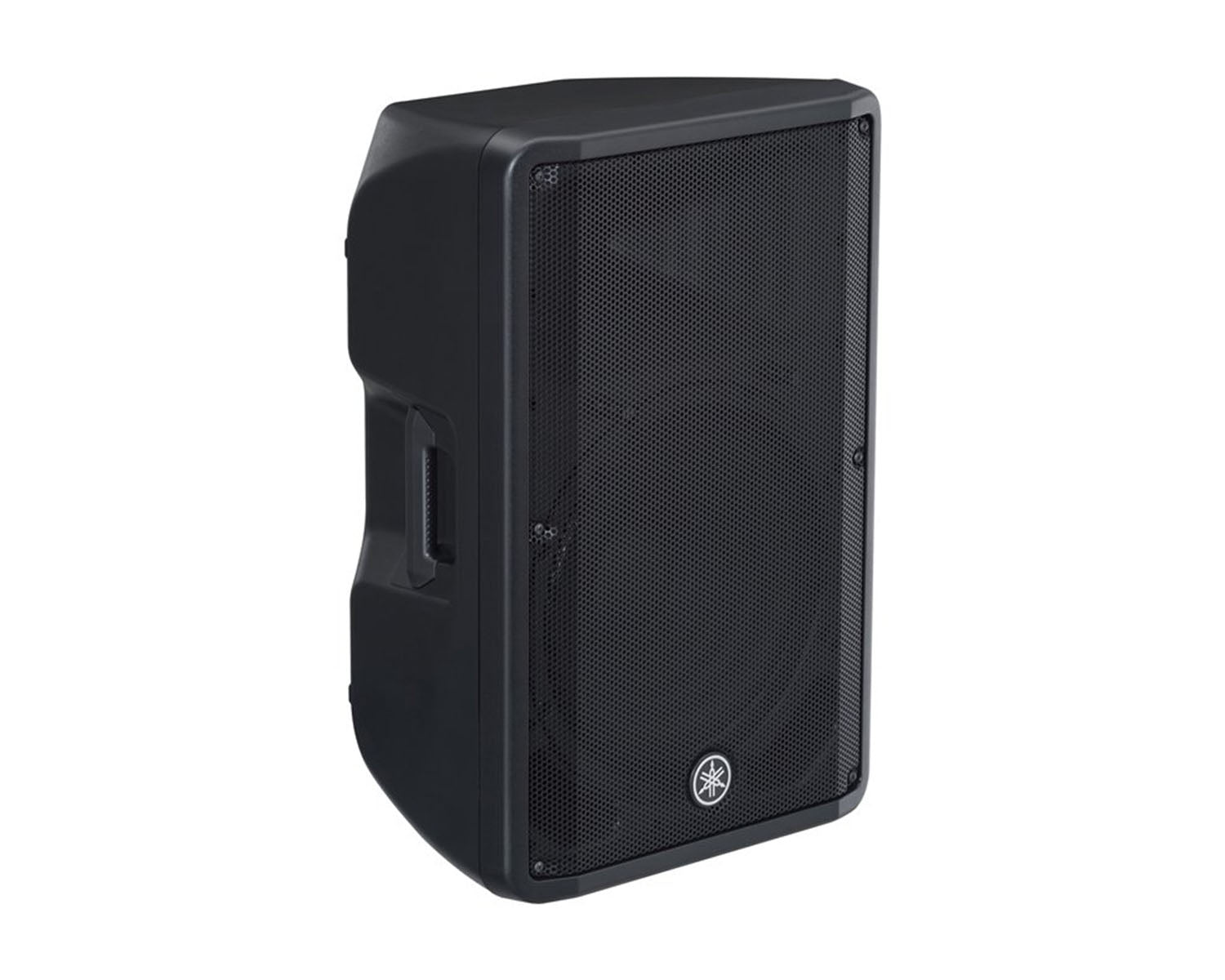

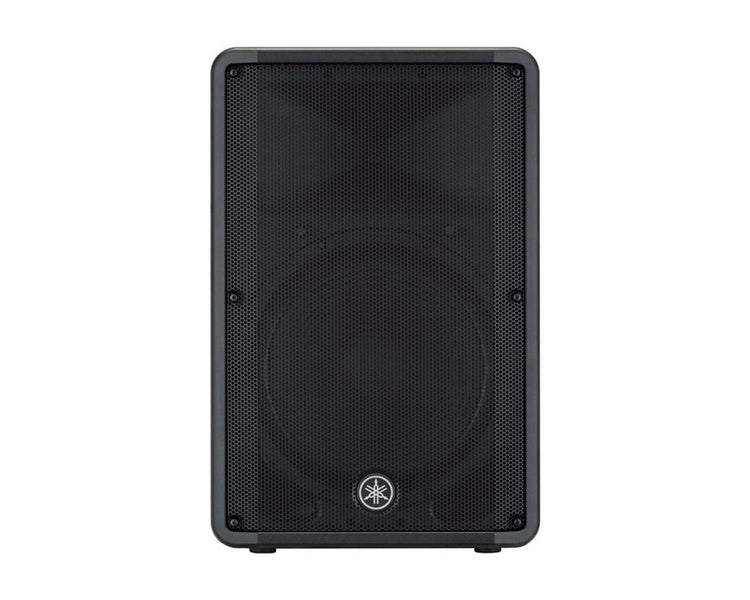

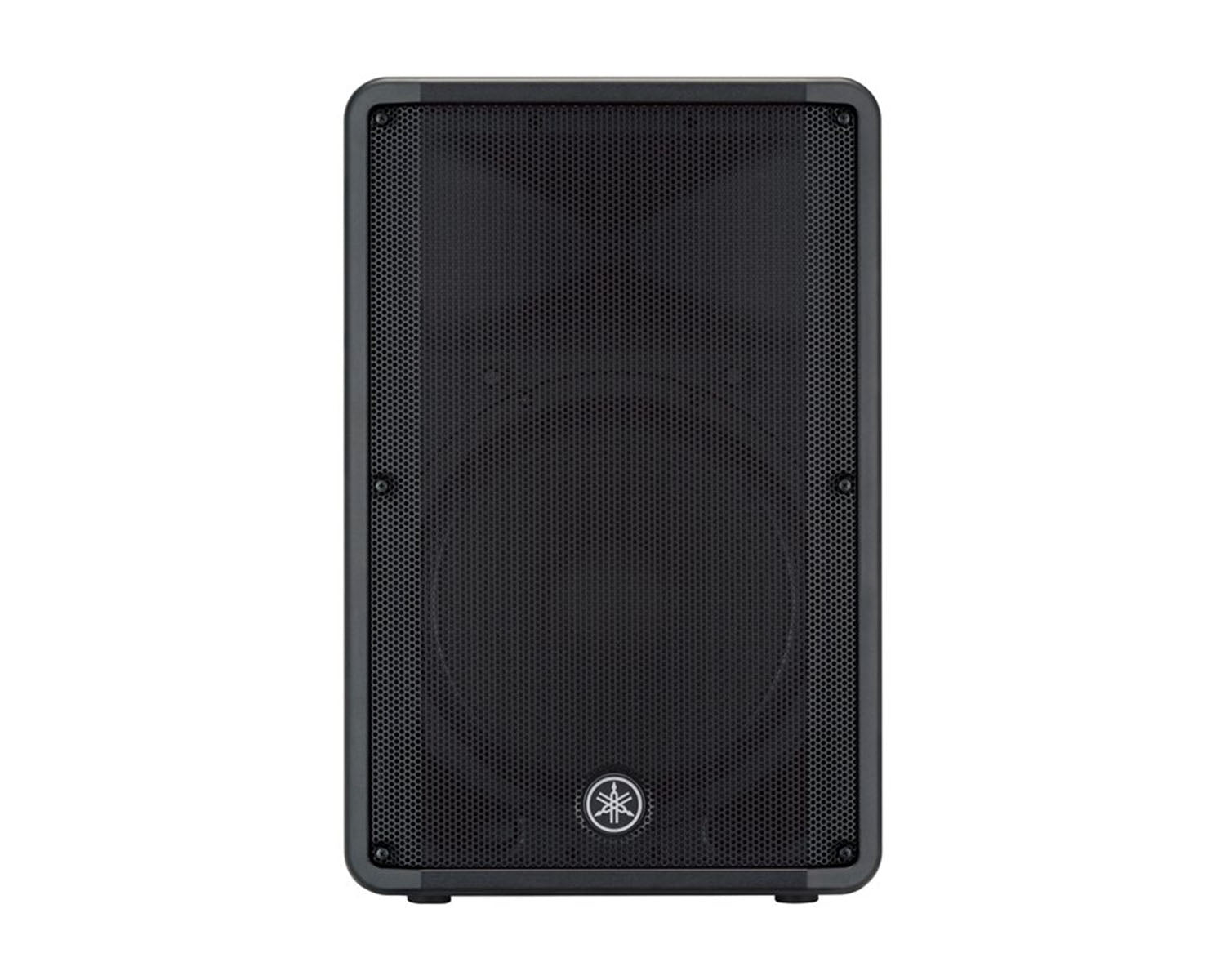

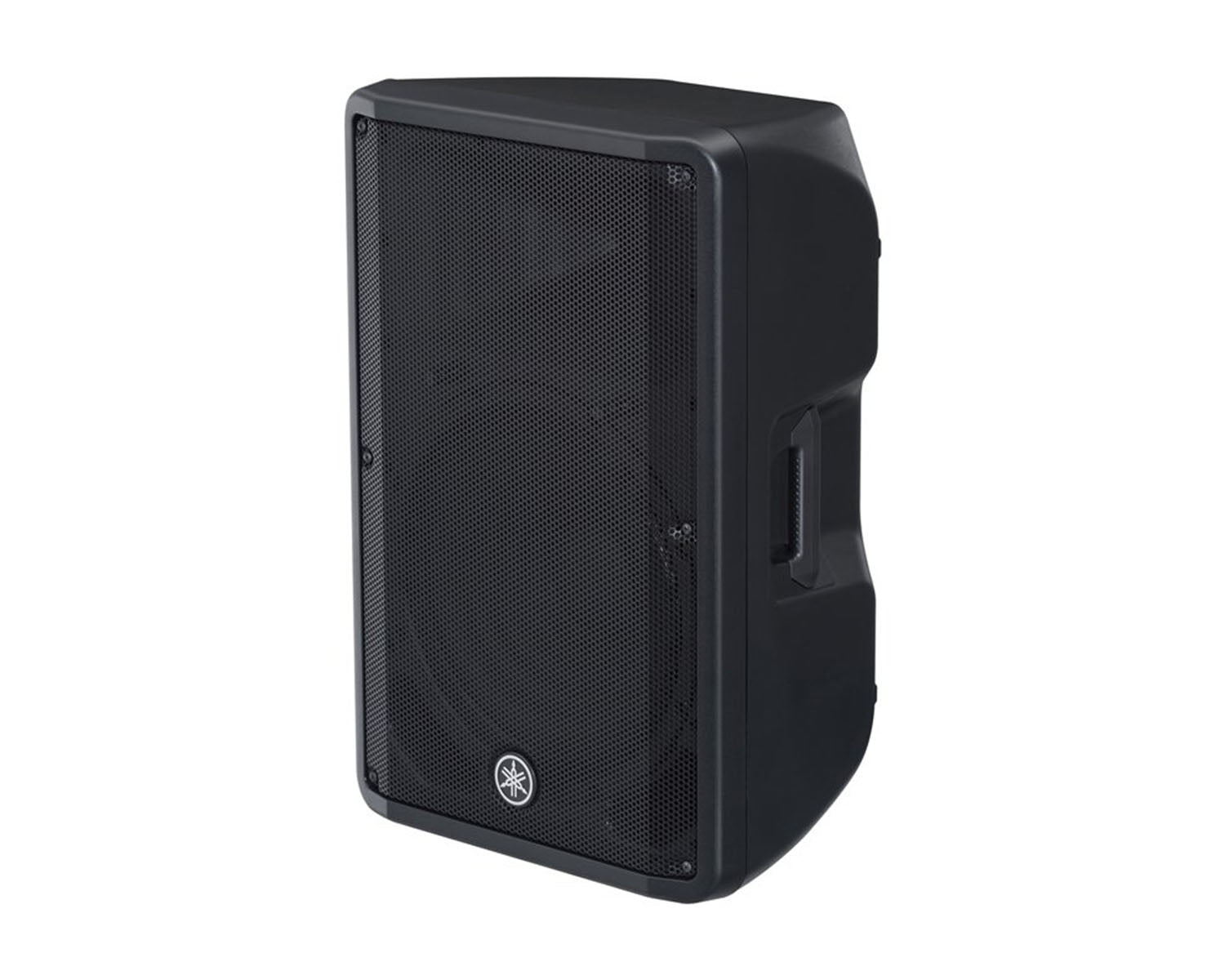

The CBR15 provides the lowest frequency in its lineup, delivering outstanding performance for the front-of-house sound for live performance, DJ events or for installation situations that require highly prominent low and high SPL.

The CBR Series is a lineup of passive loudspeakers developed by adopting the extensive knowledge of speaker design and acoustic technologies that Yamaha has accrued over a long and storied history of making speakers of every kind. Combining a meticulous materials selection process, thorough customization of the audio components, and a fresh, innovative approach to speaker design, our engineering team primary focus was to deliver high-power, high-definition sound in a highly portable and versatile design that is equally at home in front-of-house, floor monitoring, or rigged configurations.

Product Features

• Custom-Designed Transducers and Wide-Dispersion Constant Directivity Horn for Powerful High-Definition Sound
• HF Protection Function and Highly Responsive LF Unit for Reliable Performance at Any Output Level
• Rugged, Highly Portable Enclosure Design
• Simple Connectivity
• Versatility for a Variety of Applications
• High-quality speaker unit, with smooth directional characteristics, and ports reducing wind roar in order
• to achieve High-resolution sound quality
• High sound pressure thanks to the unit’s high-input tolerance and exceptional reliability from protection circuitry
• Highly portable light and compact cabinet
• Input connectors supporting both speakON and phone plugs
• Installable with eye bolt rigging and brackets

Product Specifications

General

• Speaker type: 2-way Speaker, Bass-reflex Type
• Frequency range (-10dB): 46 Hz - 20 kHz
• Nominal coverage: H 90°, V 60°
• Components: LF 15" Cone, 2.5" Voice Coil (Ferrite Magnet)
• Components: HF 1.4" Voice Coil, Compression Driver (Ferrite Magnet)
• Crossover: 2.0 kHz
• Power rating: NOISE: 250W, PGM: 500W, PEAK: 1000W
• Nominal impedance: 8Ω
• SPL: Sensitivity (1W; 1m on axis): 96dB SPL Peak (Calculated): 126 dB SPL

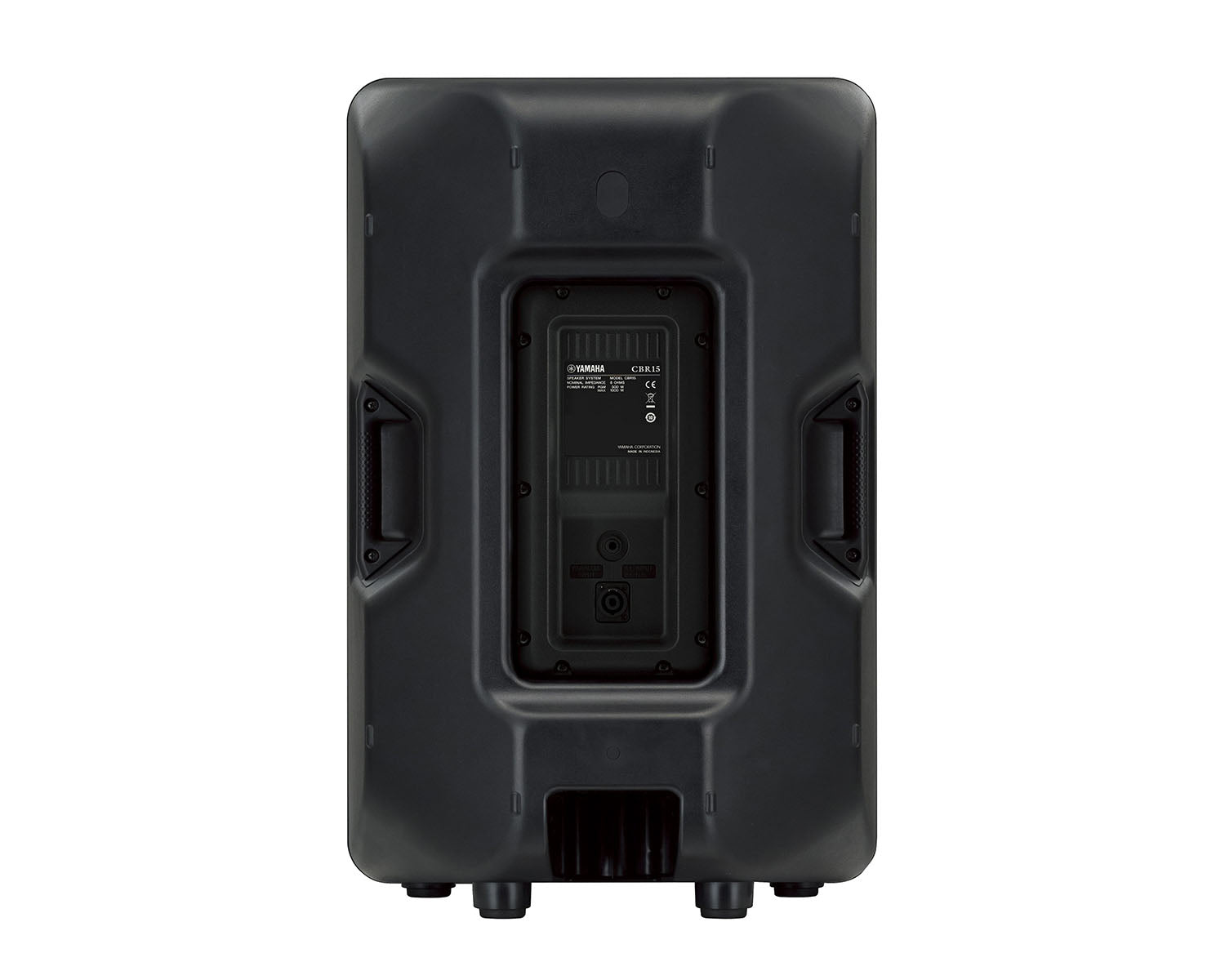

• I/O connectors: 1/4" Phone x 1, speakON NL4MP x 1
• Cabinet material: Plastic
• Finish: Black

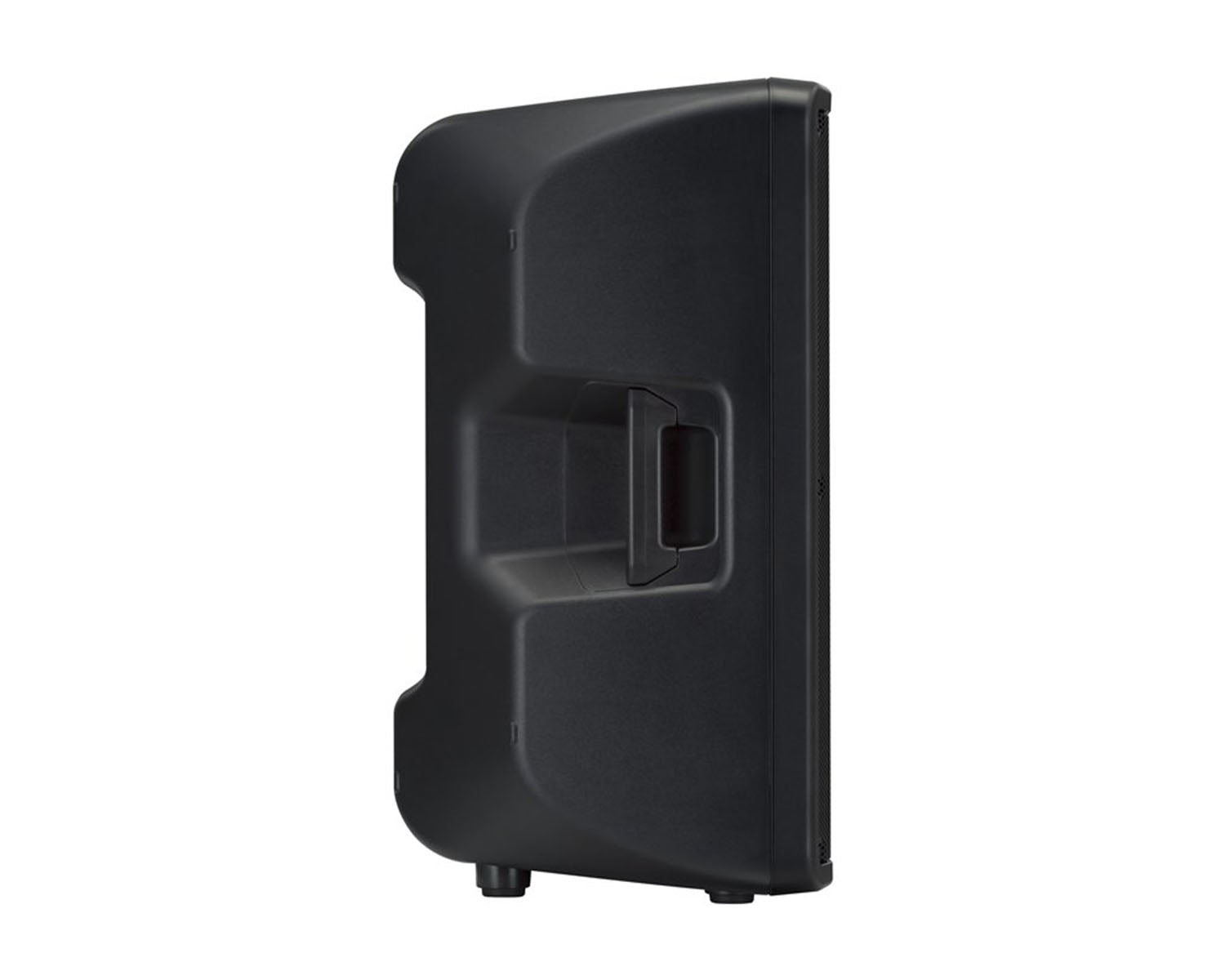

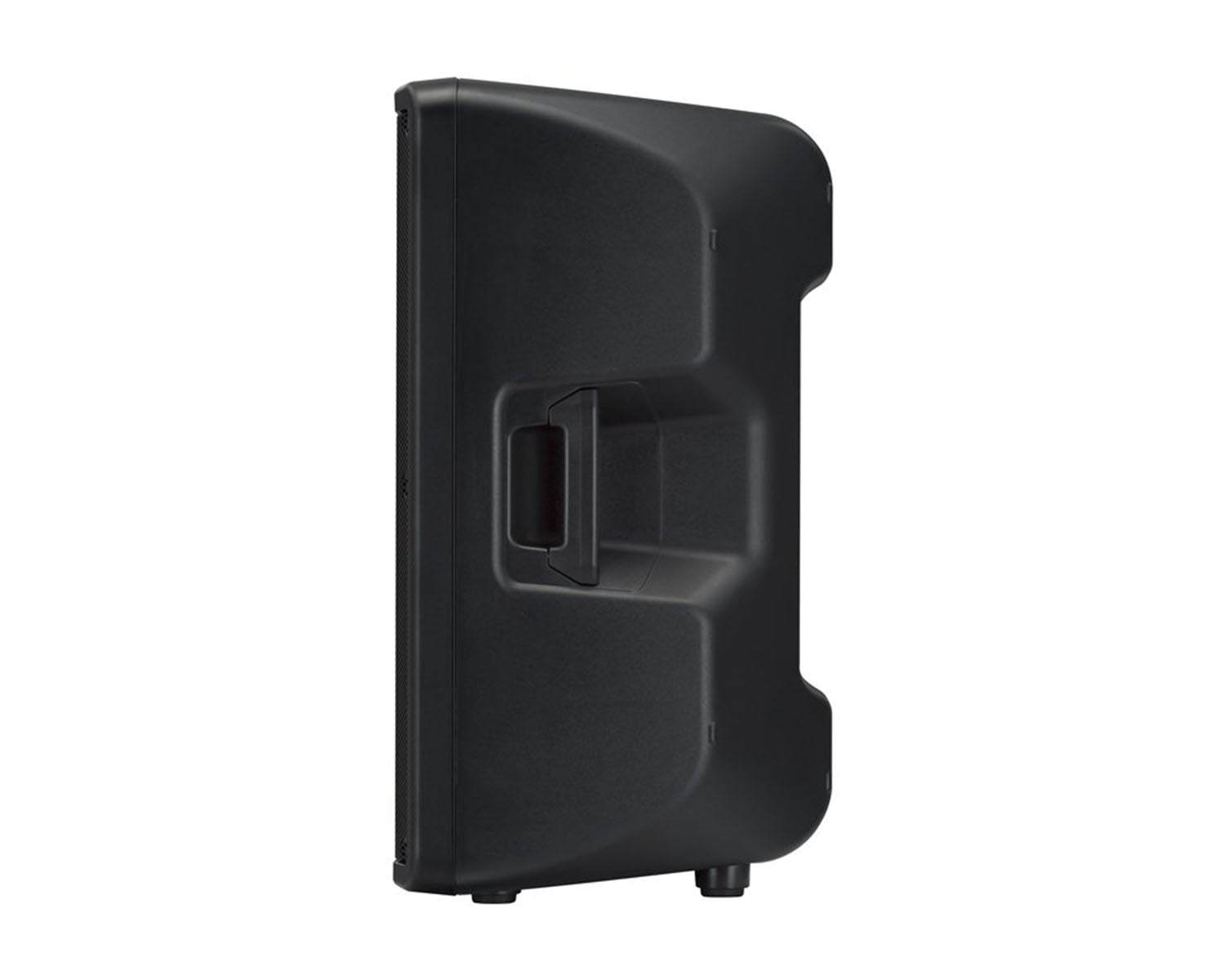

• Handle: Side x 2
• Flying and mounting hardware: Bottom x 2, Rear x 1 (Fit for M8 x 15mm Eyebolts)
• Pole socket: Φ35 mm Bottom x 1

Physical & Dimensions

• Dimensions: Width 455mm (17.9"), Height 700mm (27.6"), Depth 378mm (14.9")
• Net weight: 17.7 kg (39.0 lbs)
