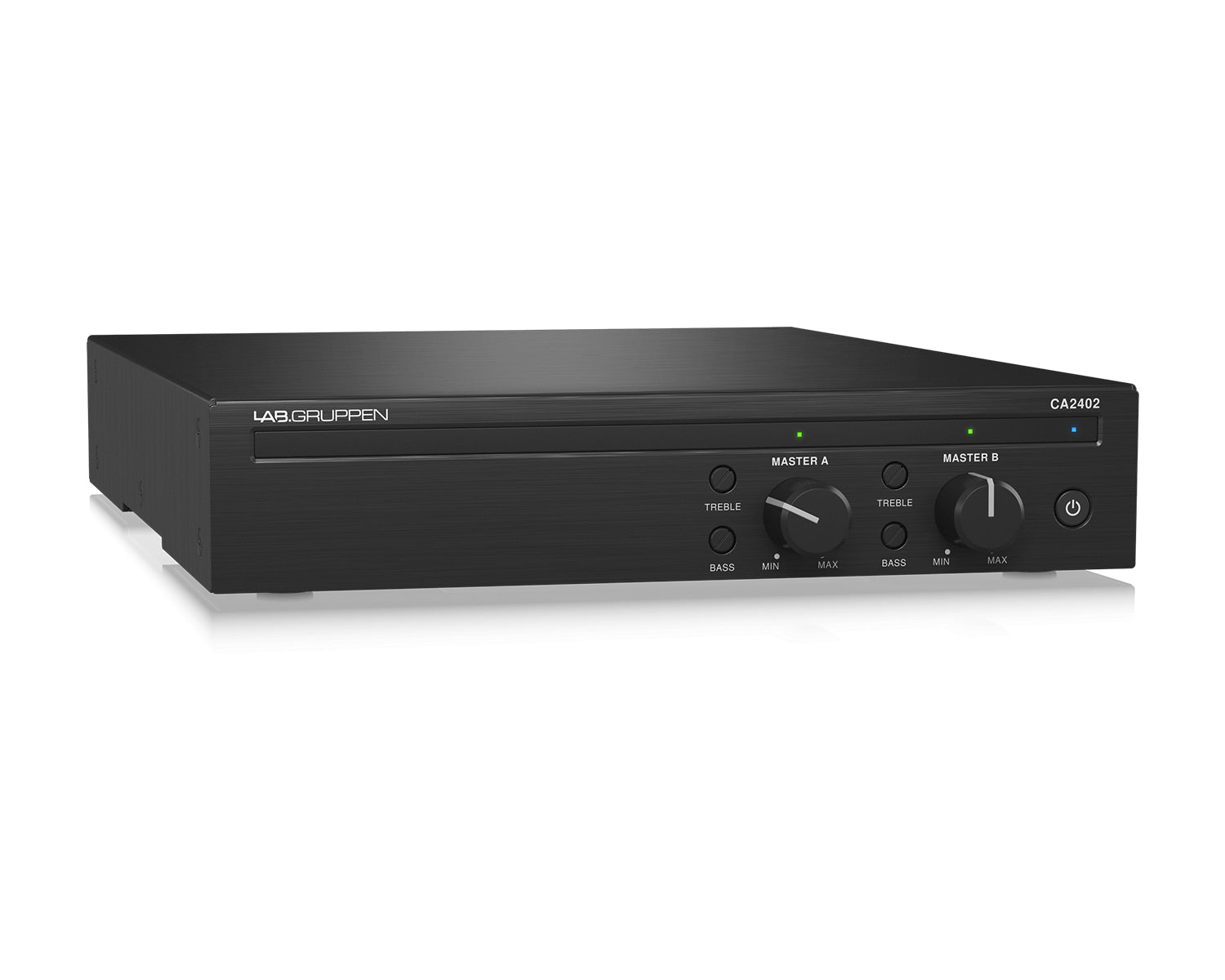

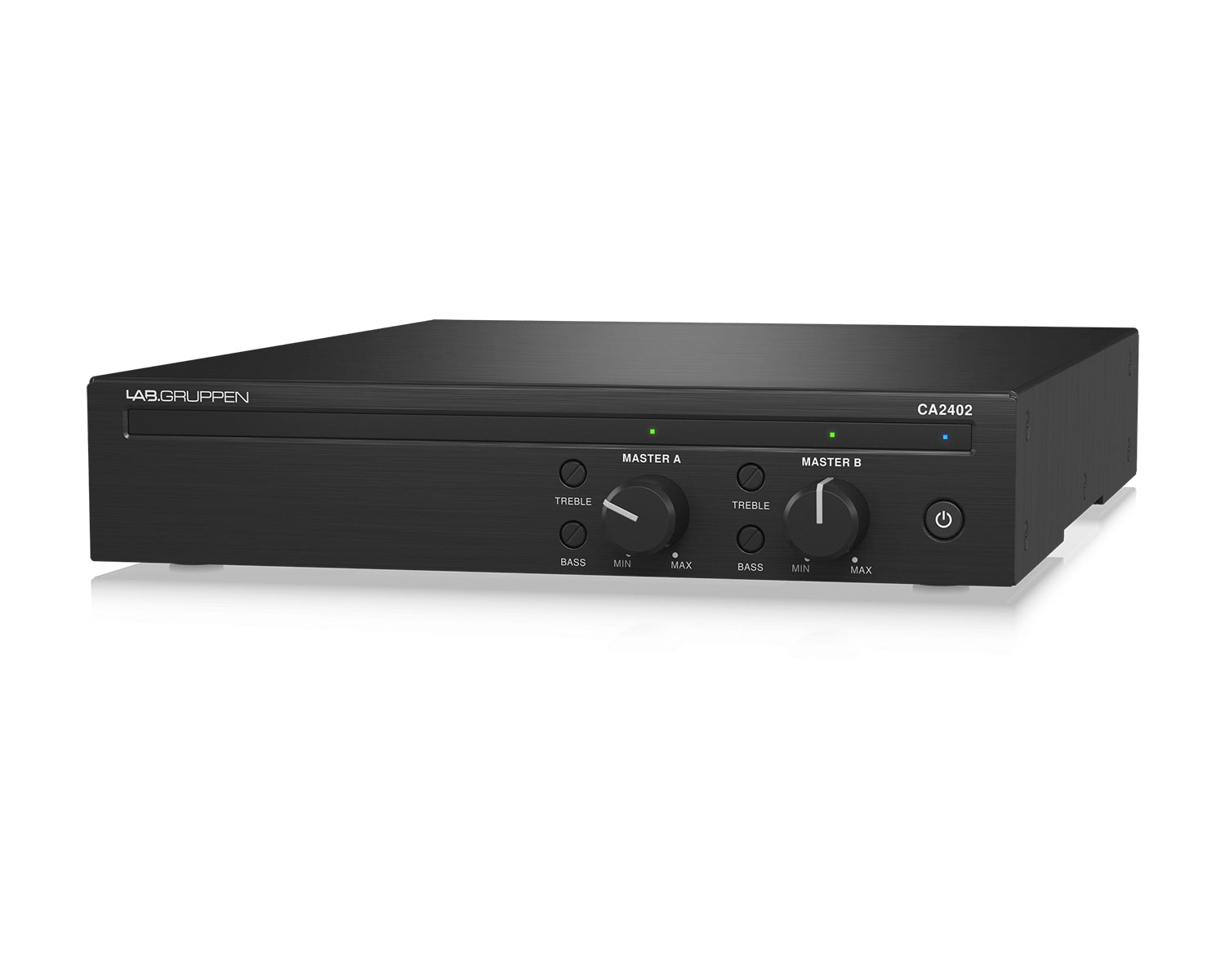

2 x 240 Watt dual-channel Commercial Amplifier provides the perfect solution for commercial and industrial applications requiring great sounding distributed audio coupled with power conservation and reduced operating expense. Capable of delivering high-quality sound over both Low-Z (4/8 Ohm) and High-Z (70/100 V) loudspeaker configurations offering extreme flexibility on every channel. CA2402 is easy to install and operate – even for non-technical personnel. Simply put, the CA2402 is ideal-suited for bars & restaurants, retail destinations, hotels, corporate, education or other venues needing background music and/or a public address system.

Product Features

• 2 x 240 Watt amplifier for commercial and industrial applications
• Low-Z (4/8 Ohm) and High-Z (70/100 V) operation per output with switchable high-pass filter
• Energy Star* certified design conserves energy and drastically reduces operational cost
• Direct drive, constant power technology for superior audio performance and reliability
• GPI remote volume control using standard RJ-45 connector and Ethernet cable
• Individual front panel master volume and bass/treble controls for each output
• Auto Ramp circuitry for quiet and fast power up/down enables real-world energy savings
• Front panel power control button for direct access
• Rack-mountable 1U, half-rack width enclosure with joining brackets for rack, table and wall mounting
• Euroblock type amplifier input and output connectors
• Convection-cooled, fan-less amplifier technology for low noise
• 10-Year Warranty Program*
• Designed and engineered in Sweden

Product Specifications

Maximum Output Power

• 4 Ω per channel: 240 W
• 8 Ω per channel: 240 W
• 70 V per channel: 240 W
• 100 V per channel: 240 W

Number of Output Channels

• Number: 2

Minimum Load Impedance

• 4 Ω mode: 4 Ω
• 8 Ω mode: 8 Ω
• 70 V output mode: 20 Ω
• 100 V output mode: 41 Ω

Controls

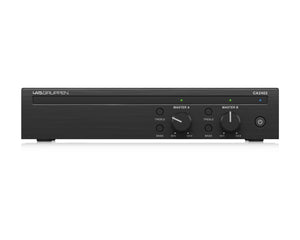

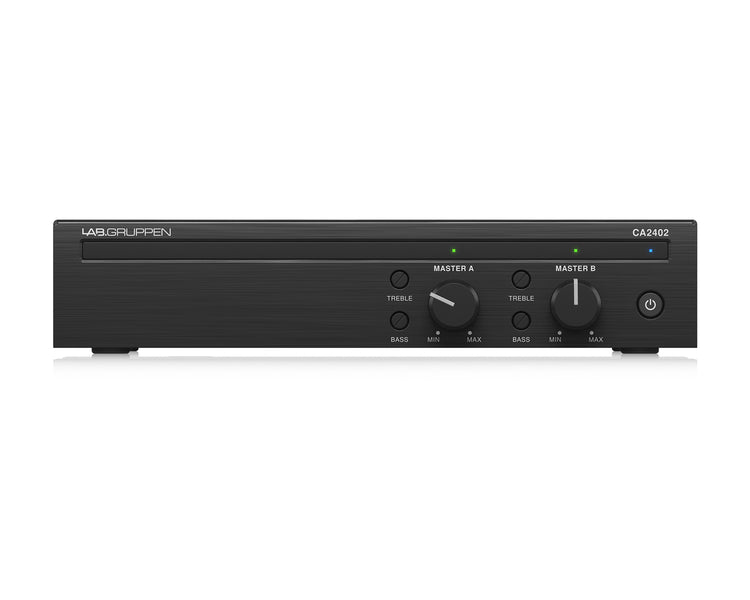

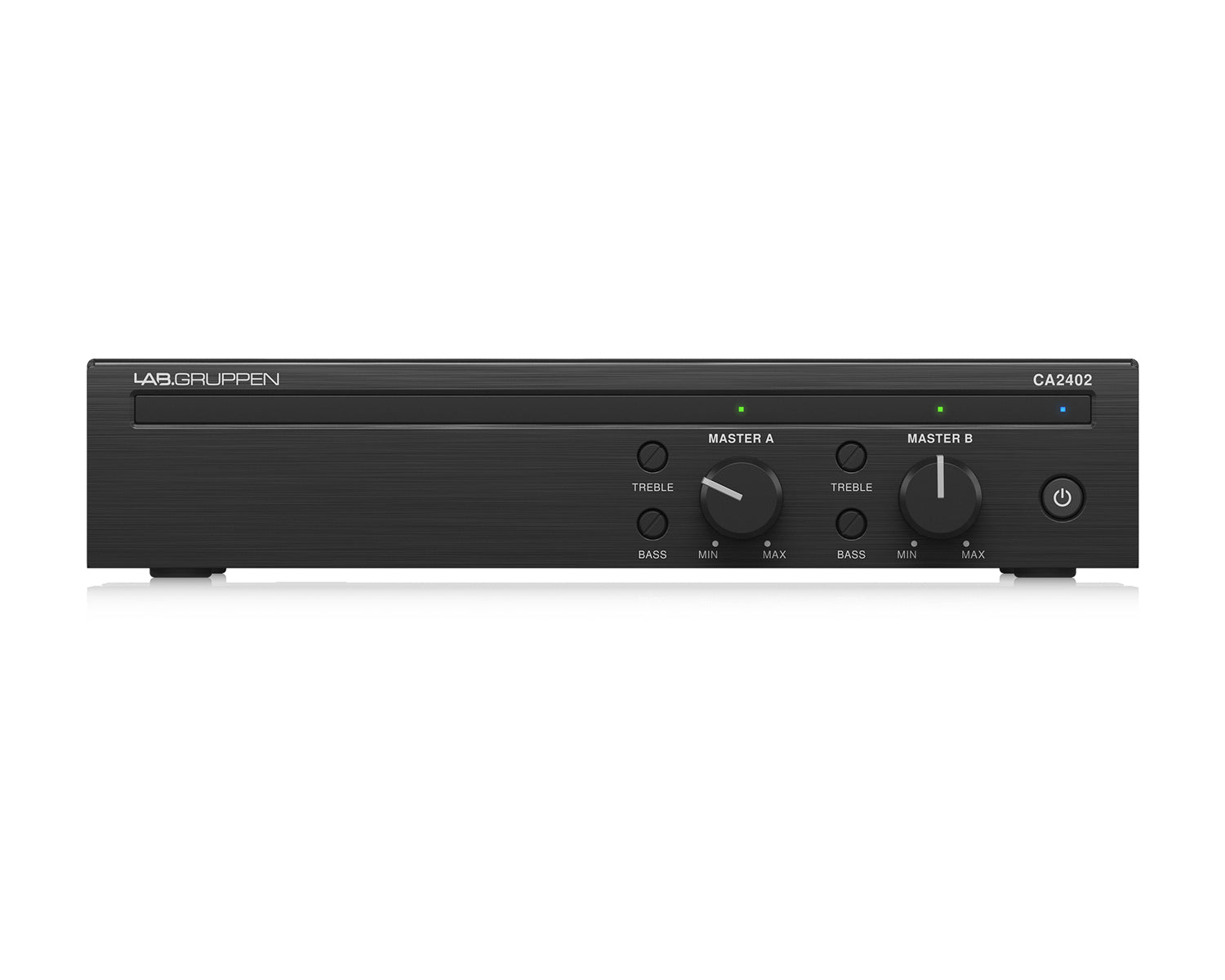

• Front: Power standby button, gain control, tone controls - bass and treble

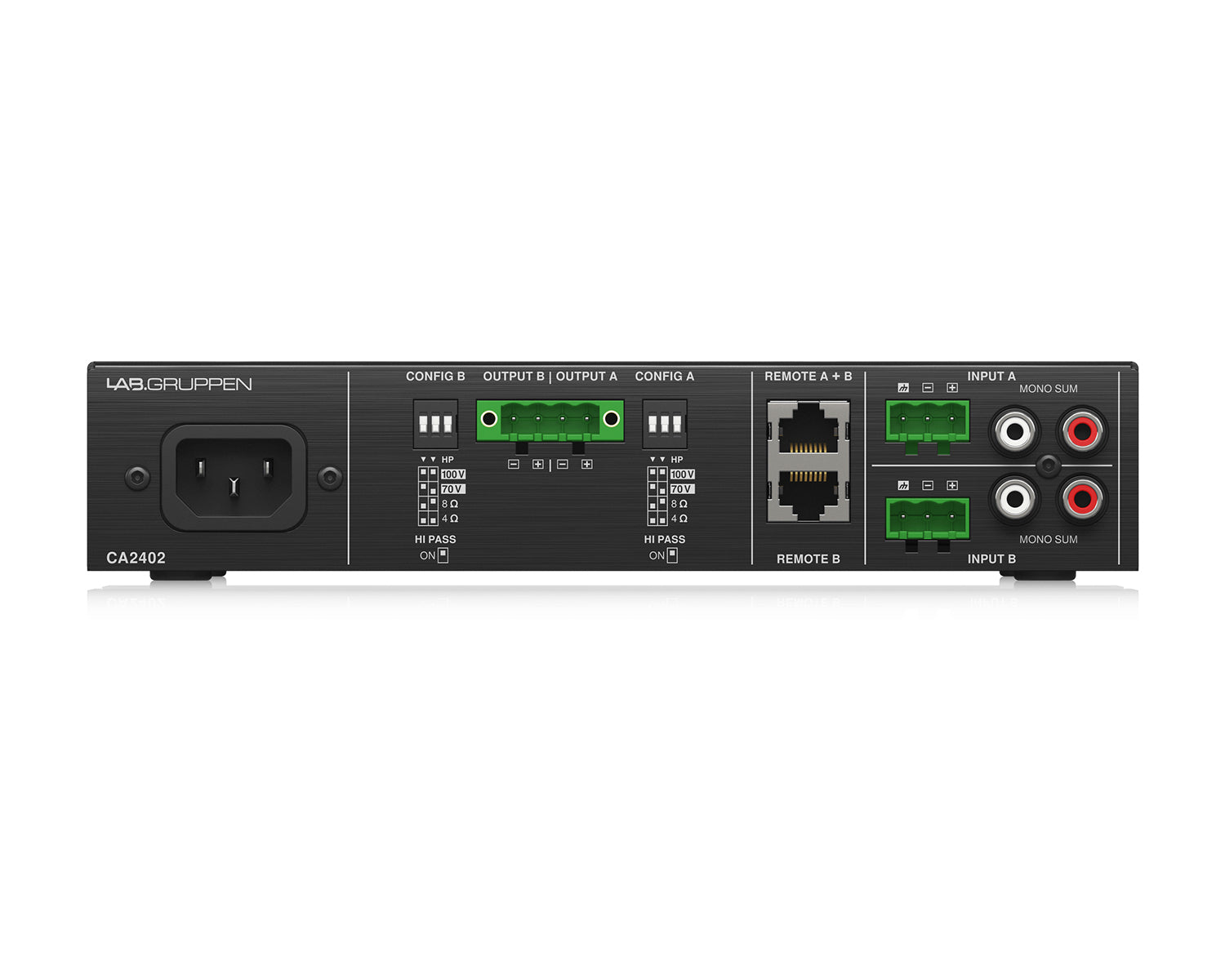

• Rear: Load config - (4 Ω / 8 Ω / 70 V / 100 V), switchable 80 Hz high-pass filter

Tone Controls

• Bass: ±10 dB @ 100 Hz
• Treble: ±10 dB @ 10 kHz

Indicators

• Power: On (blue), force standby (red), sleep (yellow)
• Master
  • Signal (green LED): >12.3 mV (-36 dBu)
  • Limit (red LED): Input clip, output limit
  • Fault (red LED): Overheat, DC fault, over current, etc

System

• Inputs:
  • 2 x 3-pin 5.08 mm Euroblock connector
  • 2 x RCA stereo summed
• Input impedance: 10 kΩ unbalanced and RCA, 20 kΩ balanced
• Input sensitive: Balanced: 1.23 V (+4 dBu)
• RCA: 0.62 V (-2 dBu) each for mono sum RCA
• Maximum input level: 9.75 V (+22 dBu)
• Outputs: 1 x 4-pin 5.08 mm Euroblock connector
• Output circuit type: Class D
• Remote connector: 2 x RJ45 connector

Performance

• Distortion, 1/8 rated power: <0.05%
• Frequency response: 20 Hz to 20 kHz, +0.5 / -1 dB
• Crosstalk (2 channel models): >85 dB
• Signal-to-noise: >97 dBA
• High-pass filter: 80 Hz HPF

Circuit Protection

• Cooling: Convection-cooled, fanless
• Amplifier protection: Thermal protection, over current protection, DC protection, high frequency protection
• Load protection: Controlled start and shutdown behaviour, DC-fault protection

Power Supply, Voltage (Fuse)

• Main voltage: 100-240 V~, 50/60 Hz with active power factor correction
• Fuse: T 6.3 A L 250 V
• Power consumption 1/8th rated power @ 4 Ω: 120 W
• Mains connector: Standard IEC connector

Physical and Dimensions

• Dimensions (H x W x D): 44 x 218 x 299 mm (1.7 x 8.6 x 11.8")
• Weight: 2.6 kg (5.8 lbs)
• Finish: Brushed black anodized aluminium chassis with black painted steel bottom
• Approvals: CE, cTUVus, PSE, CCC, RoHS, FCC part 15 Class B and Energy Star 3.0

What's in the Box?

• Euroblock input connector(s)
• Euroblock output connector
• Coupling plate (x2) with necessary screws
• Long angle bracket
• Front angle bracket (x2)
• Rear flat bracket
• Rear angle bracket with shoulder screw
• Power cable with mains plug
• Quick Start Guide
