BT-2E is a wall-mounting remote input module for use with Cloud DCM1 Series products fitted with an RJ45 Extension Port. The BT-2 enables compatible portable devices such as laptops, tablets and smartphones to stream audio wirelessly into the installed zone.

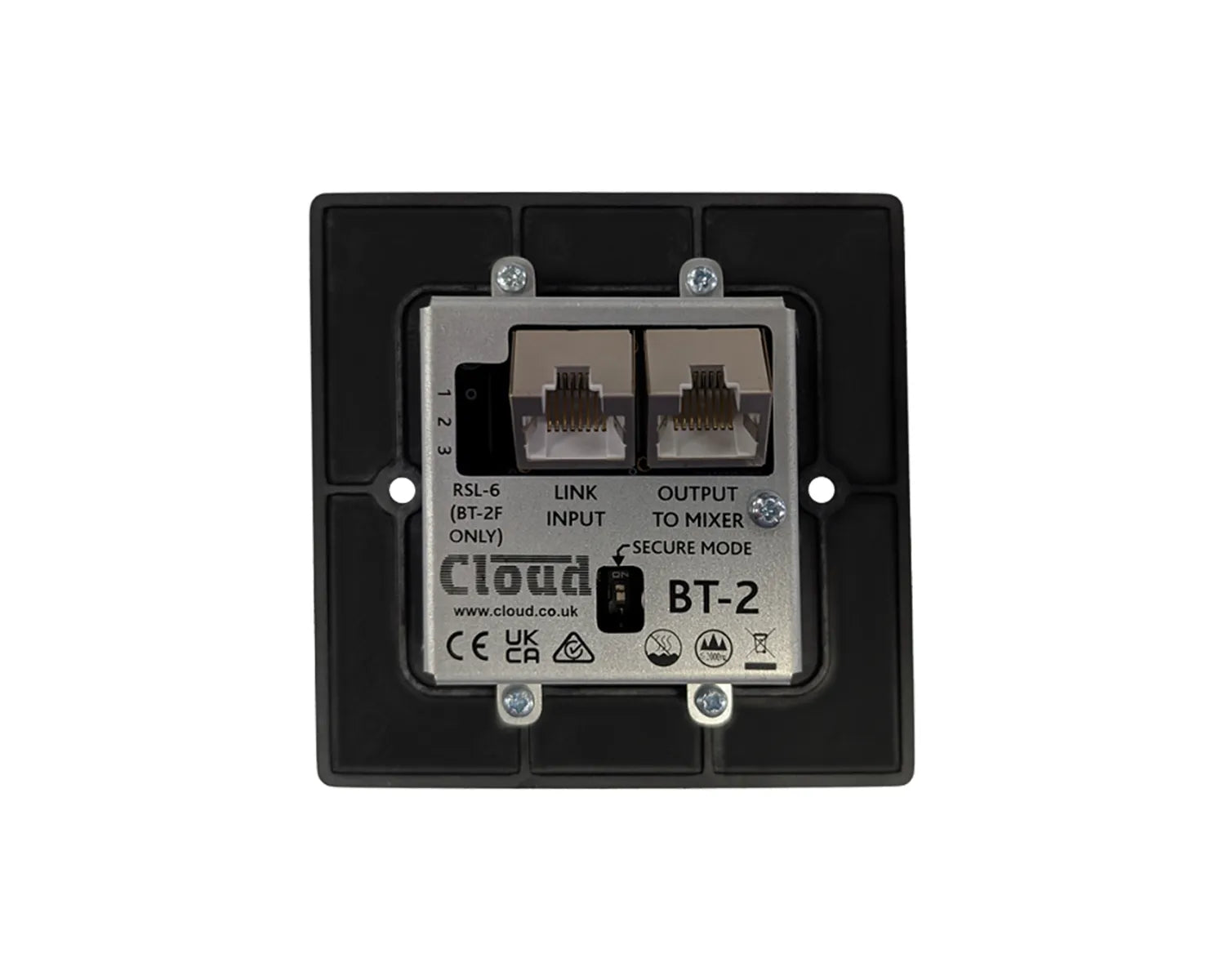

The BT-2 is exceptionally simple to install; the rear RJ45 connector is wired to one of the host unit’s Extension Ports with a single screened Cat 5 cable using standard shielded RJ45 connectors at each end. The Cat 5 cable carries DC power as well as balanced audio.

The BT-1E routes audio in stereo to the host unit and is compatible with the following Cloud products:

• DCM1 Digital Control Zone Mixer
• DCM1e Ethernet Digital Control Zone Mixer

If you exceed the number of  Extension port inputs on the DCM1/DCM1e you can use an FPA-1 adaptor to configure it as a global line input.

Product Features

• BT-2EB (Black) & BT-EFW (White)
• Remote Bluetooth input module for Cloud host units with Facility Port Capability
• Easy connection to host unit via screened Cat 5 cable
• Uses single-button Bluetooth “pairing” mode for secured operation
• Alternative “unsecured” mode: configurable at installation

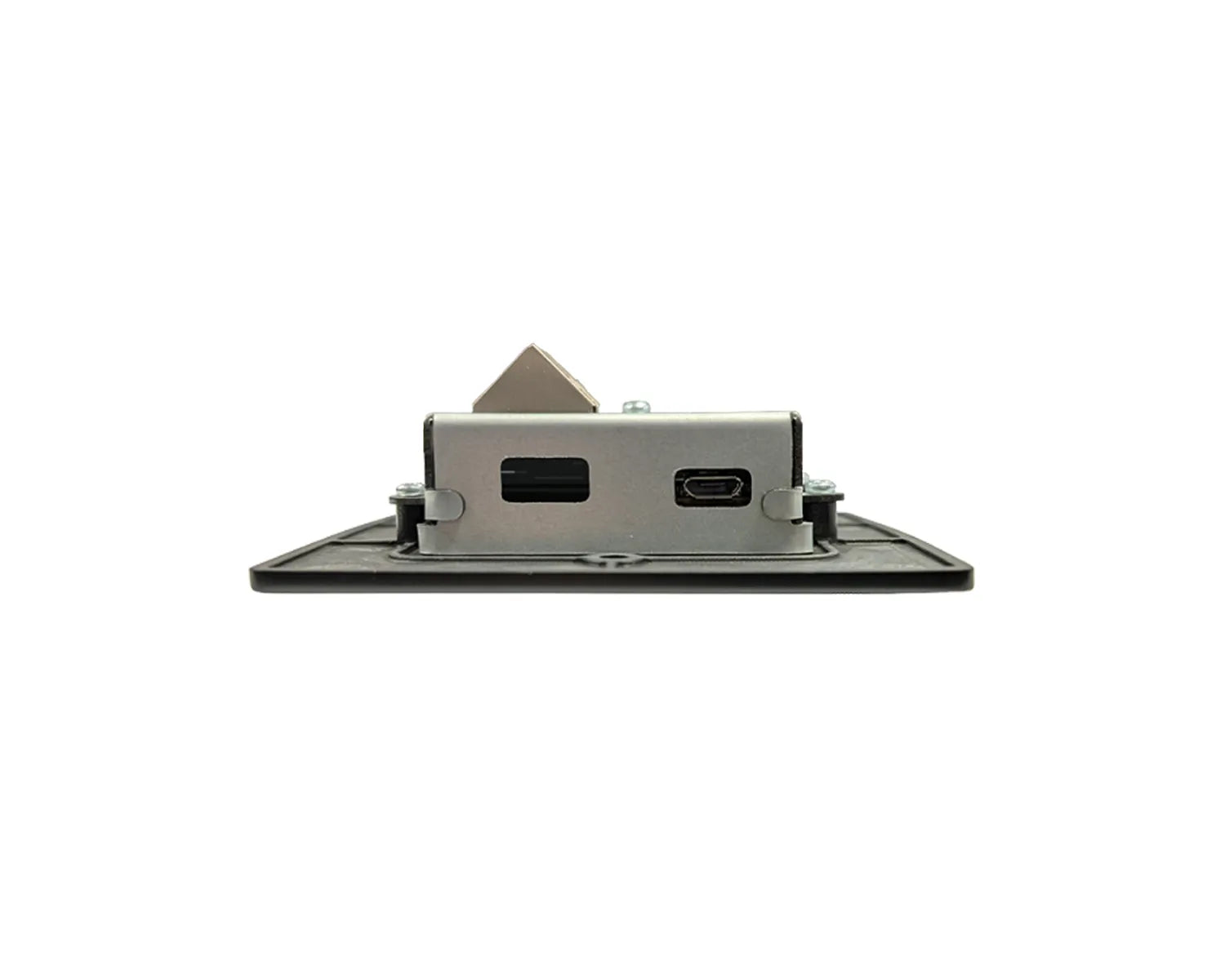

• Micro USB Connection for plate naming

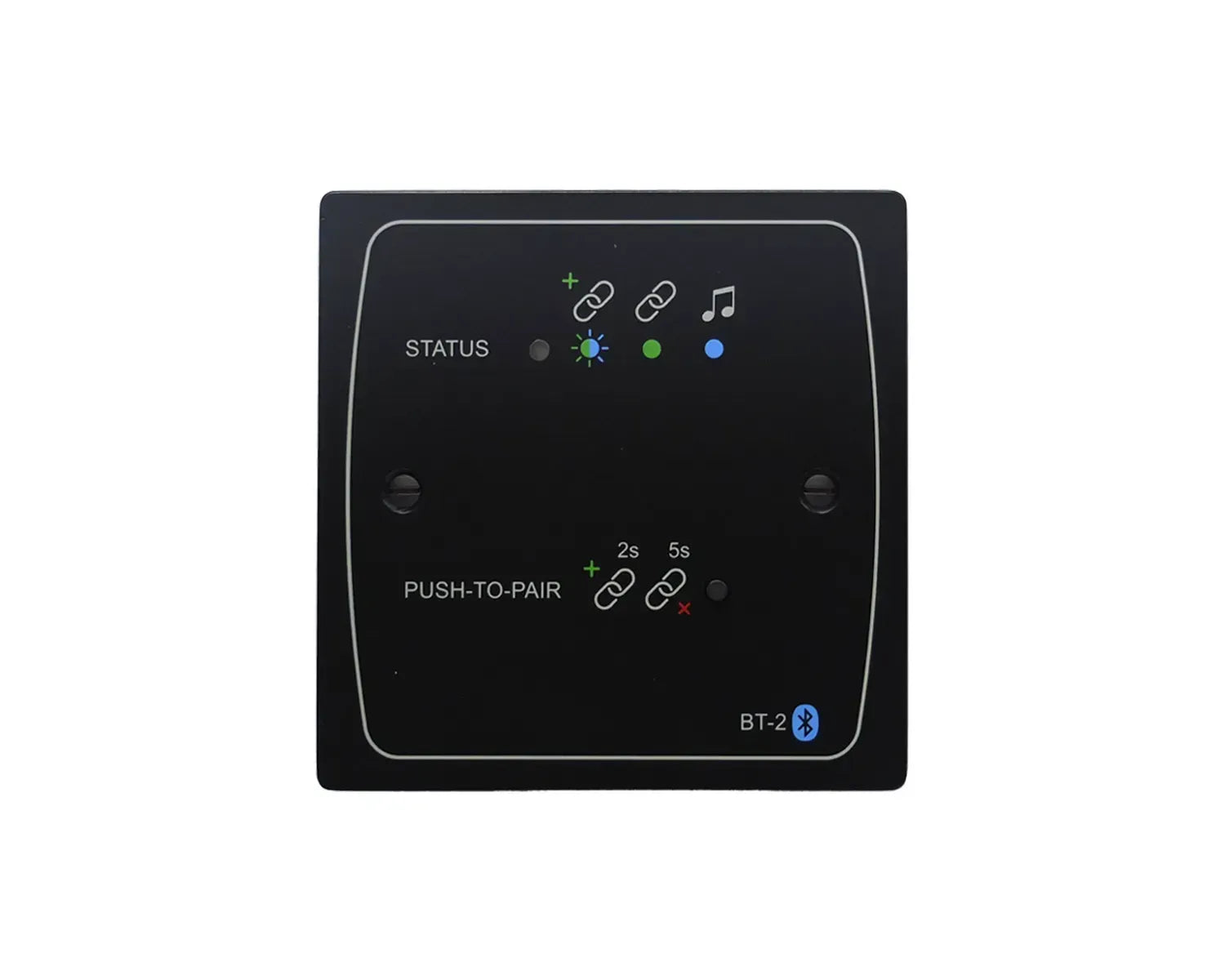

• Bicolour LED indicating connection progress and streaming activity
• May be daisy-chained to remote input modules (e.g., LM-2) in same Zone
• RSL-6 or RL-1 remote plates may be daisy-chained to BT-2
• UK versions mount into a standard single-gang UK-style electrical back box (85 x 85 mm) and require a back box depth of 35 mm minimum
