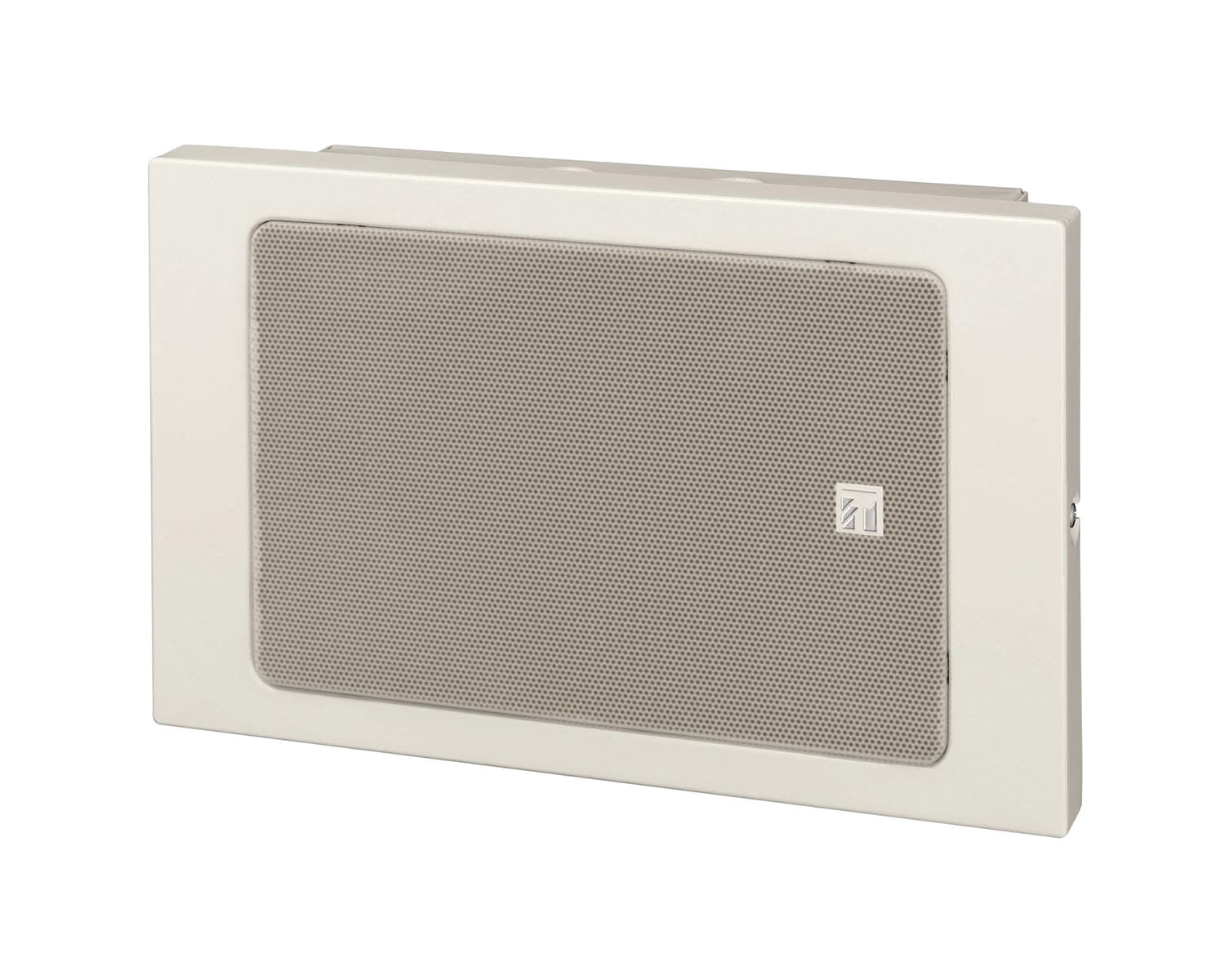

Constructed with metal cabinet, the speaker is ideal for use in a voice alarm system. Can be surface- or flush- mounted to the wall. Either concealed in-wall wiring or exposed wiring can be used for speaker cable connection. The speaker structure of direct wall-mounting with screws prevents the speaker from falling easily even if an outward force is applied to. The input impedance can be easily changed by changing the tap position of the transformer. The built-in 16 cm double cone speaker unit delivers high quality sound. The push-in type input connector makes cable connections easy and allows bridge wiring.

Product Features

• Strong, all-metal body
• Ideally suited for emergency broadcasting applications
• The 6 inch double cone speaker unit ensures highquality sound
• Either concealed in-wall wiring or exposed wiring can be used
• The selectable input impedance can be easily adjusted
• Also permits direct wall installation with screws

Product Specifications

General

• Rated Input: 6 W (100 V line), 3 W (70 V line)
• Rated Impedance: 100 V line: 1.7 kΩ (6 W), 3.3 kΩ (3 W), 6.7 kΩ (1.5 W), 13 kΩ (0.8 W). 70 V line: 1.7 kΩ (3 W), 3.3 kΩ (1.5 W), 6.7 kΩ (0.8 W), 13 kΩ (0.4 W)
• Sensitivity: 94 dB (1 W, 1 m) (500 Hz - 5 kHz, pink noise)
• Frequency Response: 150 Hz - 20 kHz (peak -20 dB)
• Speaker Component: 16 cm (6") double cone-type
• Connection: Push-in connector (bridging terminal)

Physical & Dimensions

• Dimensions: 310 (W) × 190 (H) × 87.2 (D) mm (12.2" × 7.48" × 3.43")
• Weight: 2.6 kg (5.73 lb)
