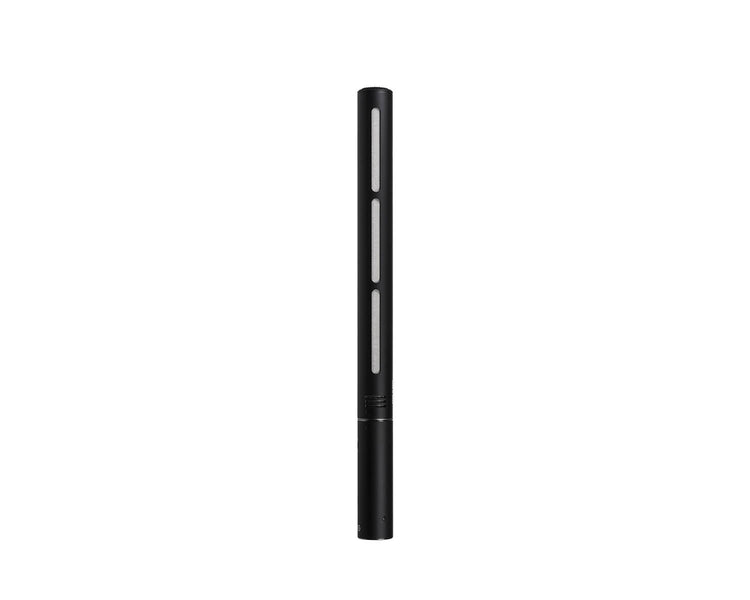

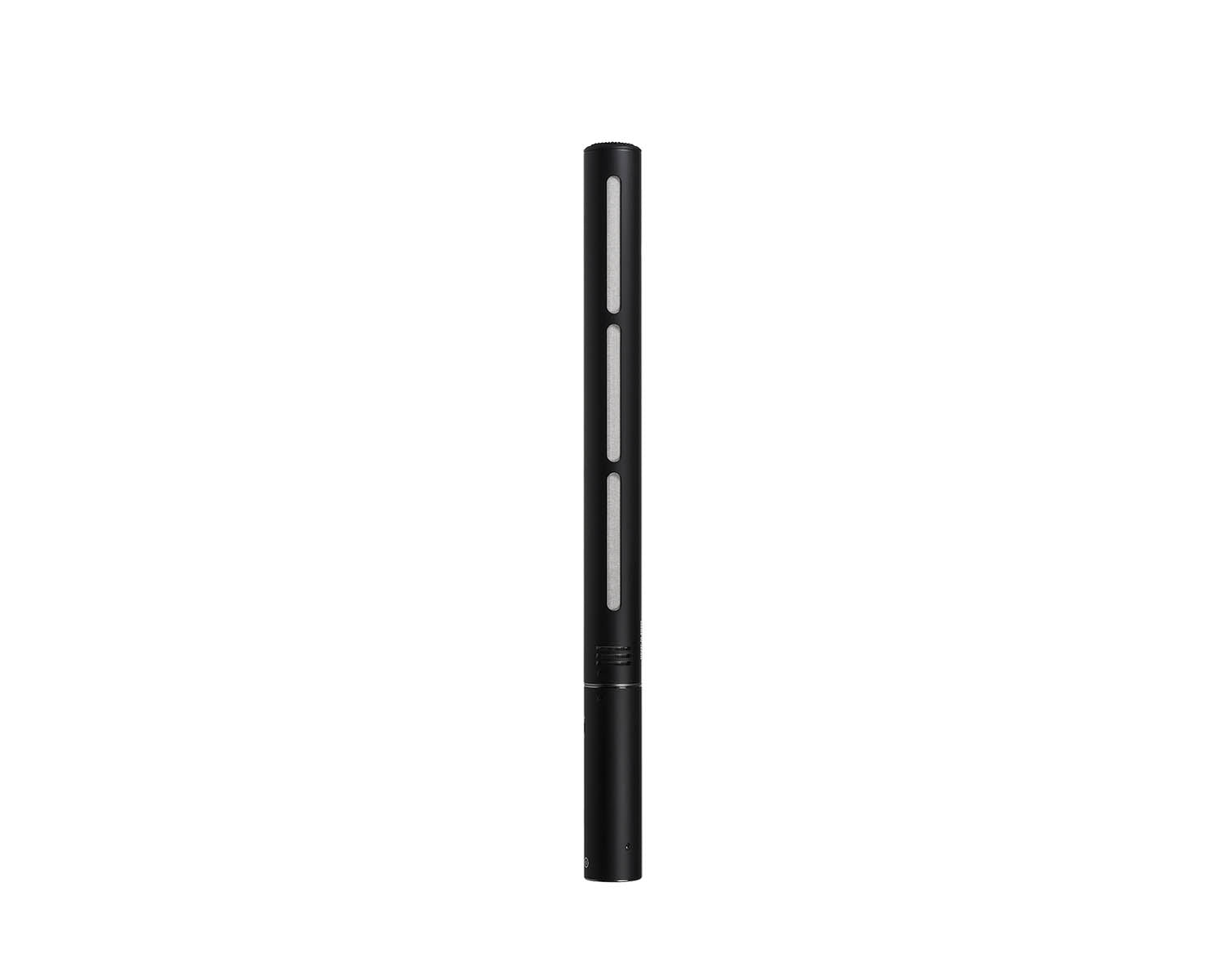

Audio-Technica combines exceptionally low-noise large-diaphragm condenser elements with a shotgun design for extremely tight polar patterns, perfect for long-range sound recordings. With a length of 35.5 cm, the directional BP28 shotgun microphones have been specially designed to meet the needs of broadcast, film, television, recording outdoors and theatre applications. Particularly suitable for long-distance sound recording in filmmaking or in theatre, the BP28 have a very low noise level (8 dB), and a transformer-coupled output results in a smooth sonic character. The microphone provide extremely high sensitivity (-28 dBV), wide dynamic range (135 dB) and high-SPL capability (143 dB). The patented acoustic port design maintains directionality across the entire frequency range.

Product Features

• Large-diaphragm condenser element and optimized circuitry deliver exceptional low-noise performance – ideal for film/TV production and broadcasting applications
• Overall length of 354.9 mm with a highly directional pickup pattern
• Transformer-coupled output provides smooth sonic character
• Extremely high sensitivity (-28 dBV), wide dynamic range (135 dB), and high-SPL capability (143 dB)
• Flat frequency response for accurate sound reproduction
• Rugged housing made of lightweight, structural-grade aluminium alloy
• Switchable 80 Hz high-pass filter and 10 dB pad
• Patented acoustic port design maintains directionality across the entire frequency range

Product Specifications

• Element: Fixed-charge back plate, permanently polarized condenser
• Polar Pattern: Line directional
• Frequency Response: 20-19,000 Hz
• Low Frequency Roll Off: 80 Hz, 18 dB/octave
• Open Circuit Sensitivity: -28 dB(39.8 mV) (0 dB=1 V/Pa, 1 kHz)
• Maximum Input Sound Level: 143 dB SPL (1 kHz at 1% THD), 153 dB SPL (when pad is on)
• Noise: 8 dB SPL (A-weighted)
• Dynamic Range: 135 dB (1 kHz at Max SPL)
• Signal-to-Noise Ratio: 86 dB (1 kHz at 1 Pa, A-weighted)
• Phantom Power Requirements: 11 - 52 V DC, 3.4 mA
• Switches: Low cut: on/off, Pad: on/off
• Weight: 223 g
• Dimensions: 354.9 mm long, 28.0 mm maximum body diameter
• Output Connector: Integral 3-pin XLR-M type
• Accessories Included: Windscreen (AT8170), holder (AT8470), stand adapter (3/8”-5/8”), carry case
• Audio-Technica Case Style: SG6

What's in the Box?

• BP28 Mic
• Windscreen (AT8170)
• Holder (AT8470)
• Stand adapter (3/8”-5/8”)
• Carry case
