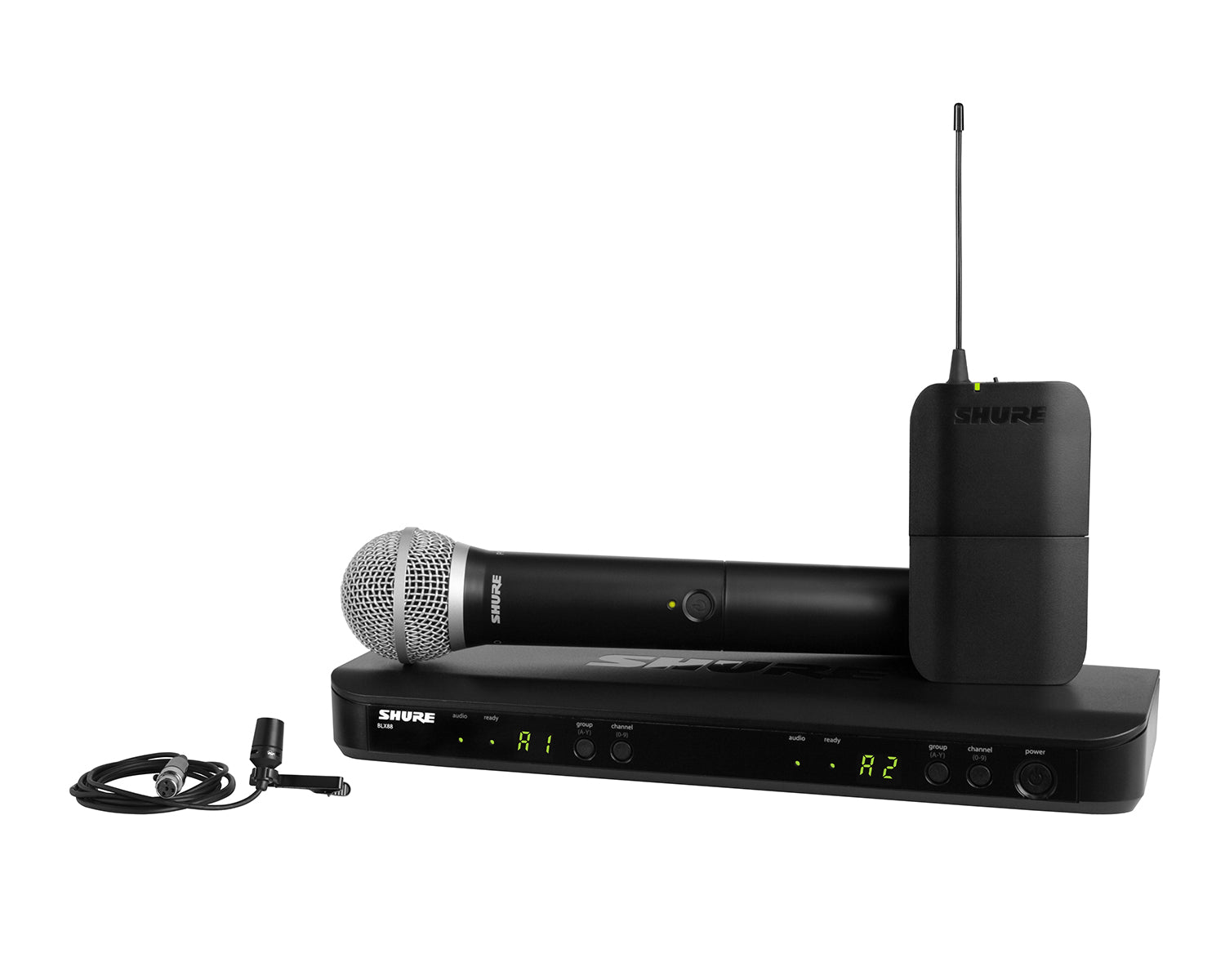

SHUBLX1288UKCVLK3E - Shure BLX1288 or CVL Dual Wireless Combo System BLX88 or PG58 or CVL K3E Image 1

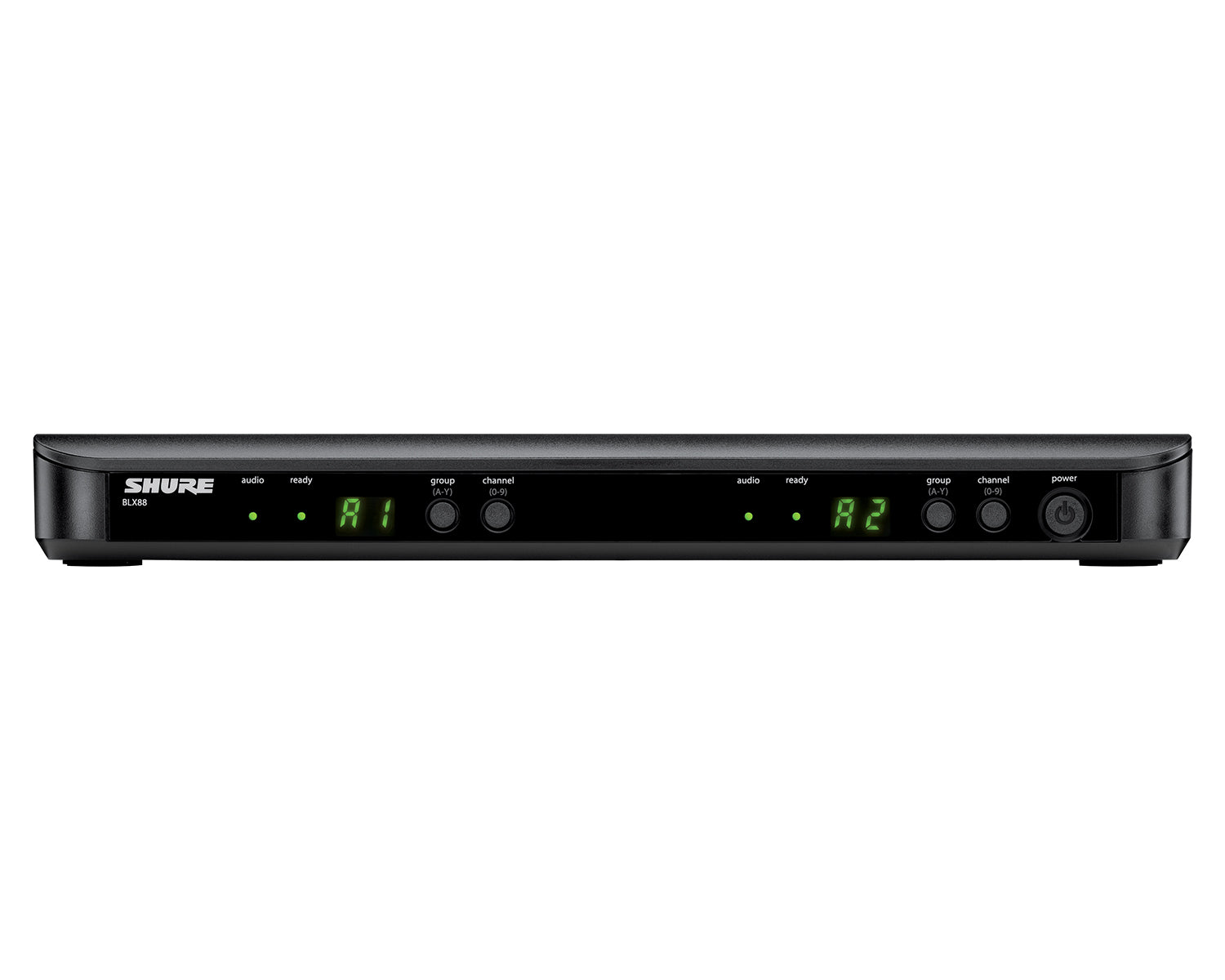

SHUBLX1288UKCVLK3E - Shure BLX1288 or CVL Dual Wireless Combo System BLX88 or PG58 or CVL K3E Image 2

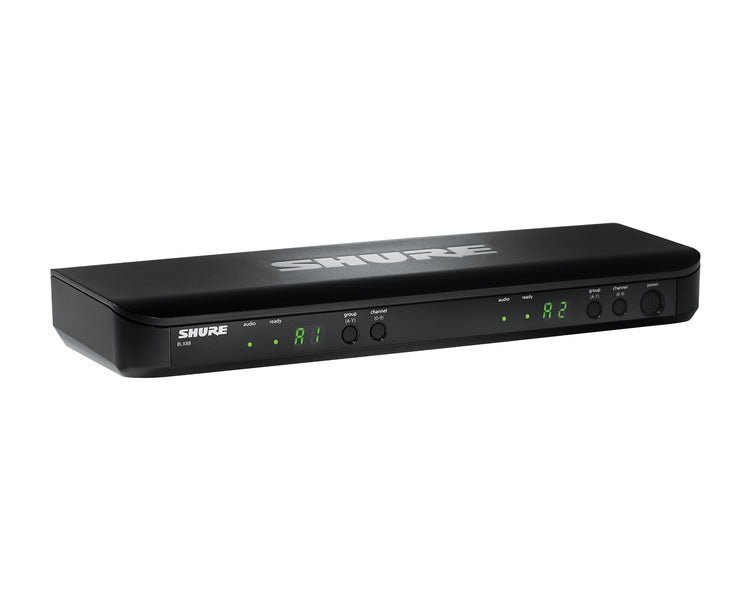

SHUBLX1288UKCVLK3E - Shure BLX1288 or CVL Dual Wireless Combo System BLX88 or PG58 or CVL K3E Image 3

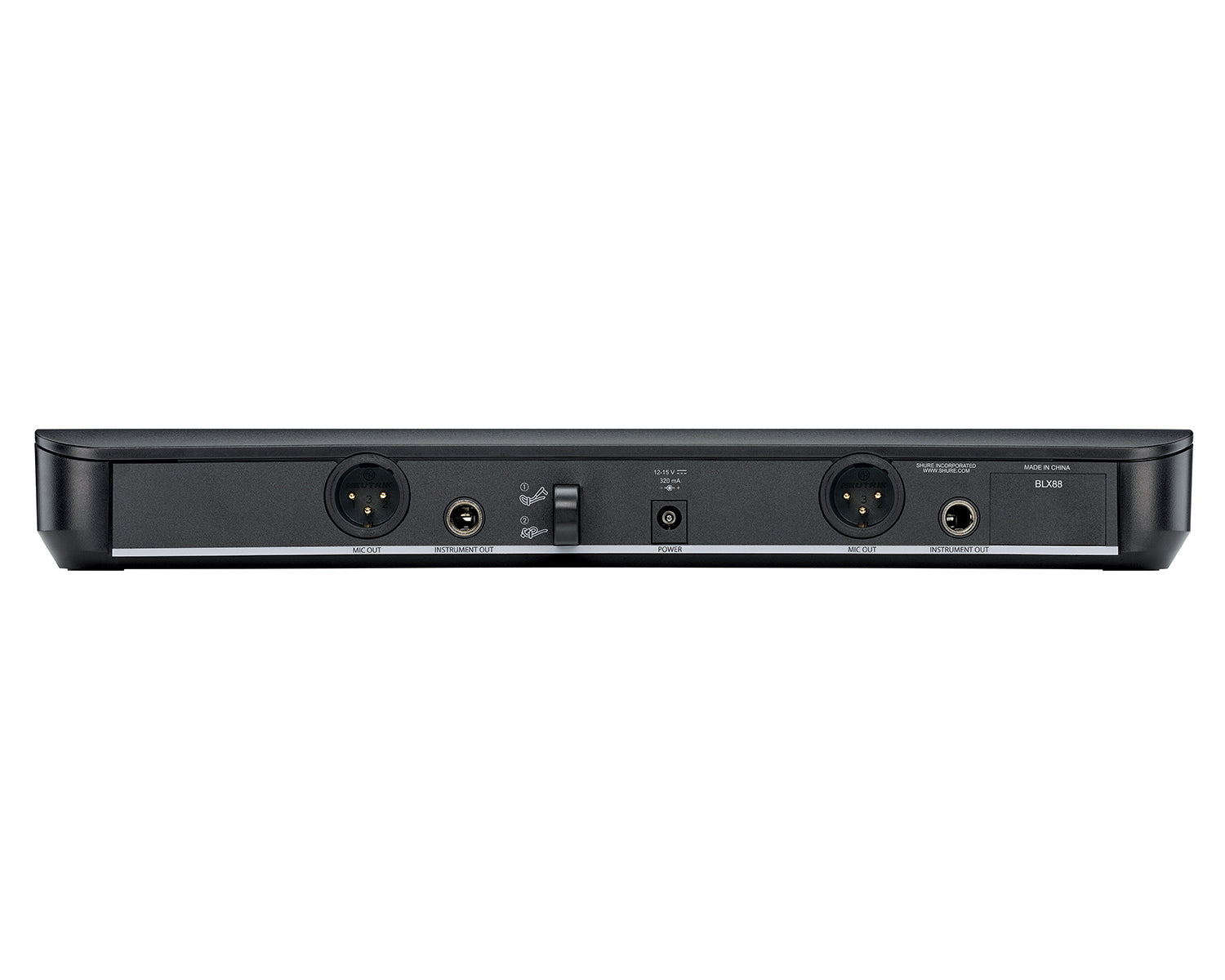

SHUBLX1288UKCVLK3E - Shure BLX1288 or CVL Dual Wireless Combo System BLX88 or PG58 or CVL K3E Image 4

SHUBLX1288UKCVLK3E - Shure BLX1288 or CVL Dual Wireless Combo System BLX88 or PG58 or CVL K3E Image 5

SHUBLX1288UKCVLK3E - Shure BLX1288 or CVL Dual Wireless Combo System BLX88 or PG58 or CVL K3E Image 6

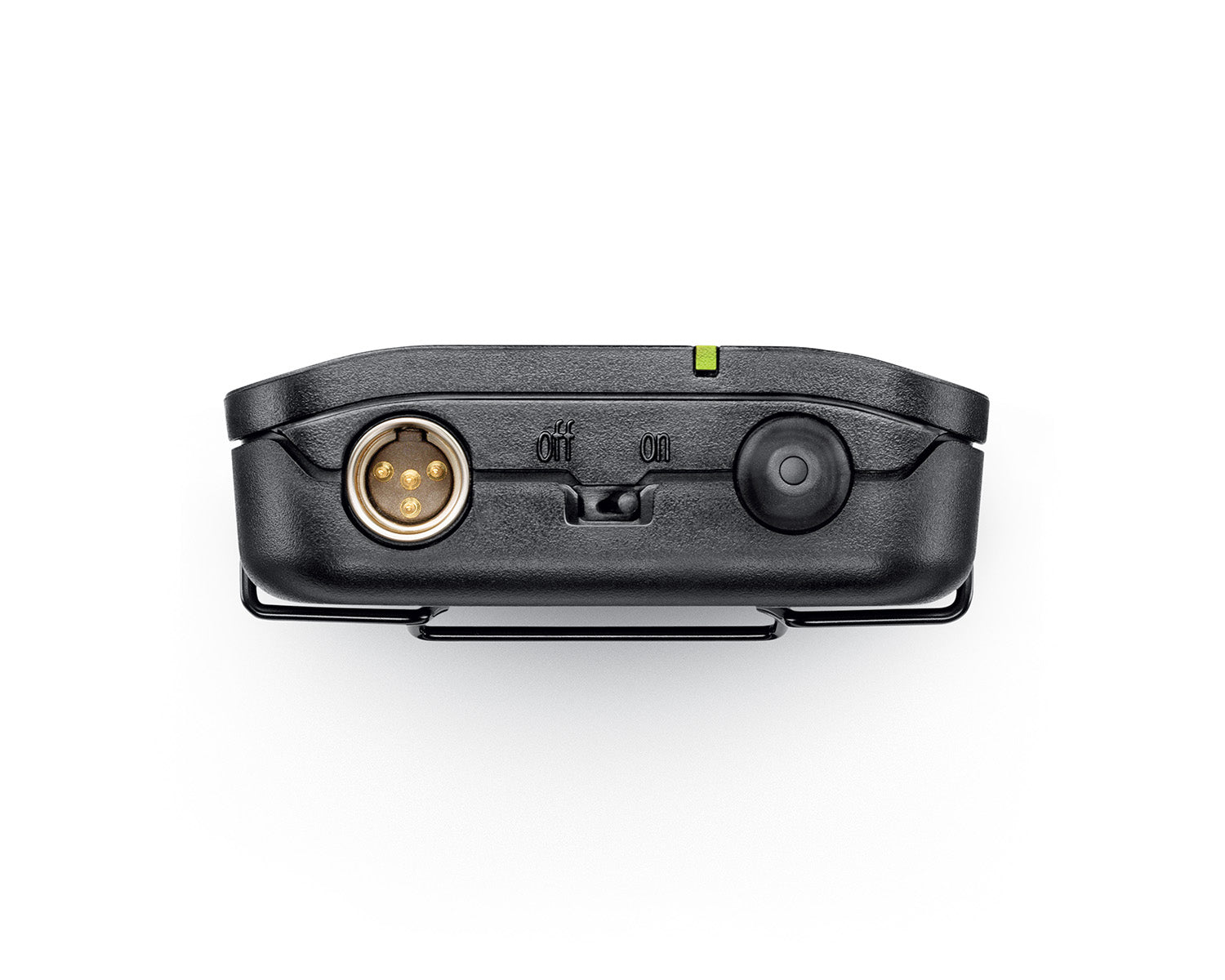

SHUBLX1288UKCVLK3E - Shure BLX1288 or CVL Dual Wireless Combo System BLX88 or PG58 or CVL K3E Image 7

SHUBLX1288UKCVLK3E - Shure BLX1288 or CVL Dual Wireless Combo System BLX88 or PG58 or CVL K3E Image 8

SHUBLX1288UKCVLK3E - Shure BLX1288 or CVL Dual Wireless Combo System BLX88 or PG58 or CVL K3E Image 9

SHUBLX1288UKCVLK3E - Shure BLX1288 or CVL Dual Wireless Combo System BLX88 or PG58 or CVL K3E Image 10

The Shure BLX1288/CVL Wireless Combo System combines professional-quality sound with simple setup and up to 14 hours battery life for great versatility and great sound right out of the box.

The system includes BLX88 dual-channel receiver, CVL lavalier microphone w/ BLX1 bodypack transmitter and PG58 handheld transmitter, power supply, microphone clip, lavalier clip, lavalier windscreens, 2 sets of AA batteries, and user guide.

Product Features

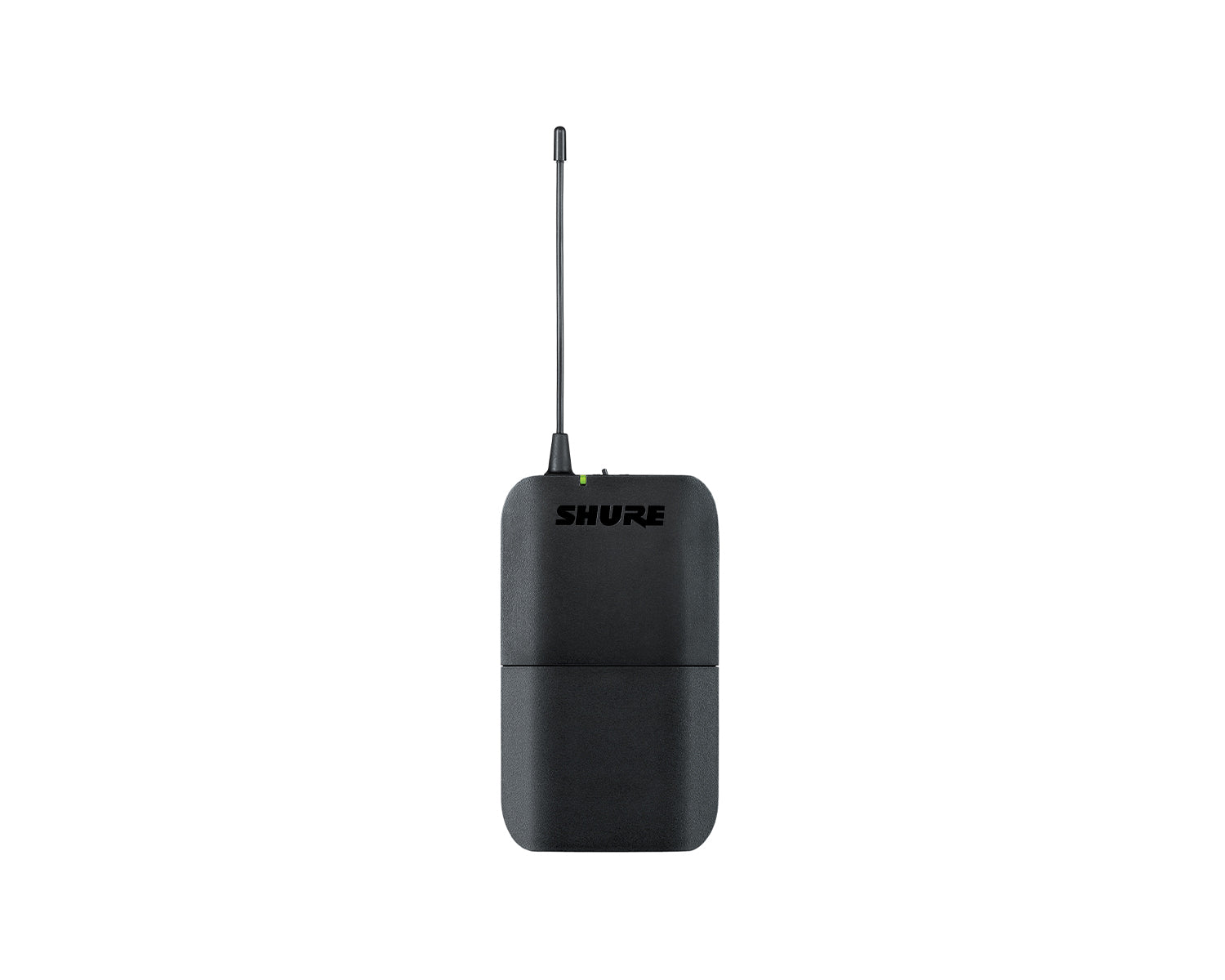

BLX1 Features

Power and battery status LED
Adjustable gain control
Quick and easy frequency matching
AA batteries provide up to 14 hours of continuous use
100 m (300 ft.) operating range (line of sight)

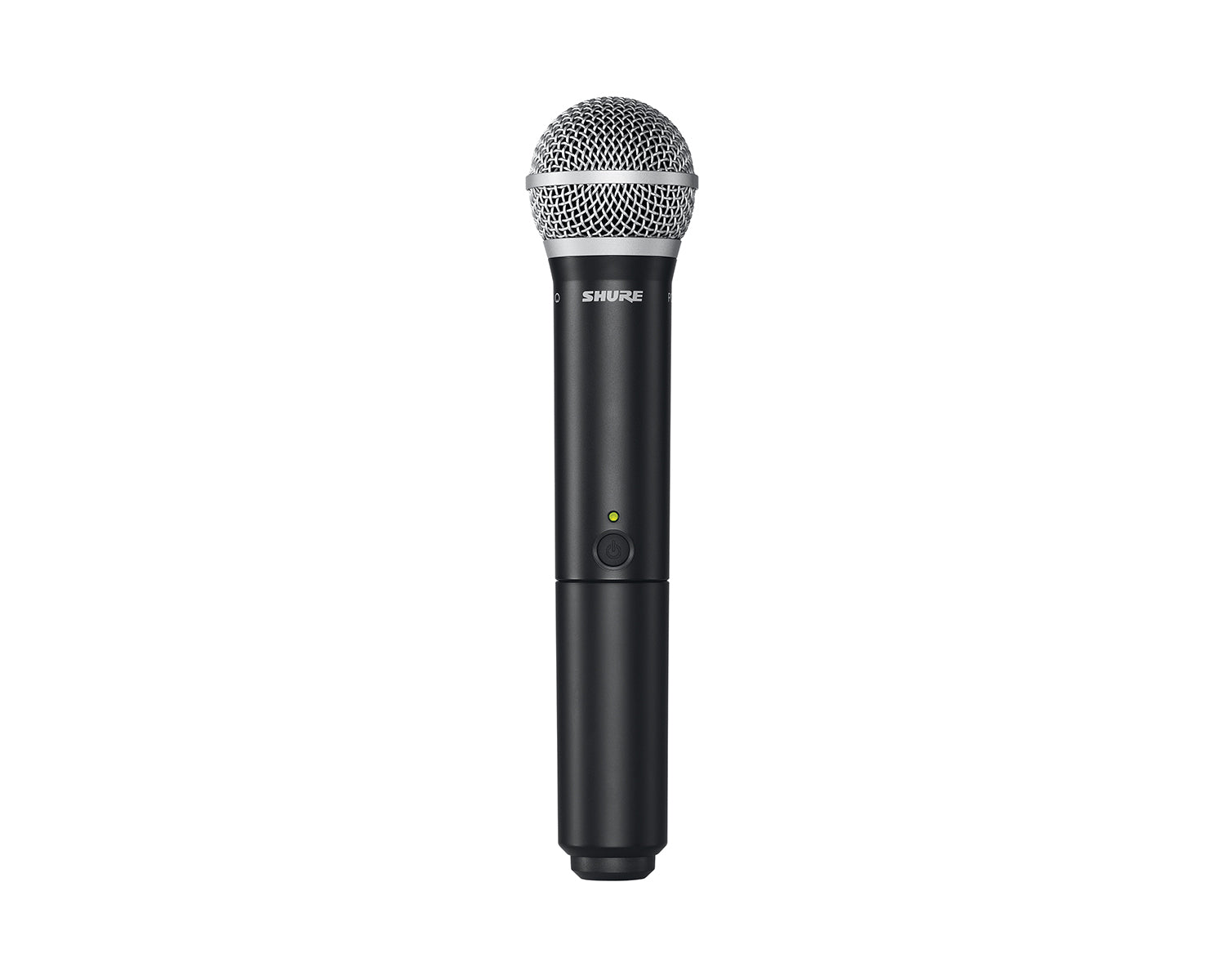

BLX2/PG58 Features

Cardioid Dynamic Microphone
Power and battery status LED
Adjustable gain control
Quick and easy frequency matching
AA batteries provide up to 14 hours of continuous use
100 m (300 ft) operating range (line of sight)
Integrated microphone capsule design
10 dB gain attenuation
Lightweight, rugged construction

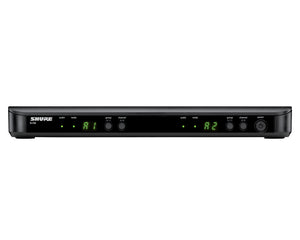

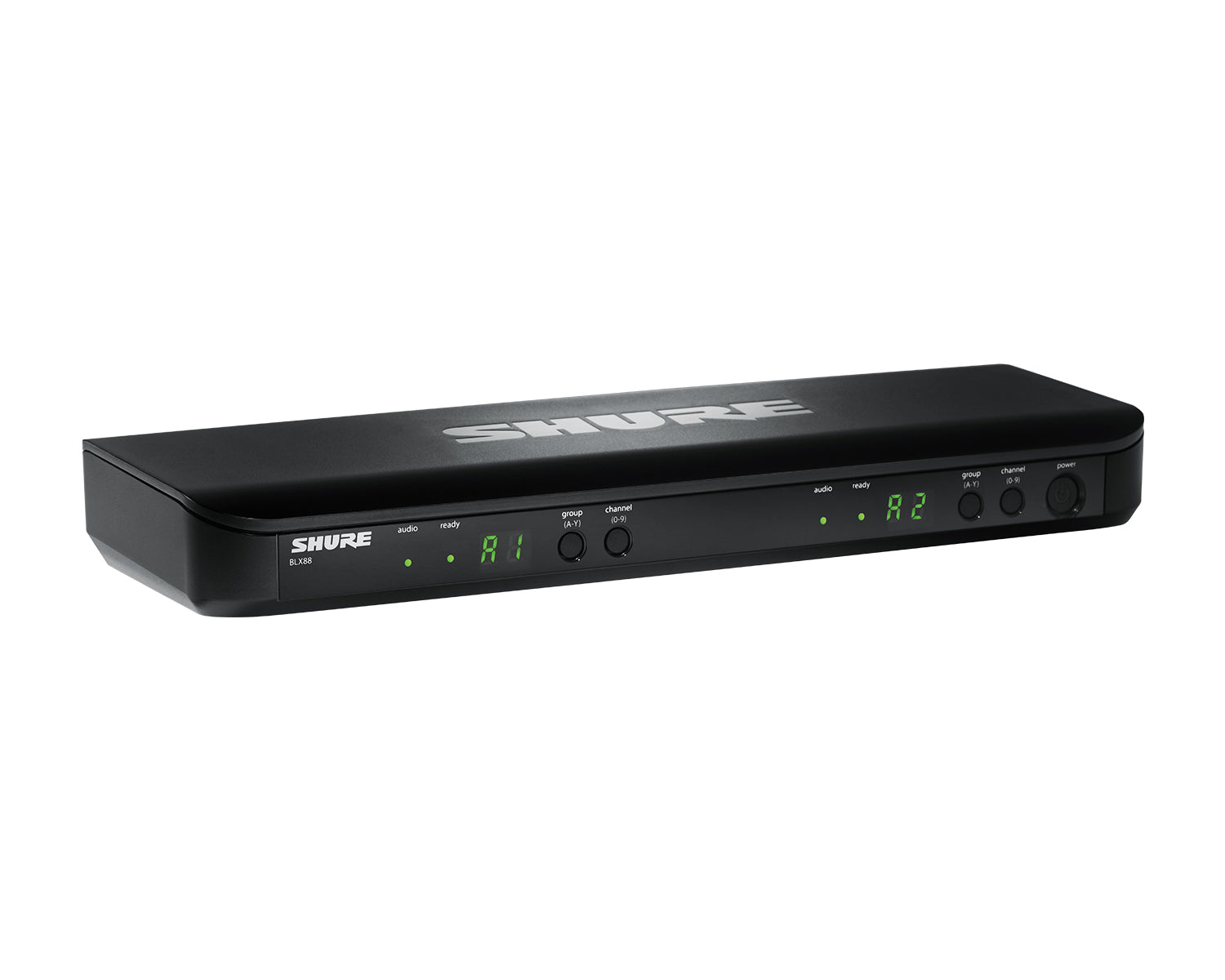

BLX88 Features

Up to 12 compatible systems (region dependent)
Microprocessor-controlled internal antenna diversity
One touch QuickScan locates the best open Frequency
¼" and XLR audio outputs
Two colour audio status indicator LED
Green: Normal audio levels
Red: Excessive audio levels (overload/clipping)

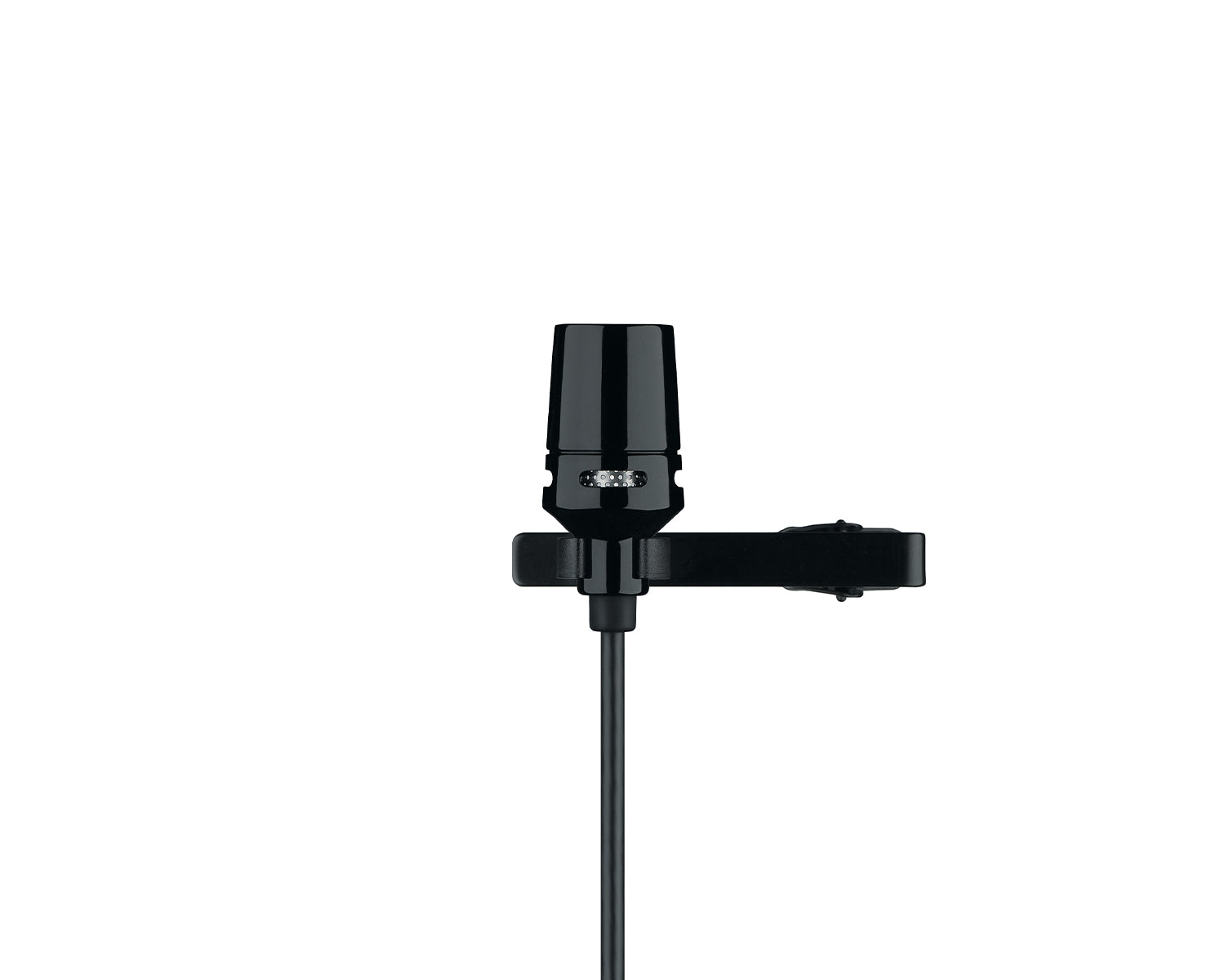

CVL Features

Miniature clip-on lavalier microphone for low visibility
Permanently charged electret condenser element for clear vocal reproduction
Unidirectional (cardioid) polar pattern rejects unwanted noise for improved sound quality
Included tie clip allows for hands-free use, perfect for presenters
Included windscreen reduces plosives, wind and breath sounds
Tailored frequency response optimized for speaking and presentations
TA4F (TQG) connector seamlessly integrates with Shure wireless bodypack systems

Product Specifications

System Specifications

Working Range: 91 m (300 ft) Line of Sight Note: Actual range depends on RF signal absorption, reflection and interference.
Audio Frequency Response: 50 to 15,000 Hz Note: Dependent on microphone type
Total Harmonic Distortion: Ref. ±33 kHz deviation with 1 kHz tone 0.5%, typical
Dynamic Range: 100 dB, A-weighted, typical
Operating Temperature: -18°C (0°F) to 57°C (135°F)
Polarity: Positive pressure on microphone diaphragm (or positive voltage applied to tip of WA302 phone plug) produces positive voltage on pin 2 (with respect to pin 3 of low-impedance output) and the tip of the high impedance 1/4-inch output.

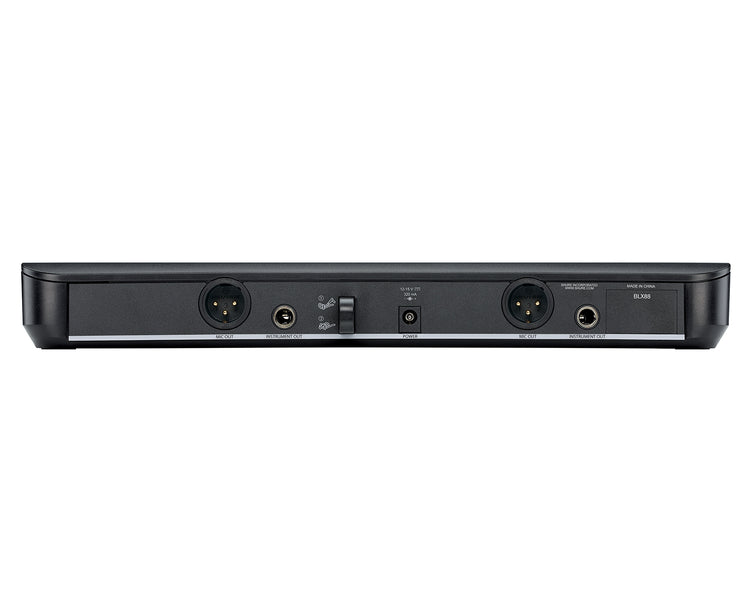

BLX88 Specifications

Output Impedance
- XLR connector: 200 Ω
- 6.35 mm (1/4") connector: 50 Ω
Audio Output Level Ref. ±33 kHz deviation with 1 kHz tone:
- XLR connector: –27 dBV (into 100 kΩ load)
- 6.35 mm (1/4") connector: –13 dBV (into 100 kΩ load)
RF Sensitivity: -105 dBm for 12 dB SINAD, typical
Image Rejection: >50 dB, typical
Dimensions: 1.50 in. X 12.13 in. X 3.98in. (38 mm X 308 mm X 101 mm) H x W x D
Weight: 15.1 oz. (429 g)
Housing: Molded ABS
Power Requirements: 12–15 V DC @ 235 mA (BLX88, 320 mA), supplied by external power supply (tip positive)

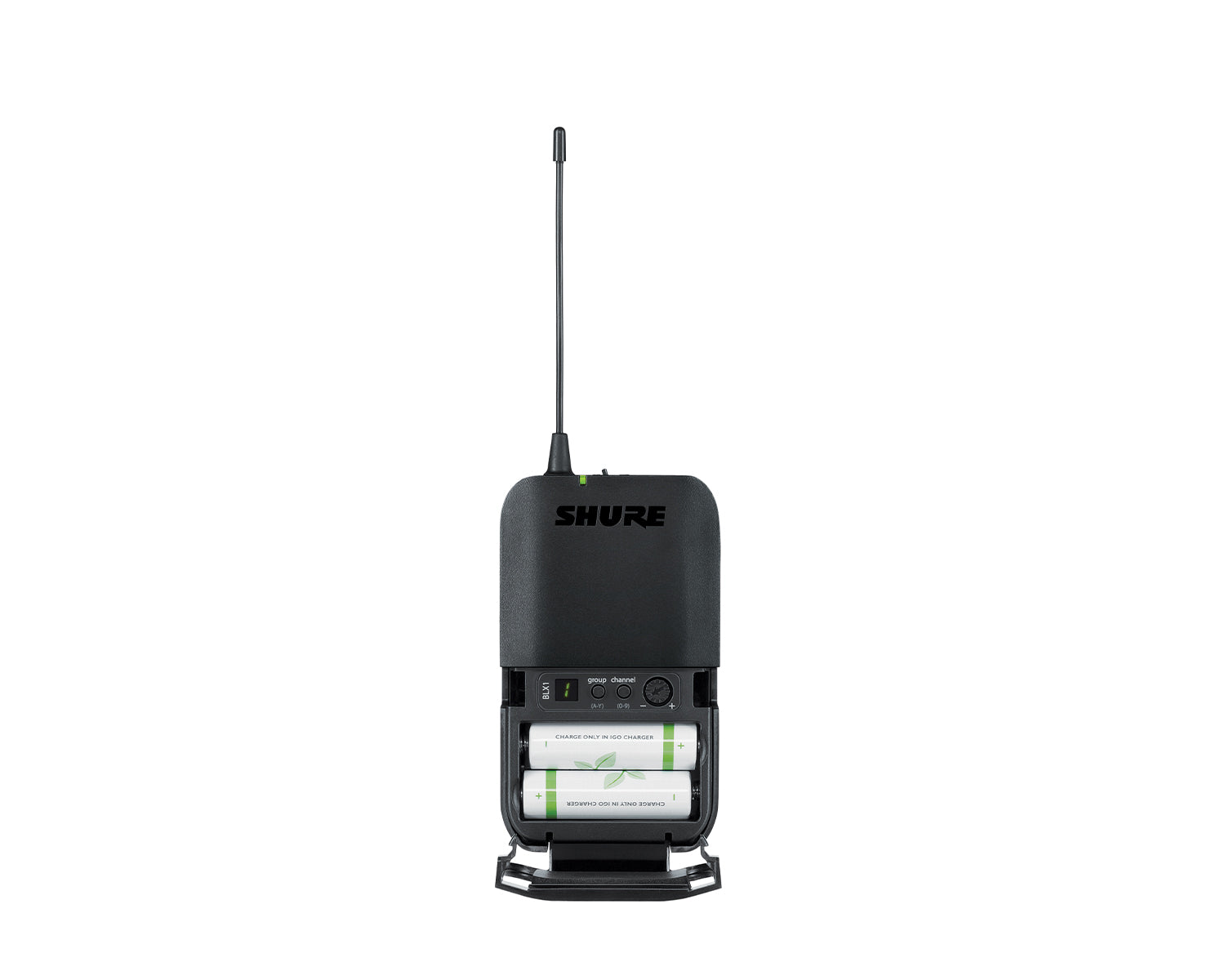

BLX1 Bodypack Specifications

Audio Input Level
- max: -16 dBV maximum
- min (0 dB): +10 dBV maximum
Gain Adjustment Range: 26 dB
Input Impedance: 1 MΩ
RF Transmitter Output: 10 mW, typical (varies by region)
Dimensions: 4.33 in. X 2.52 in. X 0.83 in. (110 mm X 64 mm X 21 mm) H x W x D
Weight: 2.6 oz. (75 g), without batteries
Housing: Molded ABS
Power Requirements: 2 LR6 AA batteries, 1.5 V, alkaline
Battery Life: up to 14 hours (alkaline)

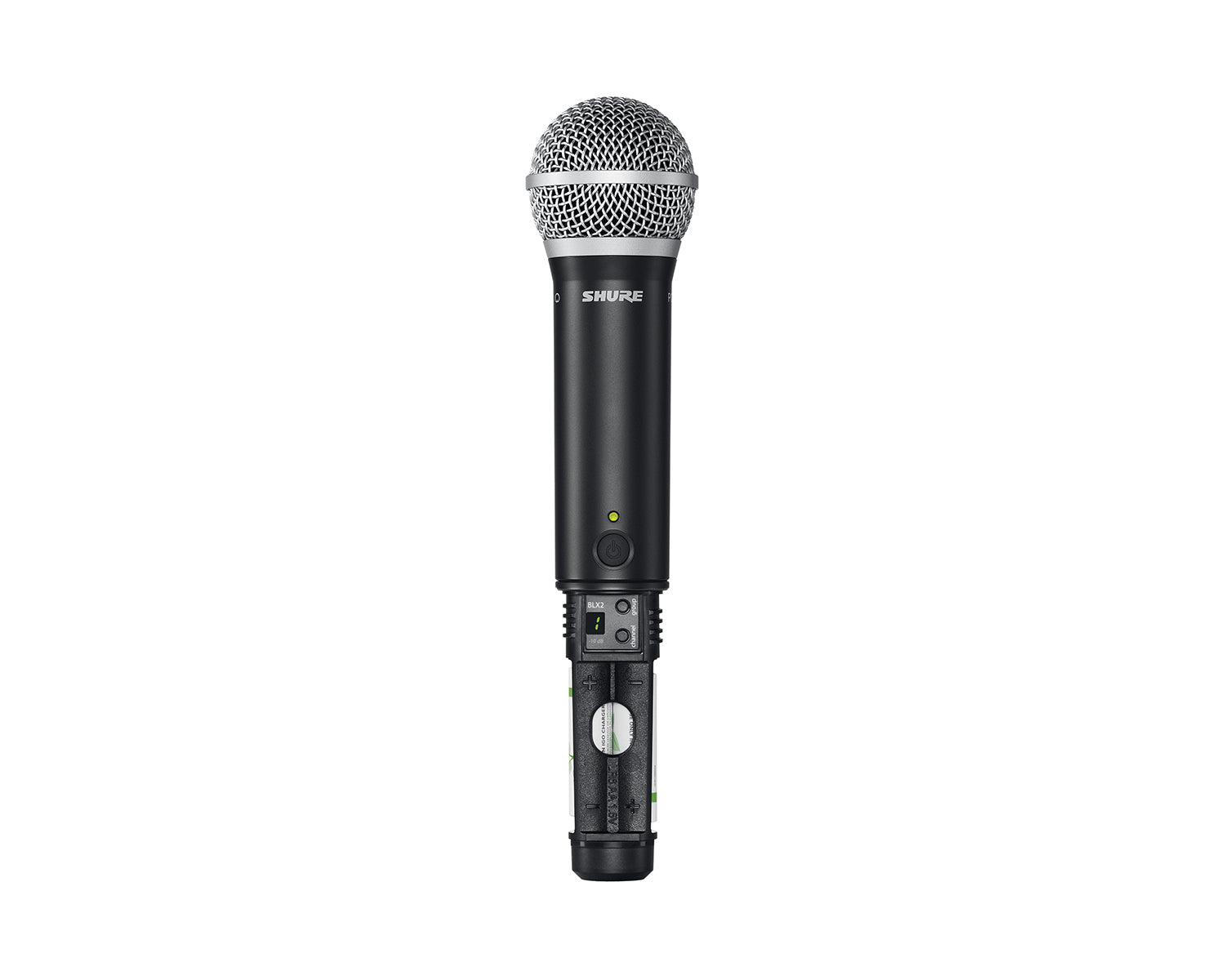

BLX2 Handheld Specifications

Audio Input Level:
0dB: -20 dBV maximum
-10dB: -10 dBV maximum
Gain Adjustment Range: 10 dB
RF Transmitter Output: 10 mW, typical (varies by region)
Dimensions: 8.82 in. X 2.09 in. (224 mm X 53 mm) L x Dia.
Weight: 7.7 oz. (218 g) without batteries
Housing: Molded ABS
Power Requirements: 2 LR6 AA batteries, 1.5 V, alkaline
Battery Life: up to 14 hours (alkaline)

CVL Specifications

Type: Electret Condenser
Frequency Response: 50 to 20,000 Hz
Polar Pattern: Unidirectional (Cardioid)
Output Impedance @ 1 kHz, typical: 600 Ω
Audio Output Level -43.5 dBV/Pa
Signal-To-Noise Ratio @ 1 kHz: 72 dB
Maximum SPL 1000 Ω load, @ 3% THD: 139.0 dB
Dynamic Range @ 1 kHz, 1000 Ω load: 117.0 dB
Equivalent Output Noise: Typical, A-Weighted 22 dB
Power Requirements: +5 V DC (nominal), 10 V maximum (DC bias)
Polarity: Positive pressure on diaphragm produces positive voltage on pin 3 with respect to pin 1
Cable: 1.3 m (50 in.)
Connector: TA4F
Net Weight: 25 g (0.88 oz.)
