Betapack has served the industry for 30 years with legendary reliability, robustness, versatility and value for money.

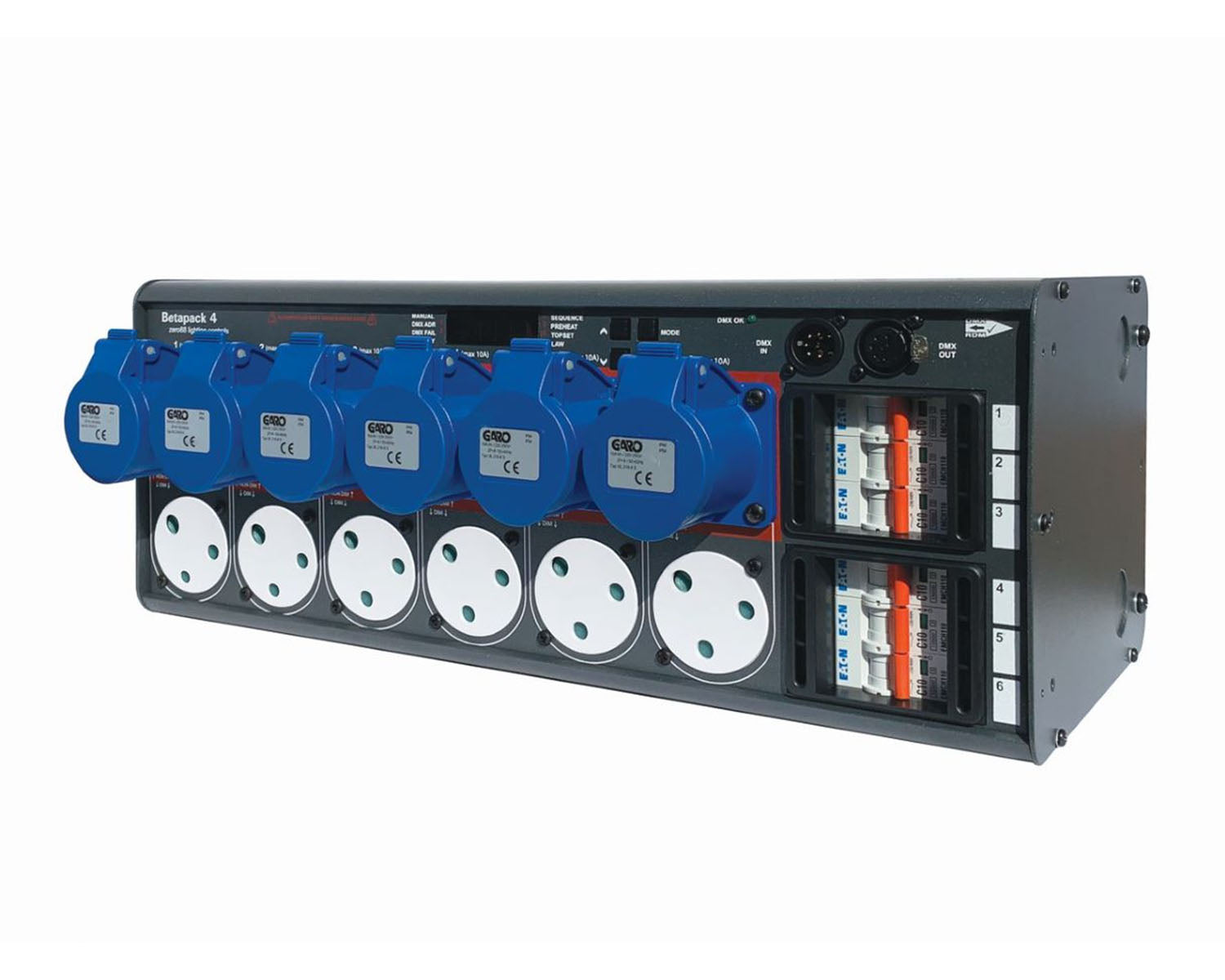

Betapack 4 builds on this heritage by distributing both dimming and “hot power” to a mixed rig of both tungsten and LED fixtures in a single, affordable device. Betapack 4 continues to serve the most modern applications in lighting rental, installation and portable situations for many thousands of venues worldwide.

Betapack 4 includes variants with sockets to match most global standards, and is supplied with MCBs on every channel. The versatility of the Betapack 4 means it can be 19” rack mounted or installed on a wall using the brackets supplied, or made portable by using the included Easicarry kit consisting of a handle and four feet. Its legendary reliability and durability make it the dimmer of choice for many thousands of venues worldwide.

Product Features

• 6x15a / 6xCEE17 Outlet
• 6 Dimming Channels
• 10 Amps per channel
• MCB protection
• Isolated DMX input
• Patchable per channel
• Preheat, Topset and Dimmer Law selectable per channel
• 12 backup memories
• 3 x 99-step sequences with adjustable times
• Automatic DMX termination when loop-through plug is removed
• RDM Enabled
• Auto frequency tracking
• Lock and Reset functions
• Temperature monitoring
• Convection cooled
• DMX addressing via front panel or RDM
• DMX Status indication
• 19” Rack Mount and Wall Mounting options (brackets included)
• Optional Easicarry handle for portable use (included)
• CE compliant to all relevant standards
• Designed and manufactured to ISO9001:2015 standards

Model Variants

• 0011-000023-00 Betapack 4 UK 15A
• 0011-000024-00 Betapack 4 Schuko
• 0011-000025-00 Betapack 4 Swiss
• 0011-000026-00 Betapack 4 CEE17 & UK 15A
• 0011-000027-00 Betapack 4 CEE17
• 0011-000028-00 Betapack 4 PowerCON TRUE1 TOP

Product Specifications

Whole unit

• Number of channels: 6
• Channel capacity: 0.1A min / 10A max
• Total dimmer capacity: 60A
• Supply Voltage:
  • Single Phase (2 wire) 230V
  • Three Phase Star (4 wire) 250/444V
  • Three Phase Delta (3 wire) 230/115V
• Supply frequency: 50-60Hz auto tracking
• Channel outlet options:
  • 12 x UK 15A Sockets (6 x dimmed, 6 x hot power)
  • 12 x 16A CEE17 Sockets (6 x dimmed, 6 x hot power)
  • 6 x UK 15A (dimmed) & 6 x 16A CEE17 (hot power) Sockets
  • 12 x Neutrik PowerCON TRUE1 TOP (6 x dimmed, 6 x hot power)
  • 12 x 16A Schuko Sockets (6 x dimmed, 6 x hot power)
  • 12 x 10A Swiss Sockets (6 x dimmed, 6 x hot power).
• Channel protection: 10A, type C, single pole (thermal magnetic circuit breaker). (Schuko has neutral disconnect per channel). Breaking capacity to 6000A
• Cooling: Convection via rear mounted heatsink with electronic temperature monitoring and progressive overheat shutdown
• Operating Temperature: +5ºC to +40ºC
• Humidity: 5% to 95% Non condensing

Dimmed sockets only

• Dimmer duty cycle: 100%
• Rise time: 80 uS
• Control input: DMX via 5 Pin XLR mixed male with loop through connector with automatic termination, accepts USITT DMX512-A (isolated). Patch set via control interface
• RDM Enabled
• Dimmer Laws: 3 dimmer laws (Normal, Linear, Switch)
• Patching: Full DMX patch and block address
• Memories: 12 static
• Sequences: 3 x 99 step programmable
• User Interface: 7 segment display with 4 navigation keys
• DMX fail mode: DMX Hold, Fade to Black, Fade to Memory or Fade to Sequence
• Programmable channel attributes: Preheat per channel (5%), Topset, Dimmer Laws

Physical

• Height: 177 mm
• Width: 482 mm (19” Rack Mounting)
• Depth: 195 mm
• Weight: 8.0 kg

What's in the Box?

• Single Phase linking bar
• Installation / Operating Instructions
• 2 x Wall / Rack mounting Brackets (fitted)
• Easicarry Kit
