Eliminate time-consuming radio frequency setup. This lavalier and handheld microphone set is the perfect digital wireless solution for film or video.

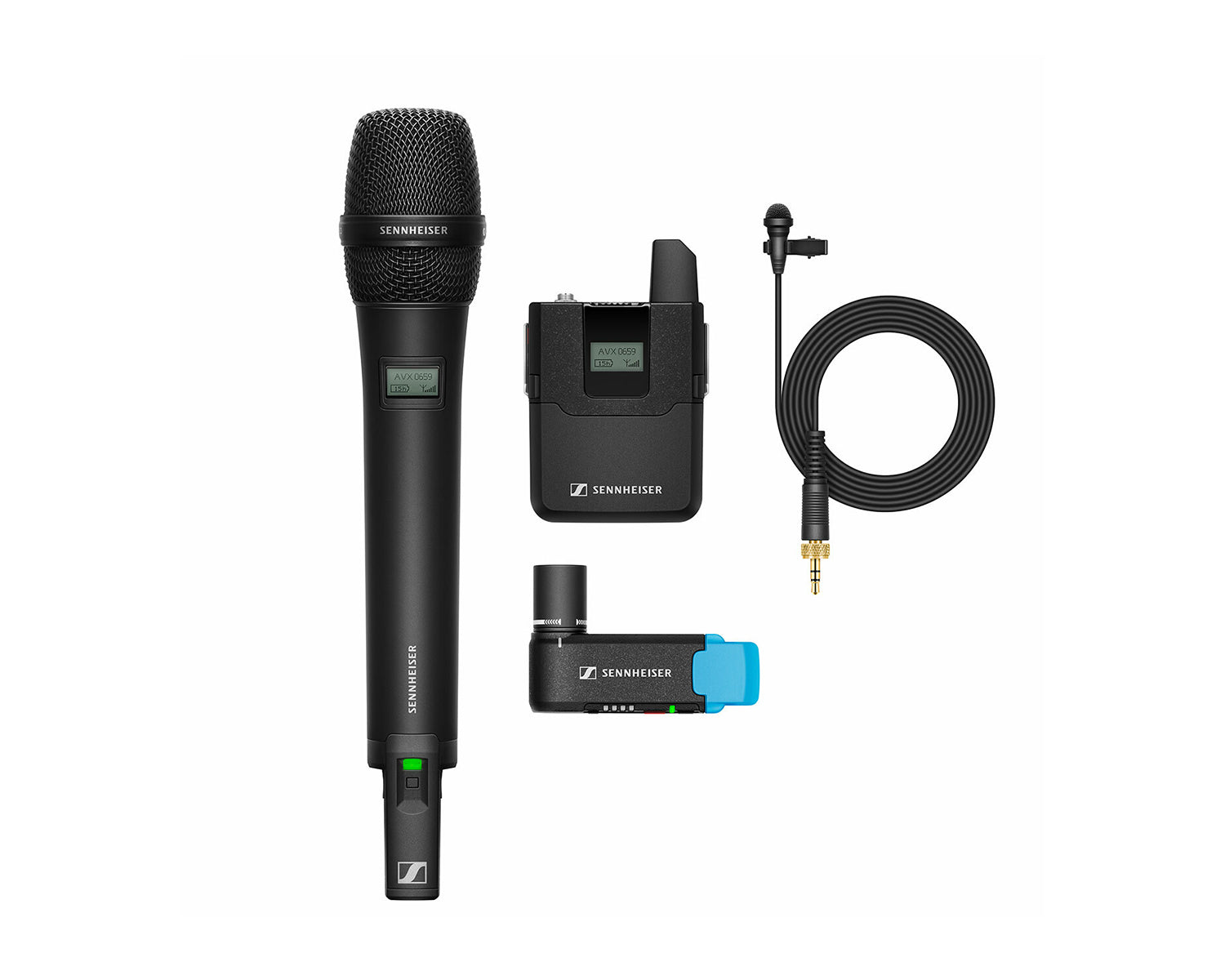

The AVX-Combo SET includes a handheld microphone, the plug on receiver, a bodypack transmitter with lavalier microphone and all accessories to operate out of the box on camcorders as well as DSLR cameras. It features self configuring digital transmission which eliminates time-consuming radio frequency setup. The ultra compact receiver rotates around the XLR connector to avoid collision with other devices mounted on your camera. It switches on and off automatically with your camera - saving battery power. The AVX matches perfectly to your camera input sensitivity without having to adjust the audio level on the microphone. From professional wedding video to documentaries, from street interviews to corporate videos, the AVX just works allowing you to concentrate on creativity.

Live stock levels for trade accounts. Shipping cut-off 4pm.

Product Features

• Very fast setup
• Plugs directly into XLR audio input
• Ultra compact receiver
• Switches on/off by P48 Phantom power
• Optimized dynamic range
• Auto frequency management
• AES 256 encryption
• License free
• Accessories included for DSLR use
• Metal housing

Product Specifications

System

• AF frequency response: 20 to 20,000 Hz
• Dynamic range: > 120 dB (A)
• Total harmonic distortion (THD): typ. 0.1 %
• Audio sampling 24 bit/48 kHz
• Signal-to-noise ratio: > 90 dB (A)
• RF frequency ranges (Country code) Europe: 1880 - 1900 MHz (-3)
• Modulation: GFSK with back channel
• Transmission method:
• TDMA
• fast switching antenna diversity
• Latency: 19 ms
• Relative air humidity: max. 95 %
• Temperature range:
• Operation: –10 °C to +55 °C
• Storage: –20 °C to +70 °C

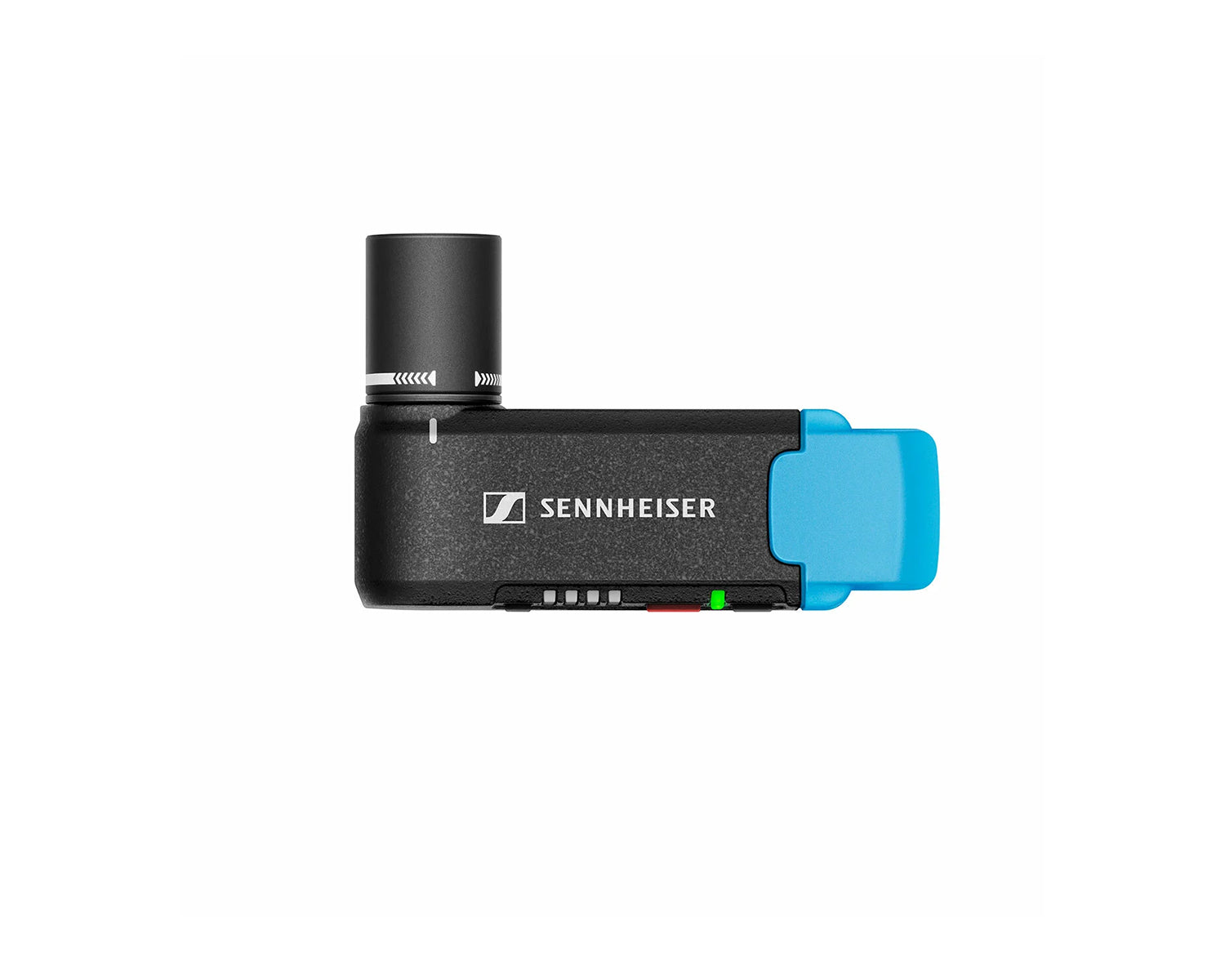

EKP AVX (Camera Receiver)

• RF sensitivity: < –90 dBm
• RF output power back channel: typ. 15 dBm e.i.r.p.
• Audio output: adjustable
  • XLR, balanced: –30 dBu to 0 dBu in 4 steps
• Power supply: BA 20 (Li-Ion 3.7 V)
• Operating time: > 4 h
• AF connection socket: XLR, male
• Weight (incl. BA 20): approx. 87 g

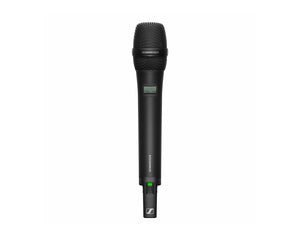

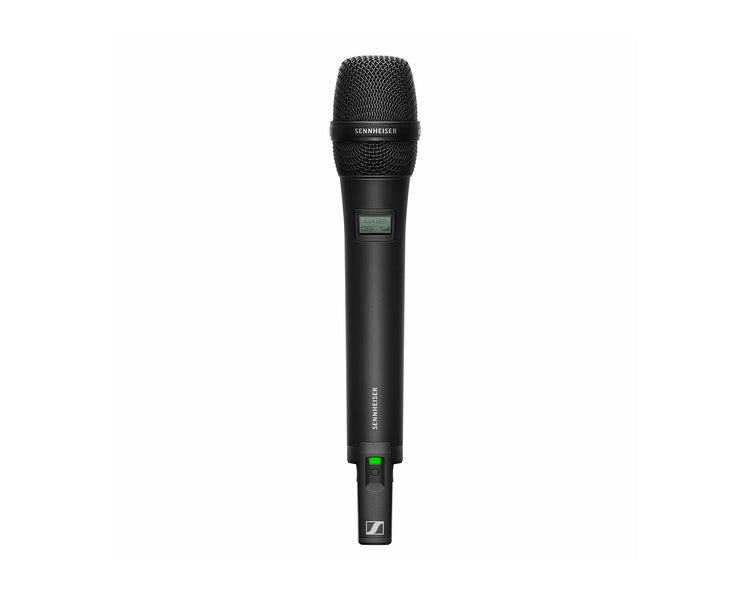

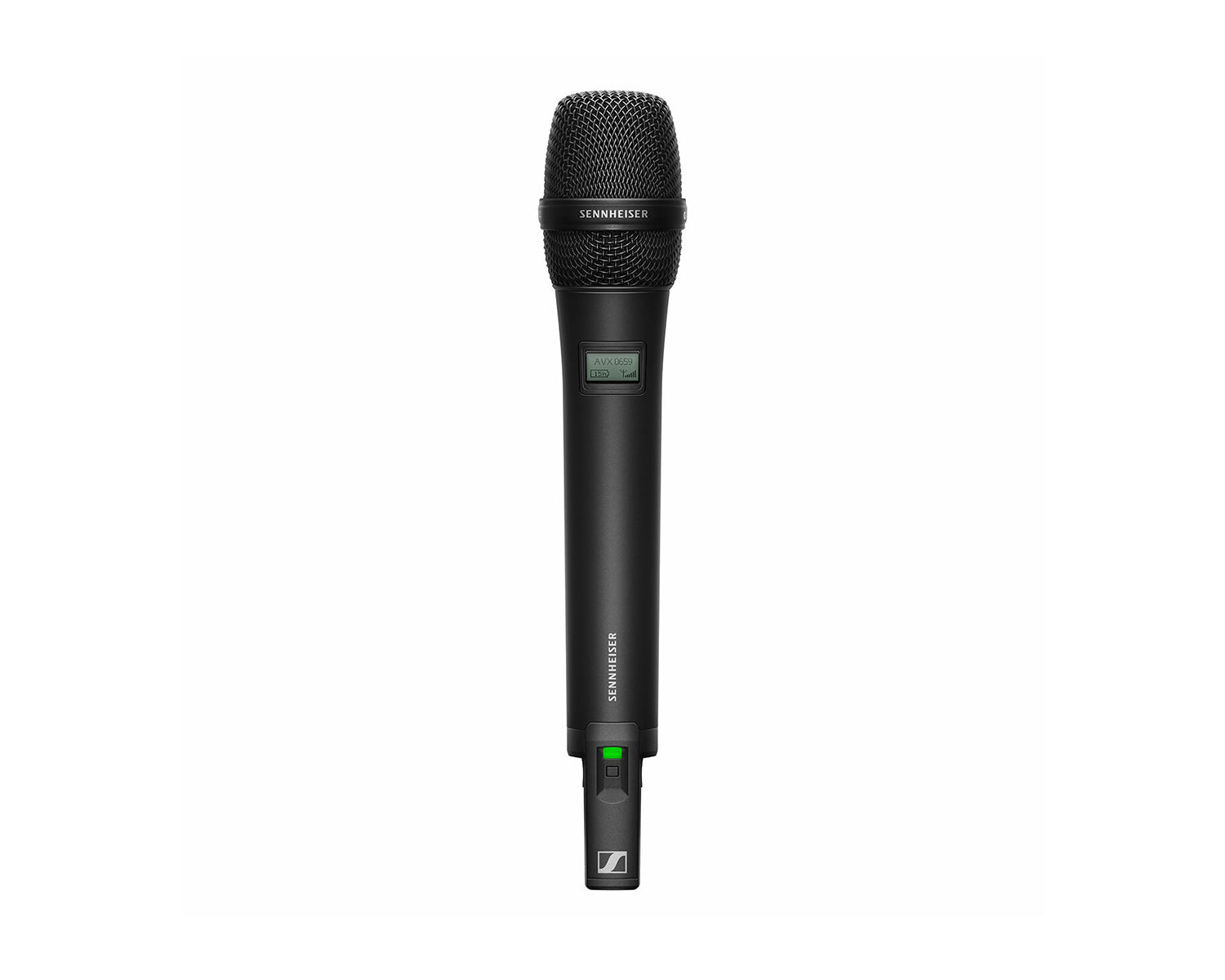

SKM AVX (Handheld Transmitter)

• RF output power: adaptive, up to 250 mW (country-specific)
• AF frequency response: 50 to 20,000 Hz
• Input sensitivity: automatic sensitivity adjustment
• Power supply:
  • Rechargeable batteries: BA 10 (Li-Ion, 3.6 V)
  • Batteries*: 2 x AA size battery (1.5 V)
• Operating time:
  • Rechargeable batteries: typ. 15 h
  • Batteries*: typ. 10 h
• Display: LCD
• Weight (w/o Rechargeable batteries): approx. 282g incl. microphone head

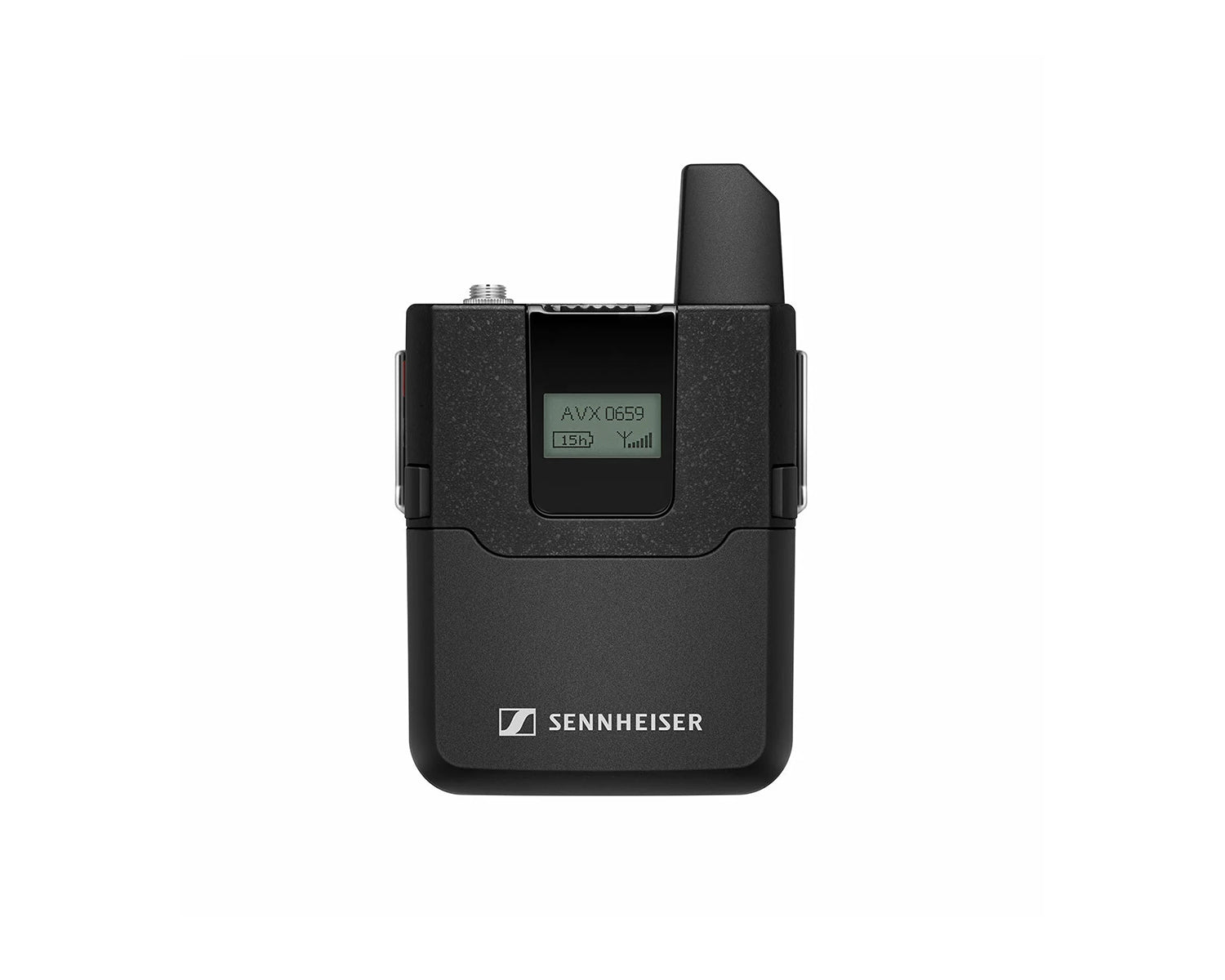

SK AVX (Bodypack Transmitter)

• RF output power: adaptive, up to 250 mW (country-specific)
• AF frequency response
• Mic: 50 to 20,000 Hz
• Line: 20 to 20,000 Hz
• Max. input level:
  • Mic: 1.5 V RMS
  • Line: 3.1 V RMS
• Line input impedance: 1 MΩ
• Input sensitivity: automatic sensitivity adjustment
• Power supply:
  • Rechargeable batteries: BA 30 (Li-Ion, 3.7 V)
  • Batteries*: 2 x AA size battery (1.5 V)
• Operating time: Rechargeable batteries: typ. 15 h
• Batteries*: typ. 11 h
• Display: LCD
• Weight (w/o Rechargeable batteries): approx. 87 g

Power supply unit NT 5-10 UW

• Input voltage: 100 to 240 V~, 50/60 Hz
• Output voltage: 5 V
• Output current: 1 A
• Standby power consumption; ≤ 0.1 W
• Energy efficiency level: VI
• Temperature range:
• Operation: 0 °C to +45 °C
• Storage: –40 °C to +70 °C
• Relative air humidity: max. 95 %
• Weight: approx. 55 g

What's in the Box?

• SKM AVX
• accupack BA 10
• MMD 835 microphone head
• Microphone clamp
• EKP AVX adapter

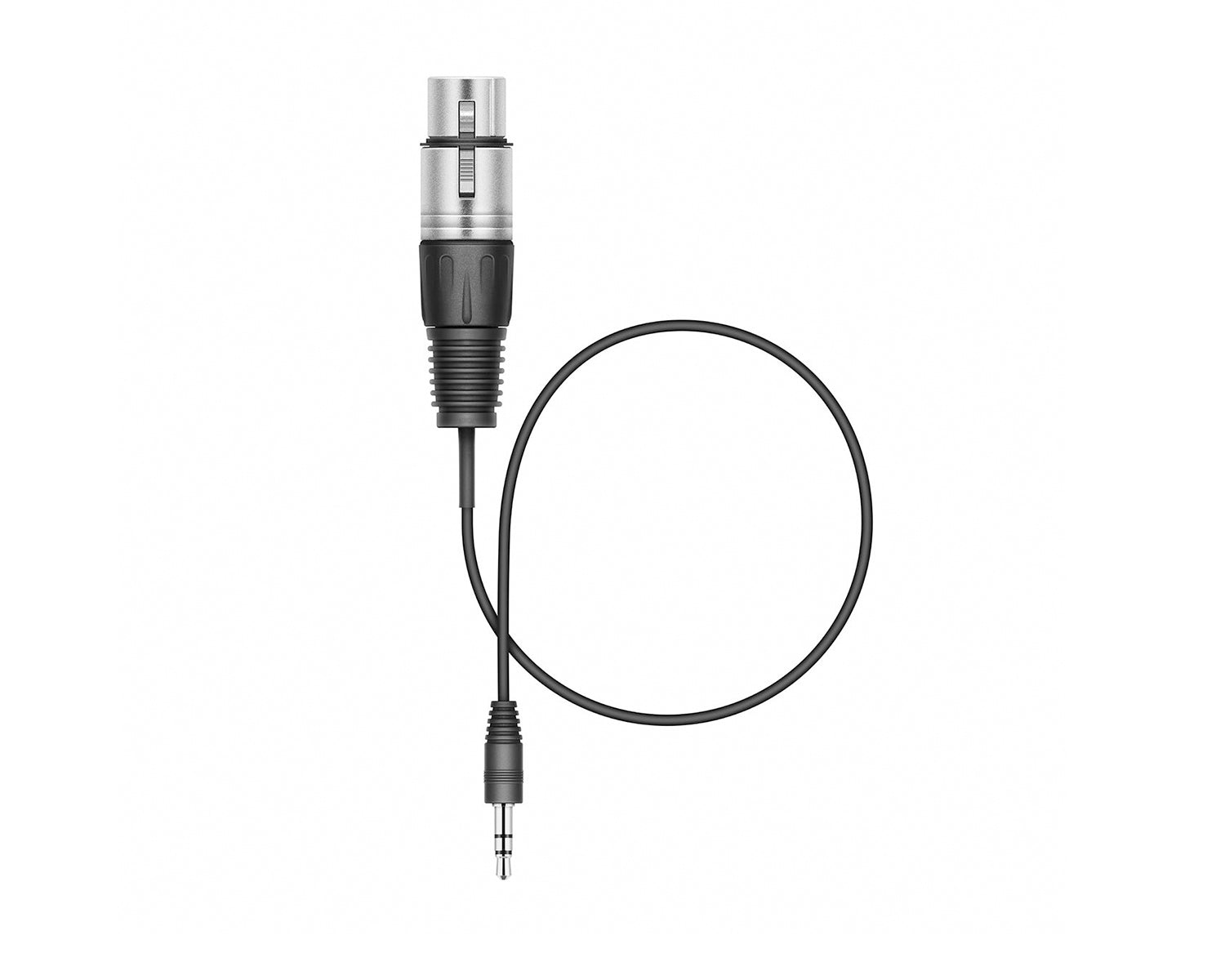

• XLR to mini jack cable
• pouch
• SK AVX
• accupack BA 30

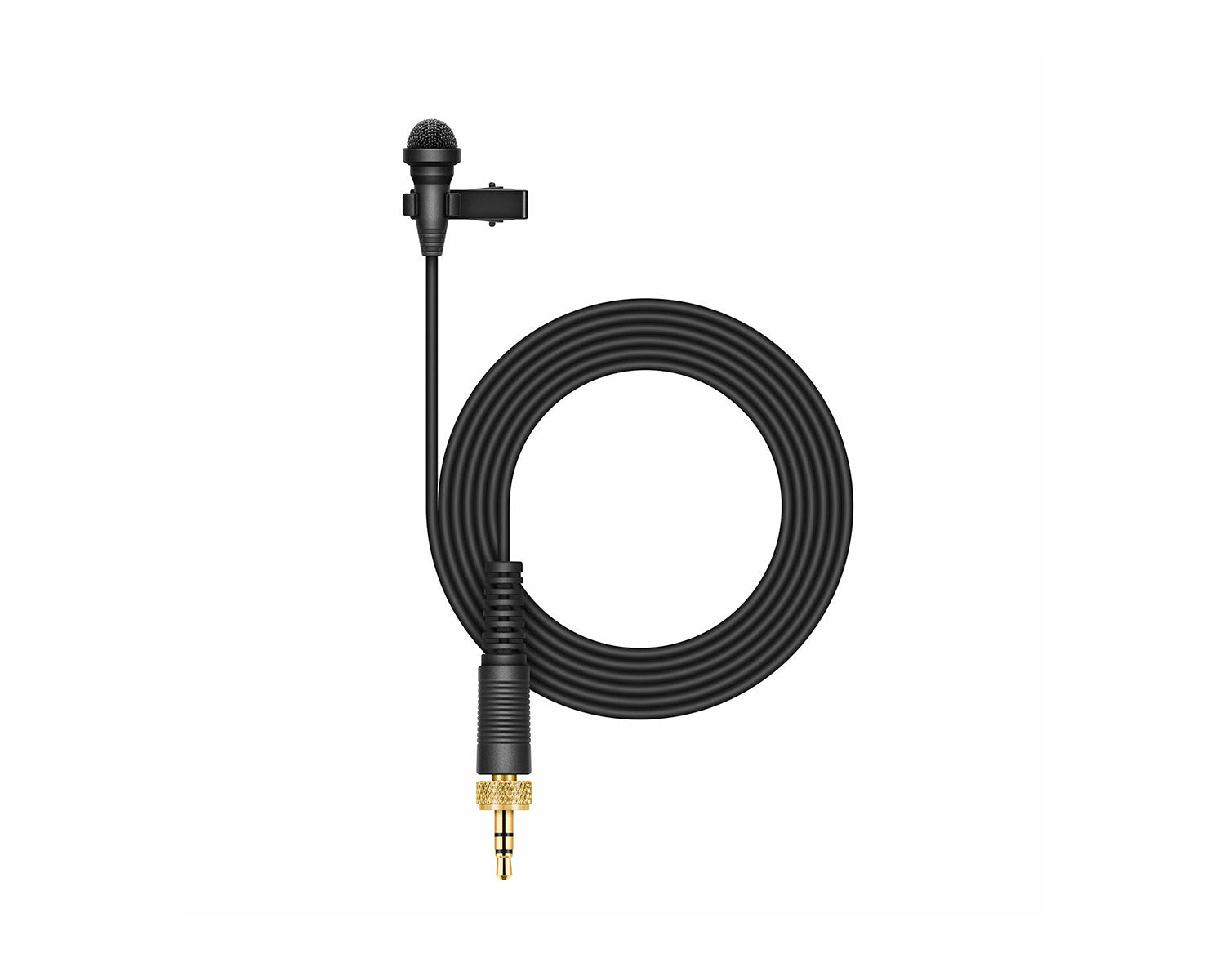

• ME 2-II lavalier microphone
• microphone clip
