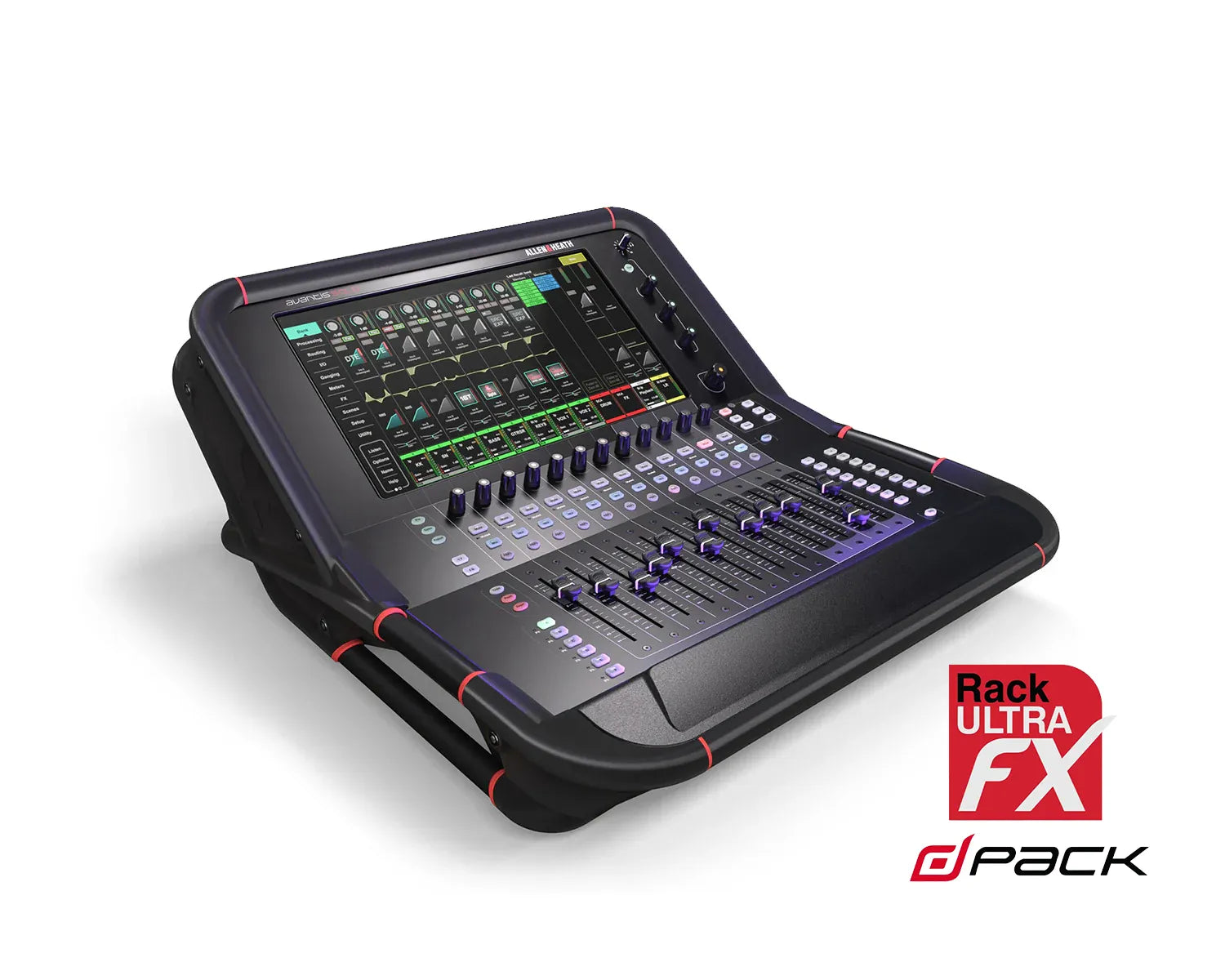

The Avantis Solo Ultra digital mixer provides 96 mono input processing channels, 12 stereo FX returns, 8 stereo RackUltra FX sends and returns, and 56 flexible mix buses. With our 96kHz XCVI FPGA engine, Avantis Ultra puts all our next-generation technology in a stand-alone 96 channel / 56 configurable bus console, with a Full HD touchscreen, a super-flexible workflow with Continuity UI, extensive I/O options, included DEEP processing and RackUltra FX from our flagship dLive mixing systems, and a rugged full-metal chassis. Fully compatible with all the dLive I/O cards, the full ‘Everything I/O’ range and IP controllers

The integrated SLink port offers Plug’n’Play operation with the GX, DX, AB and AR ranges of remote I/O expanders plus the DX Hub remote hub. Additionally, SLink can be used for digital split applications with a second Avantis mixer or a dLive/SQ system. Compatibility with the ME Personal Monitoring System allows performers to take control of their own monitor mixes via the ME-1 and ME-500 personal mixers. Digital audio networking cards are available to enable integration with other digital audio systems via protocols such as gigaACE, Dante, MADI and Waves SoundGrid.

Product Features

• XCVI FPGA core
  • 96kHz sample rate
  • Variable bit depth
  • 96bit accumulator
  • Class leading, ultra-low latency (0.7ms)
• 15.6” Full HD capacitive touchscreen with gesture control
• Innovative compact design with super-tough, lightweight full-metal chassis
• 96 Input Channels with full processing (LPF/HPF, Gate, PEQ, Comp, Delay)
• Configurable 56 bus architecture with full processing (PEQ, GEQ, Comp, Delay) on Mix Outputs.
• DEEP Processing Ready
• 72 fader strips (12 faders, 6 layers) with optional dedicated master section
• SLink EtherCON connection for remote audio using gigaACE, GX, DX, ME and dSnake protocols.
• 6 Local Mic/Line Inputs (XLR)
• 6 Local Line Outputs (XLR)
• 1 Stereo AES Input (XLR)
• 1 Stereo AES Outputs (XLR)
• 2 I/O Ports, both capable of 128x128 operation at 96kHz – for optional cards inc. Dante, MADI and gigaACE
• 8 Mute Groups
• 16 DCA Groups with DCA Spill
• 12 Stereo FX with dedicated FX Returns
• 8 Stereo RackUltra FX with dedicated FX sends and returns
• 18 Assignable SoftKeys
• 3 Assignable Custom Rotaries
• Comprehensive metering with multipoint peak detection
• Integrated Fader Illumination
• Built-in signal generator, RTA and spectrogram
• AMM (Automatic Mic Mixer) up to 64 channels across 1,2 or 4 zones
• Quick copy/paste/reset for parameters
• User Permissions to restrict operator access
• 500 Scene memories per show
• Channel Safes, Global and per Scene Recall Filters
• Onboard Stereo Recording & Playback
• USB transfer of Scenes, Libraries, Shows, Audio Files.
• MIDI Control Driver for MIDI control via TCP/IP
• Wireless remote mixing apps for iPad
• BNC Word Clock connector (input or output)
• ¼” TRS and 3.5mm Headphone outs with dedicated analogue volume control

Product Specifications

System

• Measured balanced XLR In to XLR Out, 22-40kHz, minimum Gain, Pad out
• Dynamic Range:  109dB
• System Signal to Noise:  -92dB
• Frequency Response:  20Hz - 30kHz (+0/-0.8dB)
• THD+N (analogue in to out):  0.0015% @ +16dBu output, 1kHz 0dB gain
• Headroom:  +18dB
• Internal operating Level:  0dBu
• dBFS Alignment:  +18dBu = 0dBFS (+22dBu at XLR output)
• Meter Calibration:  0dB meter = -18dBFS (+4dBu at XLR out)
• Meter Peak indication:  -3dBFS (+19dBu at XLR out)
• Sampling Rate:  96kHz
• Operating Temperature Range:  0 deg C to 40 deg C
• Mains Power:  100-240V AC, 50-60Hz, 150W max
• Audio recording:  Stereo .WAV files, 24bit 96kHz
• Audio playback:
  • 16/24bit, 44.1/48/96kHz
  • MP3 files
  • FLAC files

Inputs

• Mic/Line XLR Inputs:  Balanced XLR, +48V phantom power
• Mic/Line Preamp:  Fully recallable
• Input Sensitivity:  -60 to +15dBu
• Analogue Gain:  +5 to +60dB, 1dB steps
• Pad:  -20dB Active PAD
• Maximum Input Level:  +30dBu (PAD in)
• Input Impedance:  >4kΩ (Pad out), >10kΩ (Pad in)
• Mic EIN:  -127dB with 150Ω source
• Phantom Power indication:  Per socket, internal or external phantom power sensing, triggered at +24V
• Digital Inputs:
  • AES3 2 Ch XLR, 2.5Vpp balanced terminated 110 Ω
  • SRC range 24 bit, 32k - 192kHz, with bypass option

Outputs

• Analogue XLR Outputs:  Balanced, Relay protected
• Output Impedance:  <75Ω
• Nominal Output:  +4dBu = 0dB meter reading
• Maximum Output Level:  +22dBu
• Residual Output Noise:
  • -95dBu (muted, 22-22kHz)
  • -90dBu (muted, 0-80kHz)
• Digital Outputs:
  • AES3 2 Ch XLR, 2.5Vpp balanced terminated 110 Ω
  • 96kHz sampling rate, globally switchable to 48kHz, 44.1kHz

Physical & Dimensions

• Width x Depth x Height:  546 x 627 x 269 mm
• Weight:  17.5kg

What's in the Box?

• Avantis Solo Digital Mixing Console
• Getting Started Guide AP13258
• Safety Sheet
• IEC mains lead
