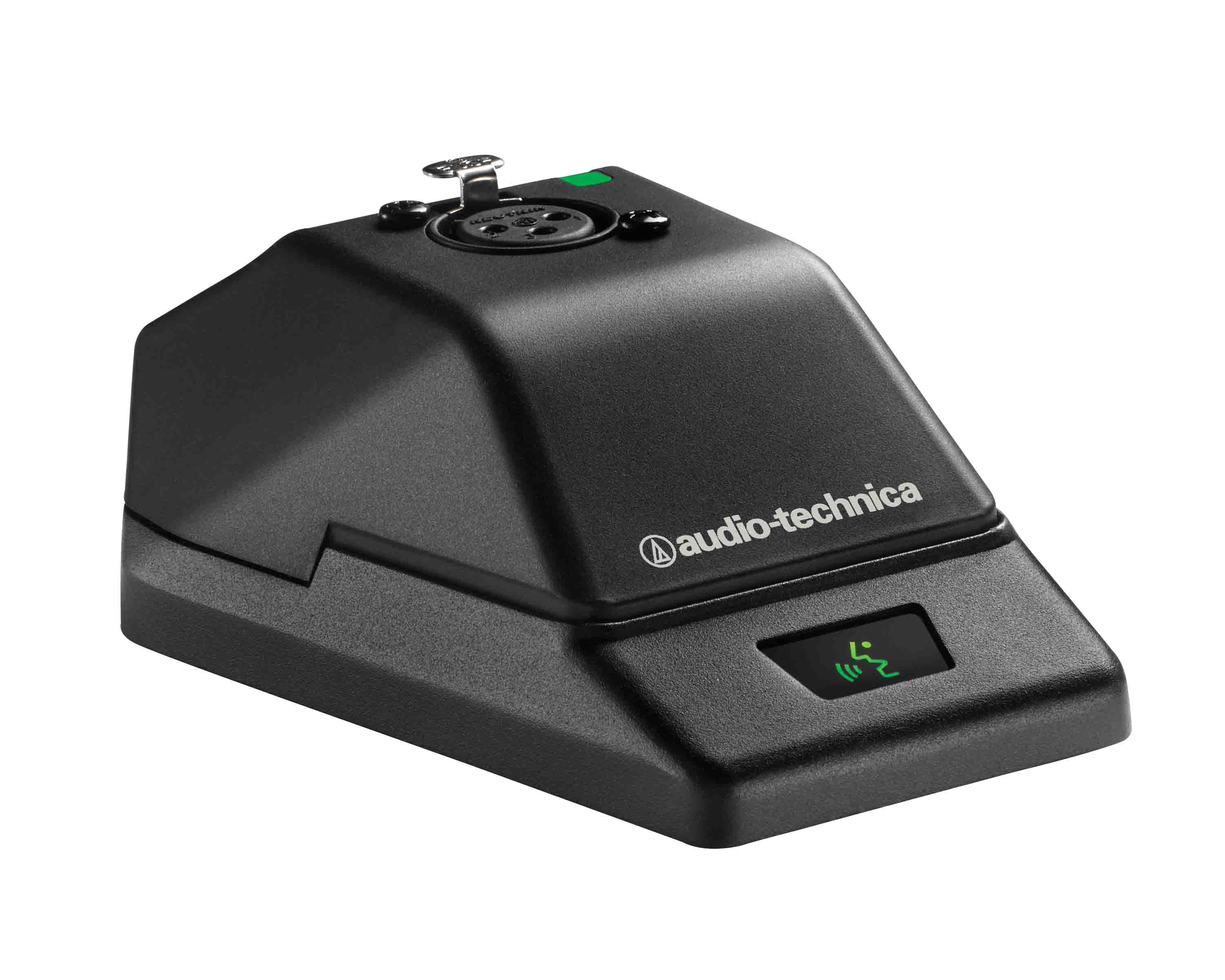

Designed to work with phantom-powered, condenser gooseneck microphones with a 3-pin XLRM-type output, the ATW-T1007 System 10 Microphone Desk Stand Transmitter pairs with the System 10 or System 10 PRO digital wireless receiver of your choice to provide rock-solid, 2.4 GHz wireless performance.

The transmitter is equipped with a 3-pin XLRF-type input, and features a touch-sensitive user switch that can toggle between talk and mute modes, or function as a press-to-talk or press-to-mute button. Two red/green LEDs – one visible from the front of the unit, the other from the rear – indicate toggle/talk/mute mode, battery level, and charging status.

The ATW-T1007 also offers three levels of input gain (-6 dB, 0 dB and +6 dB), which can be selected via a switch on the bottom of the unit. Another switch engages the low-cut filter. The 3.7V rechargeable lithium-ion battery provides nine hours of use on a full charge and is easily recharged with the included USB charging cable.

Product Features

• Pairs with any System 10 or System 10 PRO digital wireless receiver
• 3-pin XLRF-type in for quick mounting of gooseneck microphone
• Digital 24-bit/48 kHz wireless operation for ultimate sound quality and dependable performance
• Operates in the 2.4 GHz range – completely free from TV interference
• User switch can be set to toggle between talk and mute modes, or function as a press-to-talk or press-to-mute button
• Gain Control switch allows selection of three input gain levels: -6 dB (for loudest voices), 0 dB and +6 dB (for softest voices)
• Two red/green LEDs – one visible from the front of the unit, the other from the rear – indicate toggle/talk/mute mode, battery level, and charging status
• Automatic frequency selection for seamless, interference-free operation

Product Specifications

General

• RF Power Output: 10 mW
• Spurious Emissions: Following federal and national regulations
• Power Supply: 100-240V AC (50/60 Hz) to 5V DC 0.5A switched mode external USB-type power supply
• Phantom Power: 12V DC
• Battery: 3.7V rechargeable lithium-ion battery
• Battery Life: 9 hours
• Charging Time: Approx. 4.5 hours (for 0-100% charge)
• Switches: Touch-sensitive, capacitive-type user switch function: toggle (talk on power up), momentary on, momentary off; Low-cut filter: flat, roll-off; Gain: -6 dB, 0 dB, +6 dB

Physical & Dimensions

• Height: 44.2mm
• Width: 96.8mm
• Depth: 122.8mm
• Weight: 420g
