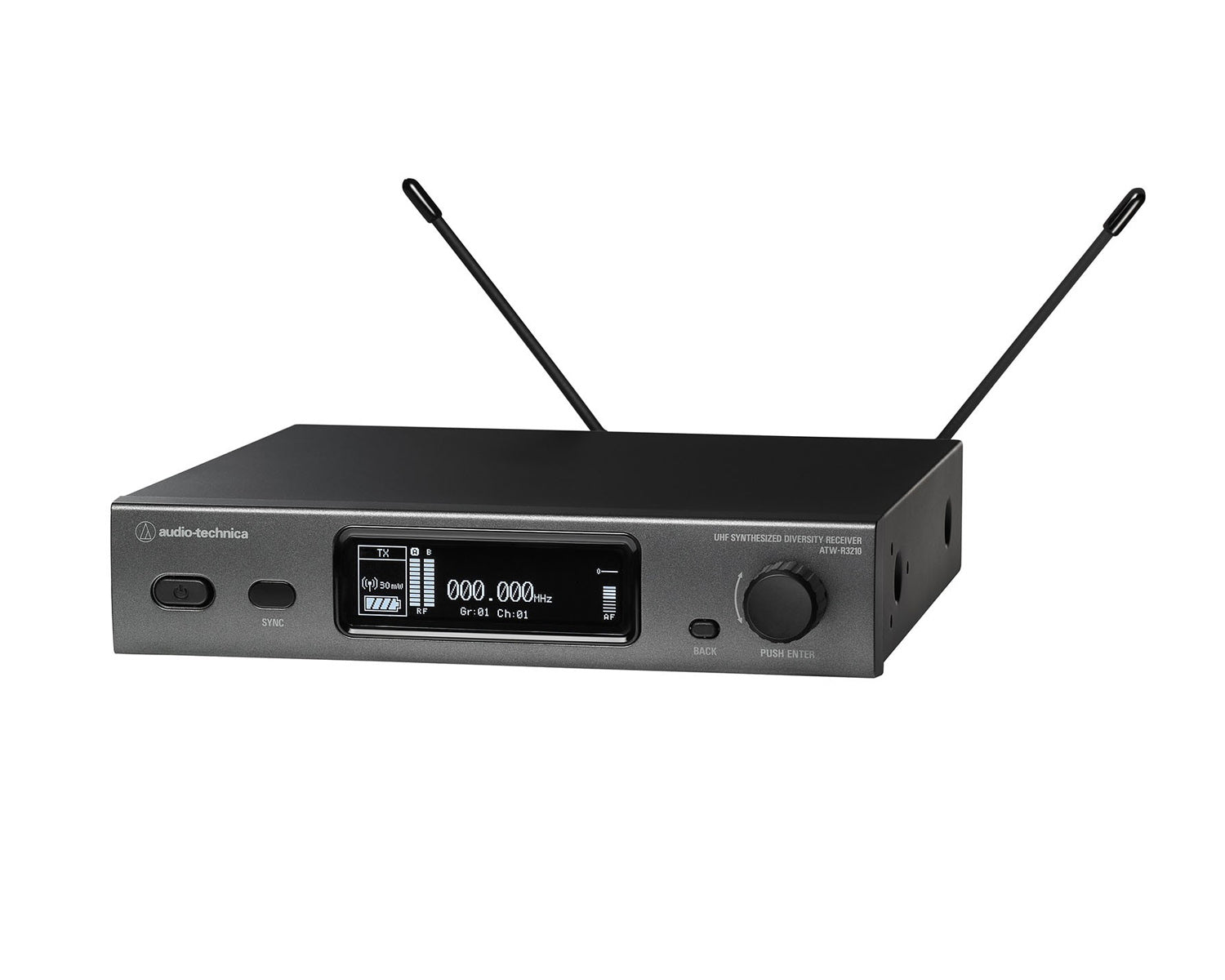

AUDATWR3210N1 - Audio Technica ATW R3210N or EF1 3000 Series Wireless Receiver Only 590 650MHz Image 1

The ATW-R3210 receiver features automatic frequency scanning that eliminates the need for searching for clear channels by automatically selecting the most appropriate frequency for the area in which the wireless is operating. 25 kHz frequency spacing enables the system to easily find an open frequency in crowded RF environments, while pre-coordinated frequency scan groups simplify selection of usable frequencies in a multichannel wireless system. Once selected, frequencies can be synced with transmitters using the system’s IR sync functionality. The system’s squelch setting can be configured to automatically adjust to maximize range while minimizing potential interference. Advanced digital Tone Lock™ squelch provides enhanced rejection of interference. In addition, the Tone Lock signal from the transmitter also conveys information on the transmitter’s battery condition and mute status back to the receiver for display. The receiver’s dual-mode front panel display can switch between the standard view, which provides continuous indication of RF signal strength, frequency, mute status, audio modulation level of the received signal, and transmitter information, and a performance view, which highlights key metering. Settings can be easily adjusted using the control dial and BACK button located on the receiver’s front panel. Settings can also be locked to prevent them from being changed.

Operating on 12V DC, the receiver incorporates rear-panel connections for balanced XLR and unbalanced ¼" outputs, along with detachable BNC ¼" wave antennas. Switchable 12V DC antenna power is available on the BNC-type connectors for powered antenna accessories. The receiver is half-width for a standard 1U 19” rack-mount and includes rack-mount adapters.

Product Features

Extremely wide 60 MHz UHF tuning bandwidth for maximum versatility in an increasingly congested RF environment; available in 6 frequency bands - DE2 (470–530 MHz), EE1 (530–590 MHz), EF1 (590–650 MHz), FG1 (650–700 MHz), GH2 (795 – 806 MHz) and HH2 (821 – 865 MHz).
True Diversity operation reduces dropouts
Frequency scan and IR sync functionality for ease of setup
Dual-mode receiver display can switch between standard view or a performance view that highlights key metering
Receiver include OLED screens for optimal readout of key settings and alerts
Antenna power available for powered antennas and other in-line RF devices
Ground-lift switch helps eliminate audible hum caused by ground loops
Balanced and unbalanced audio output jacks

Product Specifications

Overall System

Operating Frequencies:
- Band DE2: 470.125 to 529.975 MHz
- Band EE1: 530.000 to 589.975 MHz
- Band EF1: 590.000 to 649.975 MHz
- Band FG1: 650.000 to 699.875 MHz
- Band GH2: 794.100 to 805.900 MHz
- Band HH2: 821.100 to 831.900 MHz and 863.100 to 864.900 MHz
- Please note that some frequency bands might not be available in your territory or could come with a limited tuning bandwidth / transmitting power due to local regulations.
Minimum Frequency Step: 25 kHz
Modulation Mode: FM
Maximum Deviation:
- ATW-T3201: ±38 kHz (THD:10%)
- ATW-T3202: ±36 kHz (THD:10%)
Simultaneous Use: 40 Channels per band (Region and band dependent)
Frequency Response:
- ATW-T3201: 31 Hz to 15500 Hz
- ATW-T3202: 25 Hz to 16700 Hz
Operating Range: 100 m
Dynamic Range:
- ATW-T3201 Mic input: > 115 dB (A-weighted), typical
- ATW-T3201 Inst input: > 112dB (A-weighted), typical
- ATW-T3202: > 115 dB (A-weighted), typical
Total Harmonic Distortion: <1.0% (at 1 kHz, ±17.5 kHz deviation)
Operating Temperature Range: -5 ºC to +45 ºC

Receiver

Receiving System: True Diversity
Sensitivity: 20 dBuV at 60 dBA S/N ratio (50Ω termination)
Maximum Output Level:
- XLR / Balanced: +14 dBV
- 6.3 mm (¼"") / Unbalanced: +8 dBV
Antenna Input: BNC-type, 50 Ω
Power Output: 12 V DC, 160 mA (combined)
Power Supply: 100-240V AC (50/60 Hz) to 12V DC 1A (center positive) switched mode external power supply
Dimensions: 210.0 mm x 191.0 mm x 43.4 mm (W x D x H)
Weight: 1100 g, without accessories
