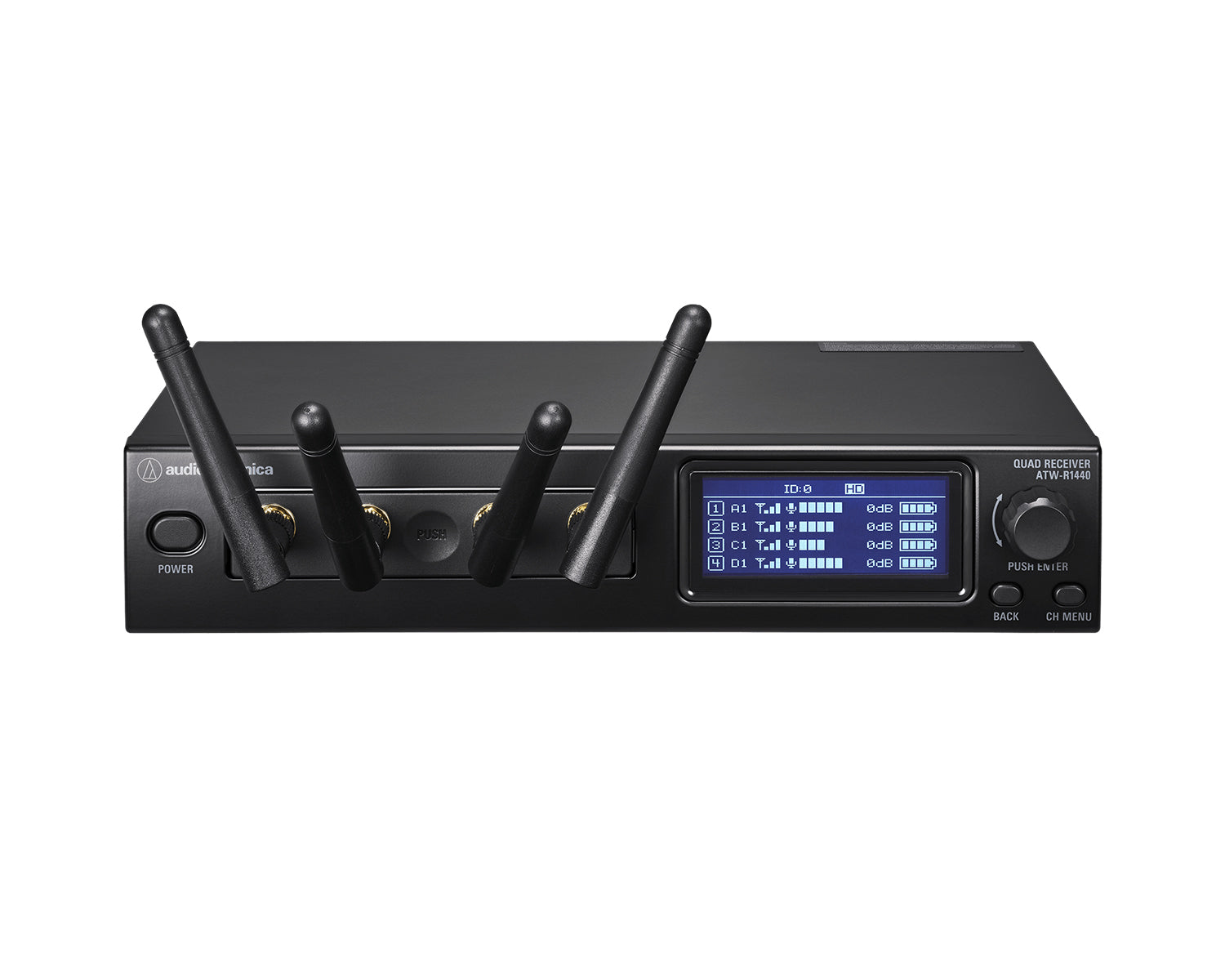

AUDATWR1440 - Audio Technica ATW R1440 System 20 PRO QUAD Receiver 2.4GHz Image 1

AUDATWR1440 - Audio Technica ATW R1440 System 20 PRO QUAD Receiver 2.4GHz Image 2

AUDATWR1440 - Audio Technica ATW R1440 System 20 PRO QUAD Receiver 2.4GHz Image 3

AUDATWR1440 - Audio Technica ATW R1440 System 20 PRO QUAD Receiver 2.4GHz Image 4

AUDATWR1440 - Audio Technica ATW R1440 System 20 PRO QUAD Receiver 2.4GHz Image 5

AUDATWR1440 - Audio Technica ATW R1440 System 20 PRO QUAD Receiver 2.4GHz Image 6

AUDATWR1440 - Audio Technica ATW R1440 System 20 PRO QUAD Receiver 2.4GHz Image 7

AUDATWR1440 - Audio Technica ATW R1440 System 20 PRO QUAD Receiver 2.4GHz Image 8

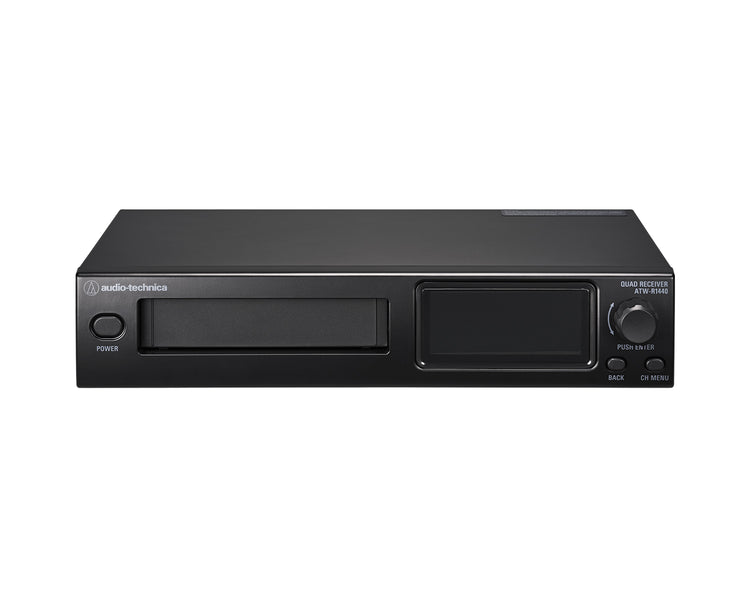

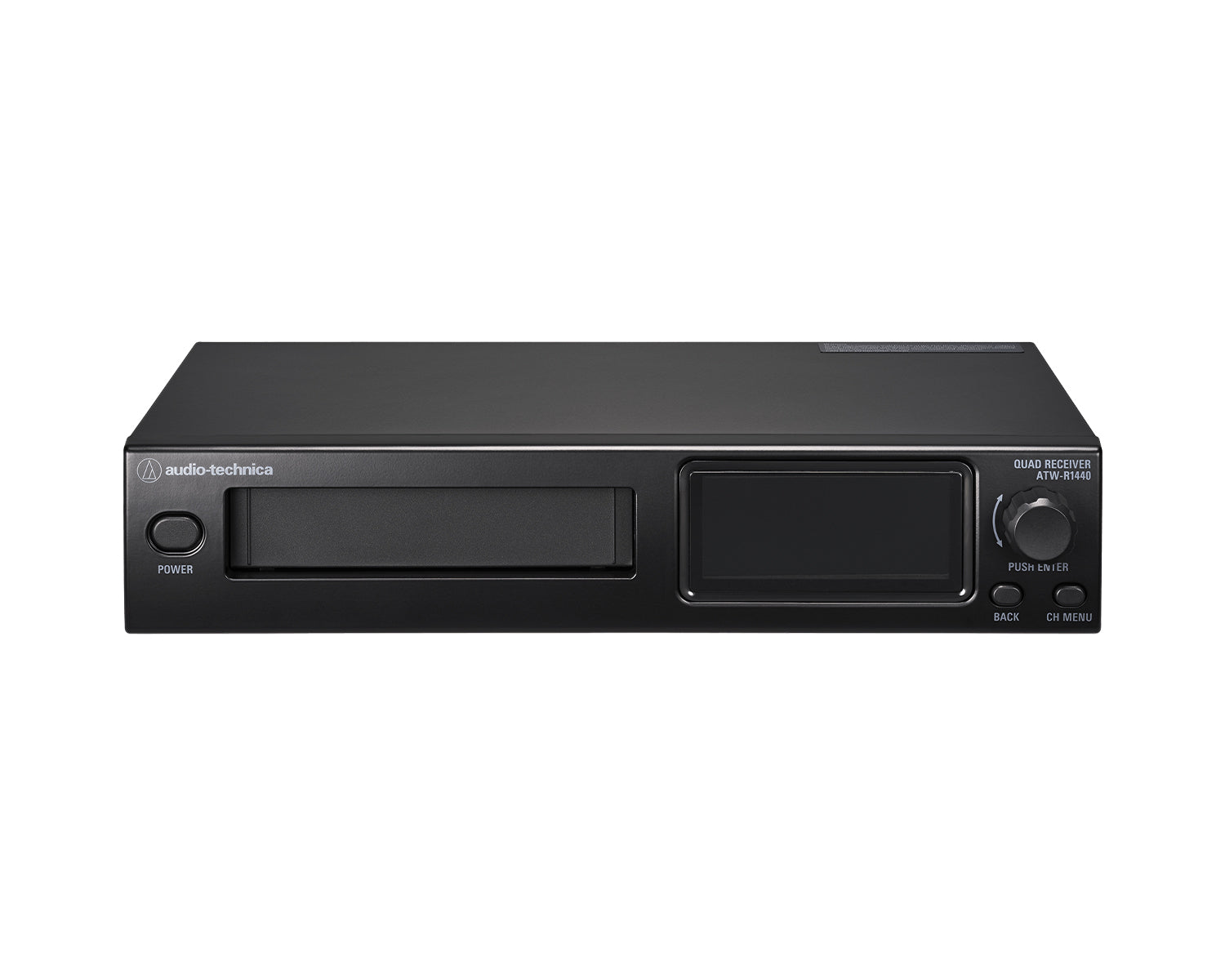

Capable of receiving up to four transmitters, the system’s ATW-R1440 receiver makes installation a breeze. Receiver units can remain docked in the half-rack chassis or be mounted remotely (up to 328 feet away) via Ethernet cable for added versatility. Up to five chassis can be linked using the included RJ12 cable, creating a stable, multichannel system with the simultaneous use of up to 20 channels. But the user is always free to choose the most effective operation mode for a given situation: Standard mode (10 channels) to minimize latency or HD mode (20 channels) to maximize channel count.

Offering a self-managing, plug-and-play 2.4 GHz system that’s scalable to 20 channels and delivers the same dependable, high-quality audio – regardless of where you set it up. Designed for hassle-free deployment, the system overcomes many challenges of conventional wireless microphones, such as frequency coordination, complex intermodulation calculations, and remote antenna cabling.

Seamless setup and management are controlled via Audio-Technica’s Wireless Manager software, which is capable of managing multiple UHF, 2.4 GHz and DECT wireless systems from a single screen. In addition, AES128 encryption comes standard, providing security and reliable operation. The transmitters included in each system are paired and ready to use out of the box, and offer all-day operation on a full charge.

Product Features

Half-rack chassis capable of receiving up to four transmitters
Each receiver channel can be paired with up to four transmitters, allowing users to instantly switch between different transmitter configurations
Switch between Standard (10 channels) and HD (20 channels) modes

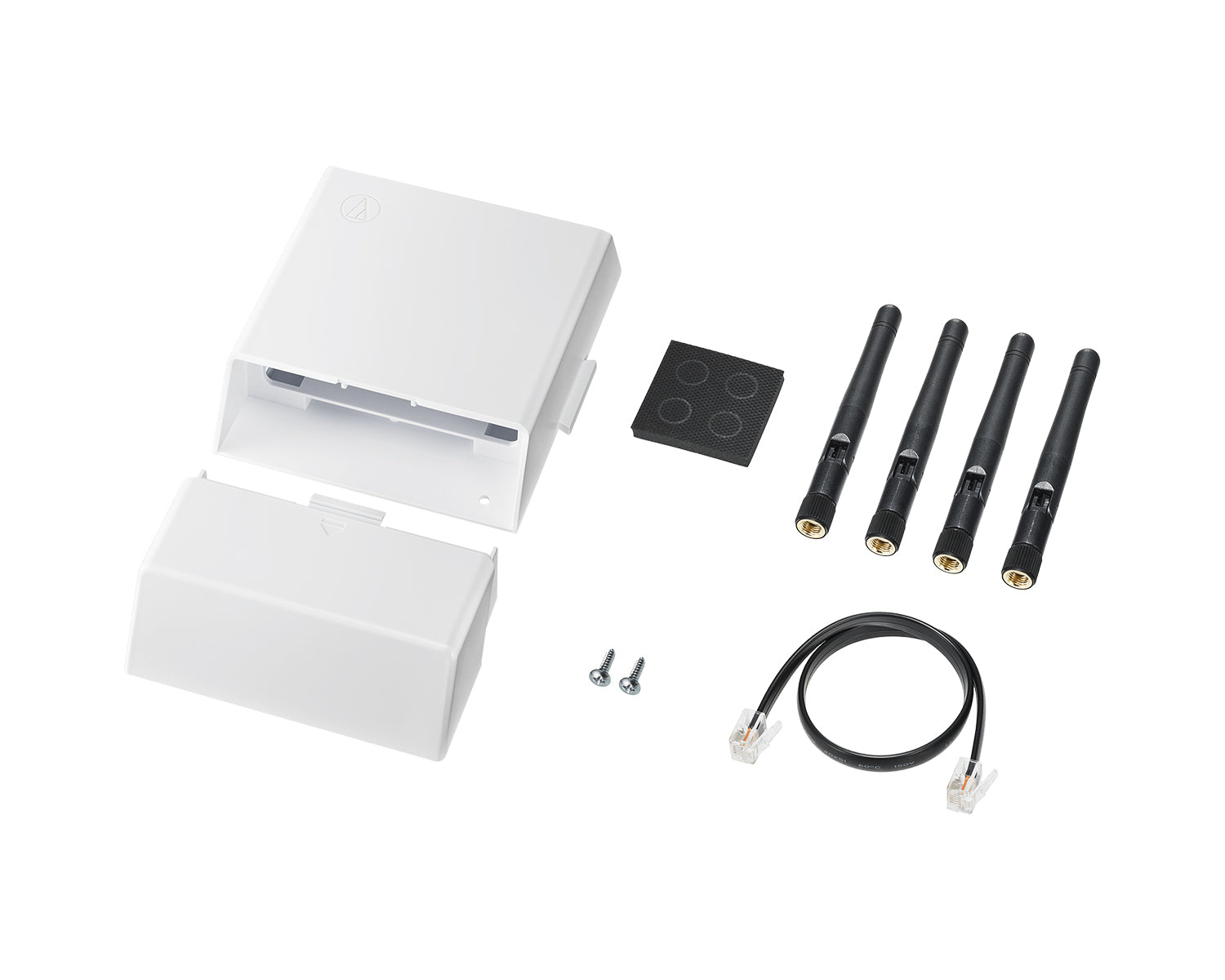

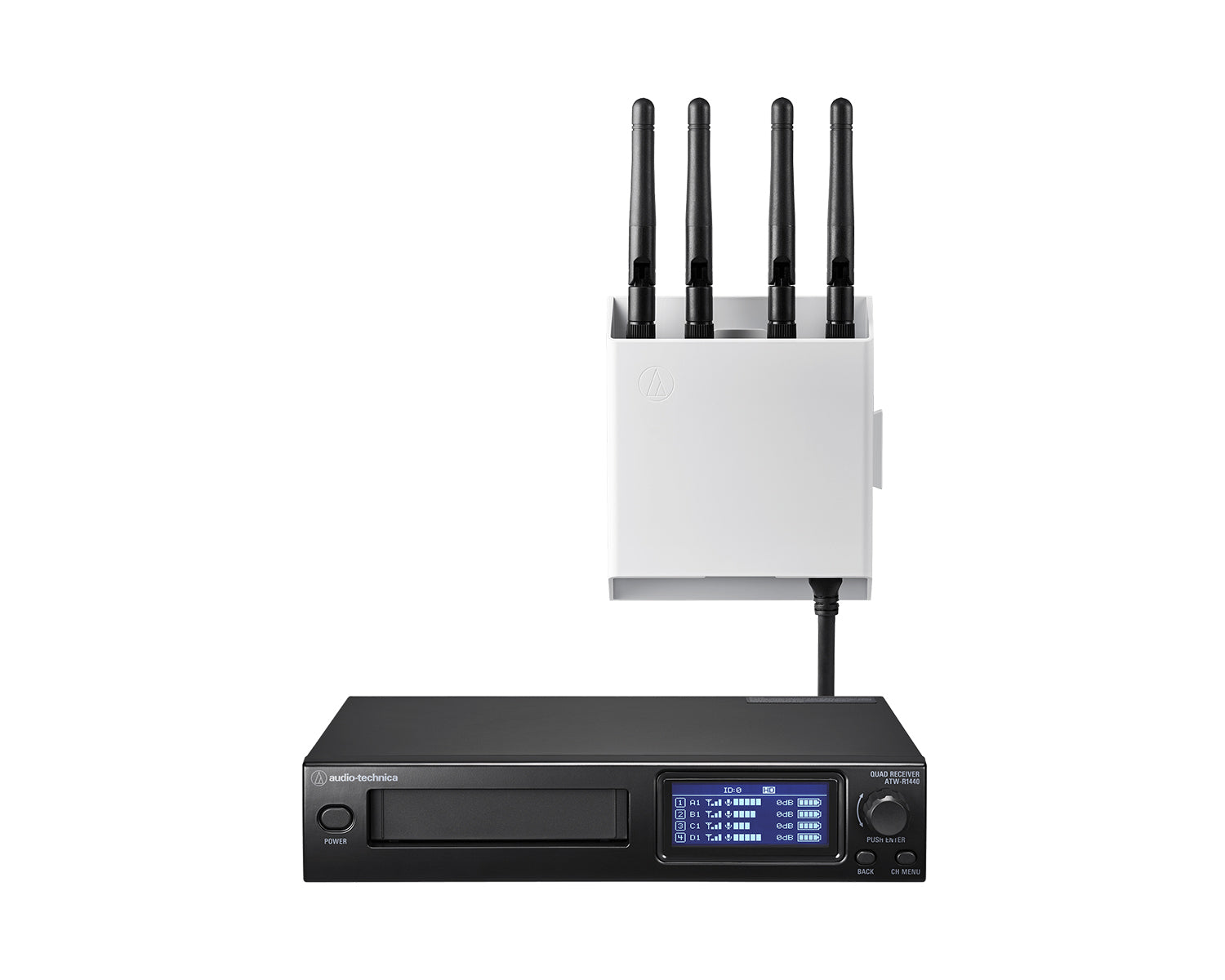

Receiver units can be docked in the chassis or mounted remotely (up to 328 feet away) via Ethernet cable for added versatility
Up to five chassis can be linked and used simultaneously
Monitor transmitter status, audio level, remaining battery time, and other information in A-T Wireless Manager
Auto-lock function prevents unintended operations
Digital 24-bit/48 kHz wireless operation for ultimate sound quality and dependable performance
Plug-and-play operation in the 2.4 GHz range – completely free from TV interference
User can switch between Standard mode (10 channels) and HD mode (20 channels) to minimize latency or maximize channel count, respectively
Receiver units can be docked in the chassis or mounted remotely (up to 328 feet away) via Ethernet cable for added versatility
Up to five chassis can be linked and used simultaneously
Each receiver channel can be paired with up to four transmitters, allowing users to instantly switch between different transmitter configurations
Chassis’ System ID Display shows RF signal level, system ID, transmitter battery level, and system link status

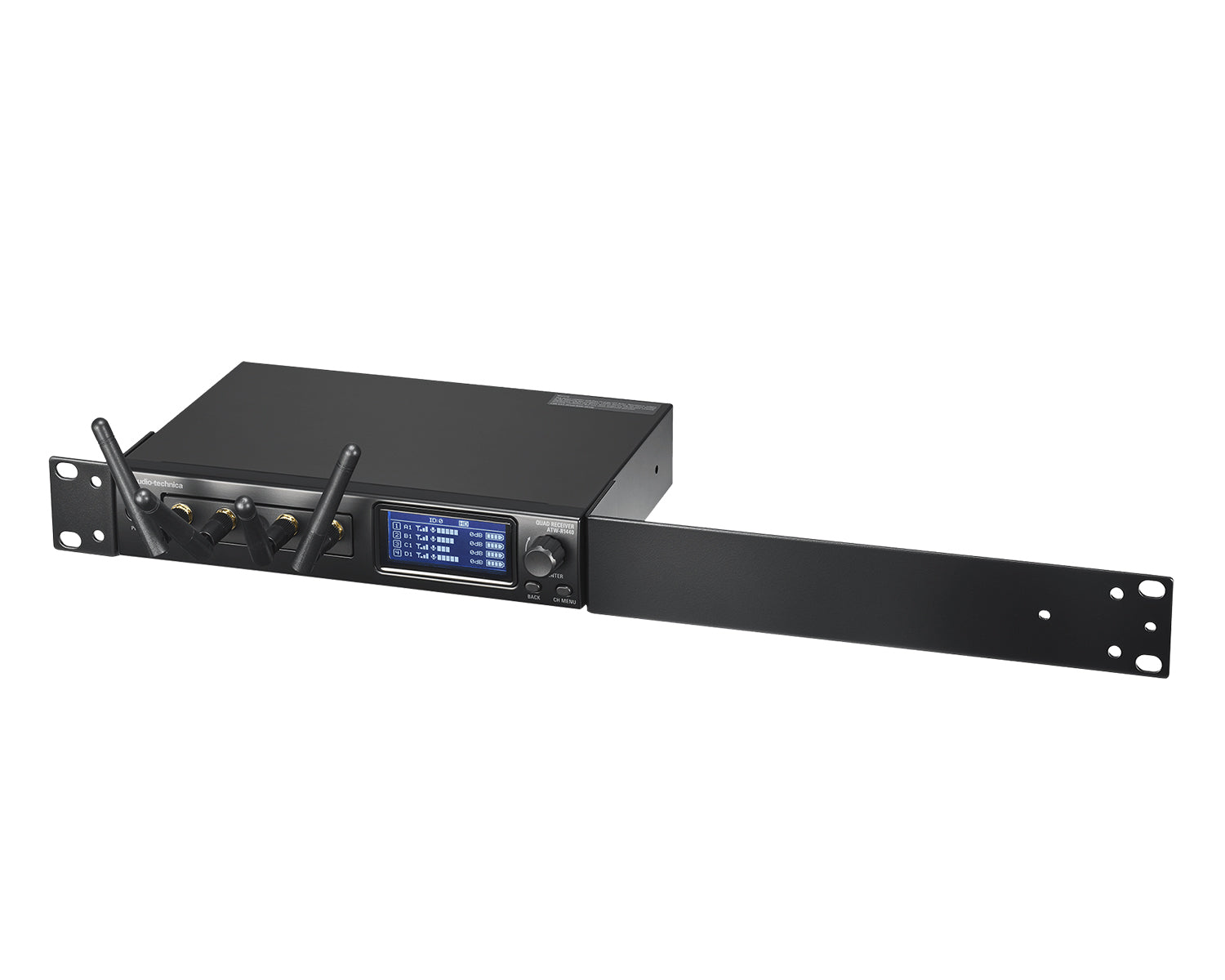

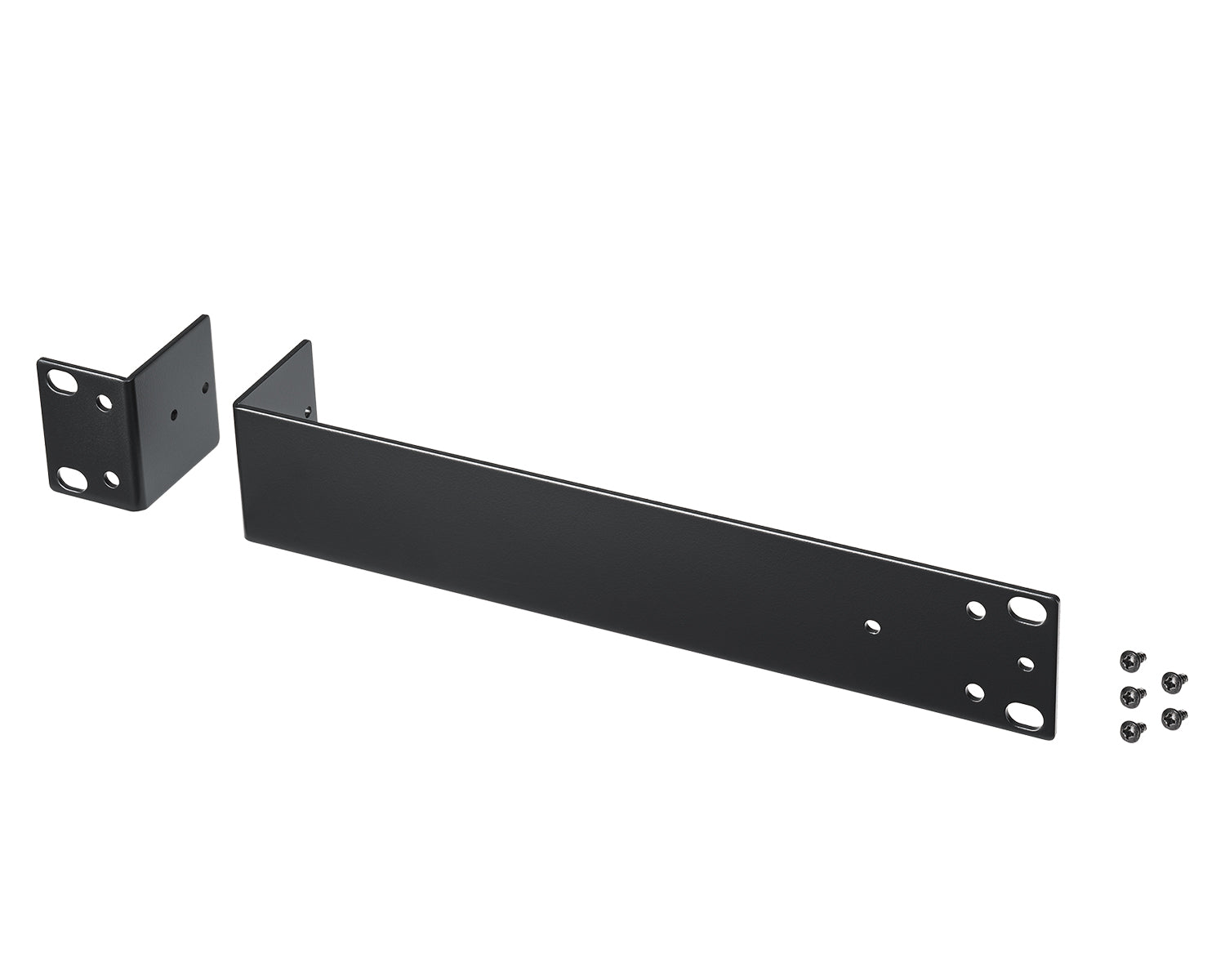

Each half-rack receiver chassis comes with a short and a long rack ear, and two long ears can be combined as a joining plate to secure two chassis in a full rack space
Compatible with Audio-Technica’s Wireless Manager software for centralized management of system settings and operations
Auto-lock function prevents unintended operations like turning off the power or displaying the channel select screen
AES128 encryption for security
Compatible with Syslog protocol
Ability to configure, monitor, and save device settings as projects in Wireless Manager
Transmitters and receivers include OLED screens for optimal readout of key settings and alerts
Water- and sweat-resistant cW-style connector on body-pack transmitter provides secure connection to lavalier mics, headworn mics, and cables with cW-style locking 4-pin connector
Charging terminals on body-pack and handheld transmitters work with ATW-CHG3/ATW-CHG3a and ATW-CHG3N/ATW-CHG3Na charging docks to recharge NiMH batteries
Supports mixed output for situations with limited input channels

Product Specifications

System Specifications

Operating Frequencies: 2,402 to 2,480 MHz
Dynamic Range: 120 dB (A-weighted), typical
Total Harmonic Distortion: < 0.05%, typical
Maximum Simultaneous Use (recommended):
Standard: 10 channels
HD mode: 20 channels (Depends on the region and environment)
System Frequency Response: 20 to 20,000 Hz (Varies depending on the microphone to be installed)
Delay
- Standard: 2.8ms
- HD mode: 6.7ms
Audio Sampling Rate:
Standard: 24-bit/48 kHz
HD mode: 24-bit/48 kHz
Encryption Method: AES128

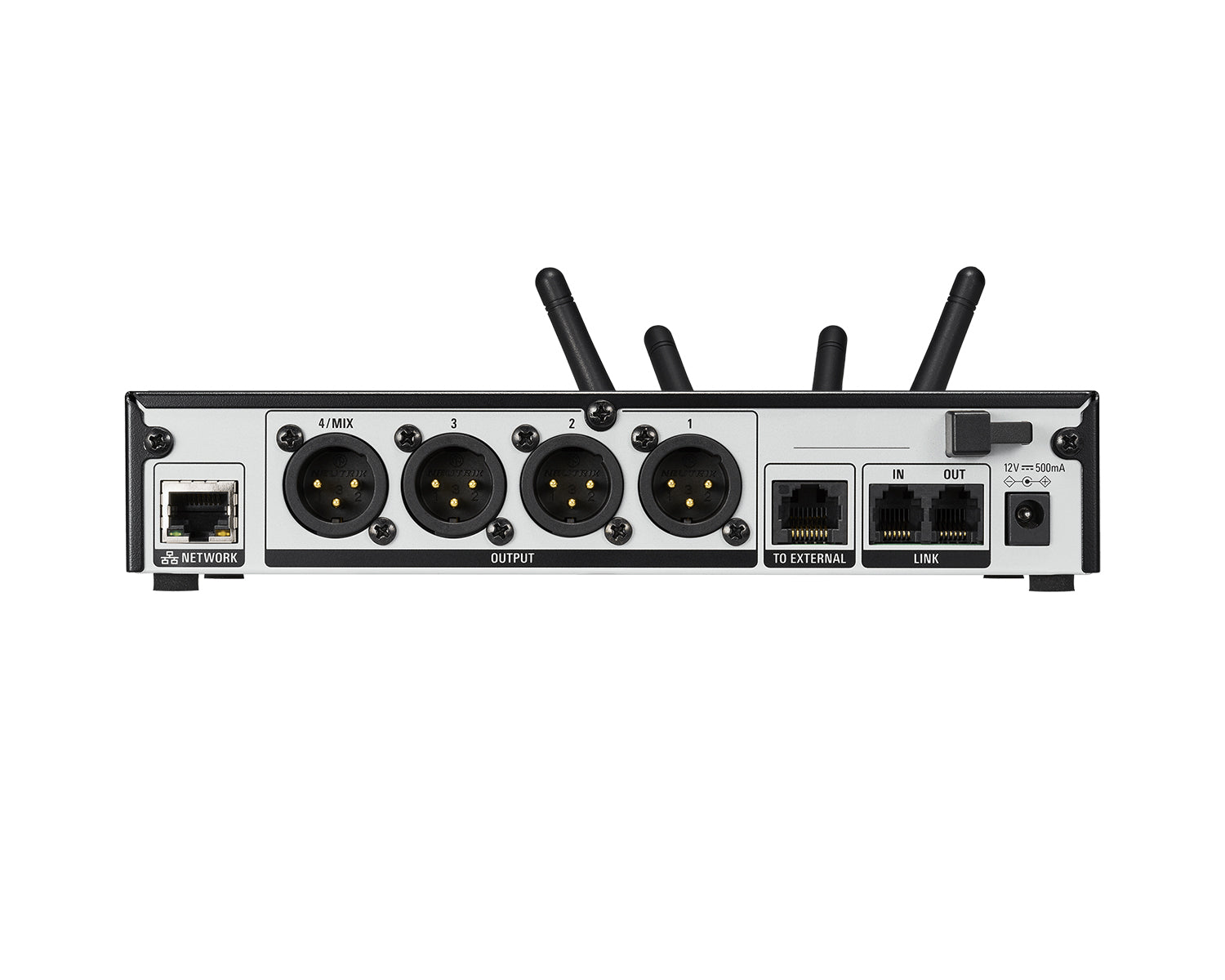

ATW-RC14 Specifications

External Receiver Unit Port: RJ45
NETWORK Port: RJ45: Fast Ethernet
LINK IN/OUT Port: RJ12
Output Level:
- LINE max: +22 dBu (+20 dBV)
- LINE Unity: -20 Bu (-22 dBV)
- MIC max: -12 dBu (-10 dBV)
- MIC Unity: -50 dBu (-52 dBV)
Power Consumption: 3.7W

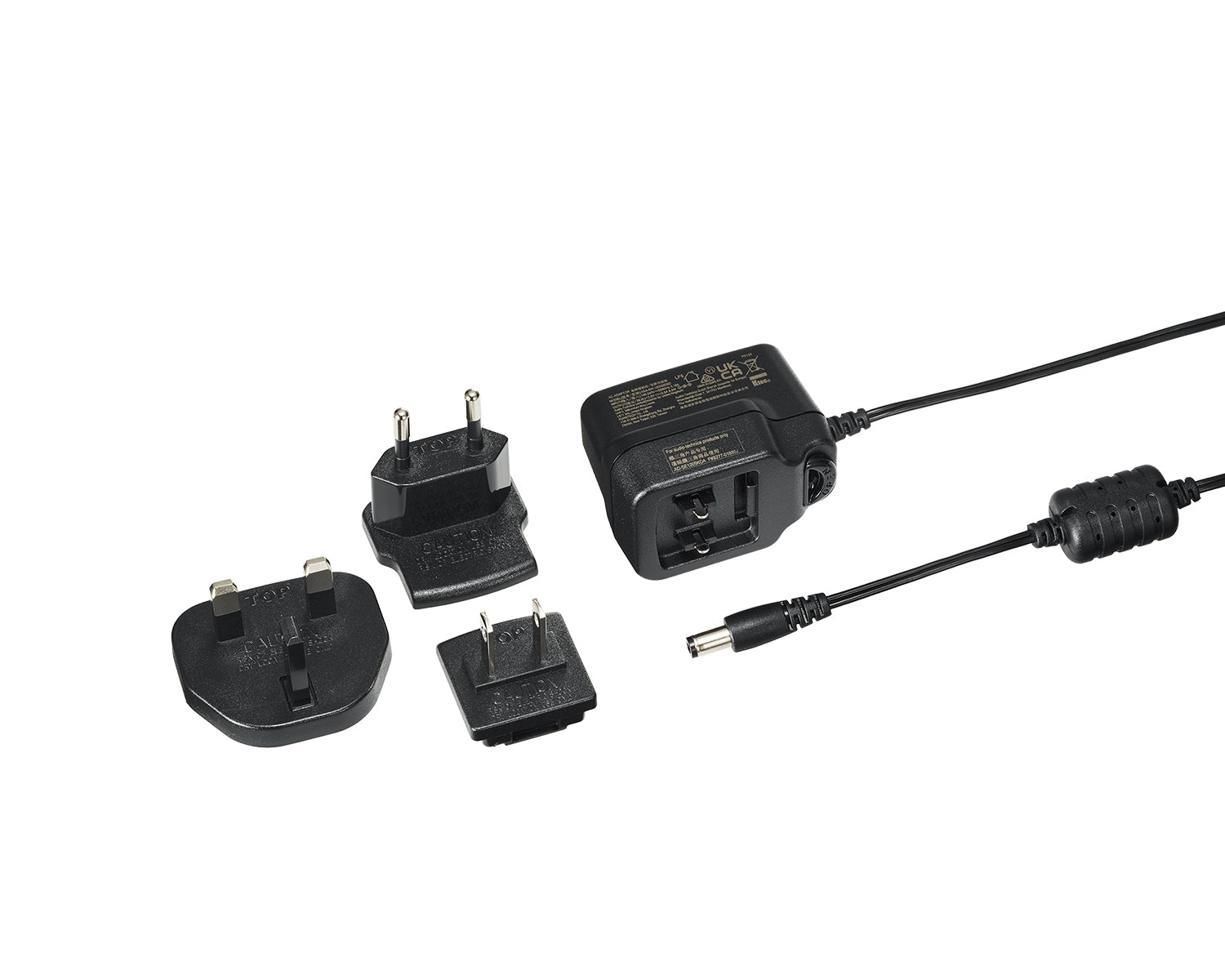

Power Supply: 12 V DC, 0.5 A (AC adapter)
Operating Temperature Range: 0ºC to +40ºC (32°F to 104°F)
Dimensions: 209.8 mm (8.3") × 165.6 mm (6.5") × 42.5 mm (1.7") (W × D × H)
Weight: 740 g (26 oz)
