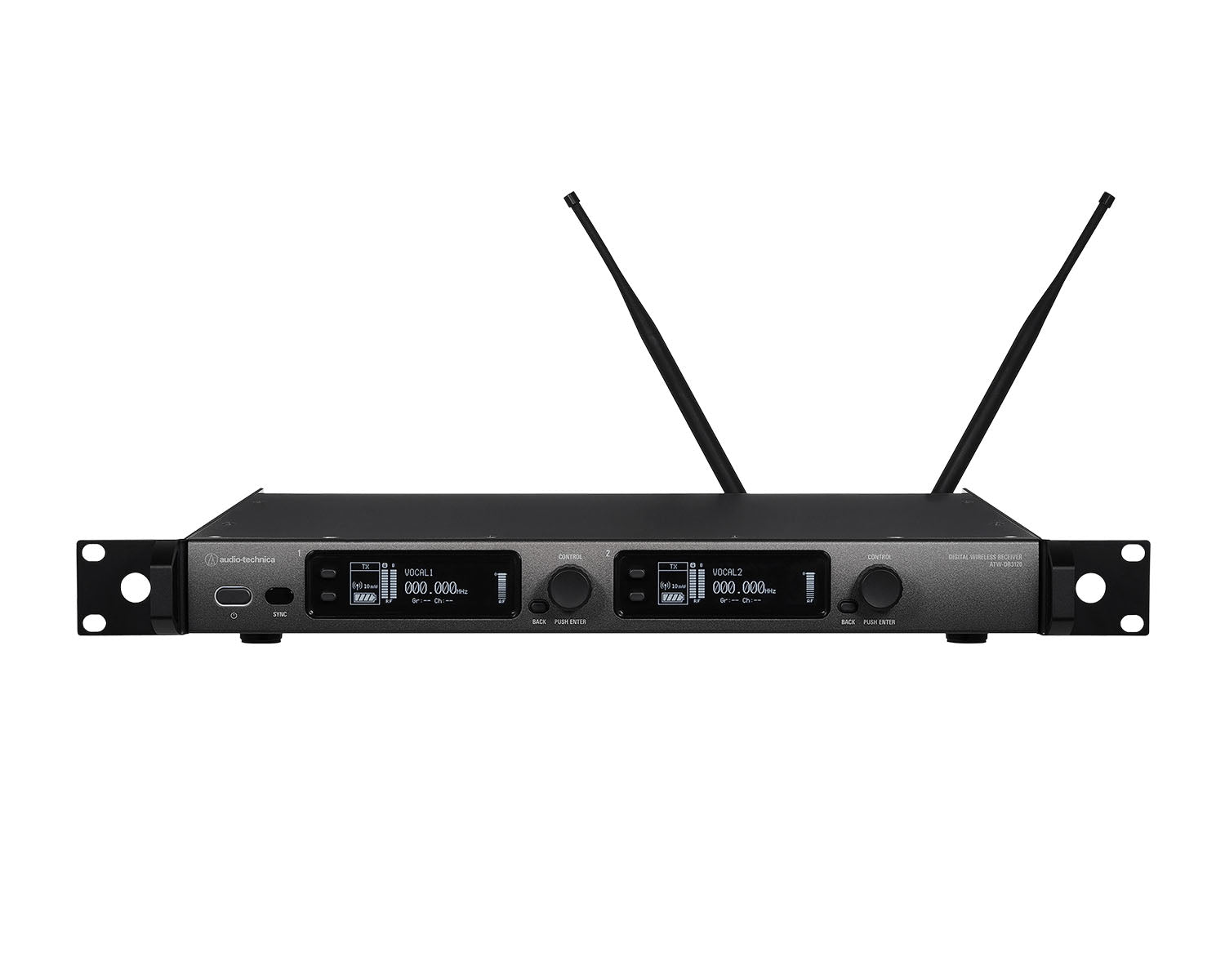

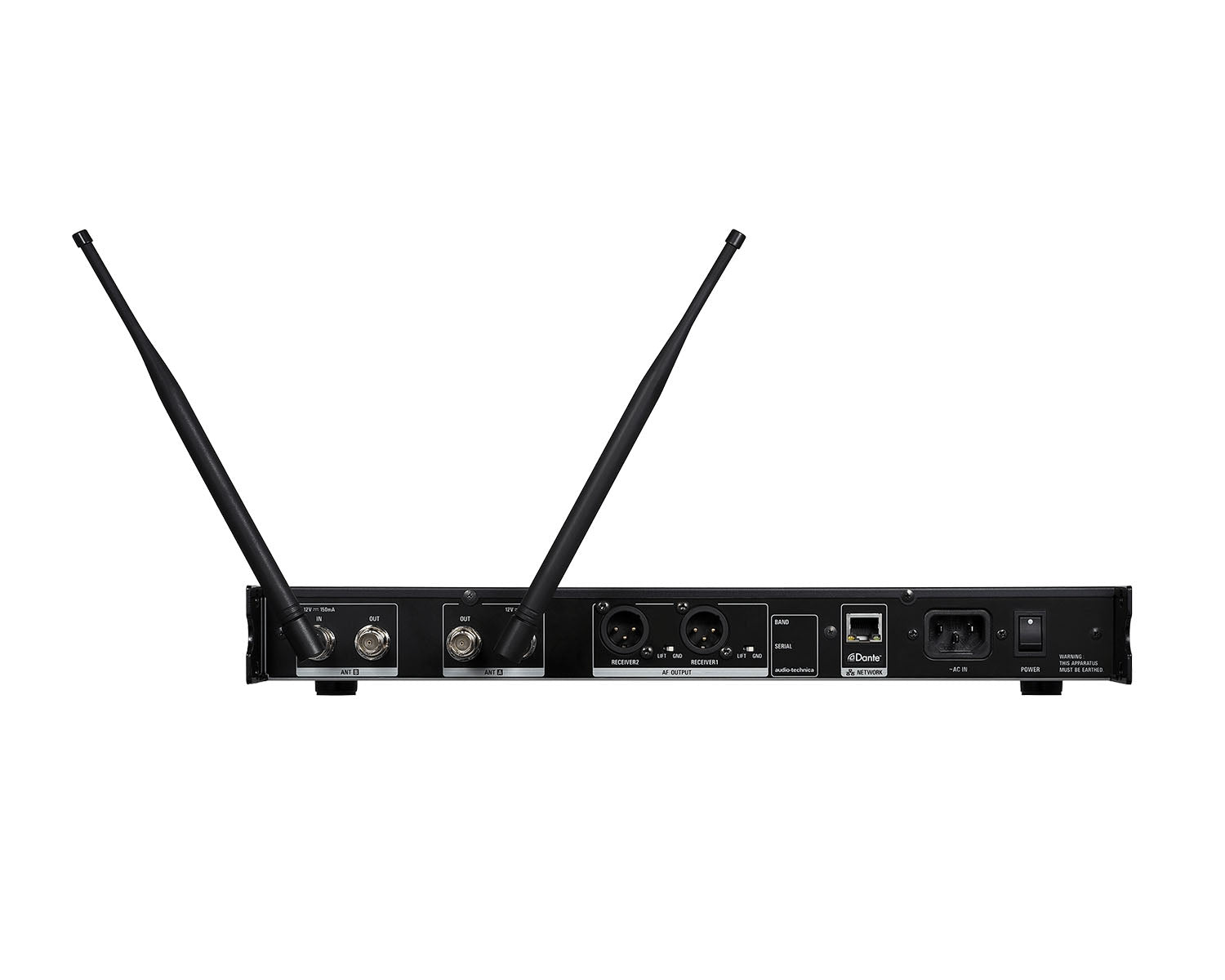

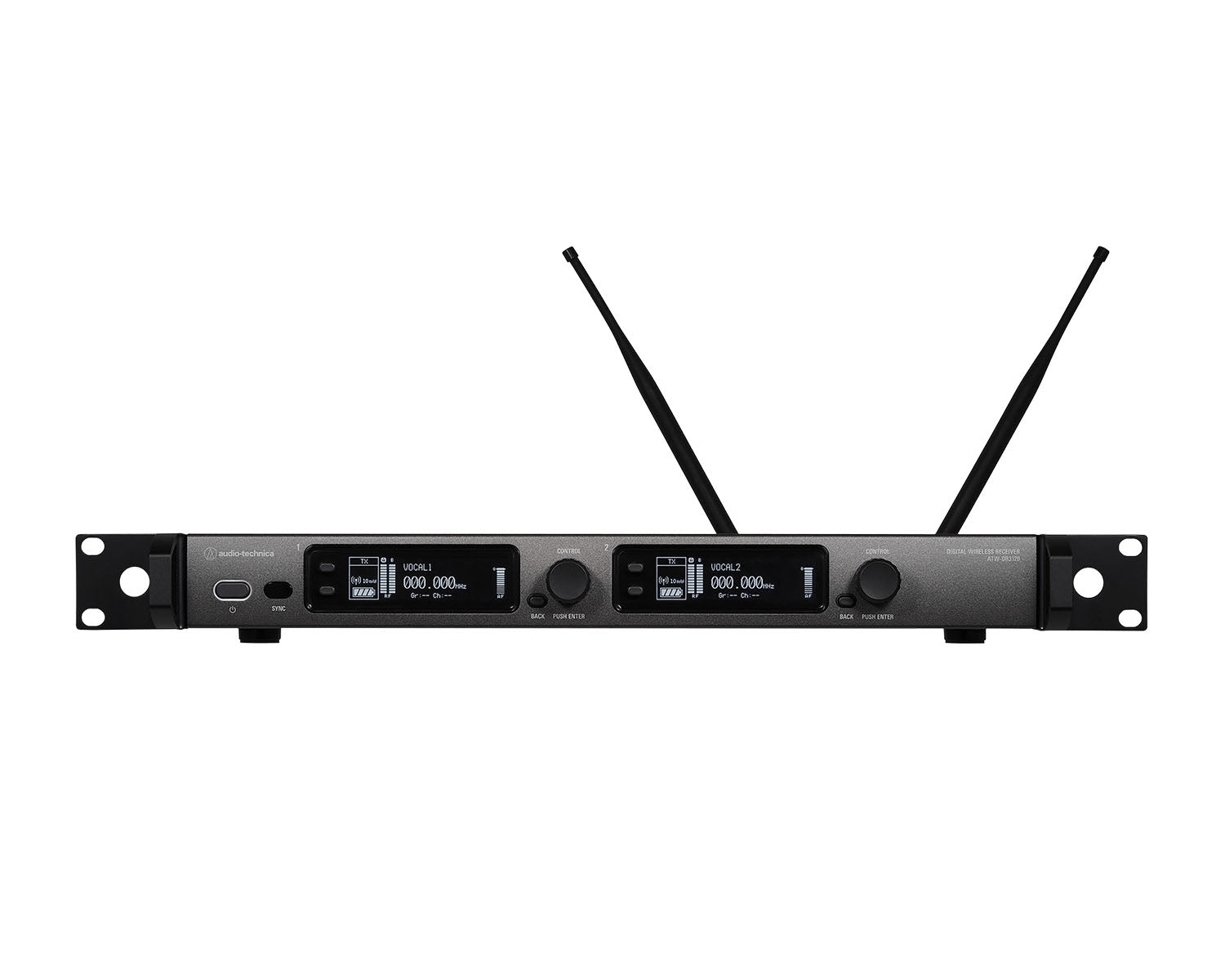

The sleek, rack-mounted 3000 Digital Series dual channel receiver features the newly created Audio-Technica codec. The digital signal can be streamed over the Dante™ network. The antenna cascade output allows five receivers to be simultaneously connected; this allows a single pair of antennas to feed up to 10 channels of wireless audio, minimizing the rack space required.

With the 3000 Wireless Digital Series ATW-DR3120DAN dual channel receiver, easily monitor frequency coordination, equipment status and logs by the free of charge Wireless Manager software. For even more accuracy and peace of mind, real-time in-field walk testing is possible helping you spot operating range limits and dropout zones.

Product Features

• High-quality digital wireless system with a newly developed proprietary Audio-Technica codec for excellent-quality sound
• Super-low latency of 2.5ms.
• Antenna cascade output allows 5 receivers to be connected so a single pair of antennas can feed up to 10 channels of wireless.
• AES256 encryption allows you to transmit confidently and without fear of network intrusion.
• The Network-enabled receiver offers network control and monitoring via the Audio-Technica Wireless Manager software.
• MIX (Audio MIX) output function of receiver 1 and receiver 2.
• Receiver features Dante™ output.

Product Specifications

• Receiving System: True Diversity
• Image Rejection: 70 dB
• RF Sensitivity: −98 dBm (10−5 BER)
• Maximum Output Level: 18 dBV (Line), −12 dBV (Mic)
• Antenna Input: BNC-type, 50 ohms
• Antenna Power: 12 VDC, 150 mA (combined)
• Power Supply: 100 to 240 VAC (50/60 Hz)
• Operating Temperature Range: −5°C to +40°C (23°F to 104°F)
• Dimensions: 483 mm (19.02") × 385 mm (15.16") × 44 mm (1.73") (W × D × H)
• Weight: Approx. 4.1 kg (144.6 oz)
• Accessories Included: 1/2λ whip antenna × 2, power cable, rubber legs × 4

What's in the Box?

• ATW-DR3120DAN
• 1/2λ whip antenna × 2
• Power cable
• Rubber legs × 4
