Providing easy setup, versatile operation and rock-solid, richly detailed high-fidelity sound, Audio-Technica’s fourth-generation 3000 Series wireless systems give users the power and flexibility to operate within the congested UHF spectrum.

With a class-leading 60 MHz tuning range – more than twice that offered by the previous versions – the new 3000 Series systems are available in 6 frequency bands - DE2 (470–530 MHz), EE1 (530–590 MHz), EF1 (590–650 MHz), FG1 (650–700 MHz), GH2 (795 – 806 MHz) and HH2 (821 – 865 MHz). Frequencies can be easily scanned and selected on the receiver and then synced with the transmitter via IR sync functionality. The 3000 Series even lets users set a backup frequency that can be quickly swapped by pressing the transmitter’s multifunction button in the event of unexpected interference.

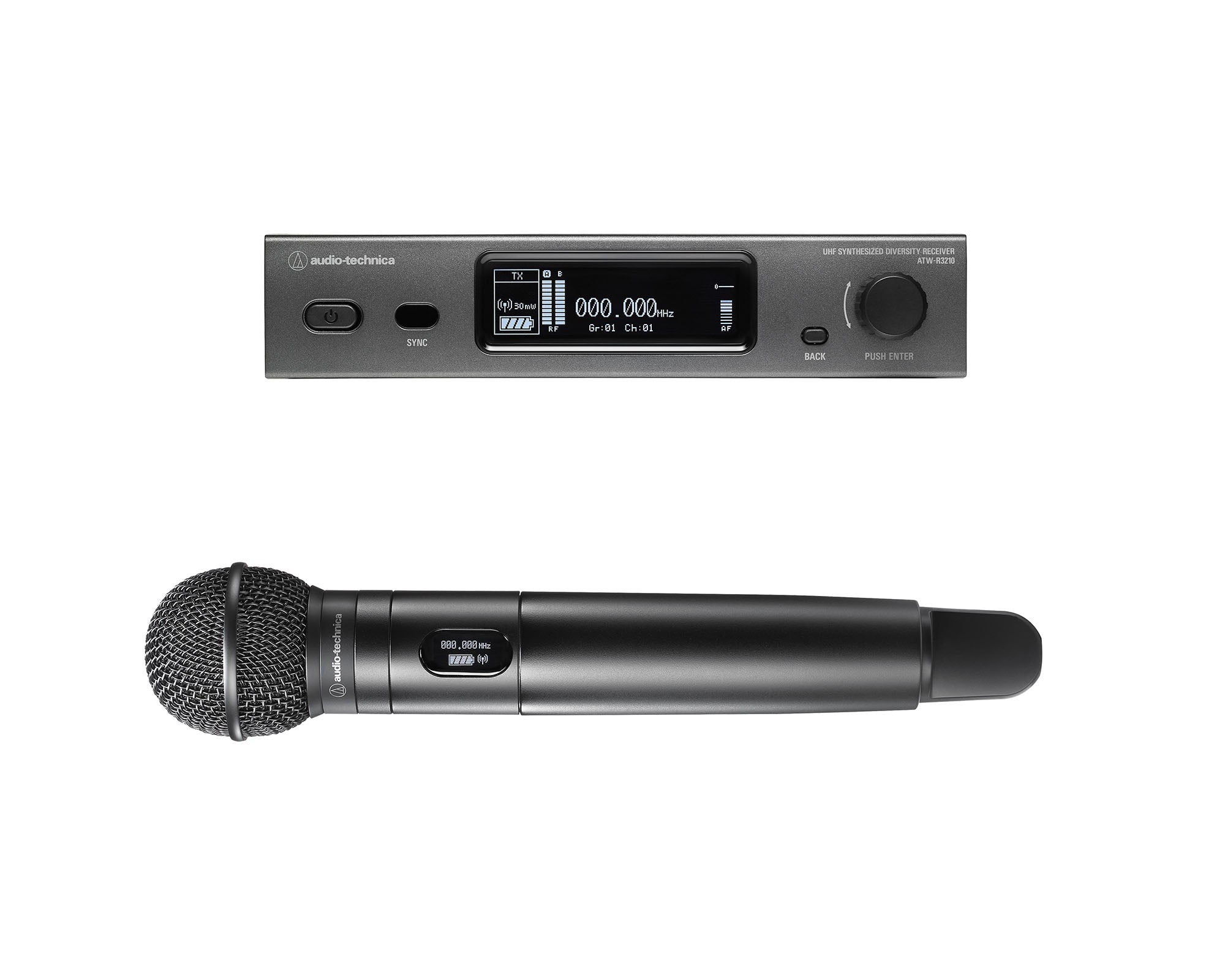

This system configuration features an ATW-R3210 receiver along with an ATW-T3202 handheld transmitter and an ATW-C510 interchangeable capsule. The ATW-T3202 comes with an ATW-C510 dynamic interchangeable cardioid capsule, and its industry-standard thread allows for the use of Audio-Technica and other compatible capsules. The transmitter features rugged, metal housings and is powered by two AA batteries. Charging terminals on the transmitter work with the ATW-CHG3 and networkable ATW-CHG3N smart charging docks (sold separately) to recharge NiMH batteries. Antenna power is available for powered antennas and other in-line RF devices. A ground-lift switch helps eliminate audible hum caused by ground loops. The system features balanced and unbalanced audio output jacks.

*EF1 BAND COVERS 590-650MHzINCLUDING CHANNEL 38 FREQUENCY*

Product Features

• Extremely wide 60 MHz UHF tuning bandwidth for maximum versatility in an increasingly congested RF environment; available in 6 frequency bands: DE2 (470–530 MHz), EE1 (530–590 MHz), EF1 (590-650 MHz) and FG1 (650-700 MHz).
• Unique multifunction button on the handheld transmitter can be used to switch to a backup frequency (on both transmitter and receiver) should interference be encountered
• True Diversity operation reduces dropouts
• Auto Squelch feature automatically adjusts squelch setting to maximize range while minimizing potential interference
• Frequency scan and IR sync functionality for ease of setup
• Dual-mode receiver display can switch between standard view or a performance view that highlights key metering
• Transmitter and receiver include OLED screens for optimal readout of key settings and alerts
• Handheld transmitter offers extremely low handling noise and includes an industry-standard thread mount for use with six interchangeable A-T microphone capsules, as well as other compatible capsules
• Charging terminals on transmitter work with optional ATW-CHG3 and ATW-CHG3N smart charging docks to recharge NiMH batteries
• Antenna power available for powered antennas and other in-line RF devices
• Ground-lift switch helps eliminate audible hum caused by ground loops
• Balanced and unbalanced audio output jacks
• ATW-C510 dynamic interchangeable cardioid capsule

Product Specifications

Microphone

• Element: Dynamic
• Polar Pattern: Cardioid
• Frequency Response: 90 - 12000 Hz
• Impedance: 50 Ohms
• Weight: 129 g
• Dimensions: 78.5 mm long, 53.7 mm max. diameter
• Output Connector: Interchangeable industry-standard thread

Overall System

• Operating Frequencies: Band EF1: 590.000 to 649.975 MHz
• Please note that some frequency bands might not be available in your territory or could come with a limited tuning bandwidth / transmitting power due to local regulations.
• Minimum Frequency Step: 25 kHz
• Modulation Mode: FM
• Maximum Deviation
  • ATW-T3201: ±38 kHz (THD:10%)
  • ATW-T3202: ±36 kHz (THD:10%)
  • Simultaneous Use: 40 Channels per band*

For assistance with multi-band operation or other frequency coordination issues, please call our team on 01525 850085. *Region and band dependent

• Frequency Response
  • ATW-T3201: 31 Hz to 15500 Hz
  • ATW-T3202: 25 Hz to 16700 Hz
• Operating Range: 100 m
• Dynamic Range
  • ATW-T3201 Mic input: > 115 dB (A-weighted), typical
  • ATW-T3201 Inst input: > 112dB (A-weighted), typical
  • ATW-T3202: > 115 dB (A-weighted), typical
• Total Harmonic Distortion: <1.0% (at 1 kHz, ±17.5 kHz deviation)
• Operating Temperature Range: -5 ºC to +45 ºC

Receiver

• Receiving System: True Diversity
• Sensitivity: 20 dBuV at 60 dBA S/N ratio (50Ω termination)
• Maximum Output Level
  • XLR / Balanced: +14 dBV
  • 6.3 mm (¼"") / Unbalanced: +8 dBV
• Antenna Input: BNC-type, 50 Ω
• Power Output: 12 V DC, 160 mA (combined)
• Power Supply: 100-240V AC (50/60 Hz) to 12V DC 1A (centre positive) switched mode external power supply
• Dimensions: 210.0 mm x 191.0 mm x 43.4 mm (W x H x D)
• Weight: 1100 g, without accessories
• Accessories Included
  • Two Flexible UHF antennas
  • AC adapter (country dependent)
  • Rack Mount Adaptors

Handheld Transmitter

• RF Power Output: High: 30 mW, Low: 10 mW (switchable), at 50 Ω
• Spurious Emissions: Following Federal and National Regulations
• Microphone Element: Interchangeable industry-standard thread
• Battery Type: Two 1.5V AA, not included
• Battery Life
  • High: 8.0 hours / Low: 9.0 hours (alkaline)
  • High: 9.0 hours / Low: 9.5 hours (Ni-MH 1900mAh)
• Depending on battery type, usage and environmental conditions.
• Dimensions: 193.0 mm long, 37.0 mm maximum diameter
• Net Weight: 200 g
• Accessories Included: AT8456a Quiet-Flex™ stand clamp; ⅝"-27 male to ⅜"-16 female threaded screw adapter

What's in the Box?

• Two Flexible UHF antennas
• AC adapter (country dependent)
• Rack Mount Adaptors
• ATW-R3210 receiver
• ATW-T3202 handheld transmitter
• ATW-C510 interchangeable capsule
