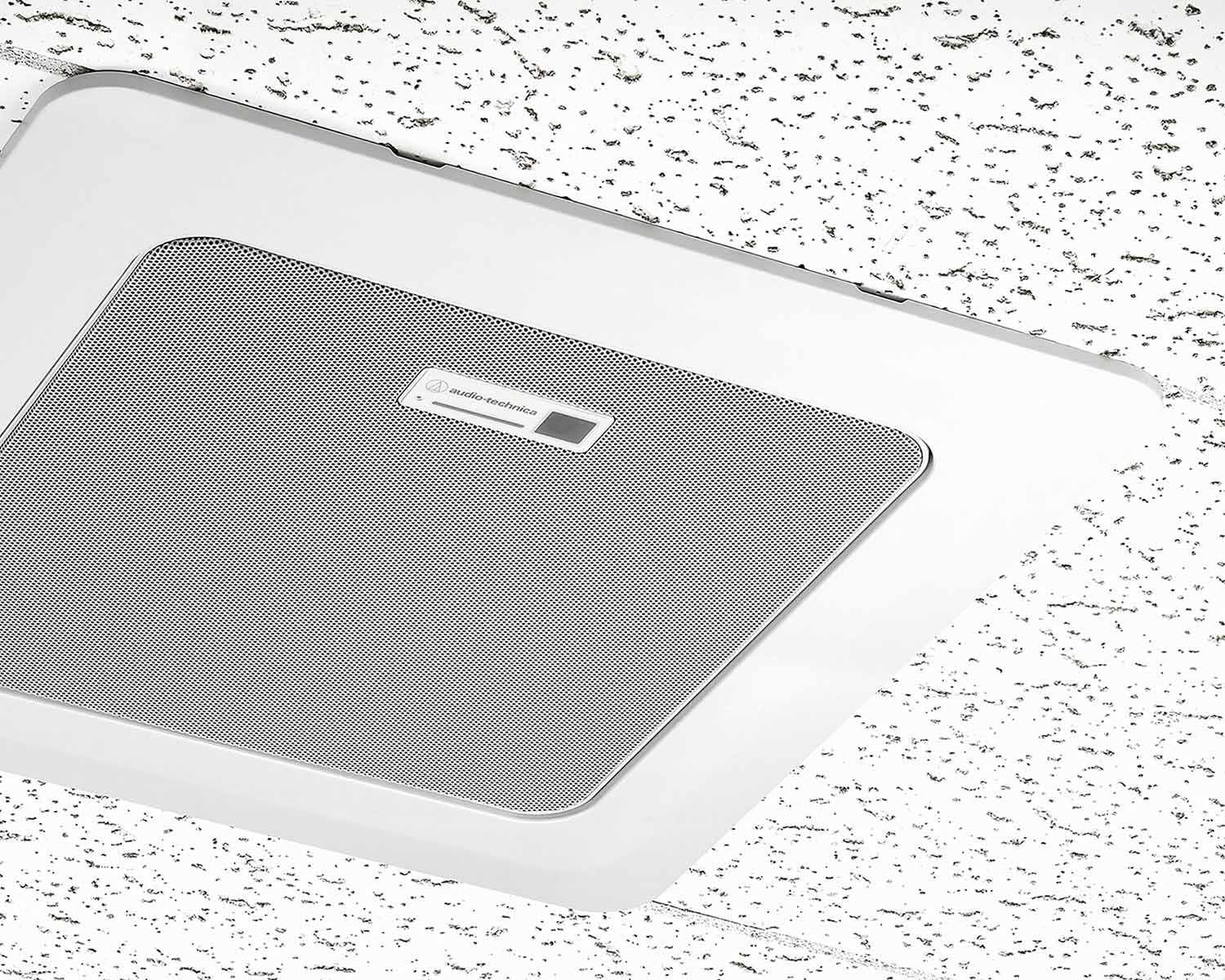

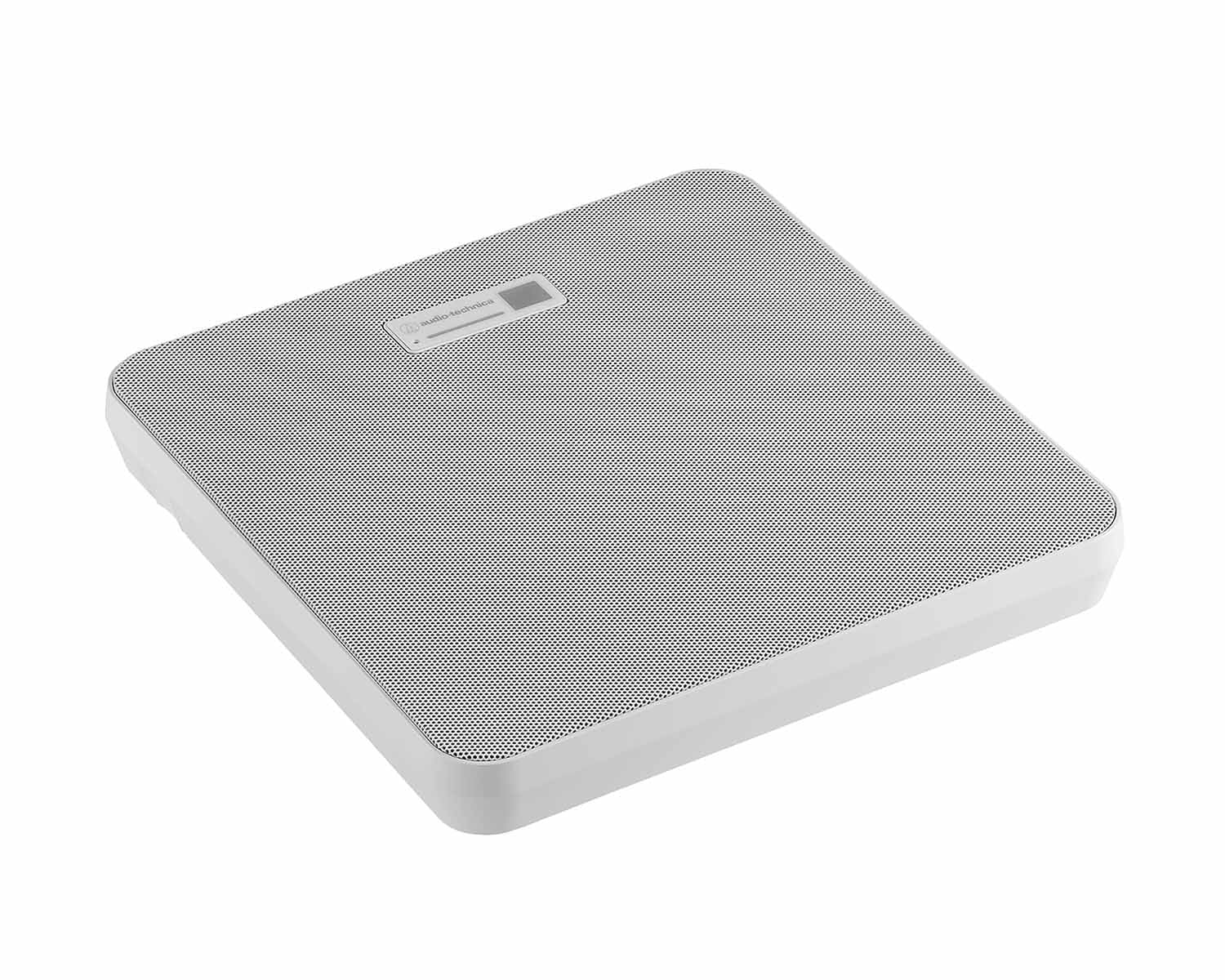

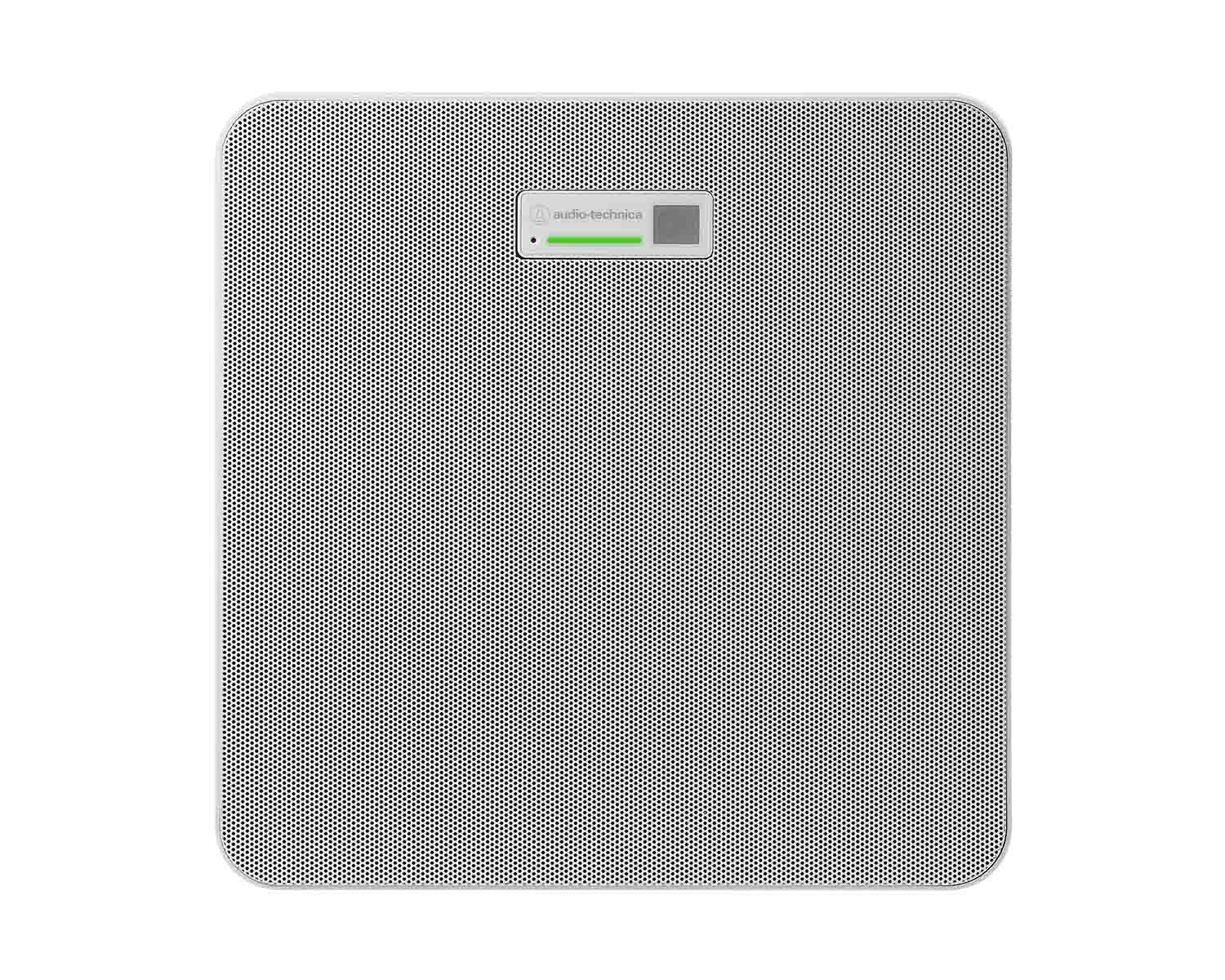

The ATND1061 Beamforming Ceiling Array Microphone is an ideal solution for conference rooms, boardrooms, and meeting spaces large and small. The microphone may be used singly or in multiples (for larger meeting spaces) to capture every person speaking in a room with clear, natural audio that reduces distracting environmental sounds. A state-of-the-art professional product in a familiar form factor (roughly the size of a wireless access point), the ATND1061 is easy to install, set up, and operate.

Product Features

The ATND1061 beamforming microphone array is an ideal solution for conference rooms, boardrooms, and meeting spaces large and small
Powerful onboard DSP: automix, acoustic echo cancelation, noise reduction, automatic gain control, and 4-band EQ
User-friendly Digital Microphone Manager software easily configures single or multiple ATND1061 microphone settings
Six individual output channels with up to 32 user-defined microphone pickup zones provide the flexibility to cover a wide variety of room sizes and meeting types
Output Channel 1 can be configured with up to 16 user-defined Coverage Zones to ensure coverage of nonpriority or unplanned participants
Output Channels 2–6 can be configured with up to 16 user-defined Priority Zones to ensure priority pickup of participants in known locations
Proprietary voice activity detection (VAD) technology enables the microphone to discern between a voice and unwanted noises such as paper shuffling
Exclusion zones can be set in the software to avoid known sources of unwanted noise (such as air-handling systems)
Two network ports with Single Cable and Split modes to send Dante audio and microphone control data together or separately over category cable (ATND1061DAN)

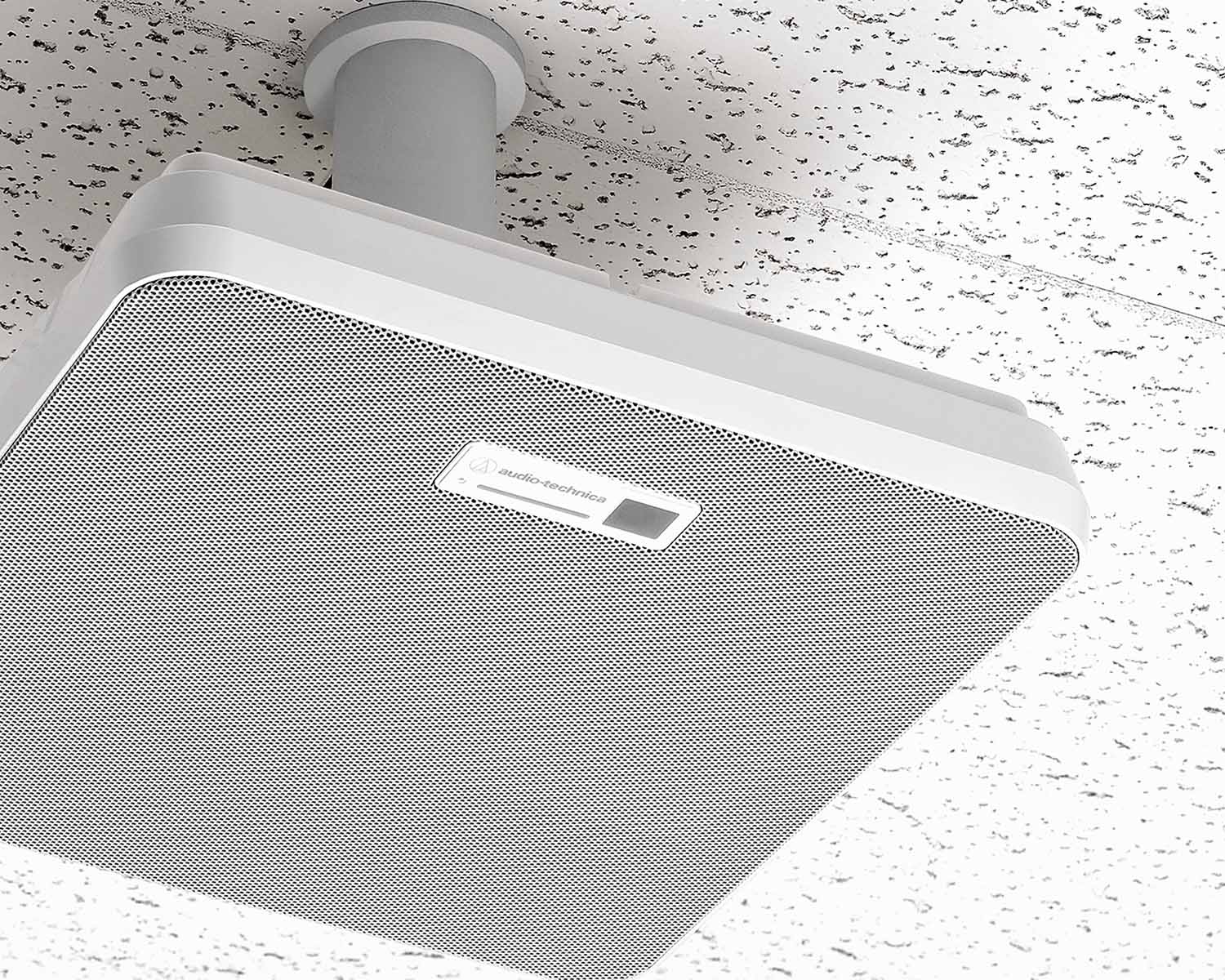

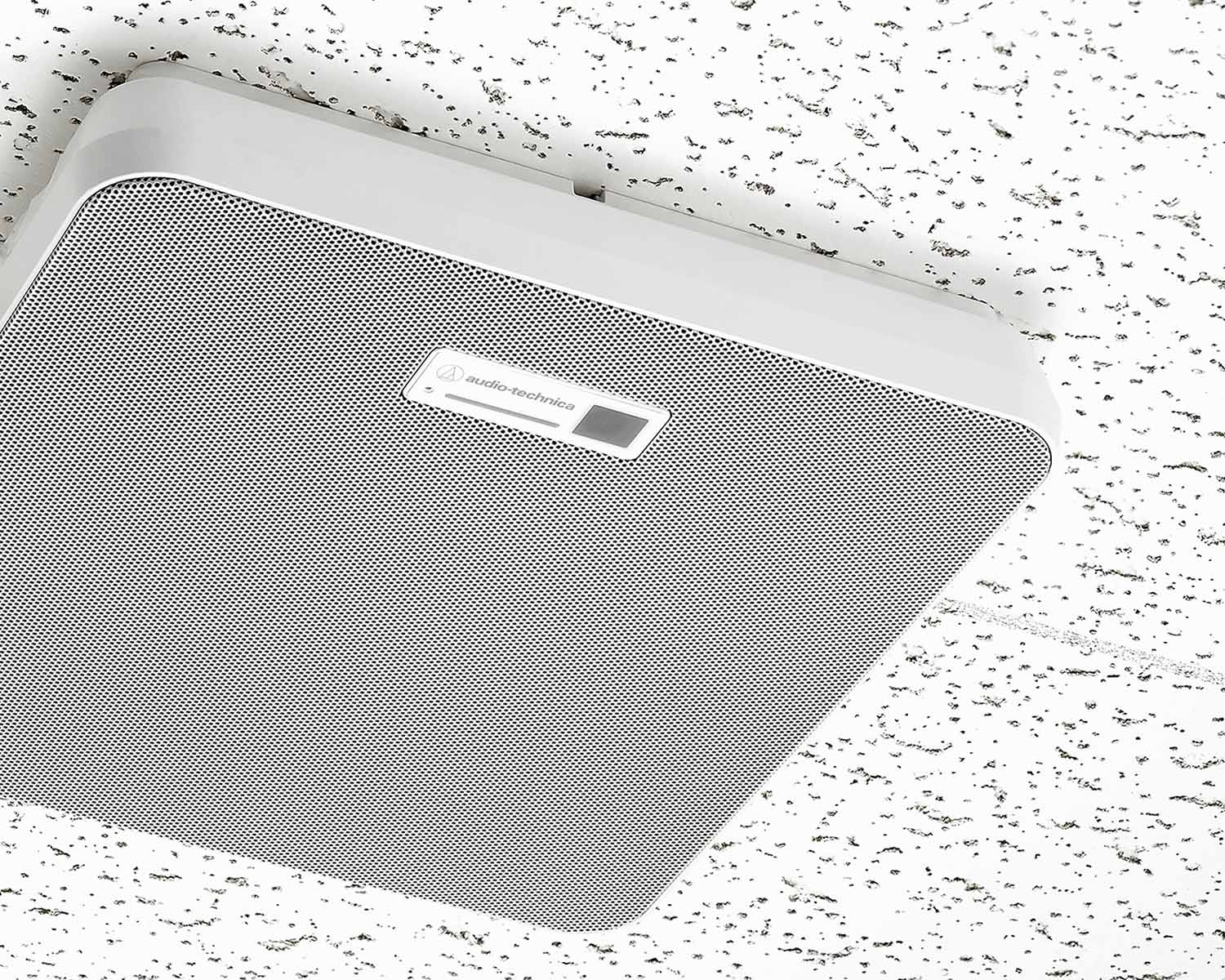

Mounts flush or on the surface of a drop ceiling or hard ceiling, or in open architecture spaces using VESA mount
UL 2043 compliant for installation in plenum spaces

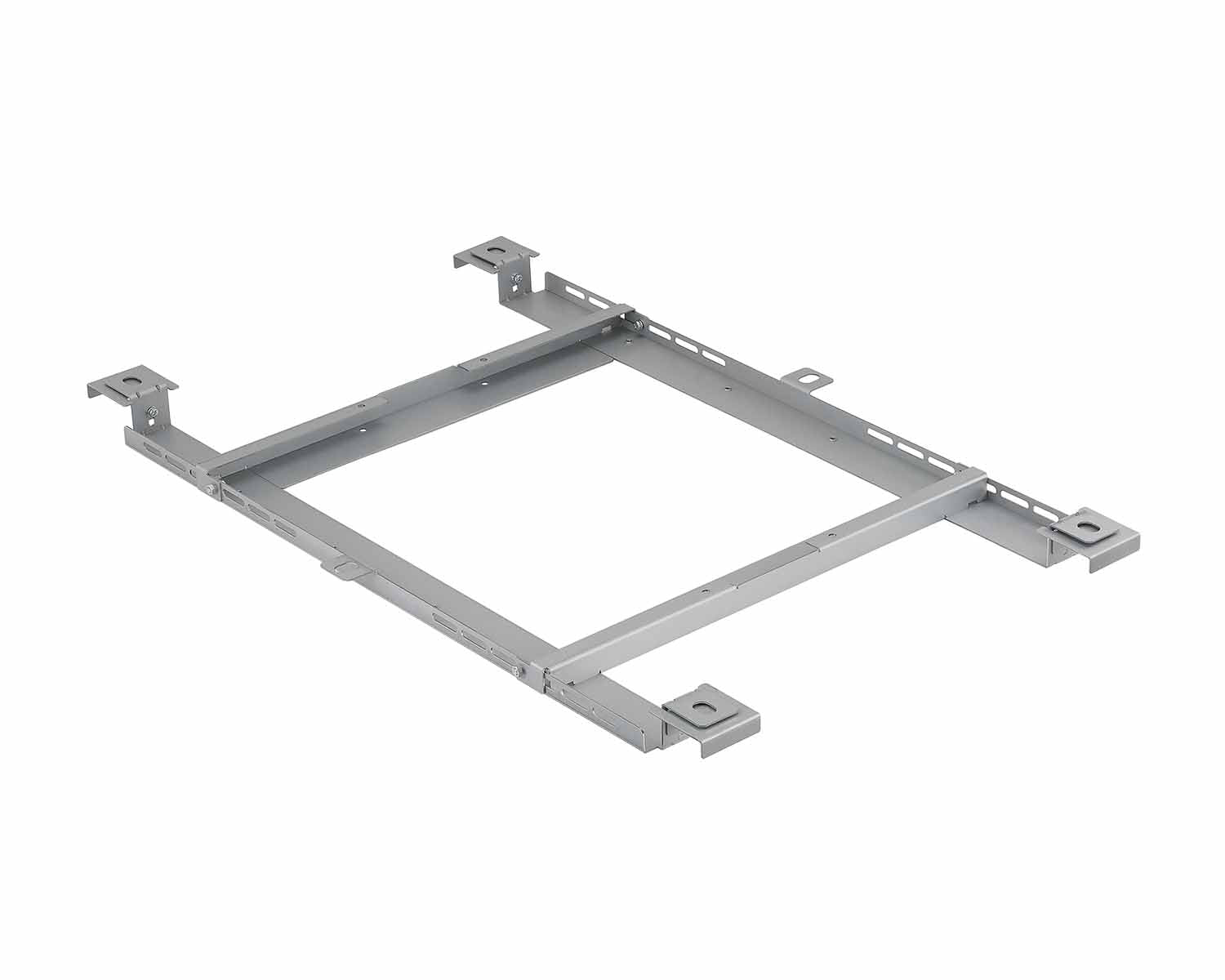

Includes tile bridge, safety wiring, and mounting hardware and accessories
Low-reflective white finish matches ceiling tiles in most environments
Powered by network PoE

Product Specifications

Microphone

Beam Width: 90-degrees
Polar Pattern: Beam pattern
Frequency Response: 60 Hz to 18,000 Hz
Maximum Input Sound Level: 102 dBSPL
Sensitivity: -8 dBFS (1 kHz, 94 dBSPL)
Dynamic Range: 89 dB (A-weighted)
Signal-to-Noise Ratio: 61.5 dB (A-weighted)
Self-Noise: 25 dBSPL (A-weighted)

Analog Audio

Frequency Response: 20 Hz to 20 kHz (+1.0/-2.0 dB)
Dynamic Range: 100 dB (A-weighted)
Signal to Noise Ratio: 80 dB (A-weighted)
Headroom: 20 dB
Residual Noise: -75.8 dBu (A-weighted)
T.H.D: <0.1% (1 kHz, unity)
Analog Input: MIC Maximum: -30 dBu MIC Unity: -50 dBu LINE Maximum: +12.2 dBu
LINE Unity: -10 dBV, Switchable
Analog Output: OUTPUT Maximum: +19.2 dBu OUTPUT Unity: +4 dBu/-10 dBV/-33 dBV, Switchable

General Specifications - Beamforming Array

Power Requirement: PoE (IEEE 802.3af Class 0)
Power Consumption: Max. 7 W
Operation Temperature Range: 0°C to 40°C (32°F to 104°F)
Operation Humidity Range: 25% to 85% (Non condensing)
Dimensions: 227.5 mm (9.0”) × 227.5 mm (9.0”) × 30 mm (1.2”) （W × D×H)
Weight: 1250 g (44 oz)
Network: Dante: 1 Gbps IP control: 100 Mbps
Digital Audio: Sampling rate: 48 kHz Bit depth: 24 bit
Latency: Microphone (CH1 to CH6): 47 msec Microphone (Auto Mix CH): 79 msec Dante:
Min. 250 usec, Max. 5 msec
I/O Connector: Network/Dante: RJ-45 Analog input: Euroblock 3 pin Analog output:
Euroblock 3 pin GPI: Euroblock 3 pin
Phantom Power: Analog input: 12 V

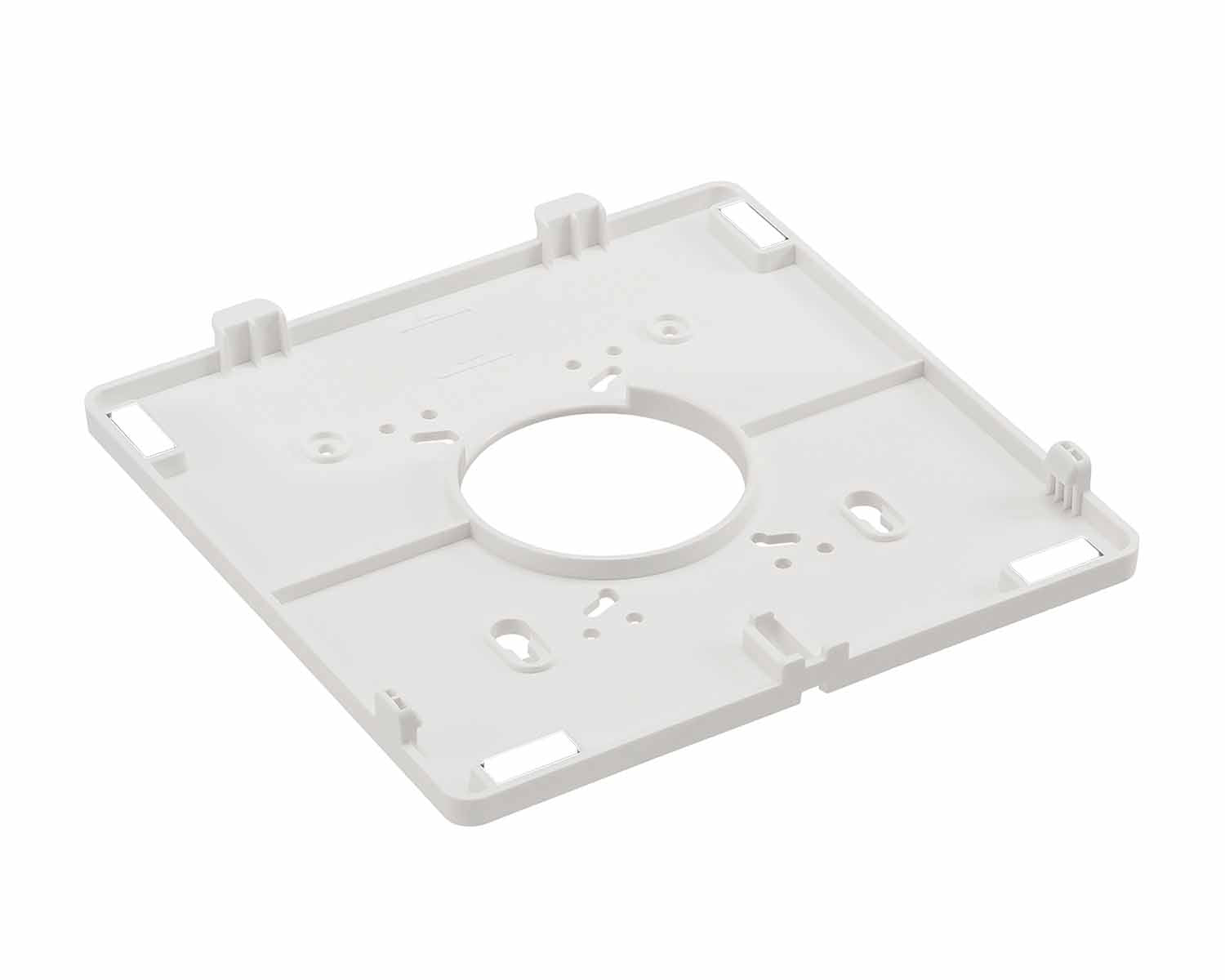

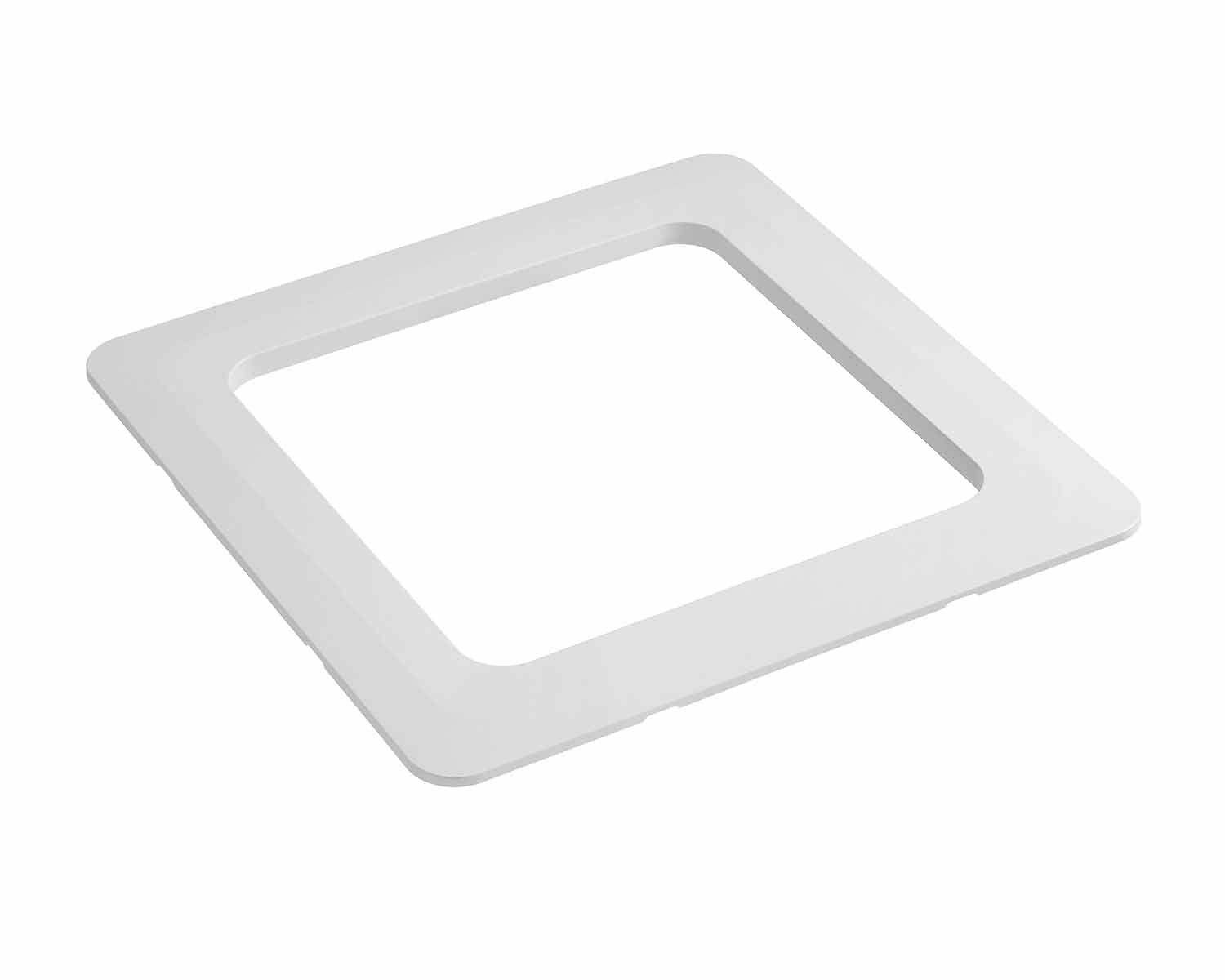

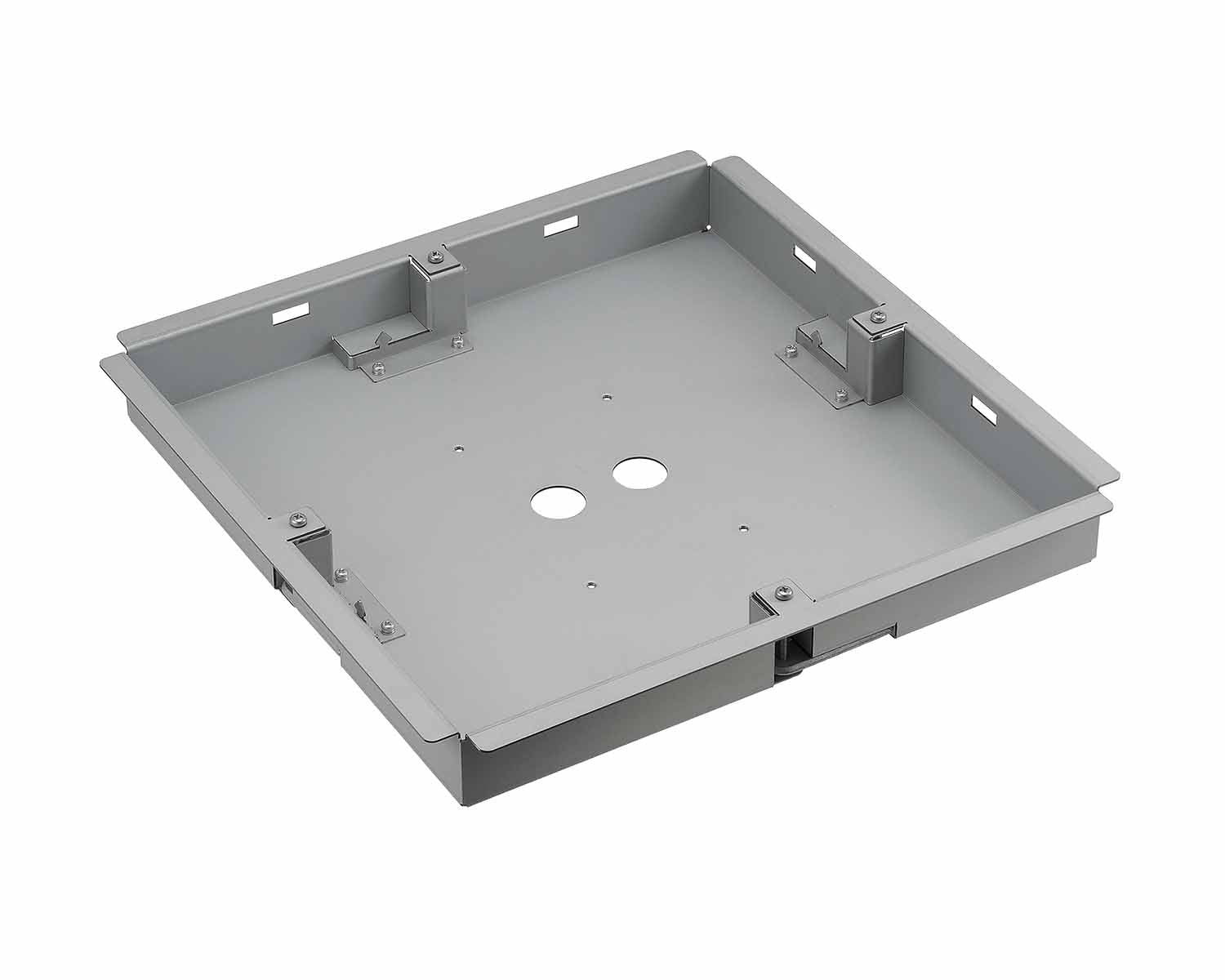

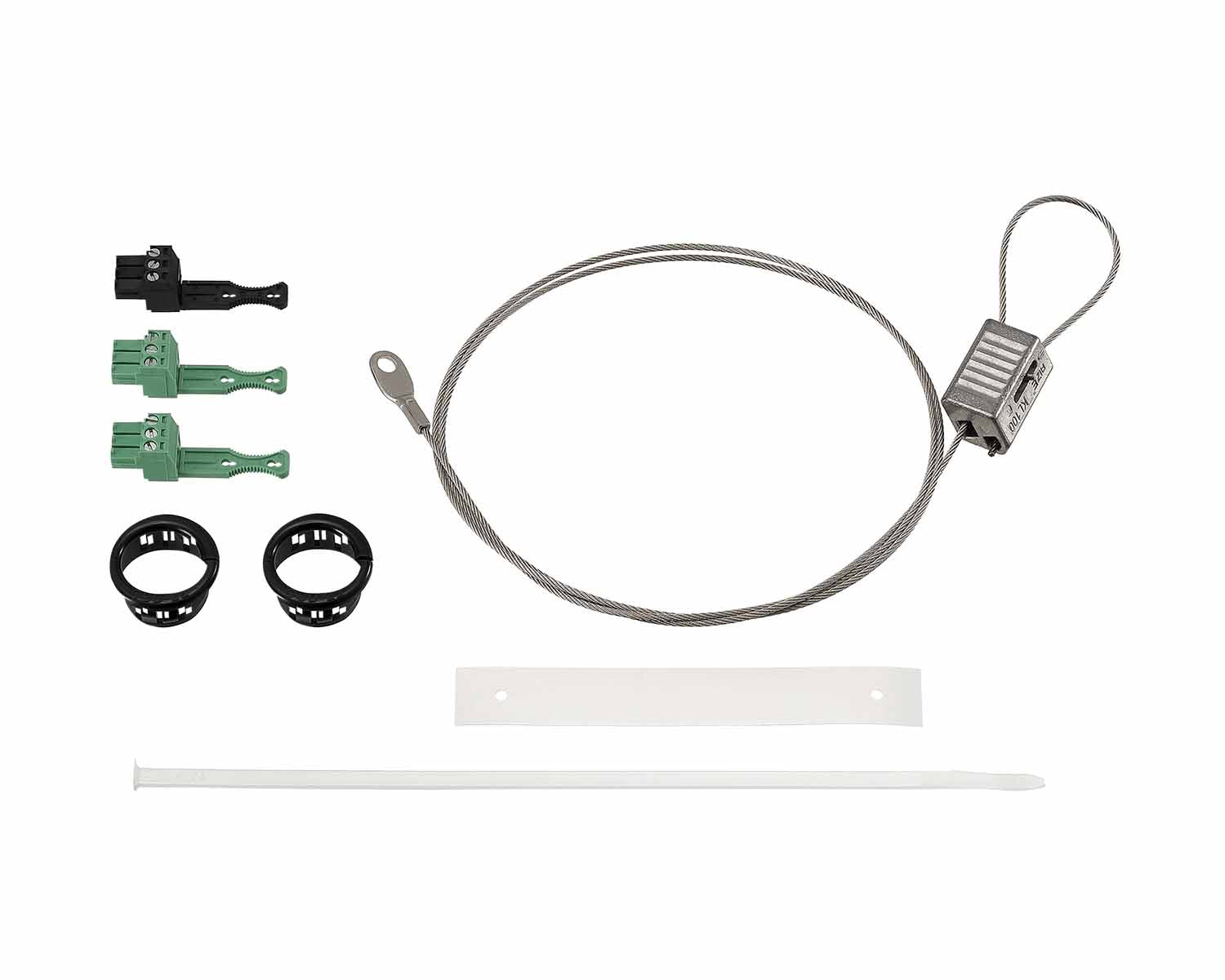

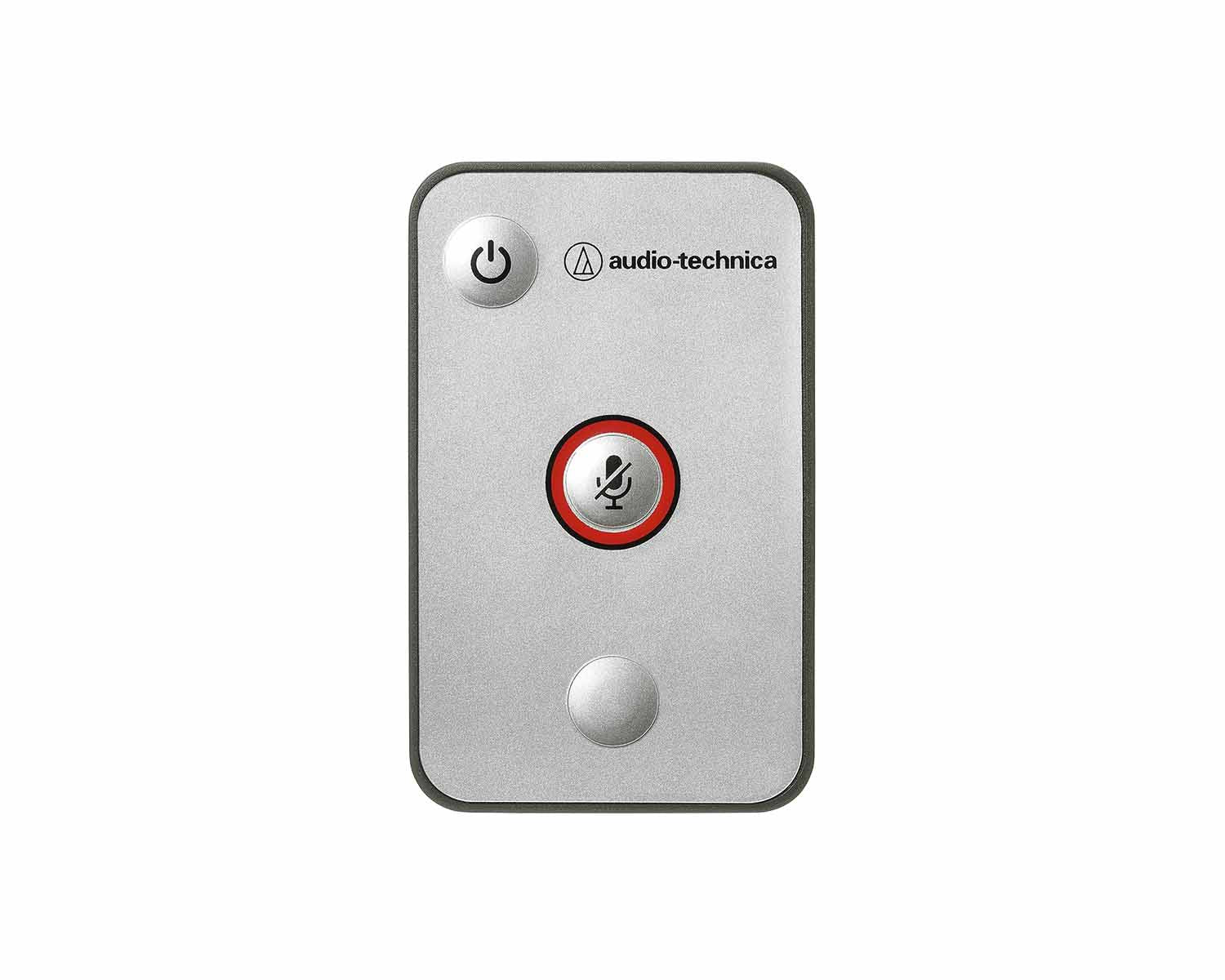

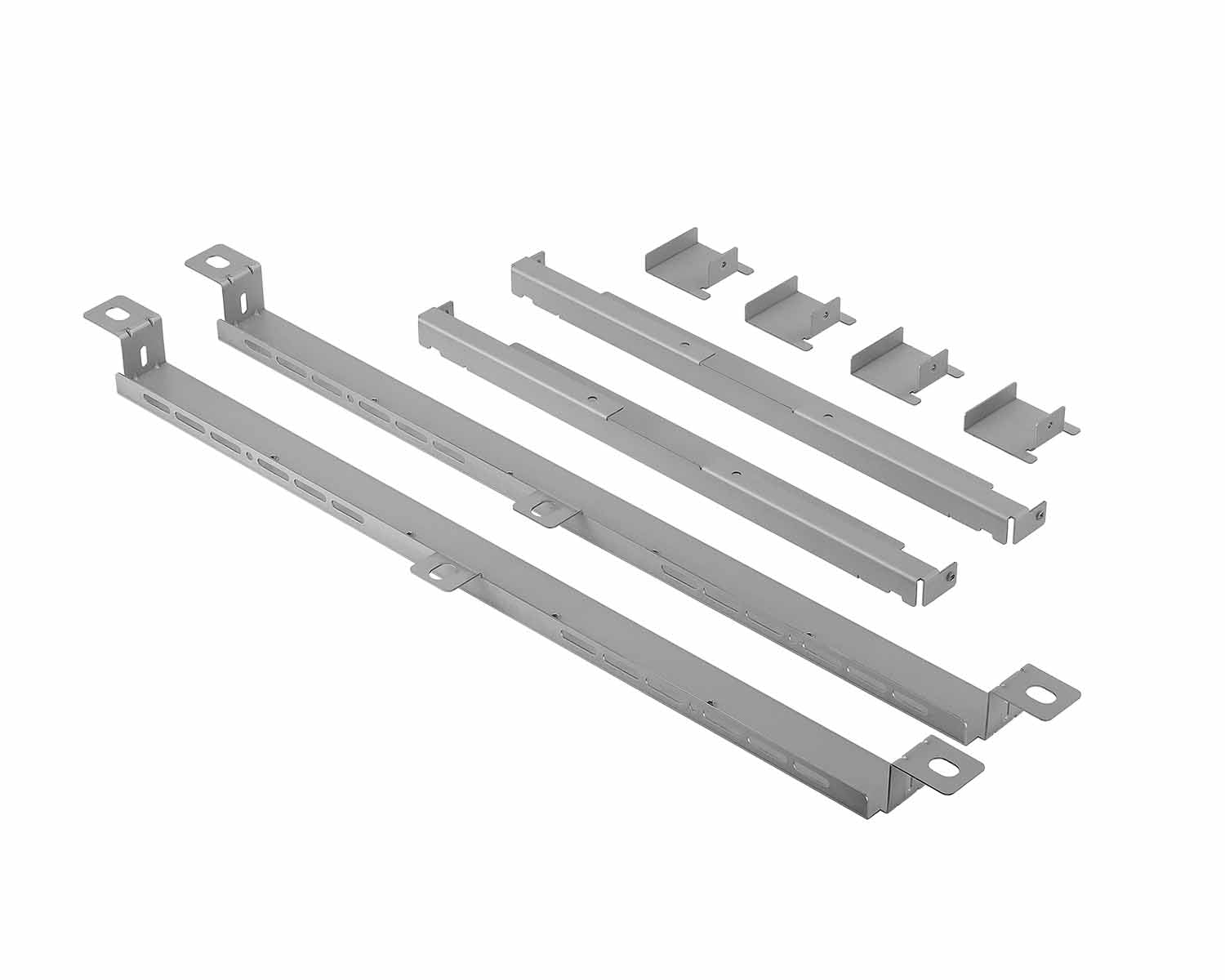

Included Accessories: ・IR remote controller ・Surface mount adapter ・Screw (M4 × 50mm) × 4 ・Flush mount adapter ・Flush mount cover ・Screw (M4 × 10 mm) × 12 ・Hole cover ・Nut × 4 ・Snap bushing × 2 ・Tile bridge A × 2 ・Tile bridge B × 2 ・Tile bridge C × 4 ・Seismic cable ・Zip tie ・Safety belt ・Euroblock connector × 3 ・Installation template
