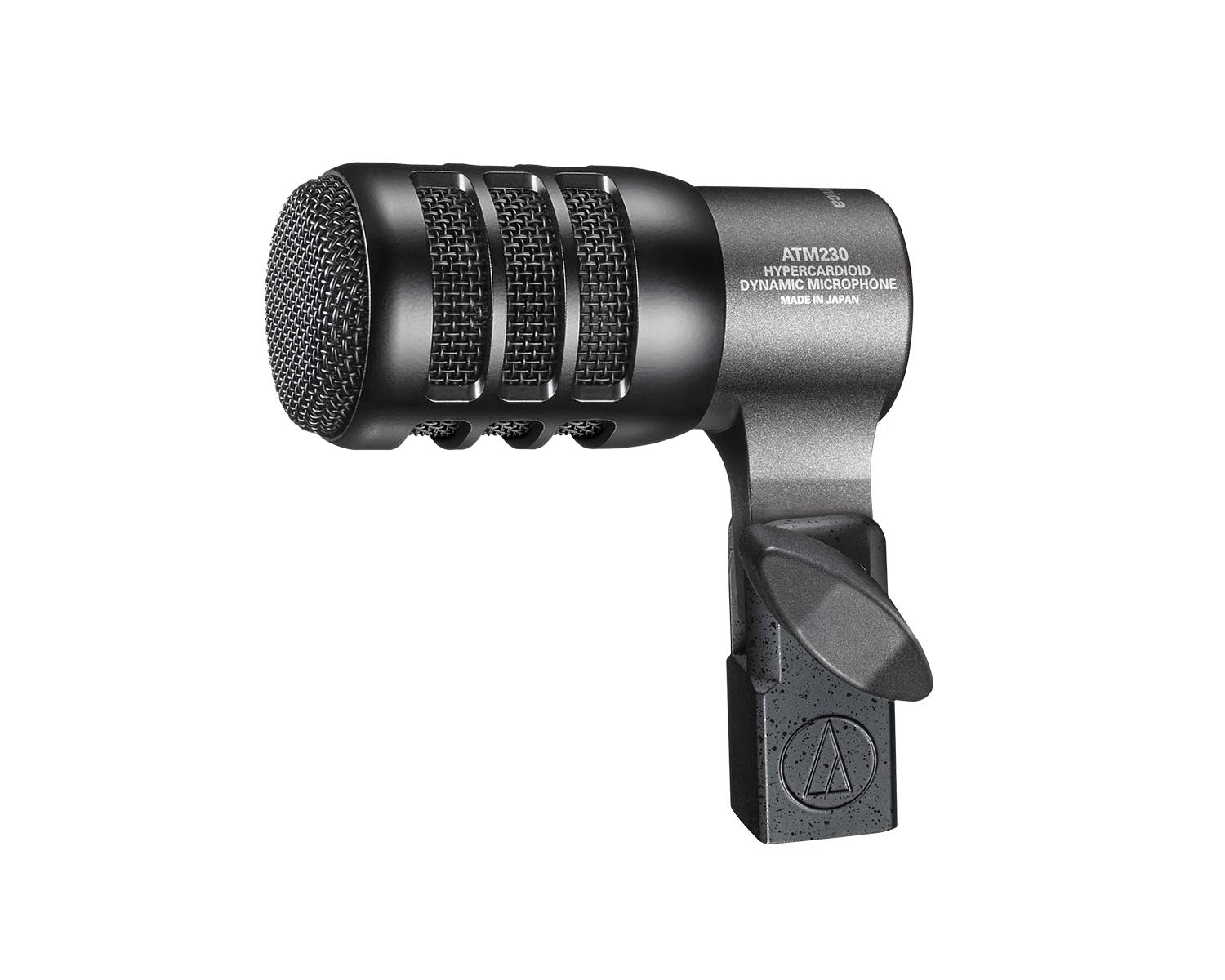

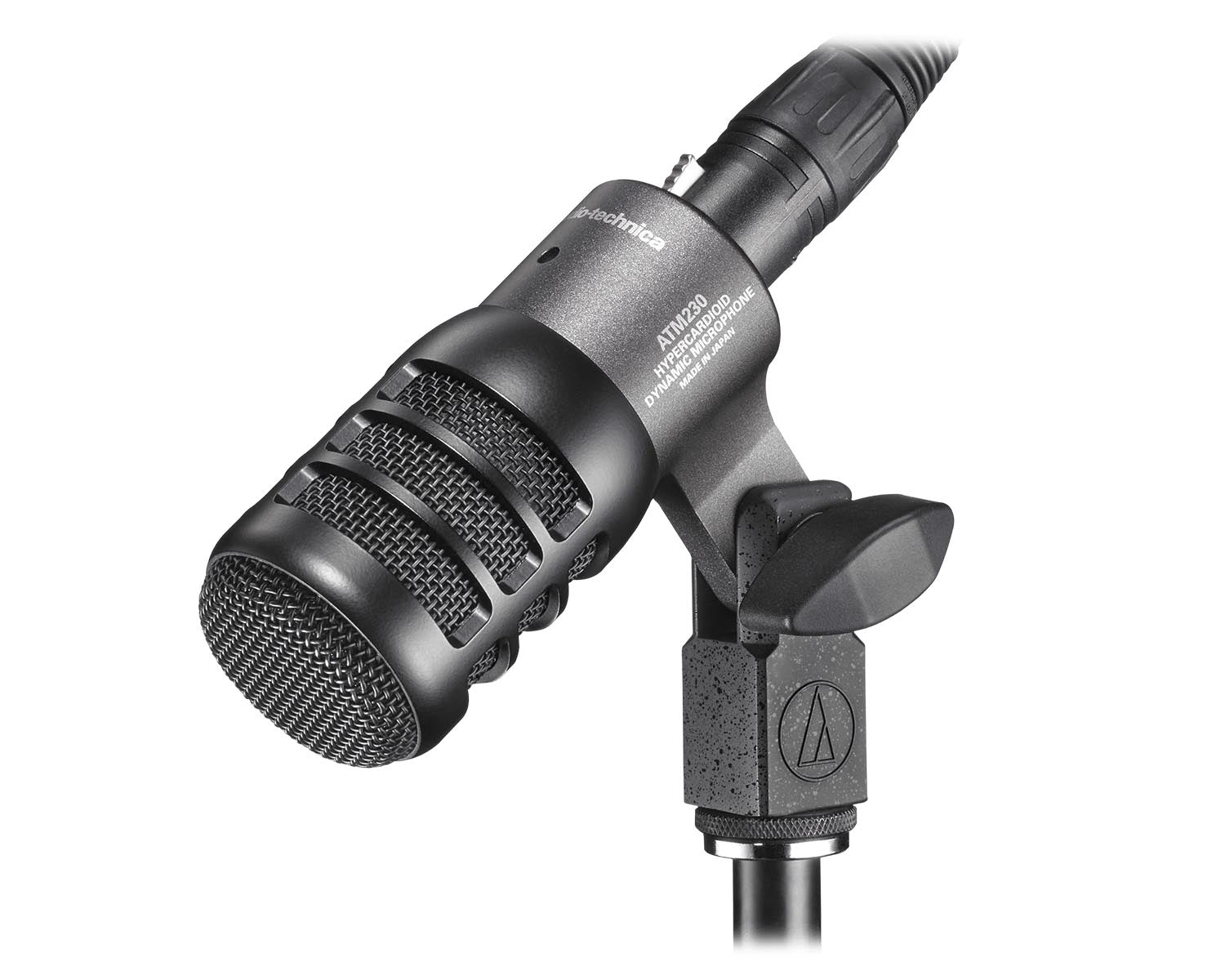

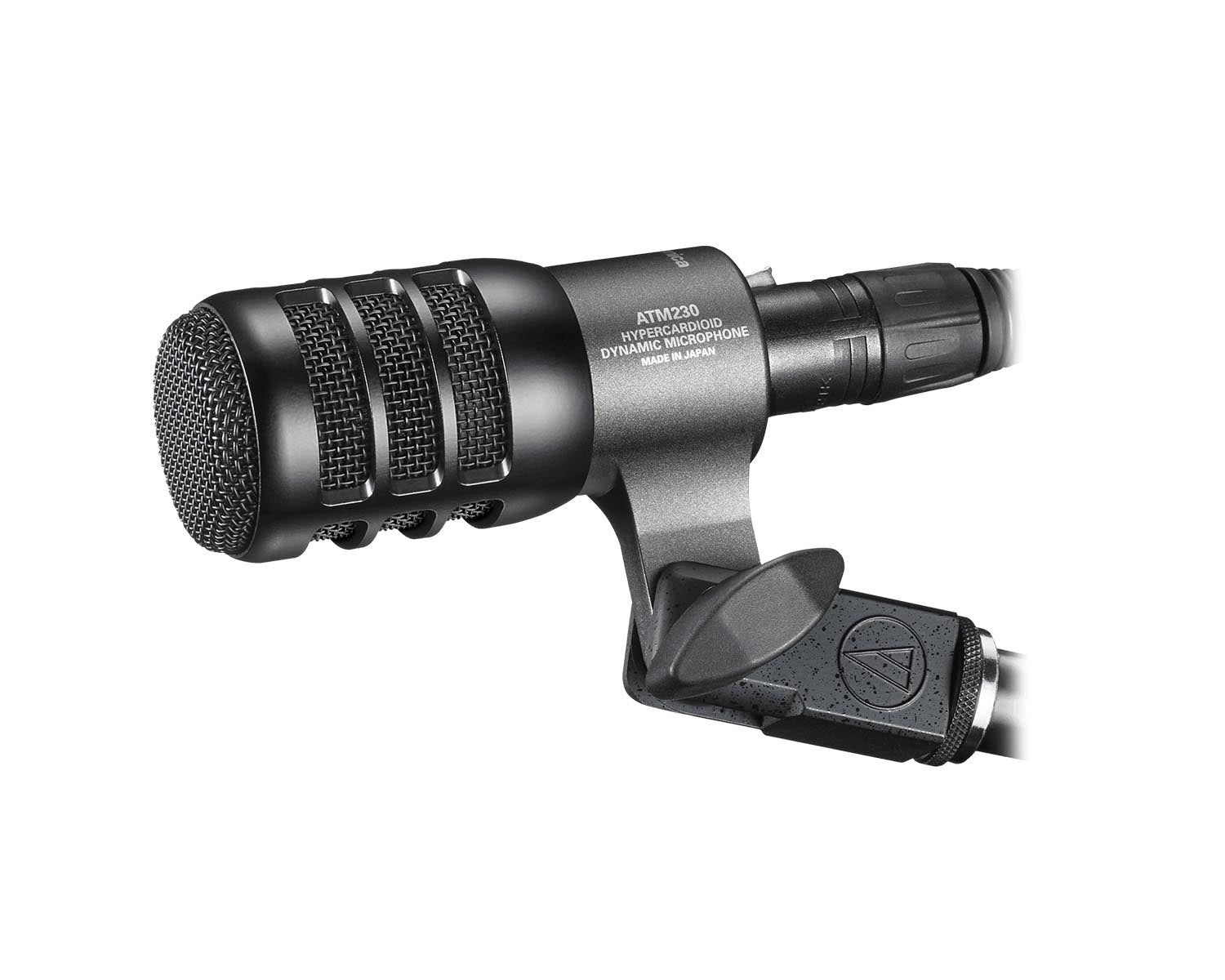

The ATM230 hypercardioid instrument microphone brings a compact drum model to Audio-Technica’s popular Artist Series line. The mic’s proprietary capsule is designed to excel in high SPL applications, delivering full, well-rounded audio with an exceptional low-end.

The hypercardioid polar pattern keeps the focus on the sound source, directionality that is aided by the mic’s low-profile design, which allows it to be placed in a wide variety of setups. All this makes the ATM230 ideally suited for miking toms, snare and other percussion instruments.

Product Features

• Hypercardioid polar pattern reduces pickup of sounds from the sides and rear, improving isolation of desired sound source
• Handles very high SPL at close range
• Big, warm low-frequency response with excellent attack
• Low-profile design permits versatile placement around drum kit
• Rugged, all-metal design and construction for years of trouble-free use
• Includes AT8665 drum mount and a soft protective pouch

Product Specifications

• Element: Dynamic
• Polar Pattern: Hypercardioid
• Frequency Response: 30-12,000 Hz
• Open Circuit Sensitivity: –54 dB (1.9 mV) re 1V at 1 Pa
• Weight: 292 g (10.3 oz)
• Dimensions: 82.5 mm (3.2") long, 38.0 mm (1.5") maximum diameter
• Output Connector: Integral 3-pin XLRM-type

What's in the Box?

• ATM230

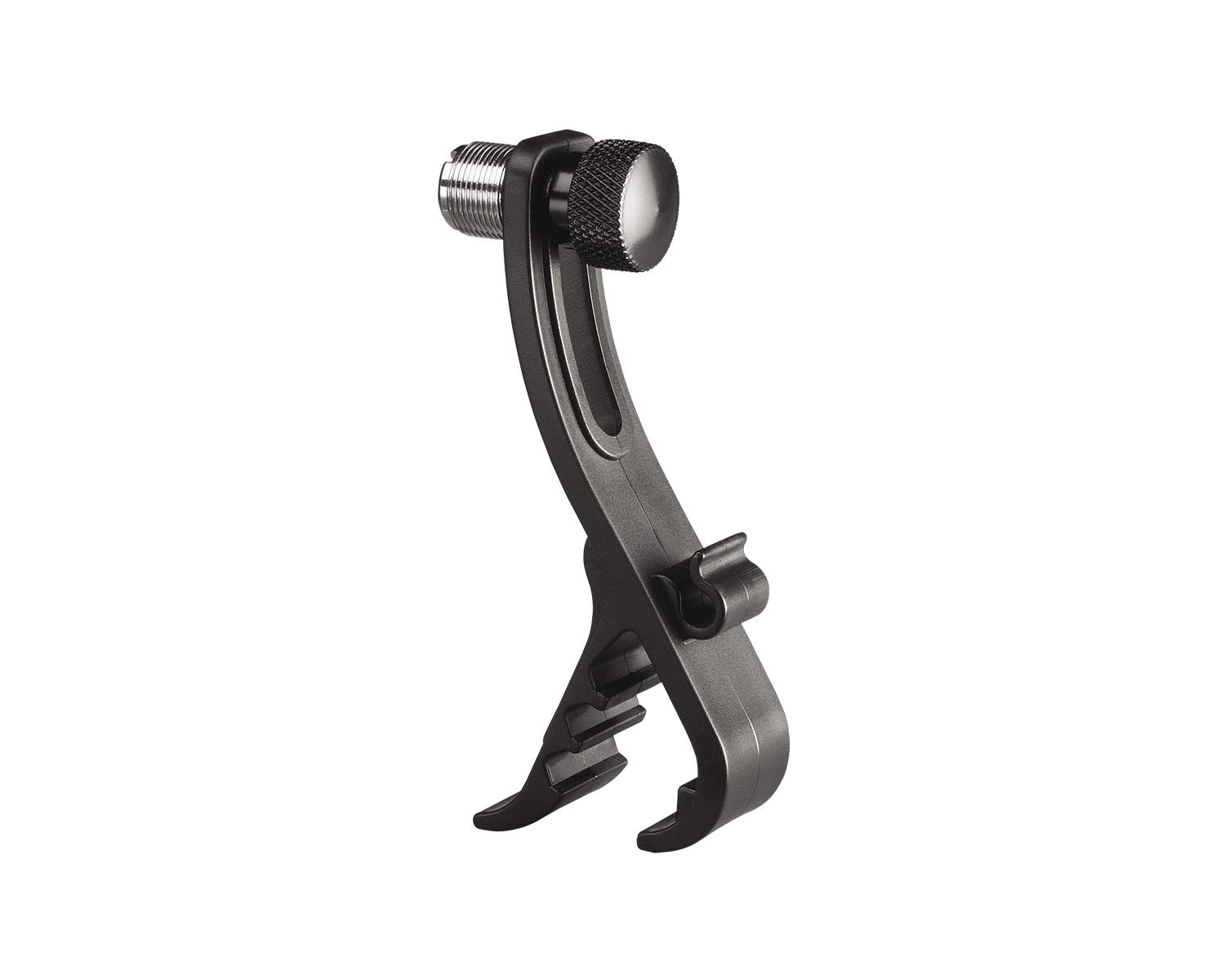

• AT8665 drum mount for 5/8"-27 threaded adaptor
• 5/8"-27 to 3/8"-16 threaded adaptor

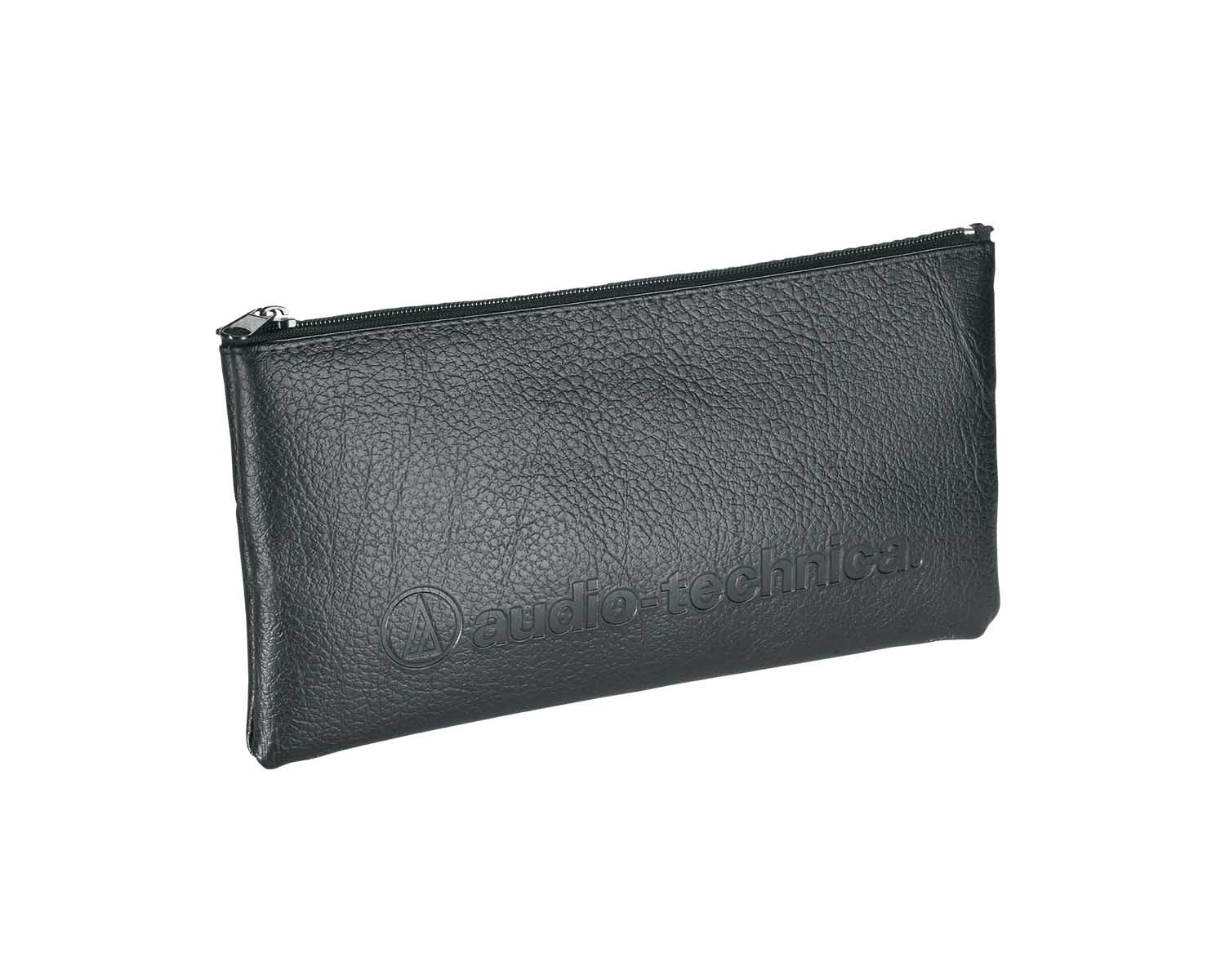

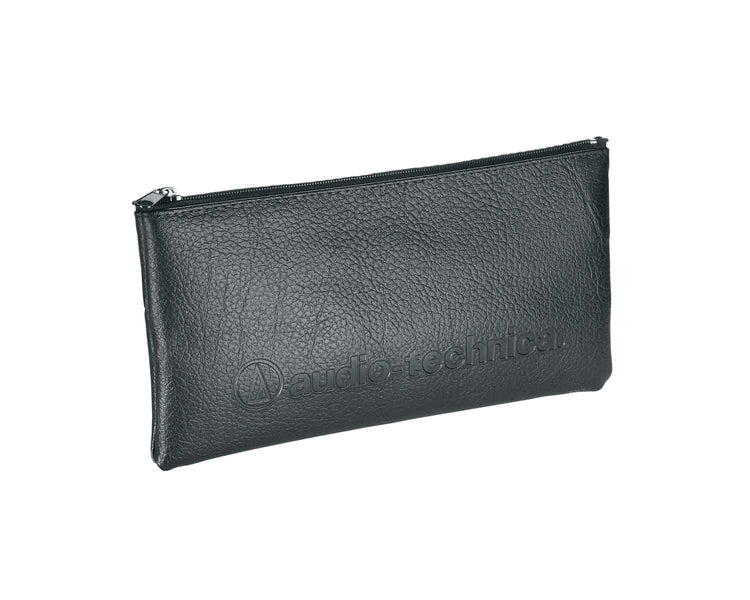

• Soft protective pouch
