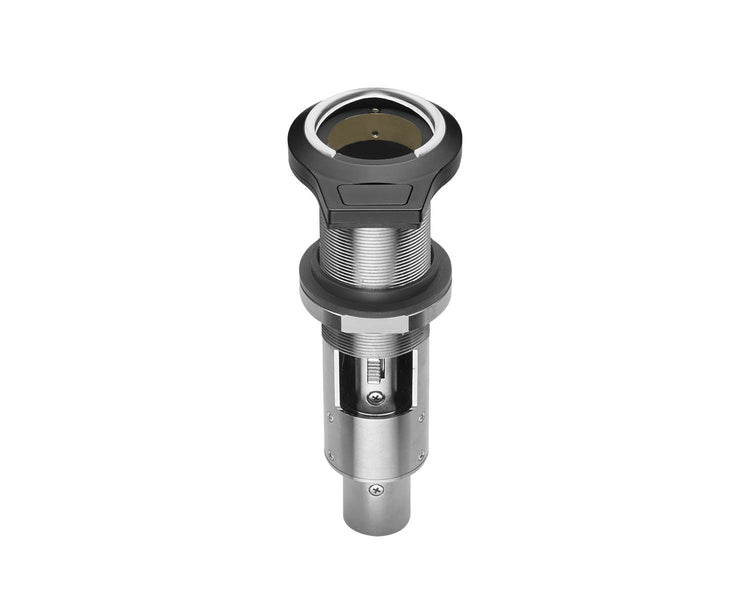

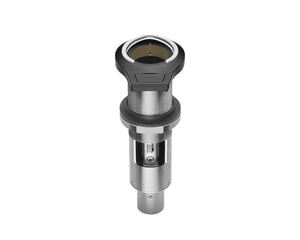

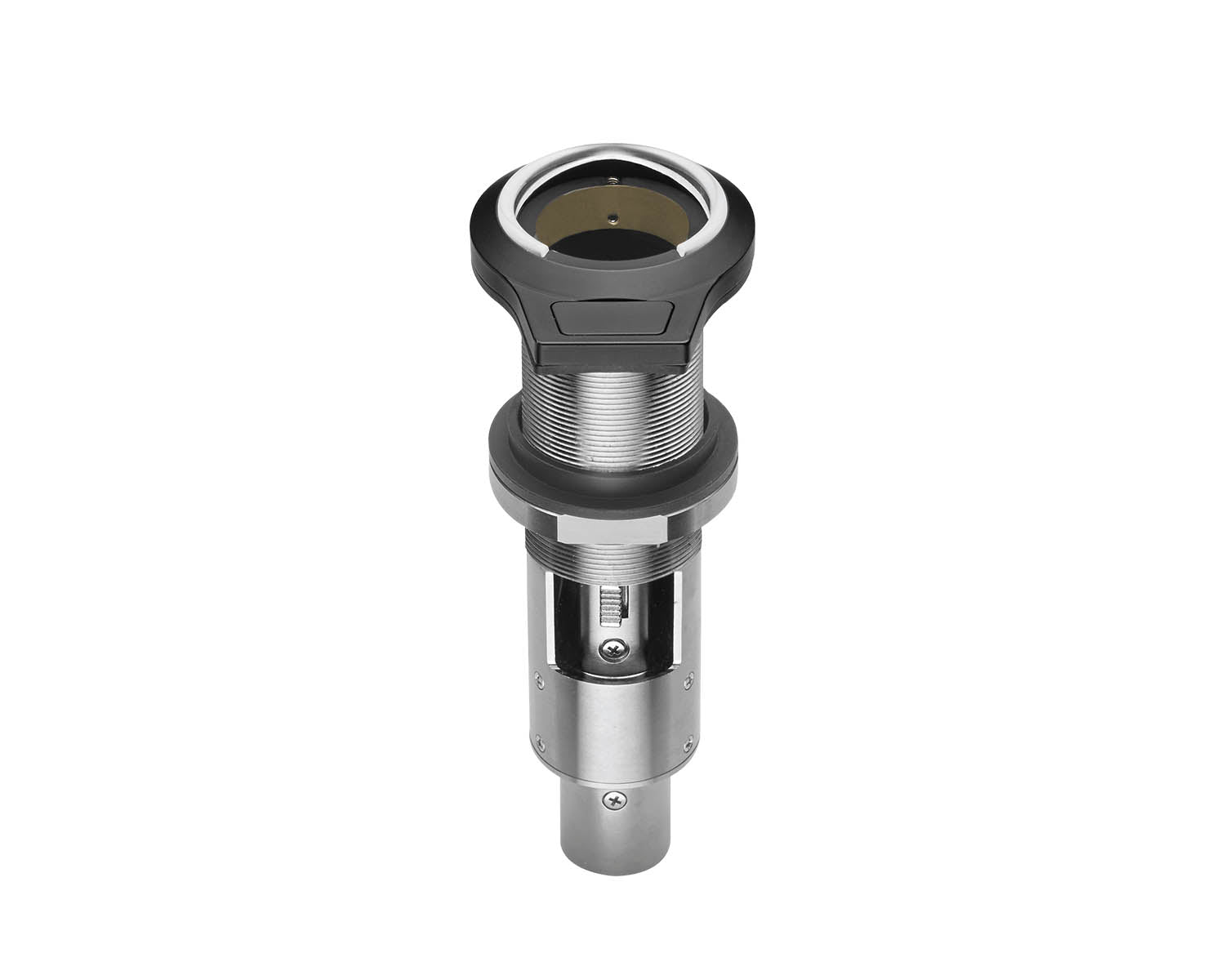

Designed to be recessed into a table, the AT8657/LED Microphone Adapter facilitates the use of any gooseneck microphone or button type surface microphone with a 3-pin XLRM output, such as the ES945 and ES947 microphones in various presentation environments.The socket’s logic out capability permits control of remote devices from a programmable capacitance switch, so users can easily trigger an external device (e.g., a camera or light) with the touch of a button – an extremely useful feature in conference and boardroom installations. The socket also features a lock switch that automatically locks the microphone in place upon insertion, holding it securely until switch is manually released by user.

Product Features

• Adapter allows the installation into a ceiling, wall or table of any gooseneck microphone or button-type surface mic, equipped with a 3-pin XLRM output
• Quick assembly for install microphones, allowing integration with discretion
• The possibility of contact closure allows the controlling of external devices through a built-in switch
• The touch button allows the user to switch the Microphone from Mute (open) to Unmute (closed) and back.
• Operates on 24-48V phantom power

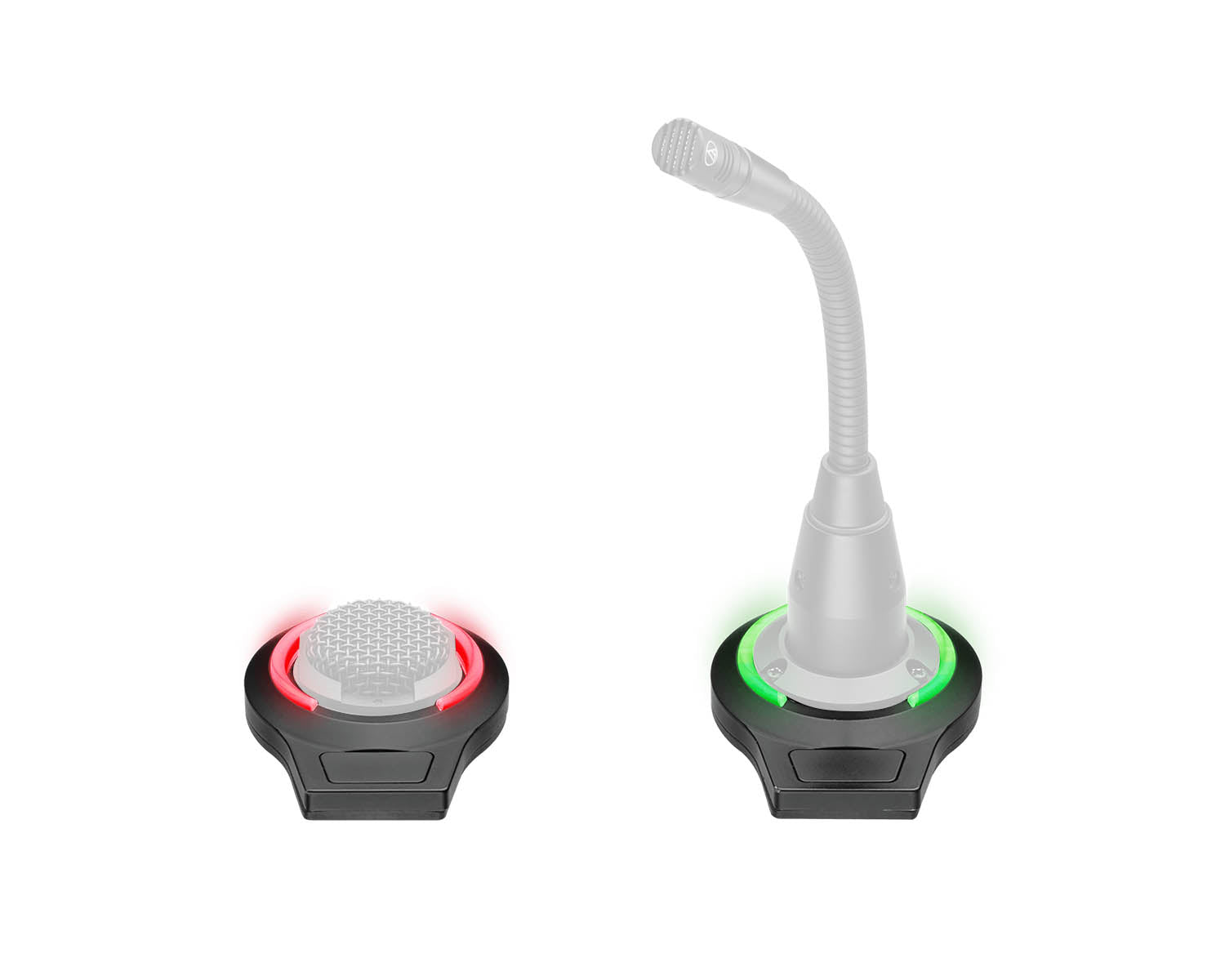

• The 360° ring-shaped red / green LED lamp indicates the status of the microphone
• The latch automatically locks the microphone in place, holding it firmly until manually unlocked by the user
• The adapter output is a 3-pin XLRM
• Supplied with insulation washers for damping the vibration surface

Product Specifications

• Phantom Power Requirements: 24-48V DC, 4 mA typical
• Switches: Touch-sensitive control: momentary
• Weight: 165 g (5.8 oz)
• Dimensions: 130.6 mm (5.14") long, 55.0 mm (2.17") maximum width
• Output Connector: 5-pin XLRM-type
• Accessories Included: One pair surface isolators; gooseneck retaining ring & isolator; mounting nut; screws (3)

What's in the Box?

• One pair of surface isolators
• Gooseneck retaining ring & isolator
• Mounting nut
• 3x Screws
