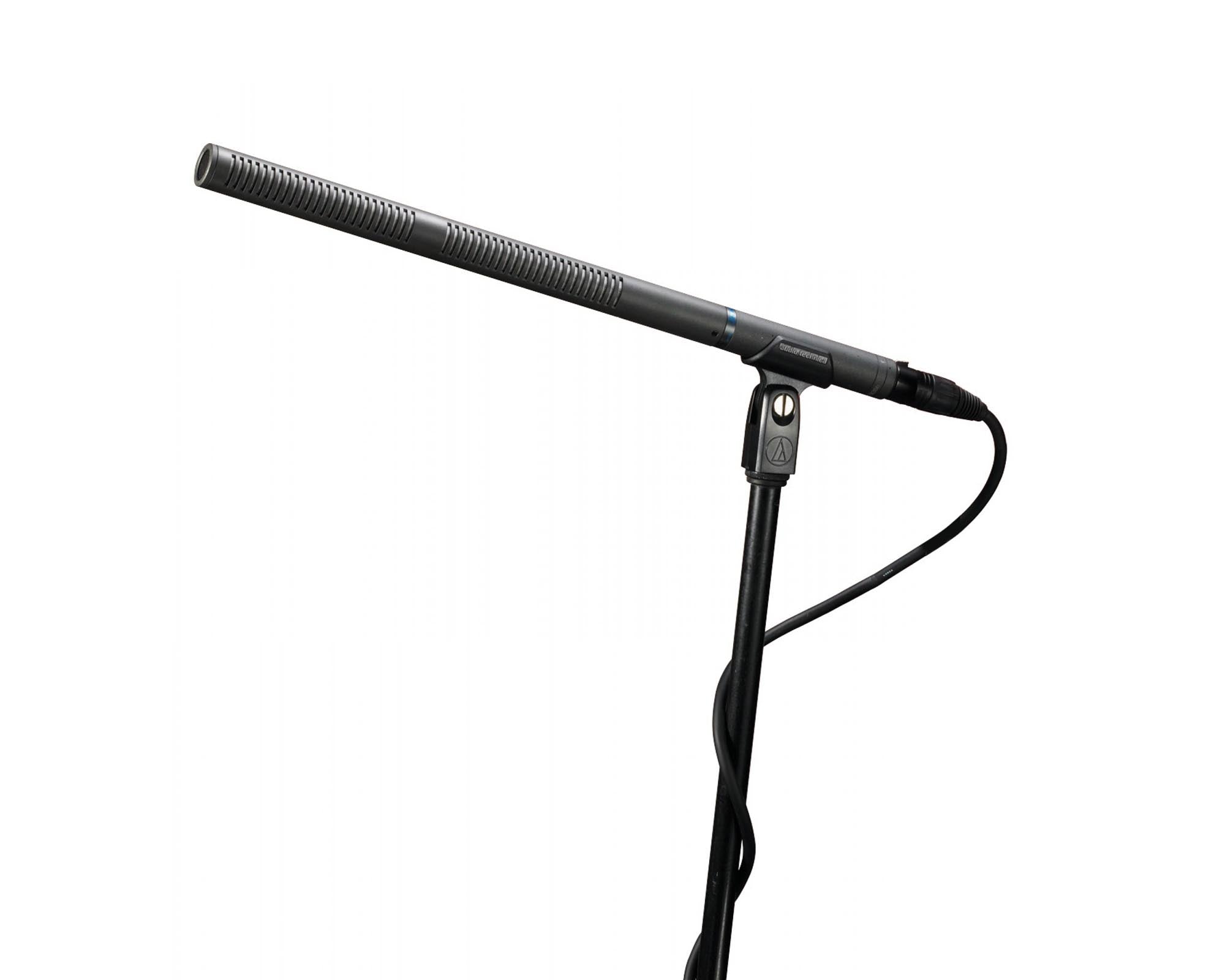

AUDAT8035 - Audio Technica AT8035 Line and Gradient Shotgun Mic 369mm Image 1

The length (14.53") of the AT8035 Line + Gradient Condenser Microphone is well-suited for ENG, outdoor recording and other specialized uses. The microphone is designed for video production and broadcast (ENG/EFP) audio acquisition. Suited for both boom & handheld use, it provides the narrow acceptance angle desirable for long-distance sound pickup, featuring excellent sound rejection from the sides and rear of mic and switchable low-frequency roll-off. It operates on battery or phantom power.

Product Features

Designed for video production and broadcast (ENG/EFP) audio acquisition
Length is well-suited for ENG, outdoor recording and other specialized uses
Provides the narrow acceptance angle desirable for long-distance sound pickup
Excellent sound rejection from the sides and rear of mic
Switchable low-frequency roll-off
Operates on battery or phantom power
RoHS compliant—free from all substances specified in the EU directive on hazardous substances

Product Specifications

General

ELEMENT: Fixed-charge back plate, permanently polarized condenser
POLAR PATTERN: Line + gradient
FREQUENCY RESPONSE: 40-20,000 Hz
LOW FREQUENCY ROLL-OFF: 80 Hz, 18 dB/octave
OPEN CIRCUIT SENSITIVITY:
- Phantom: –38 dB (12.5 mV) re 1V at 1 Pa
- Battery: –39 dB (11.2 mV) re 1V at 1 Pa
IMPEDANCE:
- Phantom: 250 ohms
- Battery: 300 ohms
MAXIMUM INPUT SOUND LEVEL:
- Phantom: 132 dB SPL, 1 kHz at 1% T.H.D.
- Battery: 120 dB SPL, 1 kHz at 1% T.H.D.
DYNAMIC RANGE (typical):
- Phantom: 110 dB, 1 kHz at Max SPL
- Battery: 98 dB, 1 kHz at Max SPL
SIGNAL-TO-NOISE RATIO: 72 dB, 1 kHz at 1 Pa
PHANTOM POWER REQUIREMENTS: 11-52V DC, 2 mA typical
BATTERY TYPE: 1.5V AA/UM3
BATTERY CURRENT / LIFE: 0.4 mA / 1200 hours typical (alkaline)
SWITCH: Flat, roll-off
