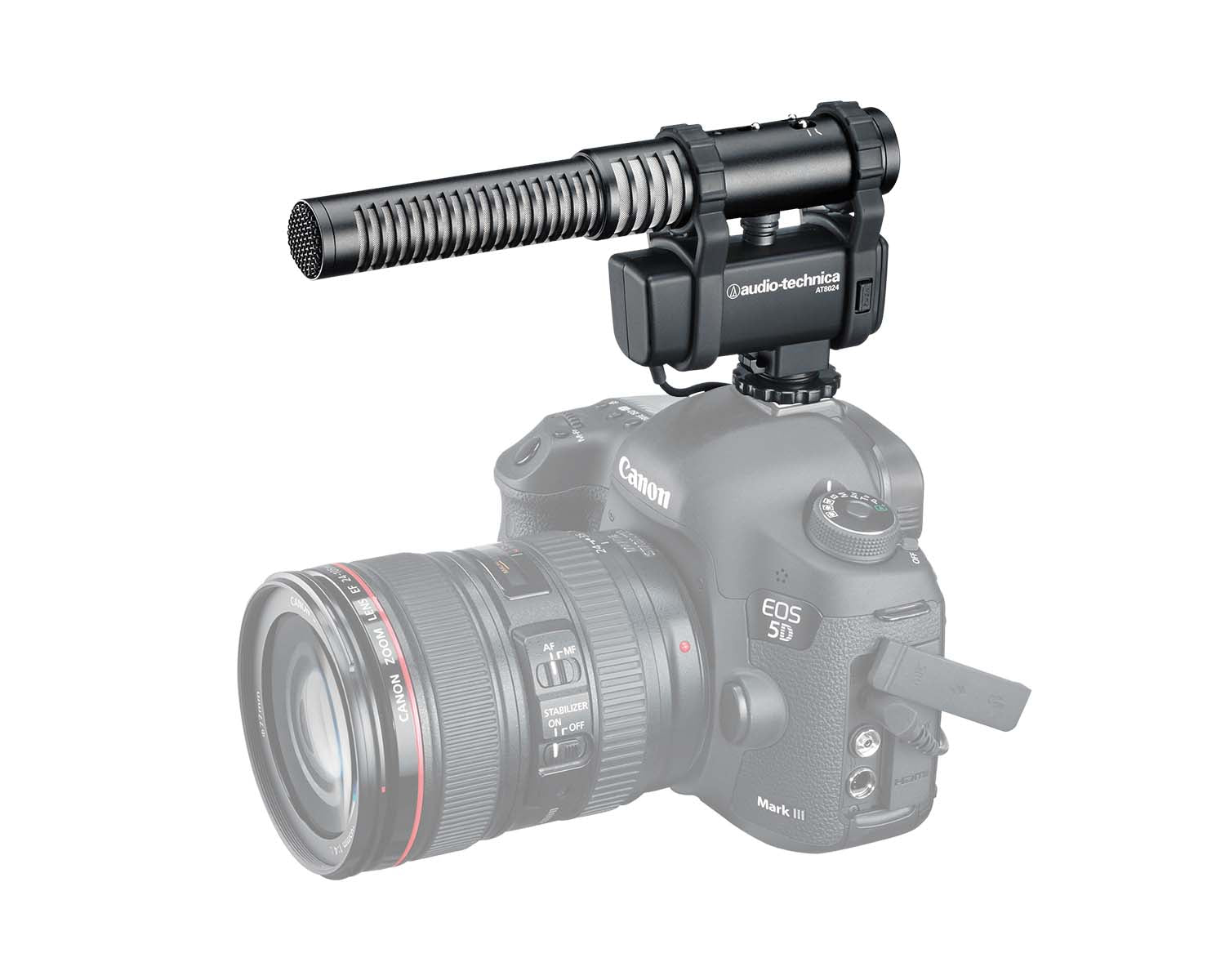

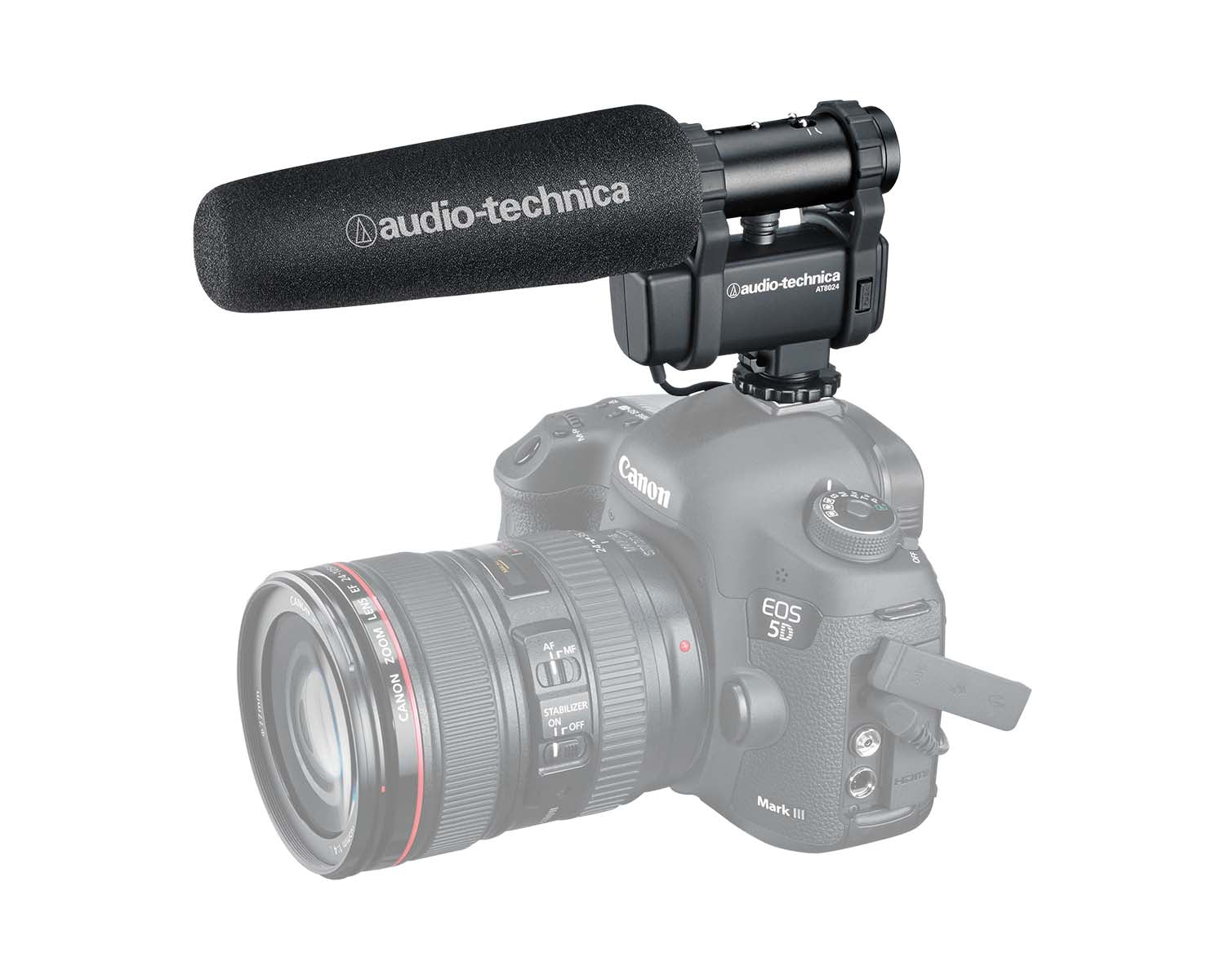

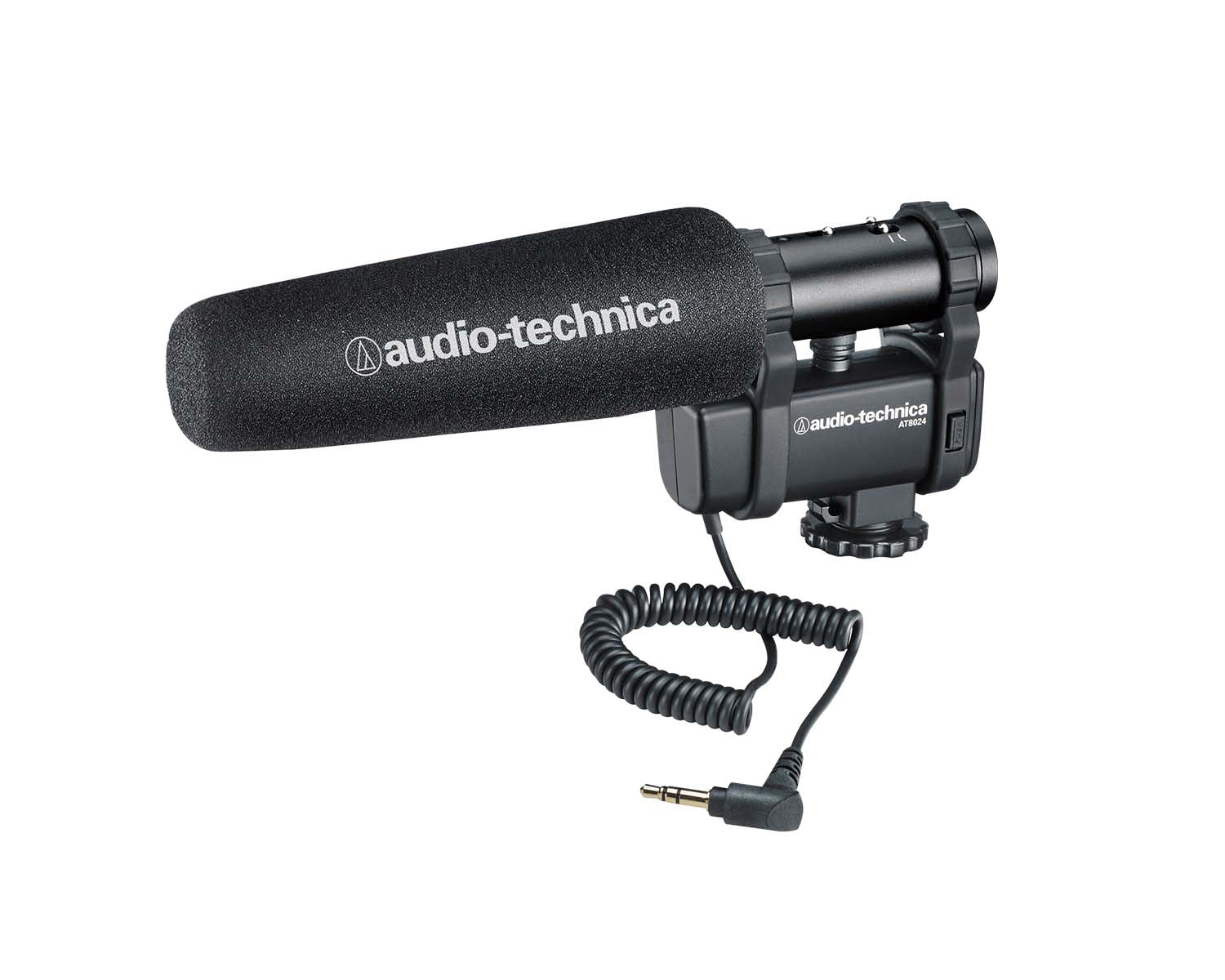

The AT8024 is a fixed-charge condenser microphone designed for use with DSLR and other video cameras. The microphone offers the flexibility of mono and mid-side stereo modes for high-resolution audio in any environment.

The AT8040 delivers dramatically better sound than built in camera microphones, with an integrated 3.5mm cable connecting directly into your camera.

The microphone also features an 80 Hz high-pass filter switch that permits choice of flat response or low-frequency roll-off to reduce the pickup of undesired ambient noise, room reverberation and mechanically coupled vibrations.

Product Features

• Designed for use with DSLR and other video cameras
• Delivers dramatically better sound quality than the camera’s internal mic
• Selectable line-cardioid mono or mid-side stereo modes
• Three-position adjustable input pad and switchable low-frequency roll-off
• Integral rubber shock mounts for vibration and mechanical noise isolation
• Compact, lightweight design with integral shoe mount

Product Specifications

General

• Element: Fixed-charge back plate, permanently polarized condenser
• Polar Pattern: Line-cardioid, LR stereo
• Frequency Response: 40-15,000 Hz
• Open Circuit Sensitivity: –37 dB (14.1 mV) re 1V at 1 Pa (Mono & LR Stereo)
• Impedance: 50 ohms
• Maximum Input Sound Level: 128 dB SPL, 1 kHz at 1% T.H.D.
• Low Frequency Roll Off: 80 Hz, 12 dB/octave
• Switches: Mono, M-S Stereo; Three-position input pad; Flat, roll-off
• Dynamic Range: Mono: 106 dB, 1 kHz at Max SPL; Stereo: 104 dB, 1 kHz at Max SPL
• Signal-to-Noise Ratio: Mono: 72 dB, 1 kHz at 1 Pa; Stereo: 70 dB, 1 kHz at 1 Pa
• Battery Type: 1.5V AA
• Battery Current/Life: 80 hours typical

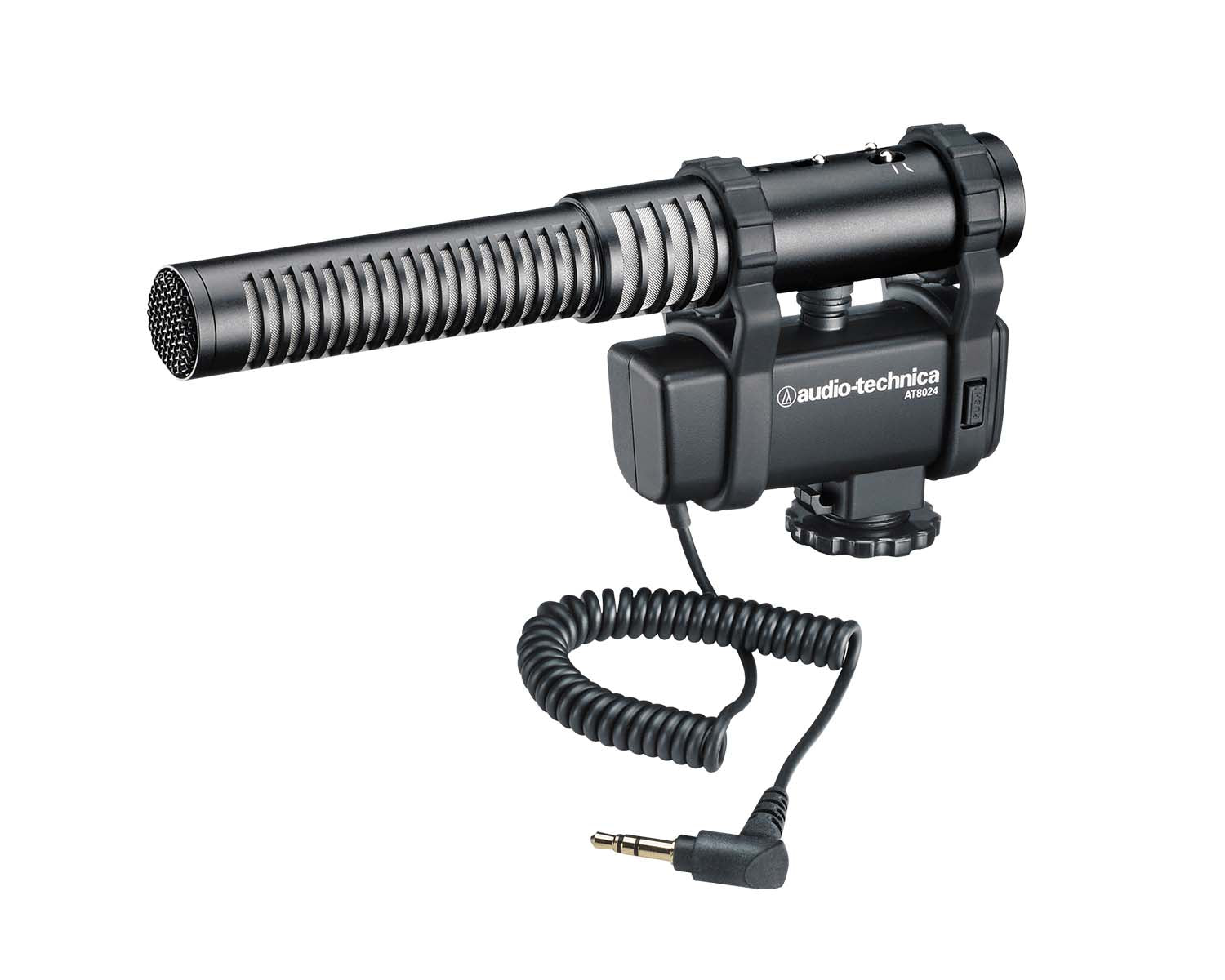

• Output Connector: 3.5 mm stereo mini-plug on cable
• Cable: Permanently attached 0.2 m -1 m (7.8"- 39.3") coiled cable with right-angle molded 3.5 mm stereo mini-plug at output end

Physical & Dimensions

• Weight: 114 g
• Length: 172mm
• Height: 82mm
• Width: 30mm

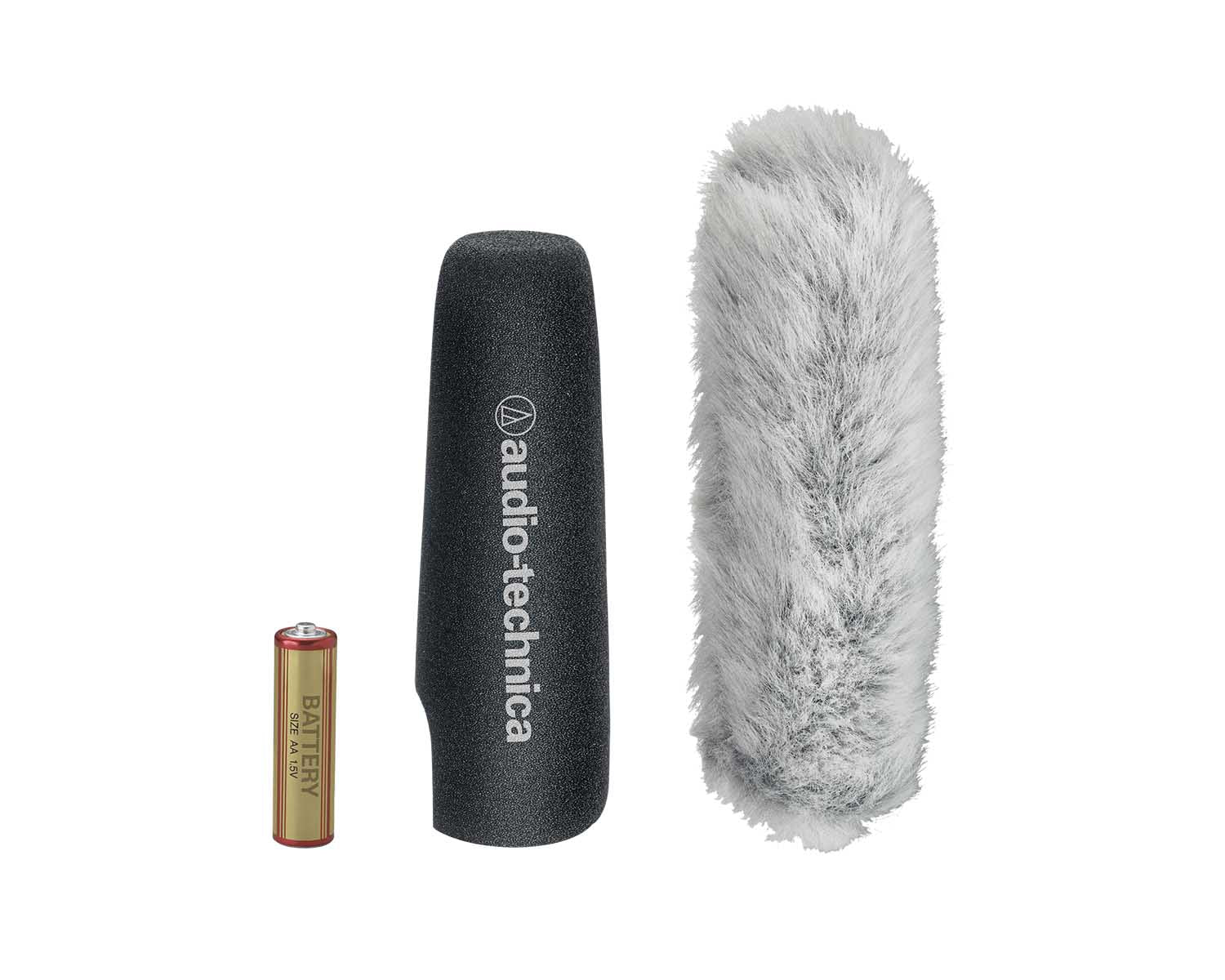

What's in the Box?

• 1 Camera-mount microphone
• 1 AT8124 Windscreen

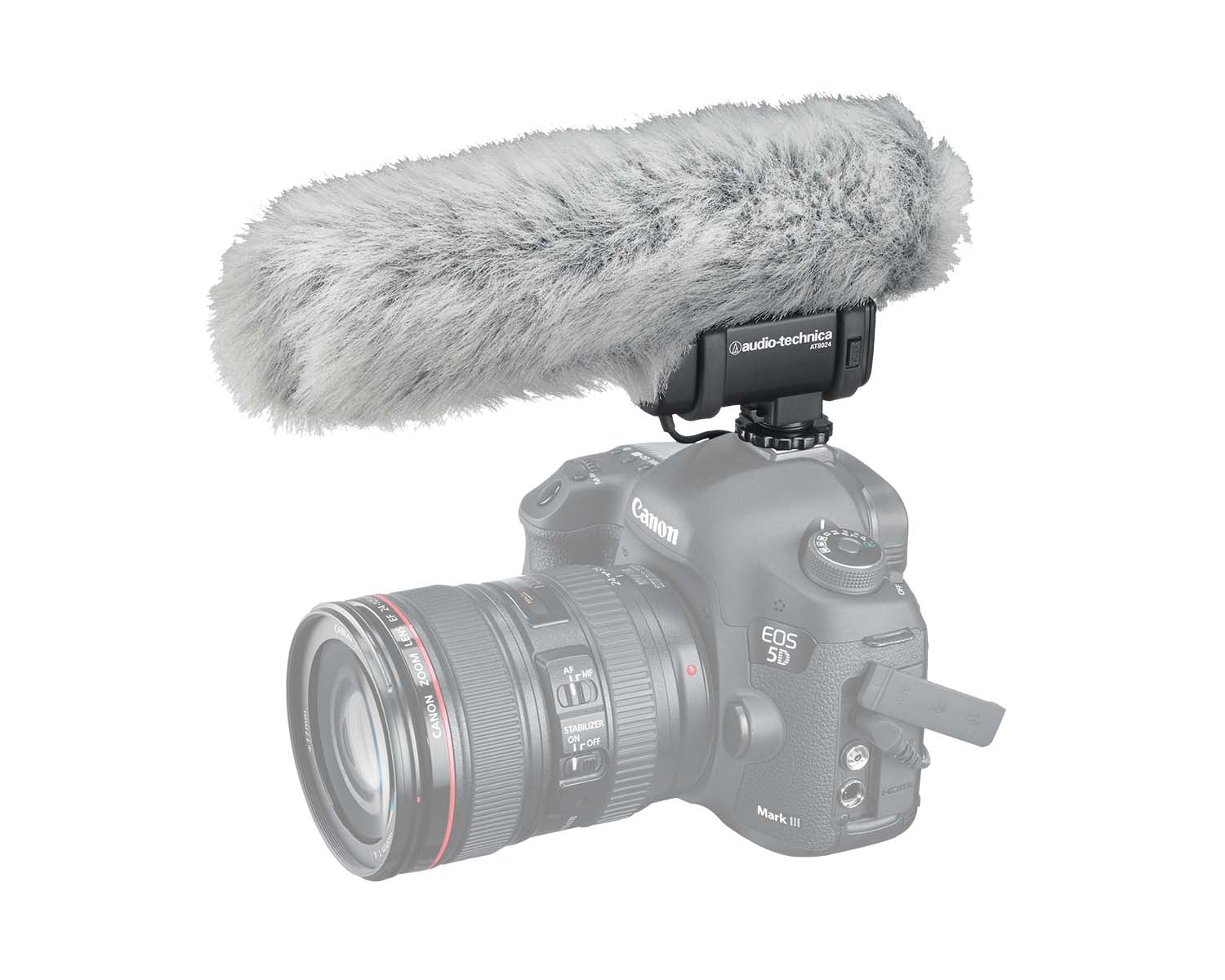

• 1 AT8124F Fuzzy windscreen
• 1 AA battery
