Distinguished by its modern design aesthetic, the TEC-X family of AV control pads provide simple, intuitive interfaces for presentation spaces and conference rooms via highly intuitive capacitive touch capabilities, delivered at the price of a keypad controller. Equipped with an LCD, all TEC-X models are PoE powered, wallmountable, and daisy chainable, which greatly reduces cabling requirements and installation time. In addition, they support all TTP commands and can be quickly programmed and customised within Tesira software as the needs of the room change over time, making TEC-X a very flexible and cost effective control solution.

Black option available, please contact our friendly sales team for more information.

Product Features

• Ethernet-based control solution for Tesira systems
• Push button simplicity for room operations
• Two models are available:

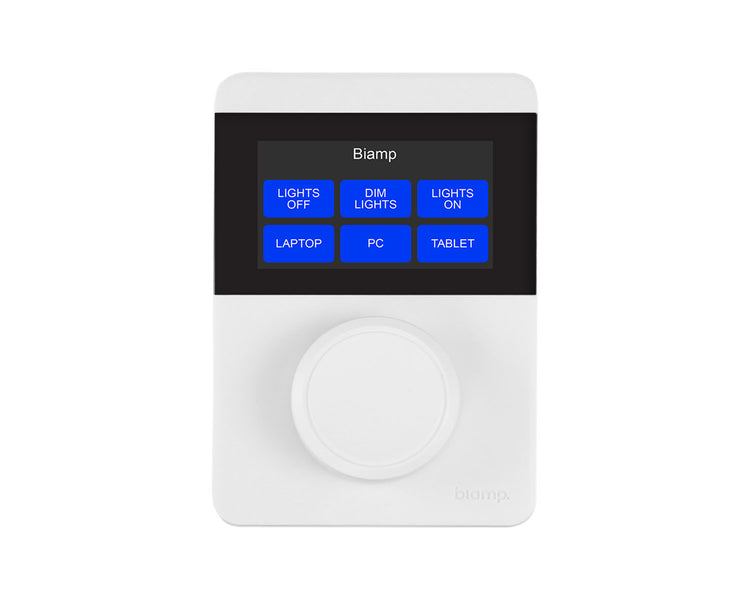

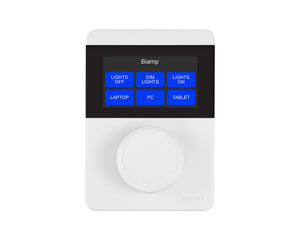

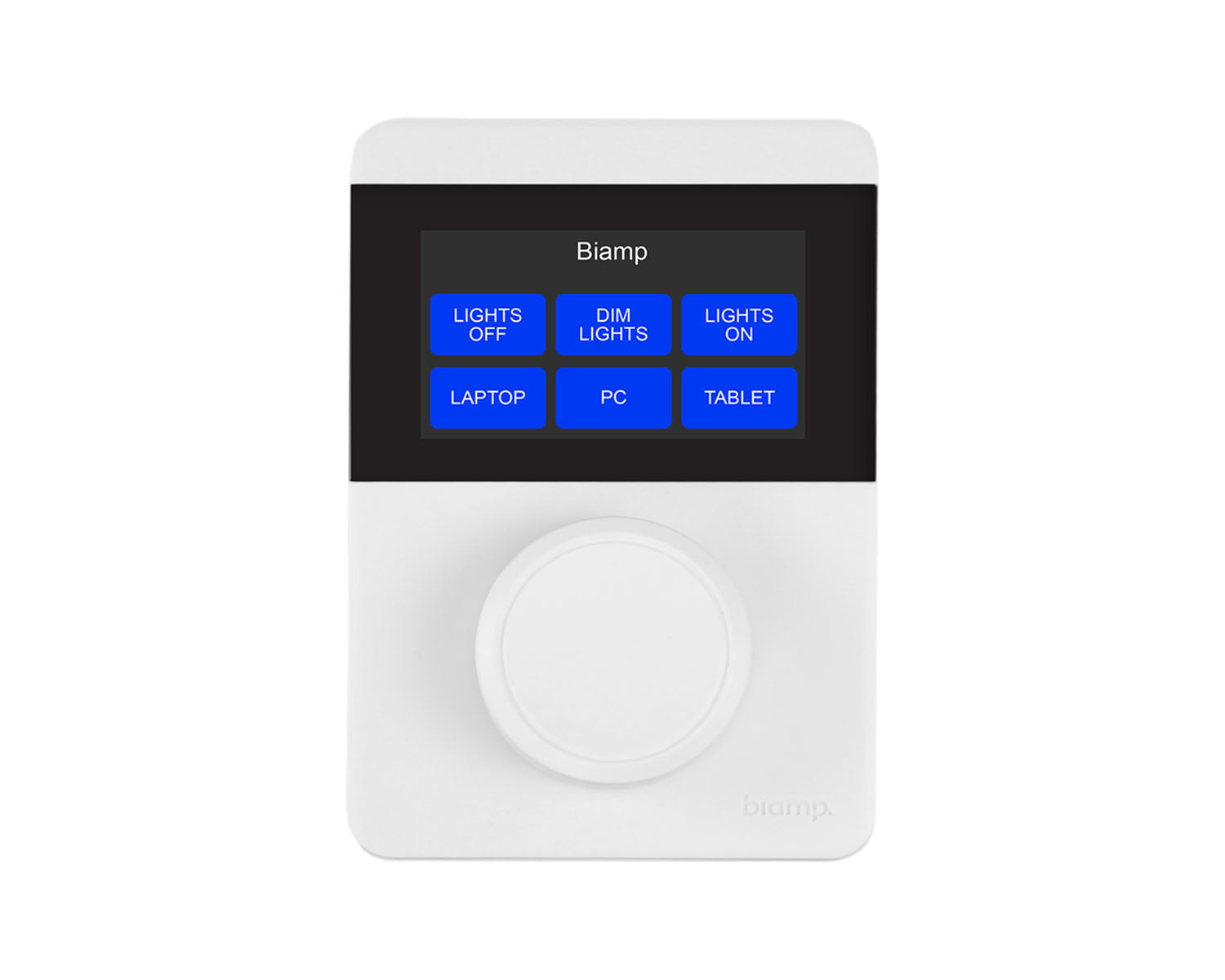

  • TEC-X 1000 — includes a dedicated rotary encoder and supports up to six interface buttons
  • TEC-X 2000 — supports up to 12 buttons
• Control functions of onscreen buttons are easily programmed in Tesira design software
• High contrast touch-enabled LCD provides easy-to-read on-screen text and status messages
• Display brightness can adjust automatically to the ambient light level
• Assignable LED light bar provides optional feedback for mute and system state
• PoE powered — simple, single CAT5e/CAT6 cable installation
• Up to four devices can be daisy chained together
• Supports all TTP commands
• CE marked, UL listed, and RoHS compliant
• Covered by Biamp Systems’ 5-year warranty

Black option available, please contact our friendly sales team for more information.

Product Specifications

General

• User Interface
  • TEC-X 1000: Rotary Knob; Capacitive Touch Screen
  • TEC-X 2000: Capacitive Touch Screen
• Display Type: High-Contrast Capacitive Touch LCD
• Status Indicator: RGB LED bar with adjustable brightness

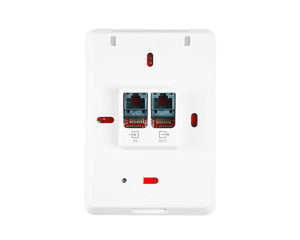

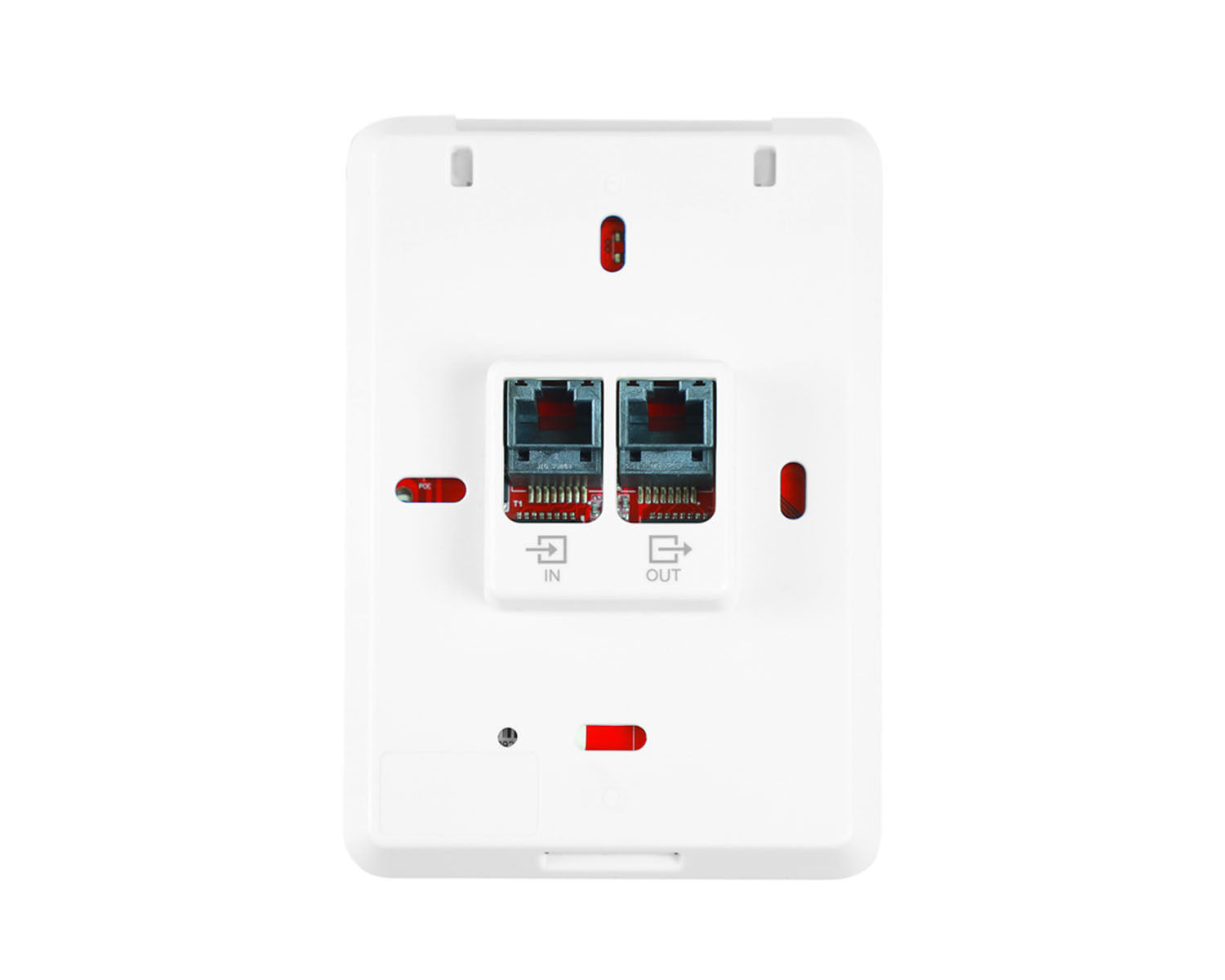

• Network Connection: RJ-45 with Ethernet cable
  • (Cat 5e and above)
• Daisy Chain Length: 4 devices max
• Power: PoE (IEEE 802.3at Class 2, 7W)
• Power Consumption: < 2W Max
• Environmental
  • Temperature Range: 32 - 104° F (0 - 40° C)
  • Humidity: 0-95% relative humidity (non-condensing)
  • Altitude: 0-10,000 ft (0-3000m) MSL

Overall Dimensions

• Height: 5.1 inches (130mm)
• Width: 3.5 inches (90mm)
• Depth: 0.5 inches (13mm)

Compliance

• FCC Part 15B (USA)
• CE marked (Europe)
• UL and C-UL listed (USA and Canada)
• RoHS Directive (Europe)
