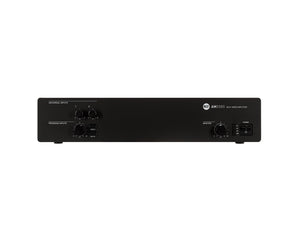

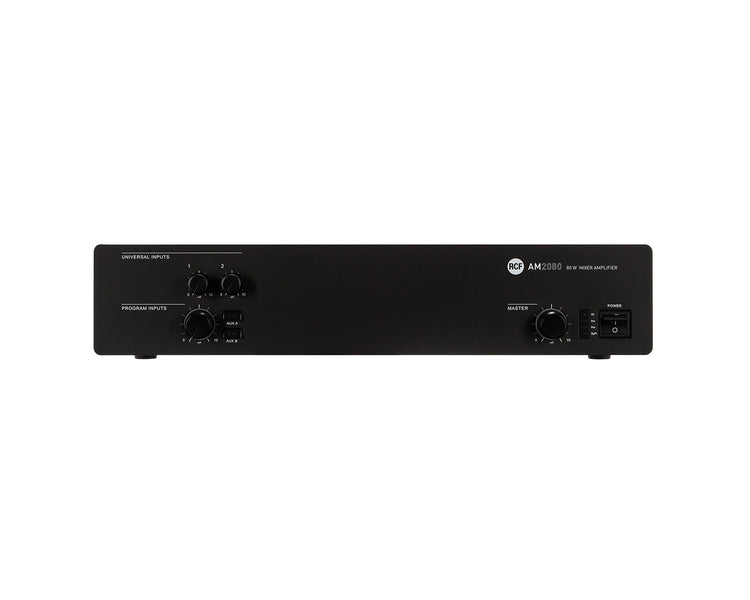

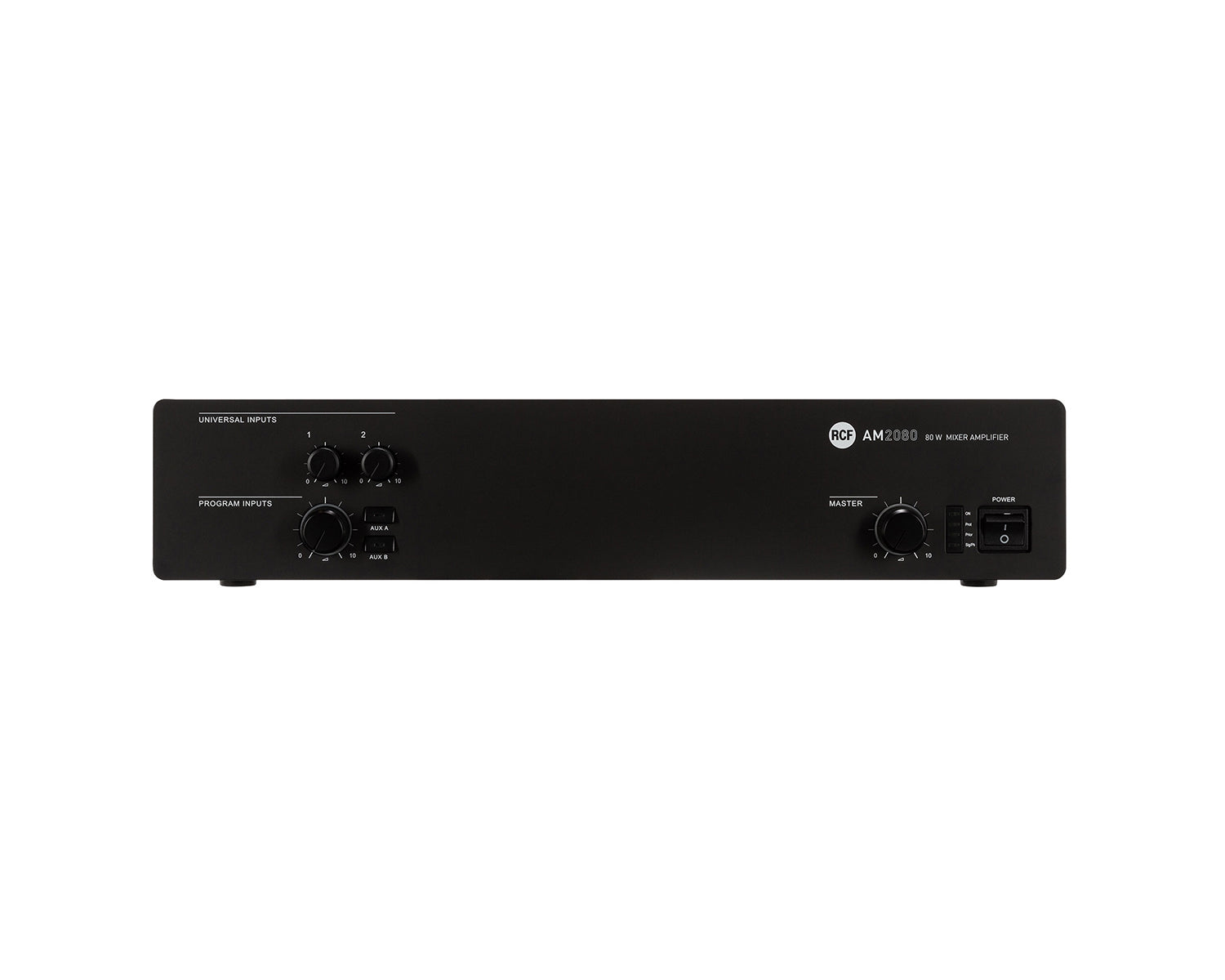

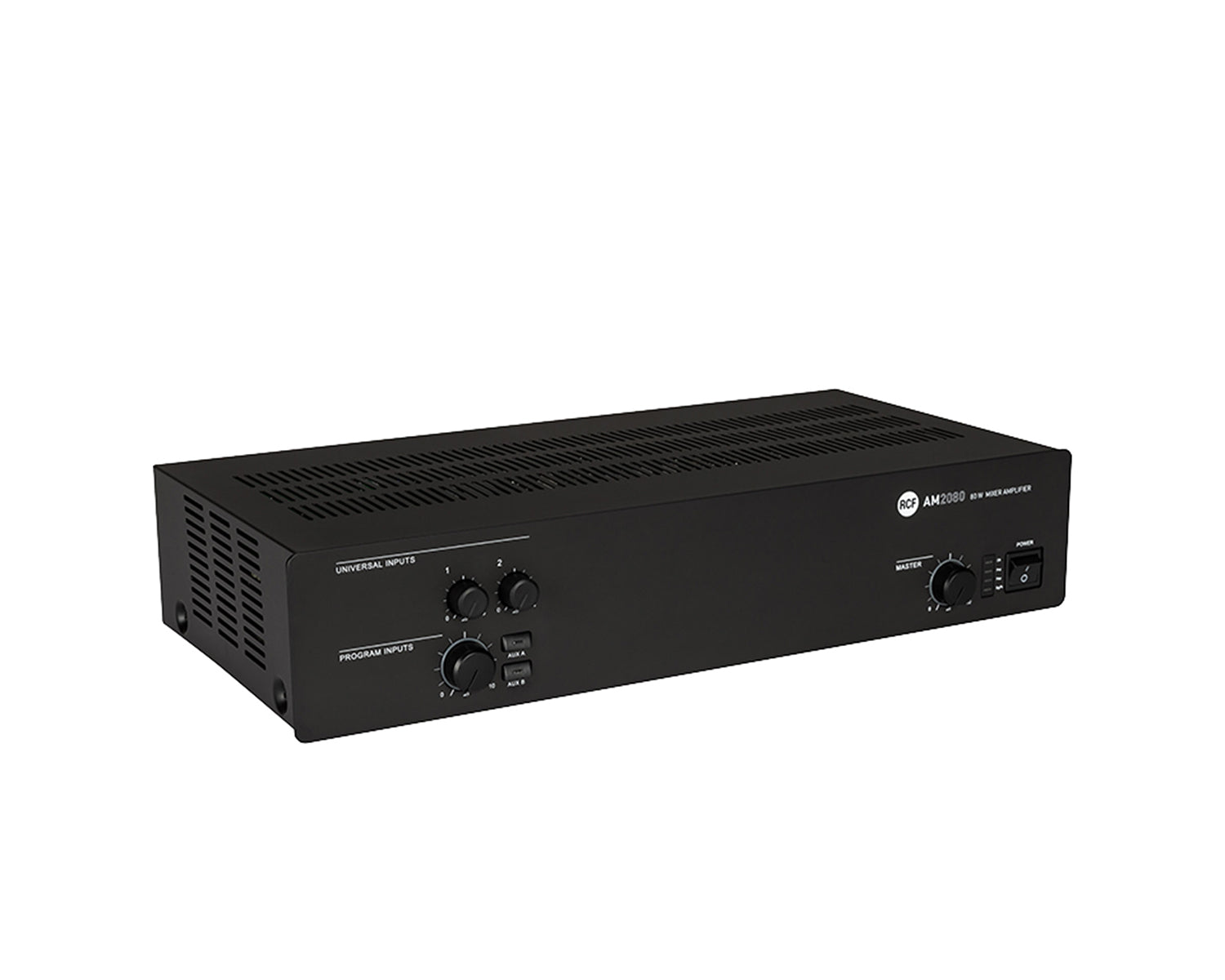

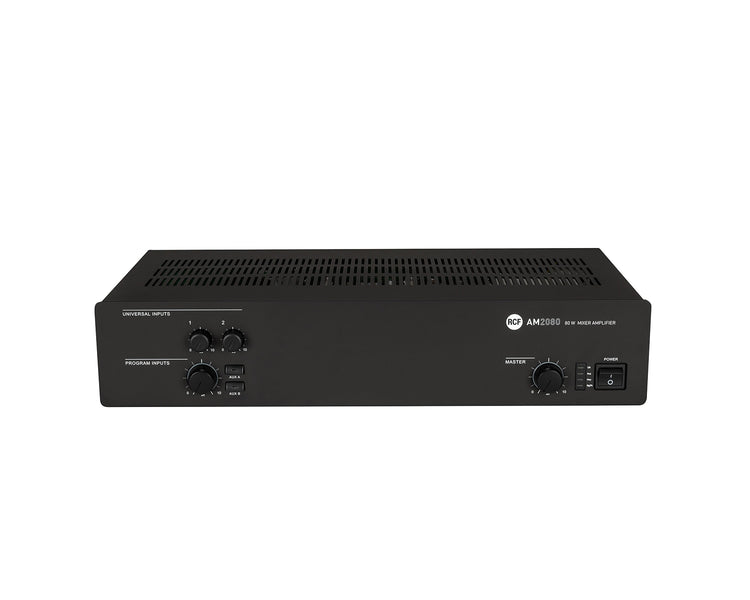

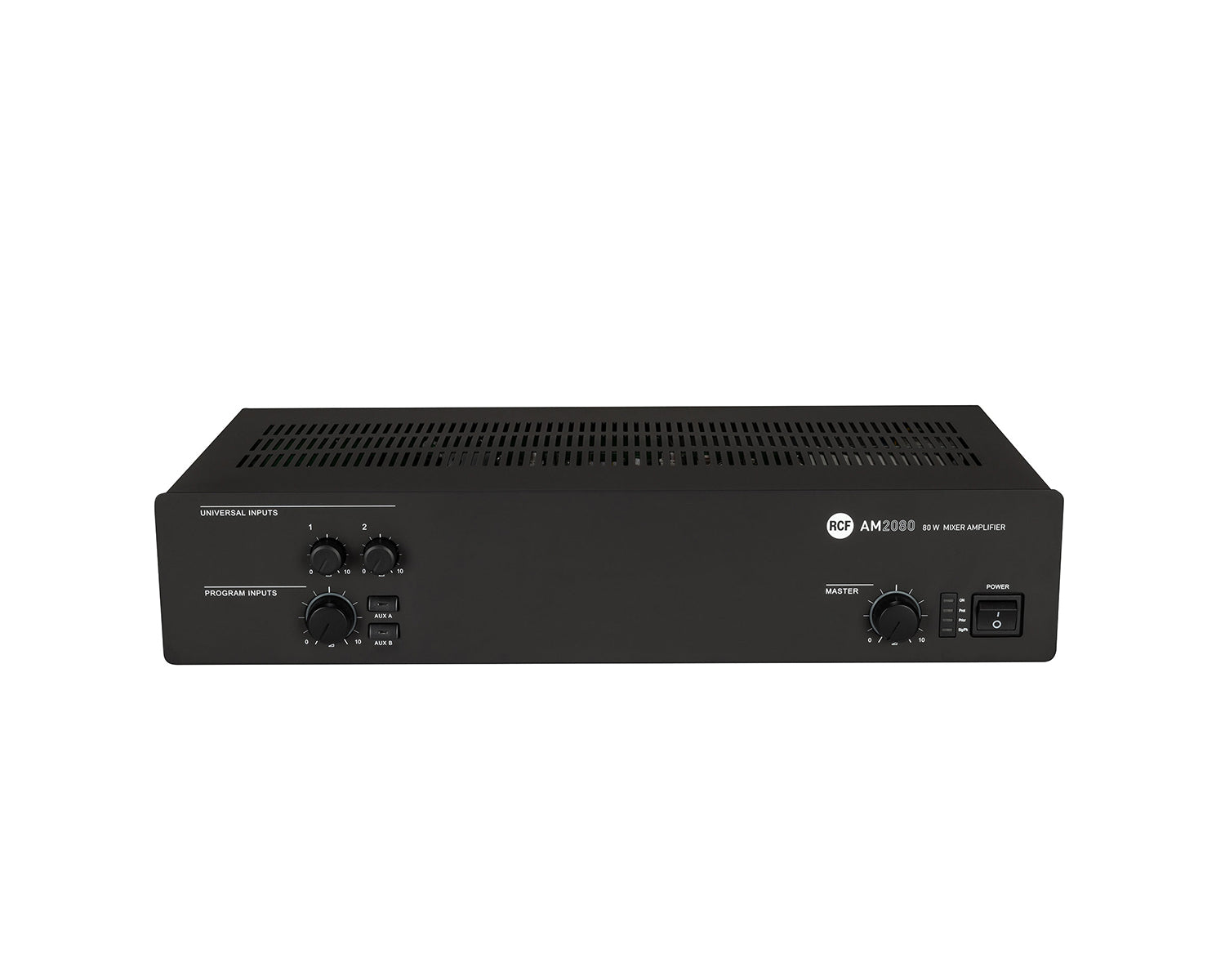

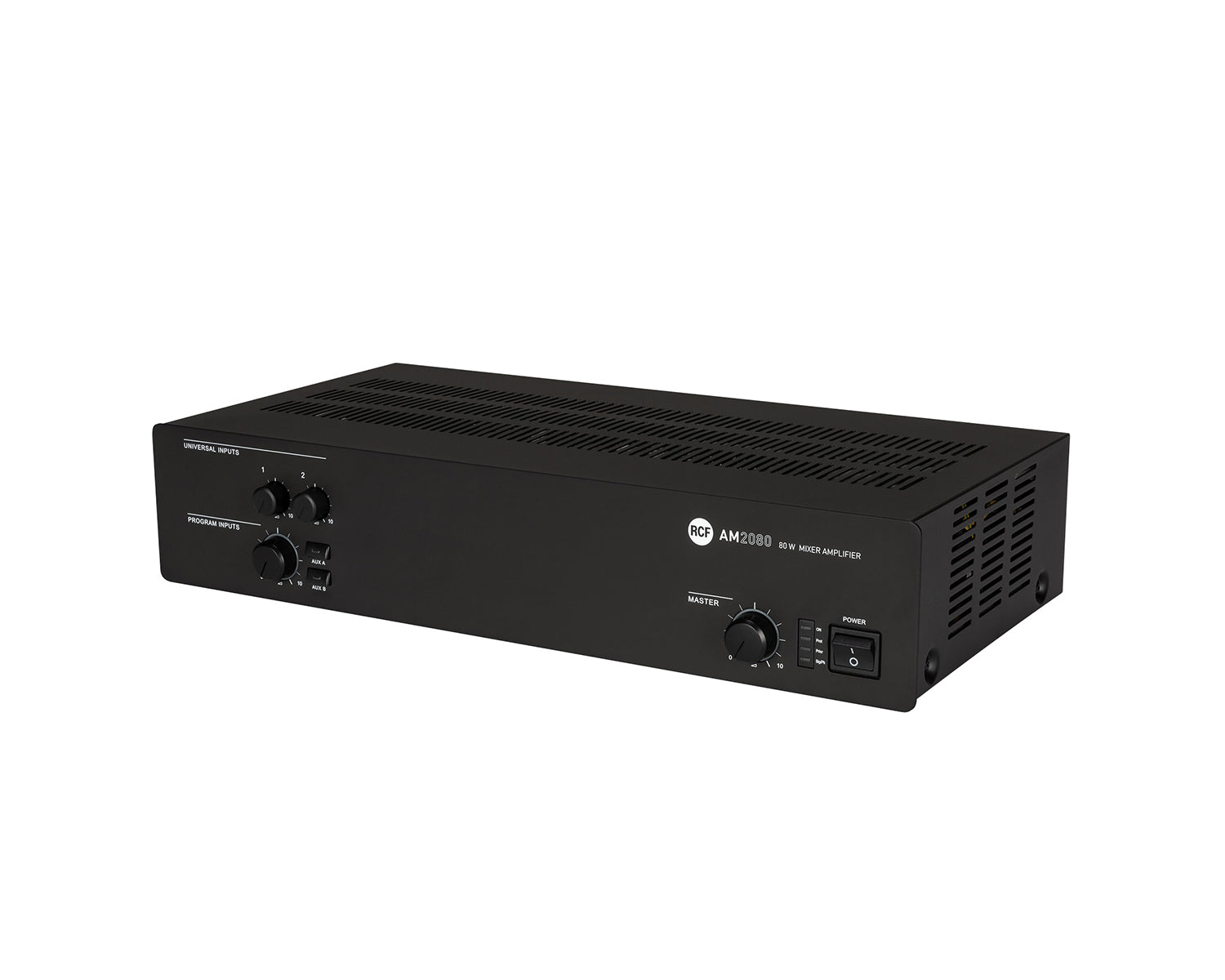

AM 2080 is a mixer-amplifiers with 2 mic-line audio inputs on removable connectors (the first input also has an XLR socket) and 2 aux inputs for music sources (e.g. CD players, tuners, etc.). The nominal power: is a 80 W amplifier. The amplifier output is available either for low impedance loudspeakers or 100 – 70 V constant voltage line.

Product Features

• Full digital technology Mixer Amplifier 80 W RMS
• 100 V - 70 V and 4 Ohm outputs
• 2 universal inputs with phantom facility on screw terminal connections
• XLR connector on input 1
• RJ45 connectors on input 2 for connection to BM3001 microphone
• Configurable Priority settings, VOX facility on input 1
• Selectable aux inputs with two keys on the front panel for music source
• Aux inputs with volume and tone controls
• Music On Hold and PRE outputs
• Digital Chime and Siren built-in generator

Product Specifications

Amplifier specifications

• Number of channels: 1
• Power output per channel (@ 4 ohm): 80 W RMS
• Power output (@ 100V): 80 W RMS
• Frequency Response (-3dB): 50 Hz ÷ 16 Hz
• Signal/noise rate (”A” weighted) >80 dB
• Distortion (THD+N) @ 1 kHz nominal power: <0.3 %

Input section

• Total number of inputs: 5
• Balanced: 5
• Unbalanced: 1
• Mono: 4
• Stereo: 2
• Line inputs: 2
• Line connectors: RCA
• Mic+Line inputs: 2
• Mic+Line connectors: Euroblock, XLR
• Mic+Line Phantom: 30 V DC
• VOX: Yes
• Paging inputs: 1
• Paging connectors: RJ45
• Paging command: Contact

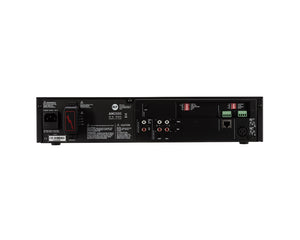

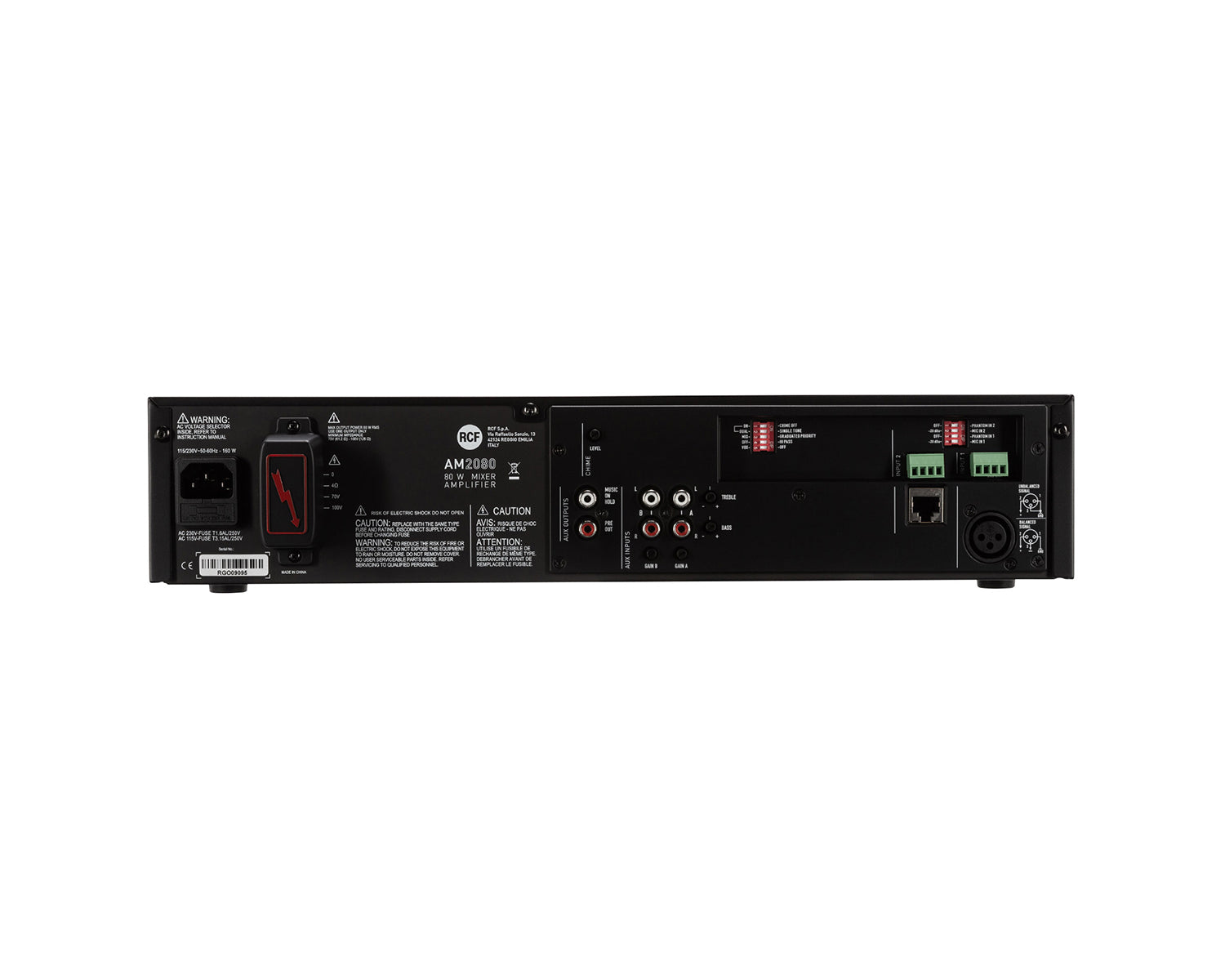

Output section

• Signal output number: 2
• Signal output connectors: RCA
• Power output connectors: Euroblock

Processing

• Tone controls: Yes
• High-pass filter: 150 Hz

Controls

• Configuration: DIP switch, Front panel
• Priority: Yes
• Music on hold: Yes
• Chime tone: Yes

Protections

• Cooling: Convection
• Short circuit: Yes
• Thermal: Yes
• DC: Yes
• Fuses: Yes

Power requirement

• Operating voltage: 220-240/115 V~ 50/60Hz
• Voltage selection: Internal
• Power consumption: 160 W

Standard compliance

• CE marking: Yes

Physical specifications

• Cabinet/Case Material: Metal
• Colour: Black
• Rack mounting: 19", 2U

Physical & Dimensions

• Height: 88 mm / 3.46 inches
• Width: 442 mm / 17.4 inches
• Depth: 230 mm / 9.06 inches
• Weight: 3.77 kg / 8.31 lbs
