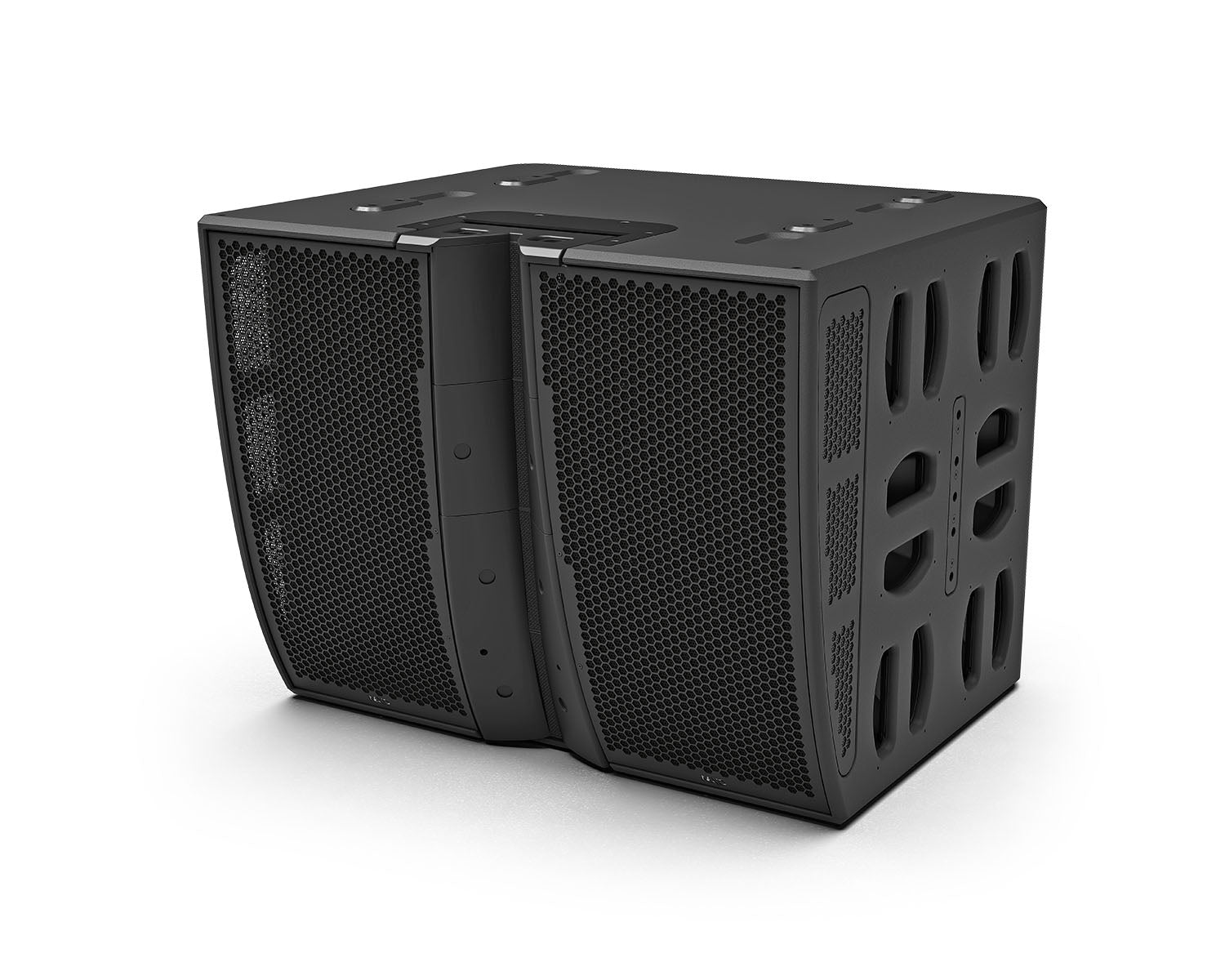

NEXALPHAM210 - NEXO Alpha and M210 Hybrid Horn Loaded System 2x10inch MF or 4x3inch HF Image 1

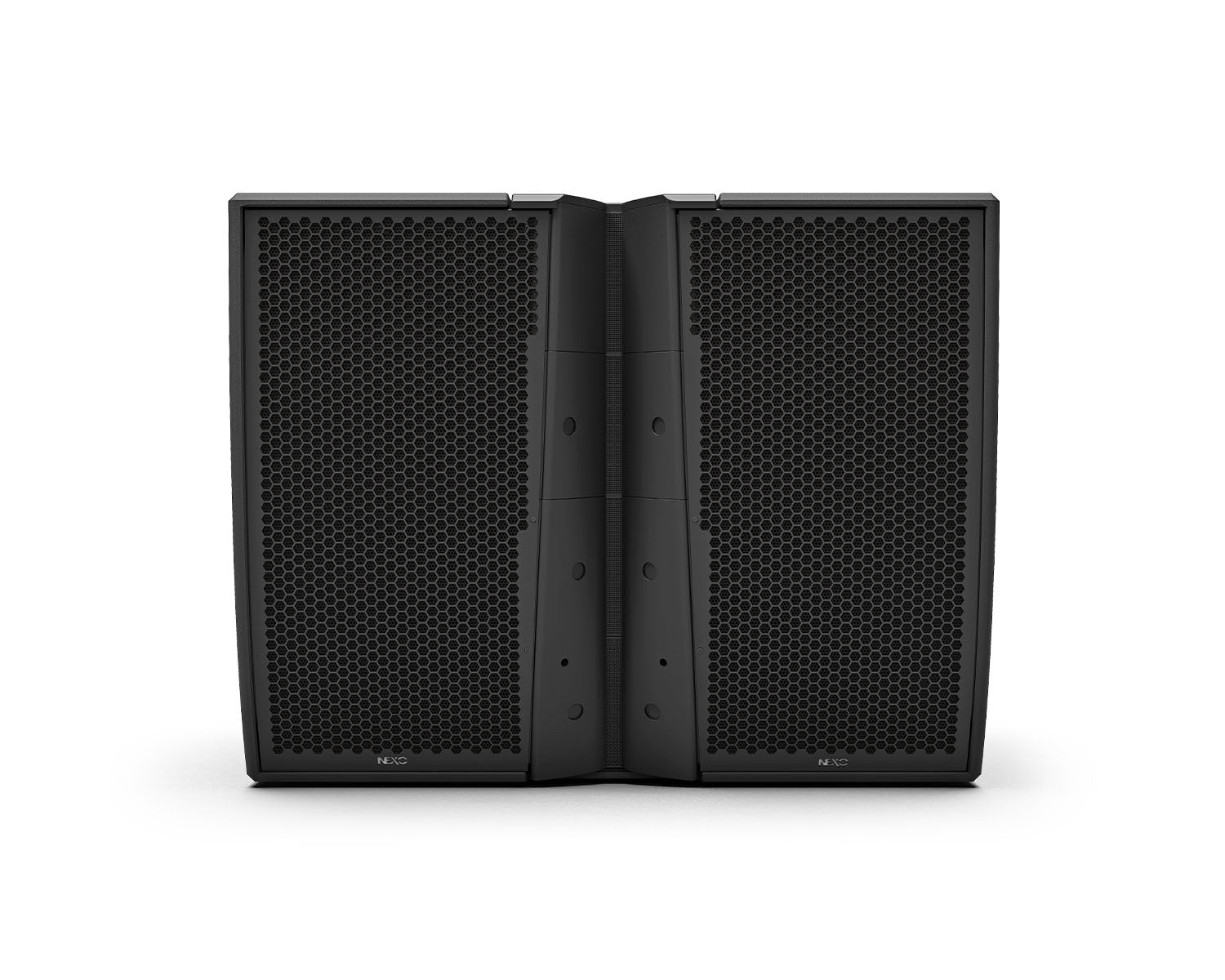

NEXALPHAM210 - NEXO Alpha and M210 Hybrid Horn Loaded System 2x10inch MF or 4x3inch HF Image 2

The two-way M210 active Main module uses two lightweight pure MF neodymium 10″ drivers horn loaded, and coaxially mounted with four 3″ neodymium compression drivers mounted on an innovative articulated waveguide.

Using a custom made 15 mm plywood cabinet of Birch and Poplar with a rounded shape to prevent damage in the corners, the M210 weighs in at 53kg/117lbs and achieves a peak SPL of 148dB. The mid-frequency horn ensures maximum radiating surface and high efficiency.

A unique articulated HF waveguide is used to adjust vertical directivity. Continuously changing horizontal directivity from 120° (bottom) to 60° (top) is tuneable with optional magnetic flanges.

Product Features

Extremely Powerful (148 dB peak) main module of the Alpha+ system
Lightweight (53 kg / 117 lbs) design using custom made 15 mm bent plywood of Birch and Poplar
Unique articulated HF waveguide to adjust vertical directivity
Continuously changing horizontal directivity from 120° (bottom) to 60° (top), tunable with optional magnetic flanges
Mid-frequency horn ensure maximum radiating surface and high efficiency

Product Specifications

With NEXO Processing
- Frequency Response @-6 dB: 160 Hz to 20 kHz
- Peak SPL@1m: 148 dB Peak
- Operating Voltage: 45 Vrms (150 Vpeak)
- Crossover Frequency: 500 Hz to 1500 Hz overlap, optimized with proprietary software NEXO Polar Combiner
- Vertical Dispersion: Adjustable (-20°/+20° Default mode) or (-20°/+0° Long Throw mode)
- Horizontal Dispersion: 120° (Bottom) to 60° (Top) continuously
- Nominal Impedance: 4 Ohms + 4 Ohms
MF Components: 2 x High-efficiency pure medium neodymium 10” 8 Ohms
HF Components: 4 x Neodymium 3“ voice coil 1.4” throat driver on a BEA/FEA optimized Wavesource
Connectors: 2 x NL4, 4 poles connectors
Rigging points: 2 x universal accessory fit (on each side) + 1 x universal accessory fit on the back
Material: Custom made bent plywood of baltic birch and poplar
Finish: Black structural paint
Front Finish: Magnelis® Steel front grille
Height x Width x Depth: 598mm x 755mm x 632 mm (23.5” x 29.7” x 24.9”)
Weight: Net: 53 kg (117 lbs)
Operating temperature range: 0°C - 40 °C (32° F - 104° F)
Storage temperature range: -20 °C - 60 °C (-4 ° F - 140° F)
Recommended powering solution: NXAMP4x4mk2 Powered TDcontroller: Up to 2 x M210 (MF/HF) on 2 x channels
