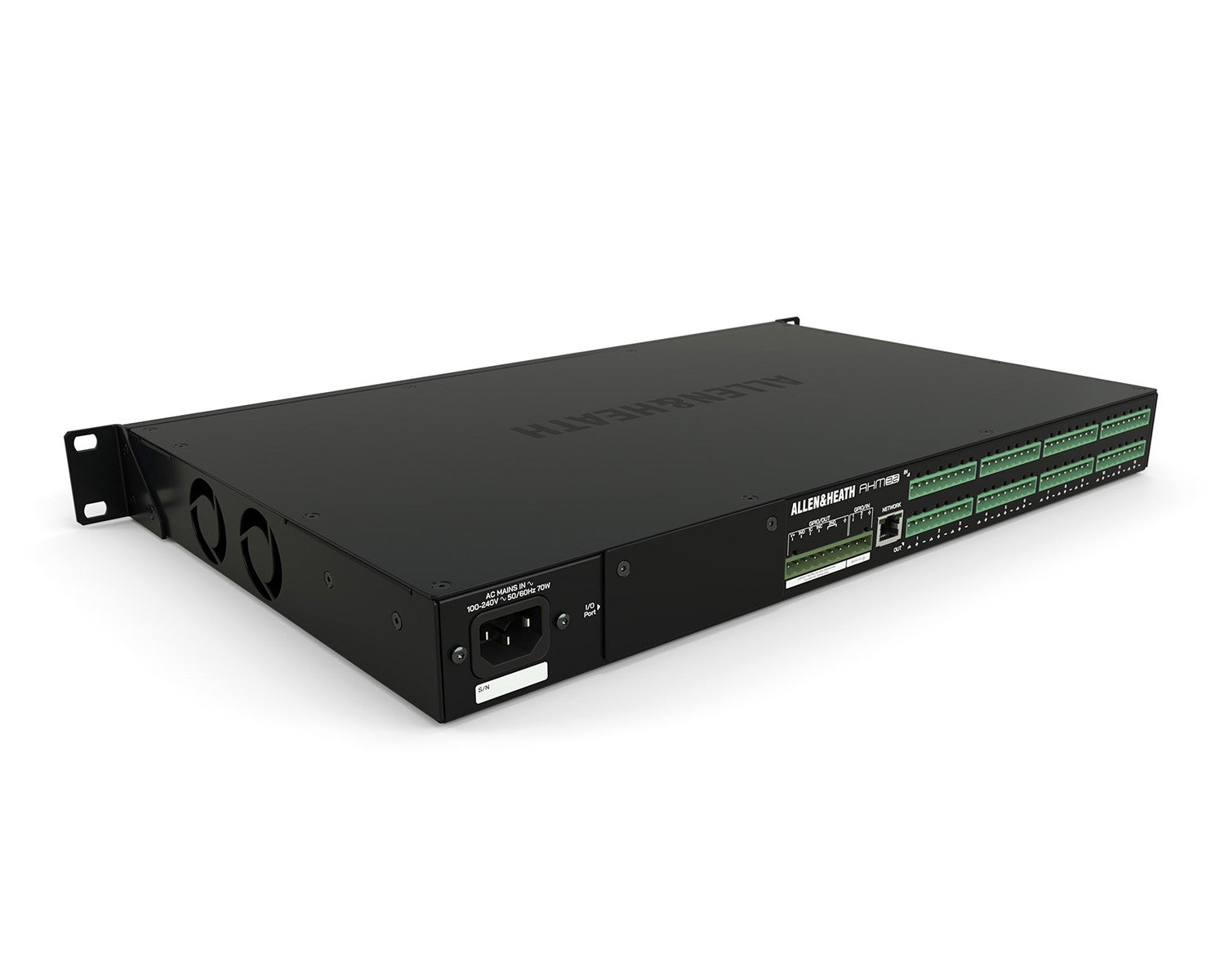

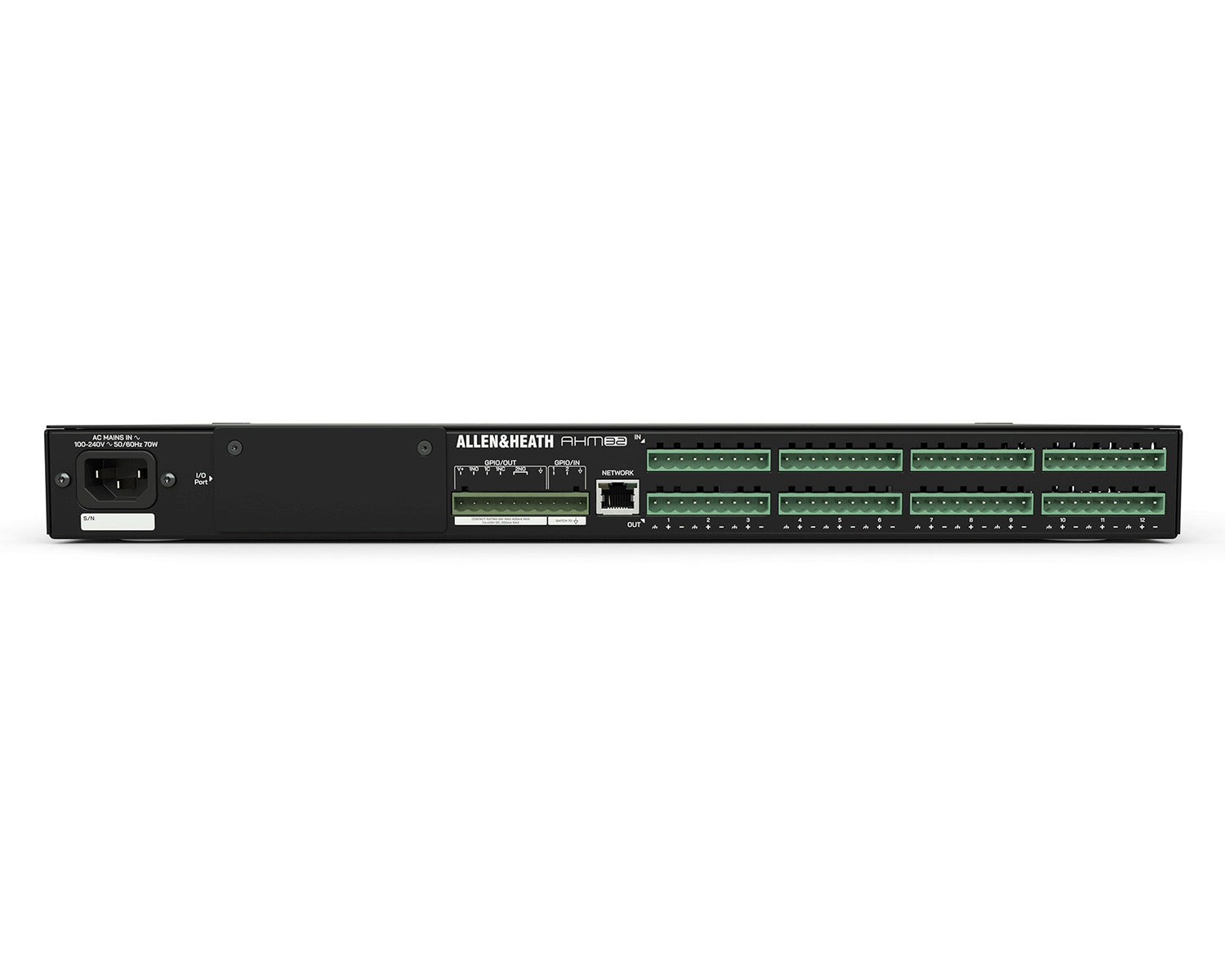

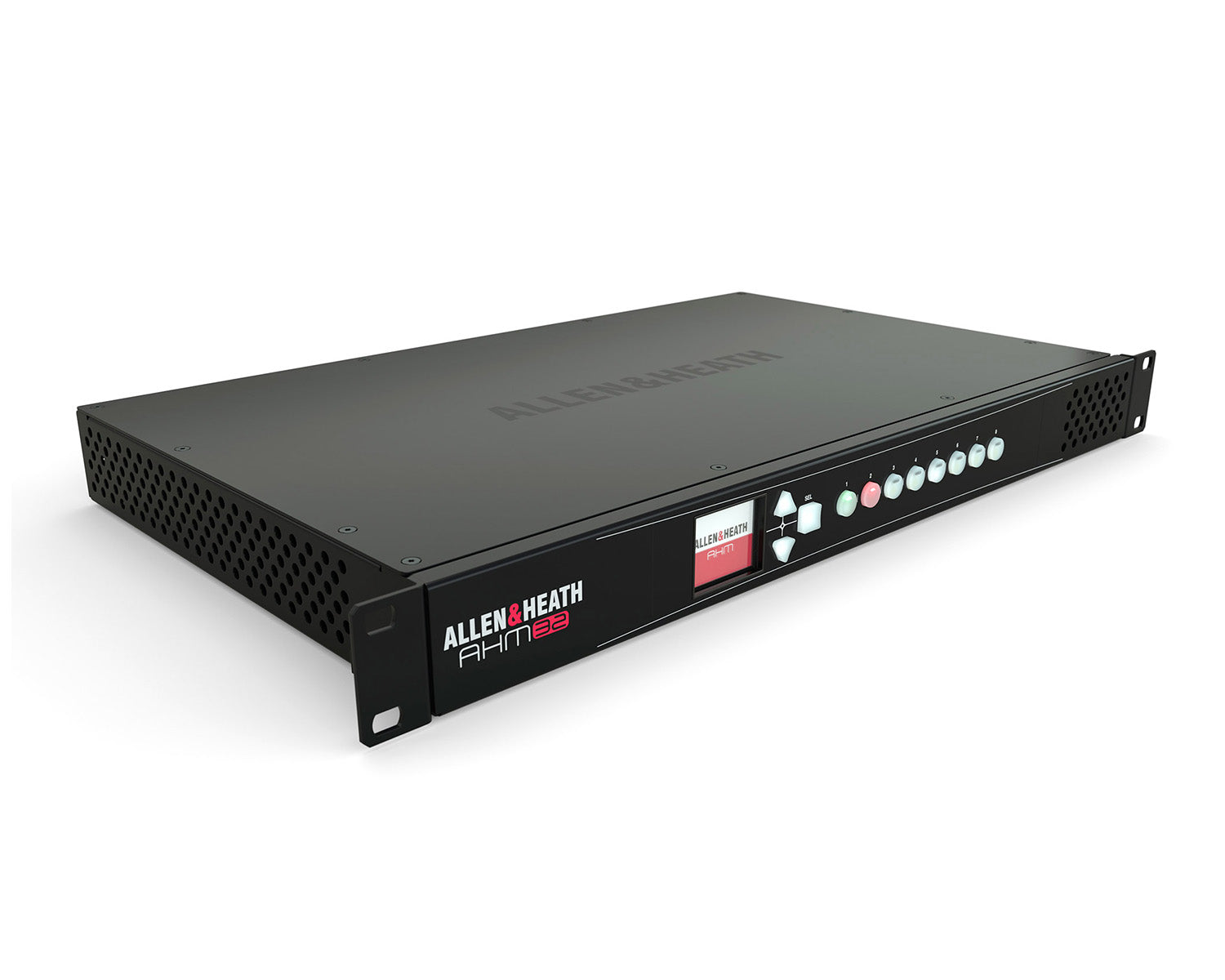

AHM-32 is an audio matrix processor for sound management and installation. It is designed for audio distribution, paging, conferencing and speaker processing in a multitude of environments including corporate, hospitality, education, event and multi-purpose venues, retail, theatres, cruise ships and sports venues.

The AHM-32 processor is complemented by an extended ecosystem of remote audio expanders, remote controllers, interfaces, apps and software.

A family of portable, rack-mountable or wallmount audio expanders is available with a choice of proprietary point-to-point Layer-2 or Dante transport protocols.

A range of IP remote controllers is available for volume control, music source selection, preset recall and more. AHM can also integrate with third party devices over GPIO, TCP/IP, or industry standard control systems. The Custom Control editor and app from Allen & Heath offer more control options and tailored user interfaces for multiple users and device types, with kiosk and BYOD capability.

Product Features

• 32x32 processing matrix
• 12x12 local analogue I/O
• I/O Port for expansion or audio networking, up to 128x128
• 32 configurable processing outputs – up to 32 mono / 16 stereo zones
• Sound management tools
  • 4x Automatic Mic Mixer
  • AEC (Acoustic Echo Cancellation)*
  • ANC (Ambient Noise Compensation)
  • Priority ducking
  • 8-band PEQ, dynamics and delay on every input and zone
  • Speaker processing with x-over filter, delay, limiter and PEQ
    • *with optional module
• 96kHz FPGA core with ultra-low latency
• Compatible with Allen & Heath IP1, IP6, IP8 remote controllers
• 2x2 local GPIO plus networkable GPIO interface

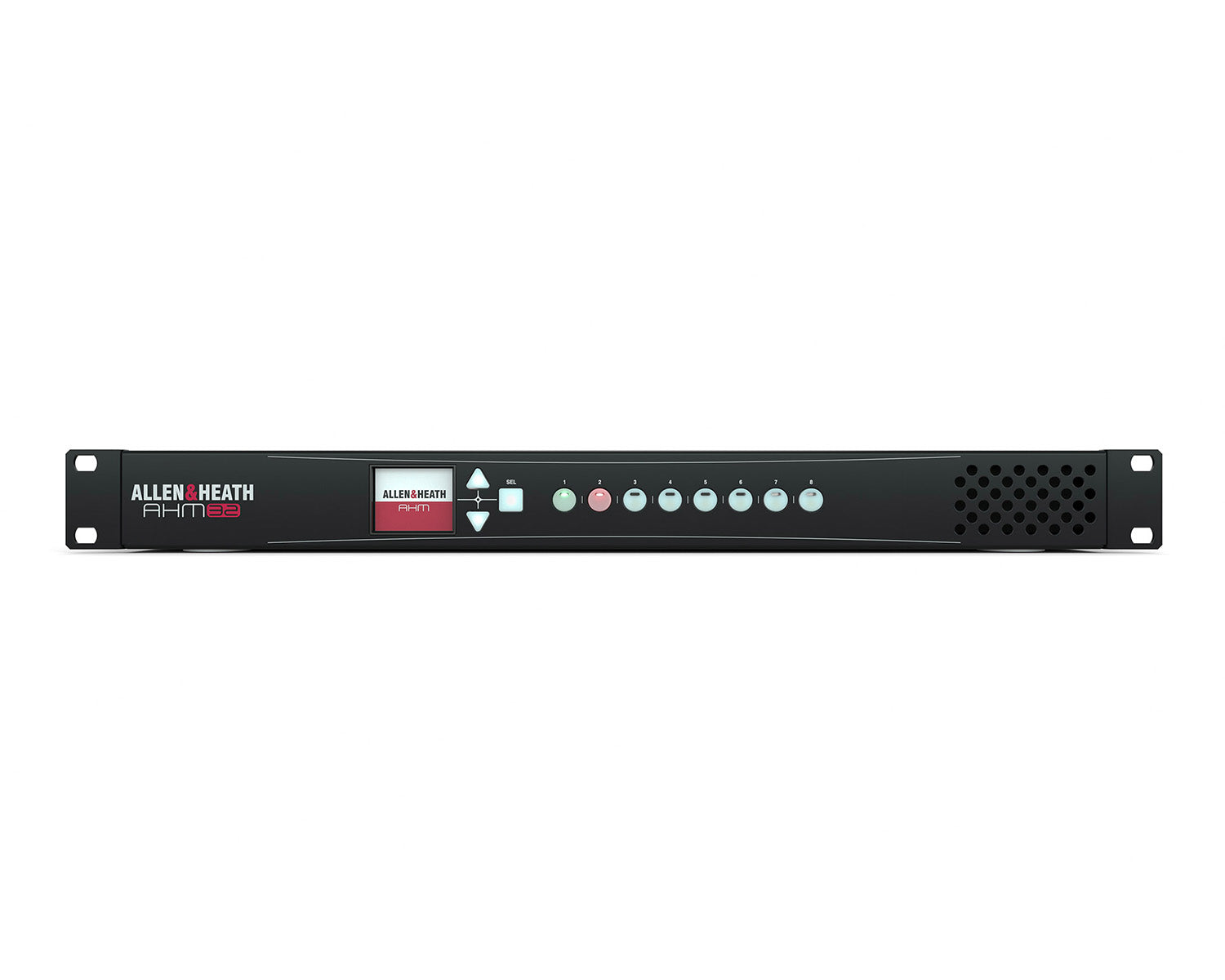

• Front panel screen and 8x programmable SoftKeys
• 16 user profiles
• Event scheduler
• Internal stereo playback
• Dante 96kHz optional cards (AES67 and DDM ready) Sold Separately

Product Specifications

Inputs

• Mic/Line Inputs: Balanced, +48V phantom power
• Mic/Line Preamp: Fully recallable
• Input Sensitivity: -60 to +15dBu
• Analogue Gain: +5 to +60dB, 1dB steps
• Pad: -20dB Active PAD
• Maximum Input Level: +30dBu (PAD in)
• Input Impedance: >3kΩ (Pad out), >8kΩ (Pad in)
• Mic EIN: -127dB with 150Ω source

Outputs

• Analogue Outputs: Balanced, Relay protected
• Output Impedance: <75Ω
• Nominal Output: +4dBu = 0dB meter reading
• Maximum Output Level: +21dBu
• Residual Output Noise: -92dBu (muted, 22-22kHz)

System

• Measured balanced XLR in to XLR out, 20-20kHz, +5dB Gain, Pad out, signal @ 0dB (meter)
• Dynamic Range: 108dB
• System Signal to Noise: -92dB
• Frequency Response: 20Hz - 20kHz +0/-0.5dB
• THD+N (analogue in to out): 0.005% @ +16dBu output, 1kHz +5dB gain
• Headroom: +18dB
• Sampling Rate: 96kHz +/- 20 PPM
• Acoustic Noise: Typical loading, 23 deg C ambient
• No I/O Port or AEC installed ,29: <29dBA
• With I/O Port and AEC installed: 30dBA

Physical

• AHM-32 - without box
  • Width: 482.6mm/19"
  • Depth: 270mm/10.63"
  • Height: 44mm/1.73"
  • Weight: 4kg/8.82lbs
• AHM-32 - with box
  • Width: 555mm/21.85"
  • Depth: 385mm/15.16"
  • Height: 150mm/5.9"
  • Weight: 5.3kg/11.69lbs
• Operating Temperature Range: 0 deg C to 40 deg C (32 deg F to 104 deg F)
• Mains Power: 100-240V AC, 50-60Hz, 70W max

For detailed specifications please find the datasheet located in the downloads tab.

What's in the Box?

• AHM-32
• This Getting Started Guide
• Safety Sheet
• IEC mains lead
• Phoenix connectors with strain relief - 1x 10-pin, 16x 3-pin (AHM-16), 24x 3-pin (AHM-32)
