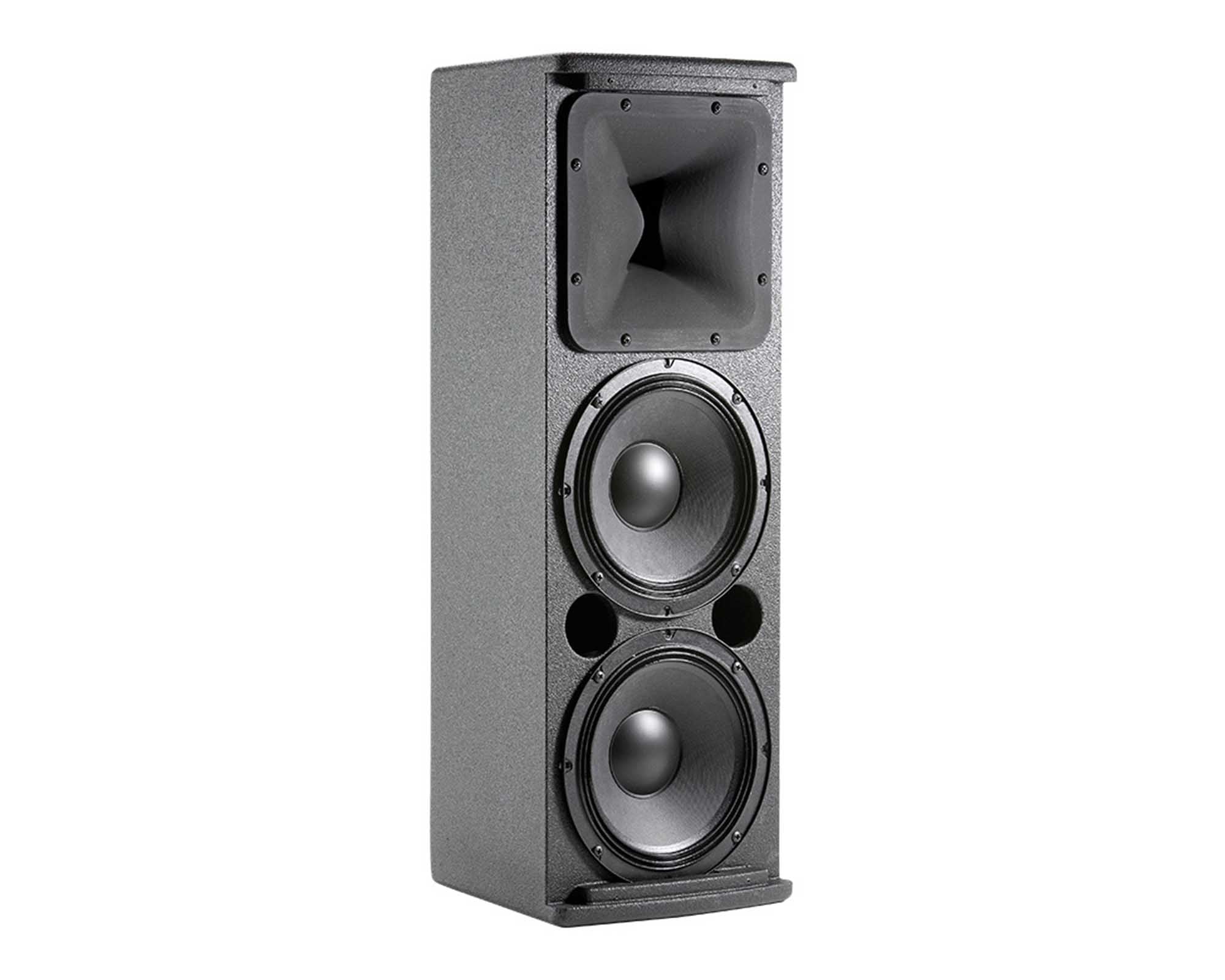

The AC28/26 is a compact full-range loudspeaker system designed to provide maximum bandwidth and SPL in a single system package and yet be visually unobtrusive. The enclosure design allows for installation very close to walls and ceilings making it an ideal choice for under balcony, column, or wall mounting. The high frequency device is a 1” exit compression driver integrated into a newly designed 120° x 60° rotatable PT™ (Progressive Transition) waveguide providing even coverage throughout the intended listening area. The combination exhibits smooth power response resulting in extremely natural voicing. The AC28/26 utilizes dual 8” Symmetrical Field Geometry (SFG™) LF Transducers each with a copperclad aluminium edge wound 2.5” voice coil and a copper-clad pole piece that improves performance by reducing voice coil inductance and distortion. Filtered Array Technology (FAT™) is utilized to independently control the dual woofers for magnitude and phase response resulting in smoother power response and constant coverage. To further enhance the flexibility and performance of the AC28/26, JBL engineers have designed a user selectable crossover network to ensure complete accuracy of the high-frequency coverage pattern regardless of whether the loudspeaker is being used in the vertical or in the horizontal orientation when the horn is rotated.

The rugged multiply hardwood enclosure is designed to work in the vertical plane as well as in the horizontal plane. Mounting points are provided for an optional U-bracket and for an OmniMount® type bracket. The AC28/26 is also equipped with attachment points located on the bottom of the enclosure for a stand mount accessory.

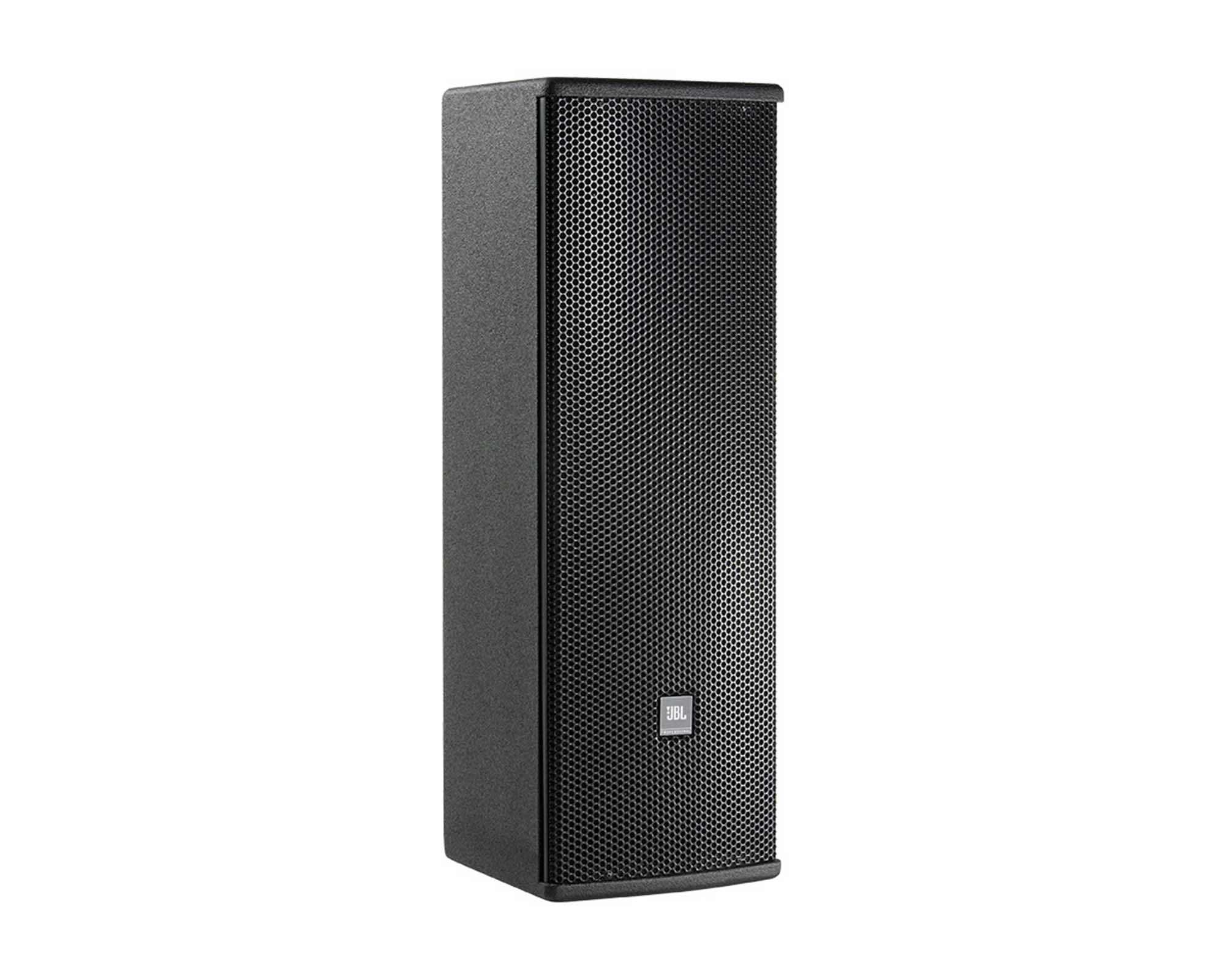

The rugged plywood enclosure features JBL’s textured DuraFlex™ finish and is equipped with a heavy-duty powder coated steel, foam-backed grille.

Product Features

• 1” Exit Compression Driver with PT™ Waveguide
• 205 mm (8 in) LF transducer
• Compact enclosure
• 750W Program
• Dual Neutrik NL4 connectors plus screw terminal
• Attachment points for optional U-bracket, third part OmniMount® type bracket and stand mount accessory

Applications

• Performing Arts Facilities
• Houses of Worship
• Sports Facilities
• Multi Media Spaces
• Retail Spaces
• Presentation Suites
• Educational Facilities
• Portable Audio-Visual Systems

Product Specifcations

General

• Frequency Range: 53 Hz - 20 kHz (-10 dB)
• Frequency Response: 65 Hz – 20 kHz (±3 dB)
• Power Rating: 375W Cont. Pink Noise 750W Program 1500W Peak
• Impedance: 8 ohms
• Coverage Pattern: 120° x 60°

Physical & Dimensions

• Height: 679.5mm
• Width: 237.5mm
• Depth: 254mm
• Weight: 18.6kg
