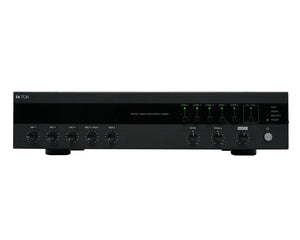

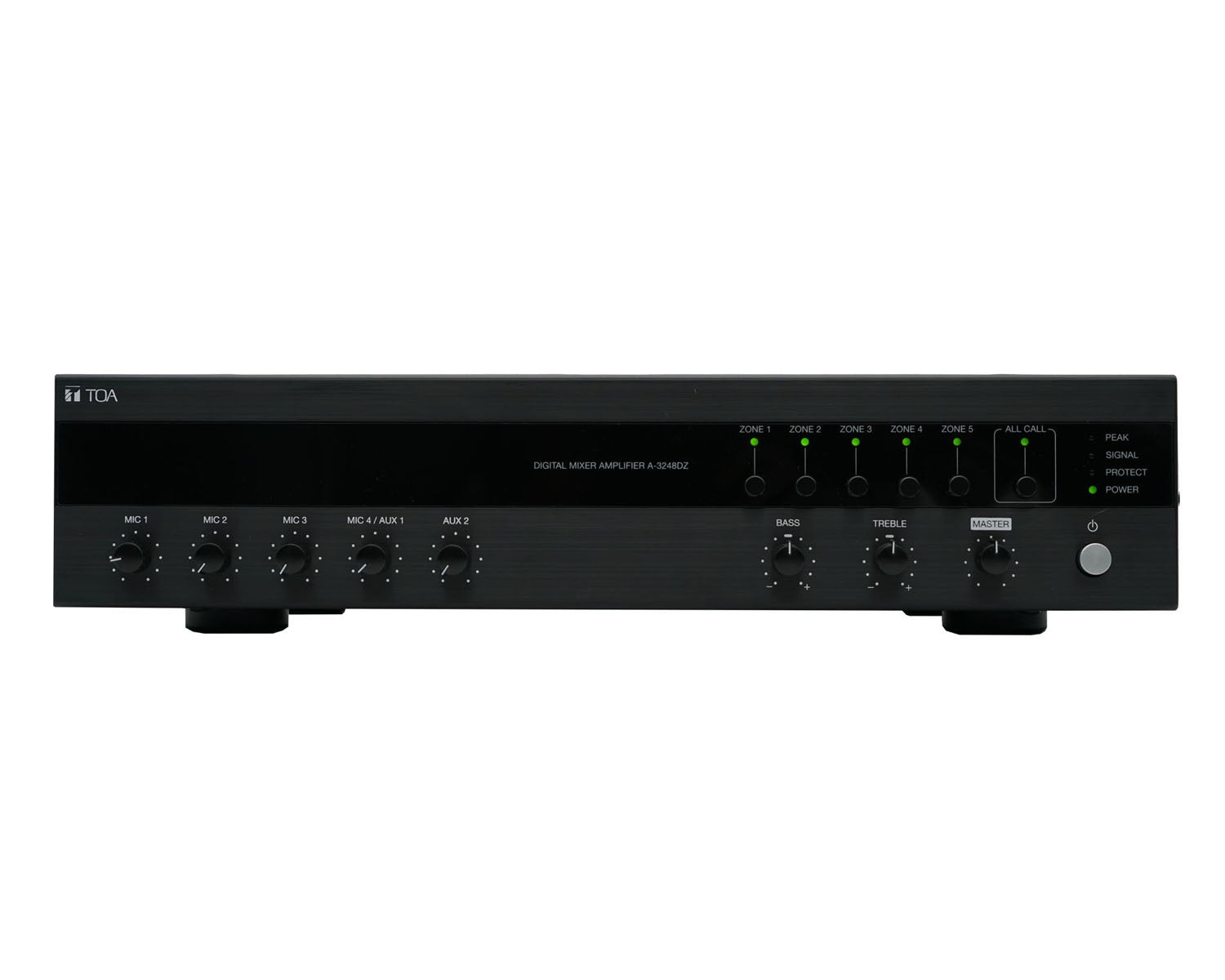

TOAA3212DZ - TOA A 3212DZ 120W Digital Mixer Amplifier 5 Zone or 6 Inputs Image 1

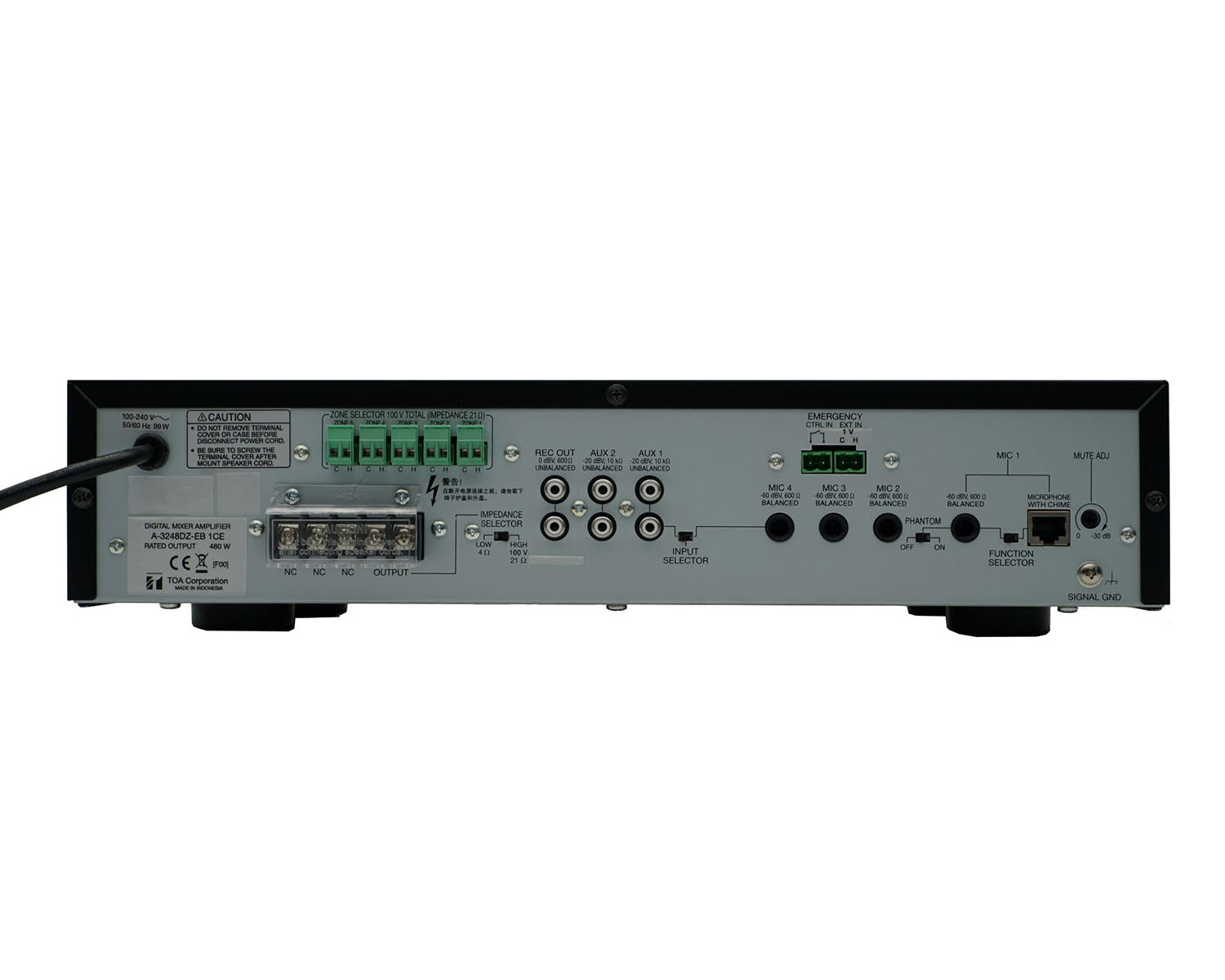

TOAA3212DZ - TOA A 3212DZ 120W Digital Mixer Amplifier 5 Zone or 6 Inputs Image 2

A-3200DZ is a high-performance digital mixer amplifier series with high and low impedance selector. This stand-alone power amplifier range is the entry level of the A-3000D series, expanding the line-up with EQ functions.

Offering the choice of 3 rated outputs of 120 W, 240 W and 480 W, the A-3200DZ series offers the right performance for every project size.

It is equipped with a zone selector enabling to select all 5 zones simultaneously. It comes with phantom power, priority function and 5 inputs including a direct connection to a chime microphone via a CAT 5 network cables.

Due to its digital technology, this mixer power amplifier series is energy efficient and eco-friendly, saving costs at an optimal price/performance ratio.

The A-3200DZ series is ideal for broadcasting, paging and background music in schools, offices, shops, factories, and houses of worship.

Product Features

A high-performance digital mixer amplifier
Available in 120W, 240W, and 480W to suit any applications
High impedance / low impedance selector
Zones selector for selecting 5 zones simultaneously
5 inputs, 2 AUX, 1 REC out
Ideal for broadcasting, paging and background music

Application Examples

Retail stores
Supermarkets
Houses of worship
Educational facilities
Factories

Product Specifications

General

Power source: 100 - 240 V AC, 50 / 60 Hz
Rated output: 120 W
Frequency response: 50 Hz - 20 kHz
Power consumption: 44 W (AC operation at 1/8 maximum output without clip)
S/N ratio: 60 dB
Number of channels: 5
Connectable microphones: 4
Inputs
- MIC 1 : 1 mV (-60dB*), 600 Ω, balanced, phone jack, selectable to RJ45
- MIC 2-3 : 1 mV (-60dB*), 600 Ω, balanced, phone jack
- MIC 4 : 1 mV (-60dB*), 600 Ω, balanced, phone jack, selectable to AUX 1
- AUX 1 : 100 mV(-20dB*), 10 kΩ, unbalanced, RCA pin jack, selectable to MIC 4
- AUX 2 : 100 mV(-20dBc), 10 kΩ, unbalanced, RCA pin jack
- PRIORITY : 0 dB*, 600 Ω, unbalanced removable terminal block
Control input: Priority Control Input, removable terminal block
Outputs
- Speaker Output : in screw type terminal
- Direct Line (selectable) : 83 Ω (100V) or 4 Ω
- Zone Selection : 5 zones simultaneously selectable
- Rec Out : 0 dB*, 600 Ω, unbalanced, RCA pin jack
Operating temperature: 0°C to +40°C (32°F to 104°F)
