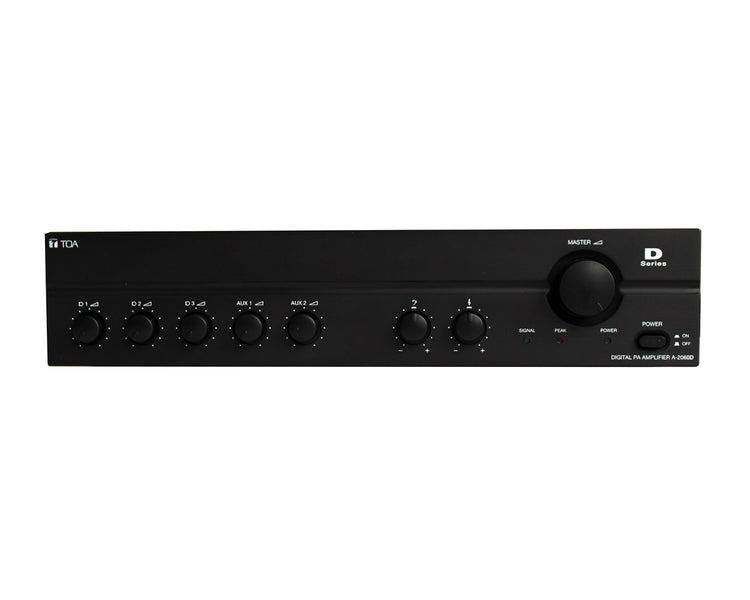

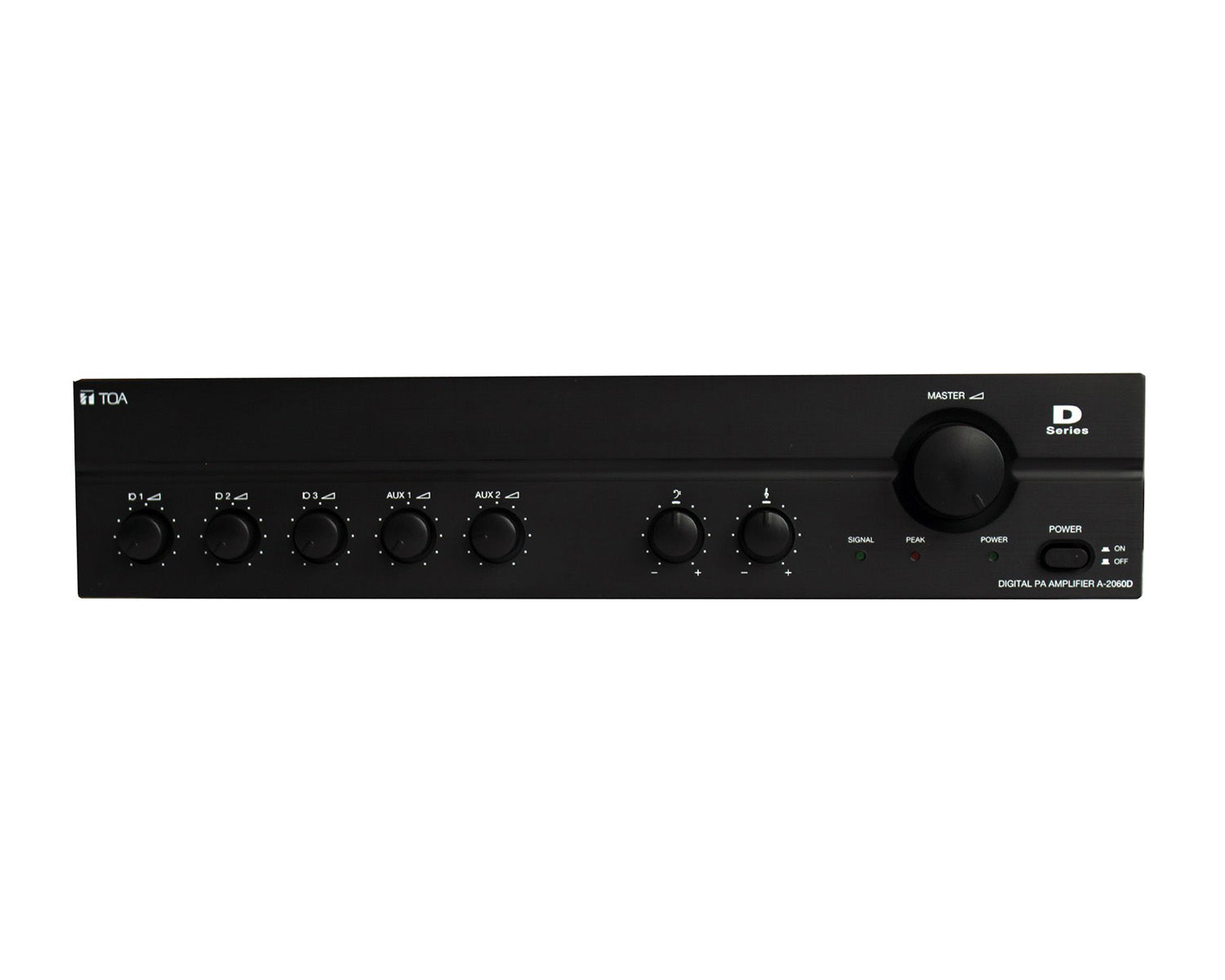

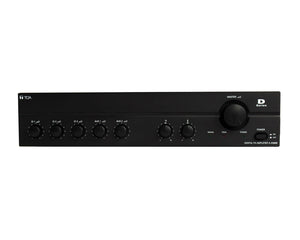

TOAA2240DD - TOA A 2240DD Digital Mixer Amp 240W 3x Mic In or 2x Aux or 1x Rec Output Image 1

The A-2240DD-EB is a high cost-performance mixer power amplifier suited for broadcasting paging or background music in schools, offices, shops, factories, mosques, churches and large rooms.

The A-2000D Series is a range of high performance mixer power amplifiers at an optimal price/performance ratio: with excellent sound, energy efficient and eco-friendly. The A-2000D Series is suited for broadcasting paging or background music in schools, offices, shops, houses of worship and factories. Crystal clear announcements and high sound quality - the A-2000D is equipped with balanced microphone inputs for better isolation from external noise and provided with priority function on input #1, muting all other inputs when active.

Product Features

4 versions available: 30 W, 60 W, 120 W or 240 W
3 microphone inputs, 2 AUX input and 1 recording output
DD-varieties with 2 phone jacks and 1 5-pin DIN input
D-varieties with 3 phone jacks
Speaker output of constant voltage distribution system (100 V)
Independent tone control of boost and cut type for both high and low frequency
MIC 1 with phantom power and mute function
Current limiter to prevent damage due to current overload
Excess heat limit to protect the transistor and power transformer

Applications

Educational facilities
Office buildings
Retail stores
Factories
Houses of worship

Product Specifications

Power source: 220 - 240 V AC, 50 / 60 Hz
Rated output: 240 W
Frequency response: 50 Hz - 20 kHz (±3 dB)
Distortion: < 1 % (at 1 kHz, 1/3 rated output power)
Power consumption: 48 W (EN 62368-1: AC operation at 1/8 rated output)
Speaker output: 100 V (42 ohm)
Amplifier: Class D
S/N ratio: 60 dB (or more)
Number of channels: 1
Connectable microphones: 3
Inputs
- MIC 1: -60dBV, 600 Ohm, balanced, 5-pin DIN equivalent, phantom power selectable, + 21V
- MIC 2-3: -60dBV, 600 Ohm, balanced, phone jack
- AUX 1-2: -20 dBV, 10 kOhm, unbalanced RCA pin jack
Control input: Mute: via DIN jack
Outputs: Speaker: balanced (floating) / Rec out: 0 dBV, 600 Ω, unbalanced, RCA Pin Jack
Finish: ABS resin, Steel plate, black
Dimensions: 420 x 100.6 x 280.3 mm (W x H x D)
Weight: 4 kg
