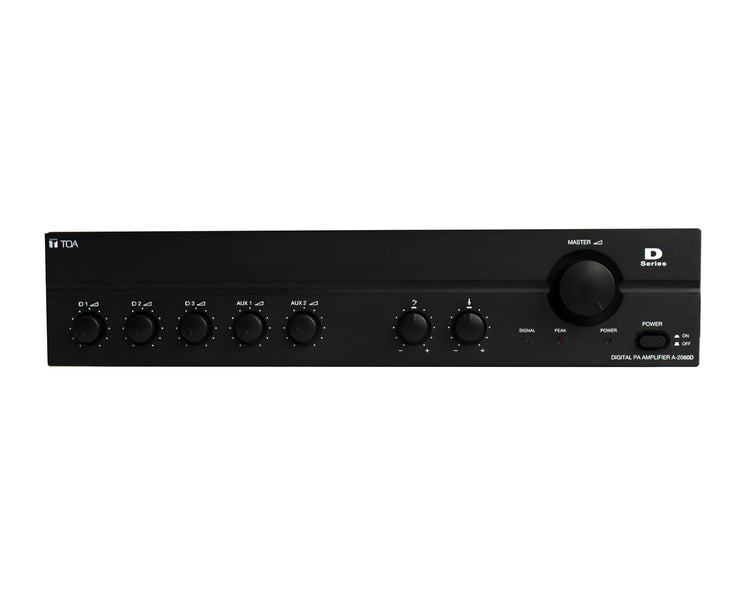

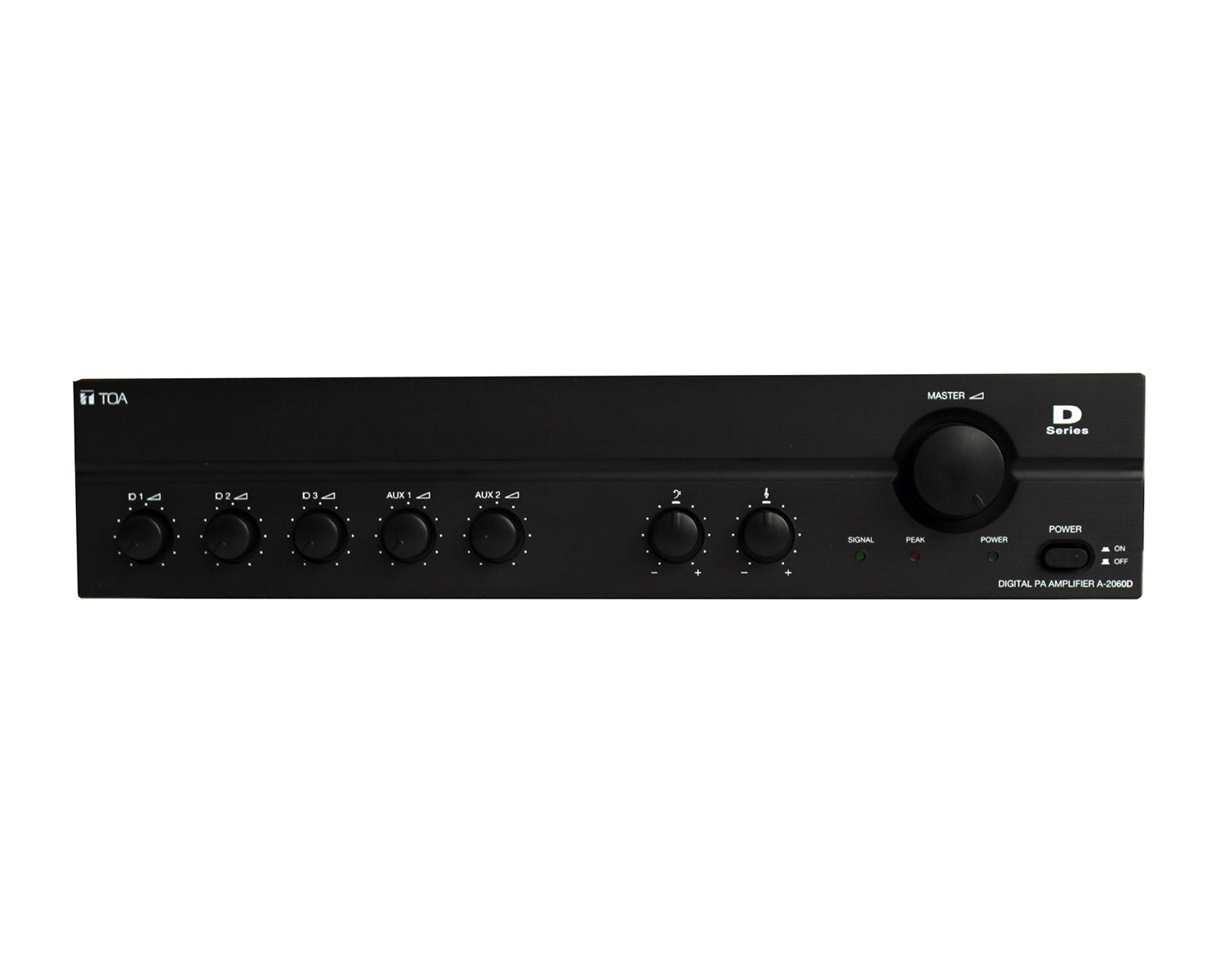

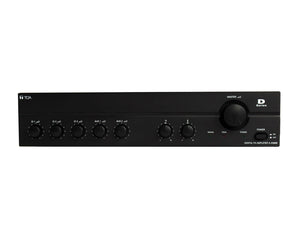

The A-2060DD-EB is a high cost-performance mixer power amplifier suited for broadcasting paging or background music in schools, offices, shops, factories, mosques, churches and large rooms.

The A-2000D Series is a range of high performance mixer power amplifiers at an optimal price/performance ratio: with excellent sound, energy efficient and eco-friendly. The A-2000D Series is suited for broadcasting paging or background music in schools, offices, shops, houses of worship and factories. Crystal clear announcements and high sound quality - the A-2000D is equipped with balanced microphone inputs for better isolation from external noise and provided with priority function on input #1, muting all other inputs when active.

Product Features

• 4 versions available: 30 W, 60 W, 120 W or 240 W
• 3 microphone inputs, 2 AUX input and 1 recording output
• DD-varieties with 2 phone jacks and 1 5-pin DIN input
• D-varieties with 3 phone jacks
• Speaker output of constant voltage distribution system (100 V)
• Independent tone control of boost and cut type for both high and low frequency
• MIC 1 with phantom power and mute function
• Current limiter to prevent damage due to current overload
• Excess heat limit to protect the transistor and power transformer

Applications

• Educational facilities
• Office buildings
• Retail stores
• Factories
• Houses of worship

Product Specifications

• Power source: 220 - 240 V AC, 50 / 60 Hz
• Rated output: 60 W
• Frequency response: 50 Hz - 20 kHz (±3 dB)
• Distortion: < 1 % (at 1 kHz, 1/3 rated output power)
• Power consumption: 16 W (EN 62368-1: AC operation at 1/8 rated output)
• Speaker output: 100 V (170 ohm)
• Amplifier: Class D
• S/N ratio: 60 dB (or more)
• Number of channels: 1
• Connectable microphones: 3
• Inputs
  • MIC 1: -60dBV, 600 Ohm, balanced, 5-pin DIN equivalent, phantom power selectable, + 21V
  • MIC 2-3: -60dBV, 600 Ohm, balanced, phone jack
  • AUX 1-2: -20 dBV, 10 kOhm, unbalanced RCA pin jack
• Control input: Mute: via DIN jack
• Outputs: Speaker: balanced (floating) / Rec out: 0 dBV, 600 Ω, unbalanced, RCA Pin Jack
• Finish: ABS resin, Steel plate, black
• Dimensions: 420 x 100.6 x 280.3 mm (W x H x D)
• Weight: 4.6 kg

Optional Accessories

• MB25B Rack Kit
