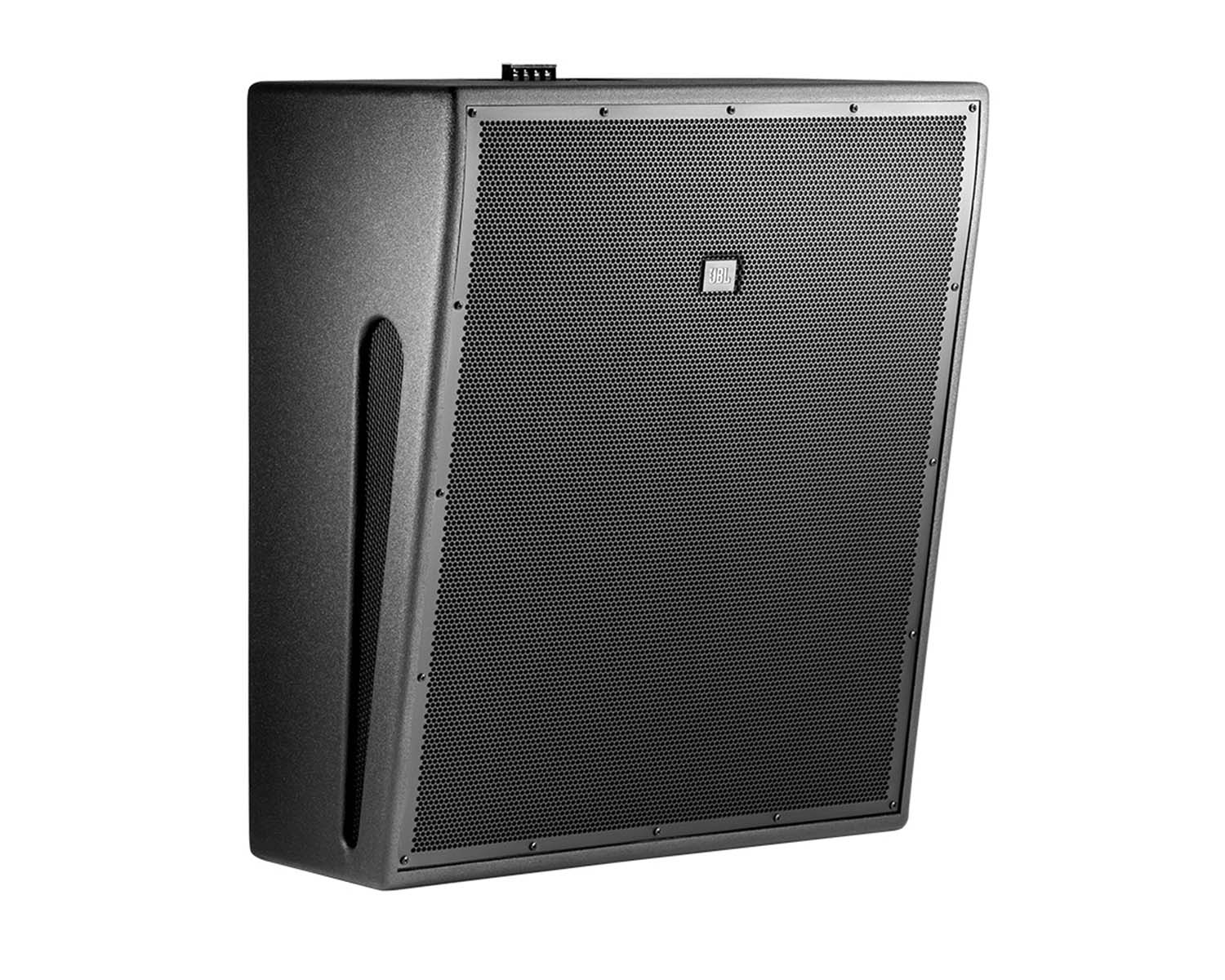

JBL9350 - JBL 9350 15inch 3 Way High Output Cinema Surround Speaker 390W Image 1

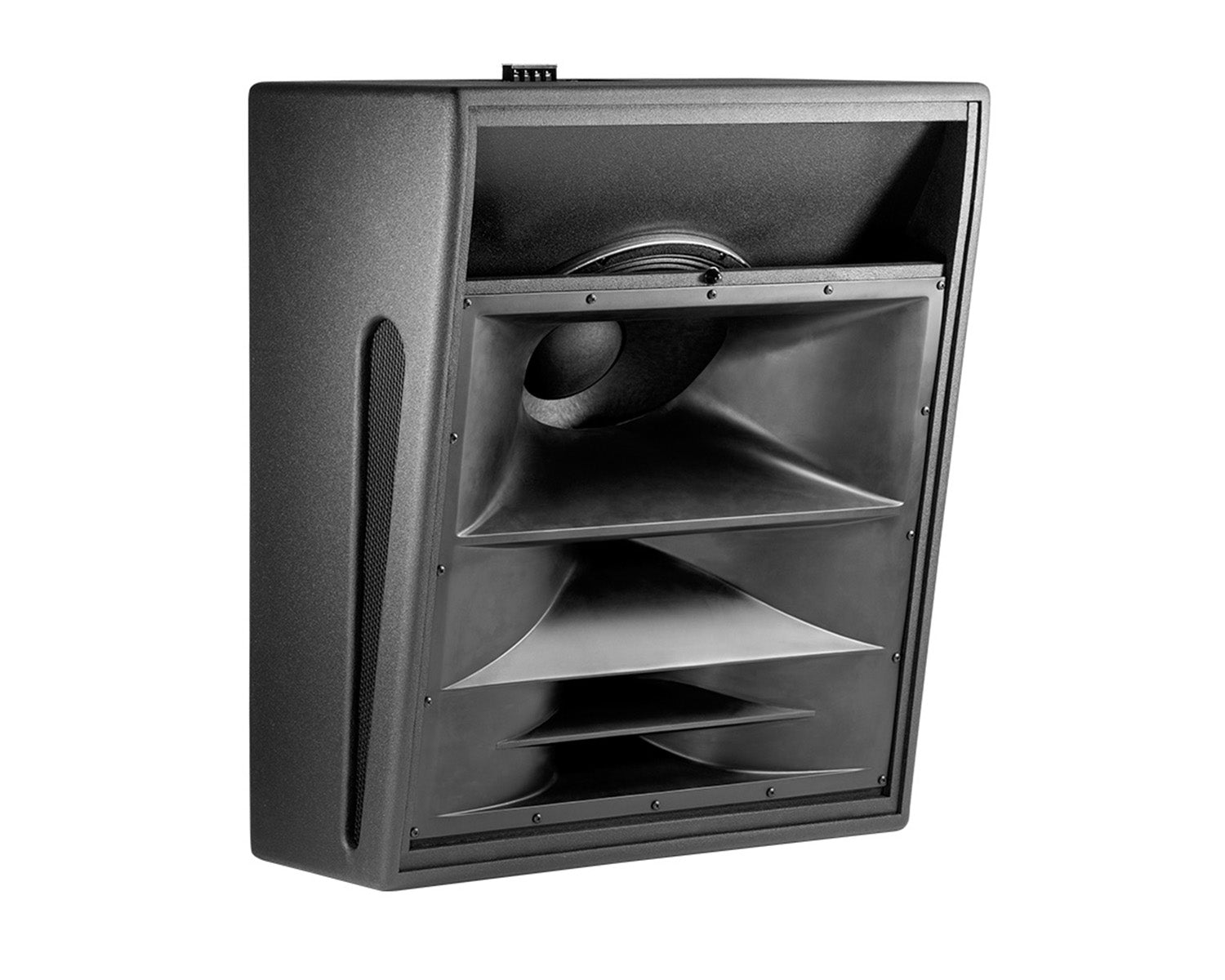

JBL9350 - JBL 9350 15inch 3 Way High Output Cinema Surround Speaker 390W Image 2

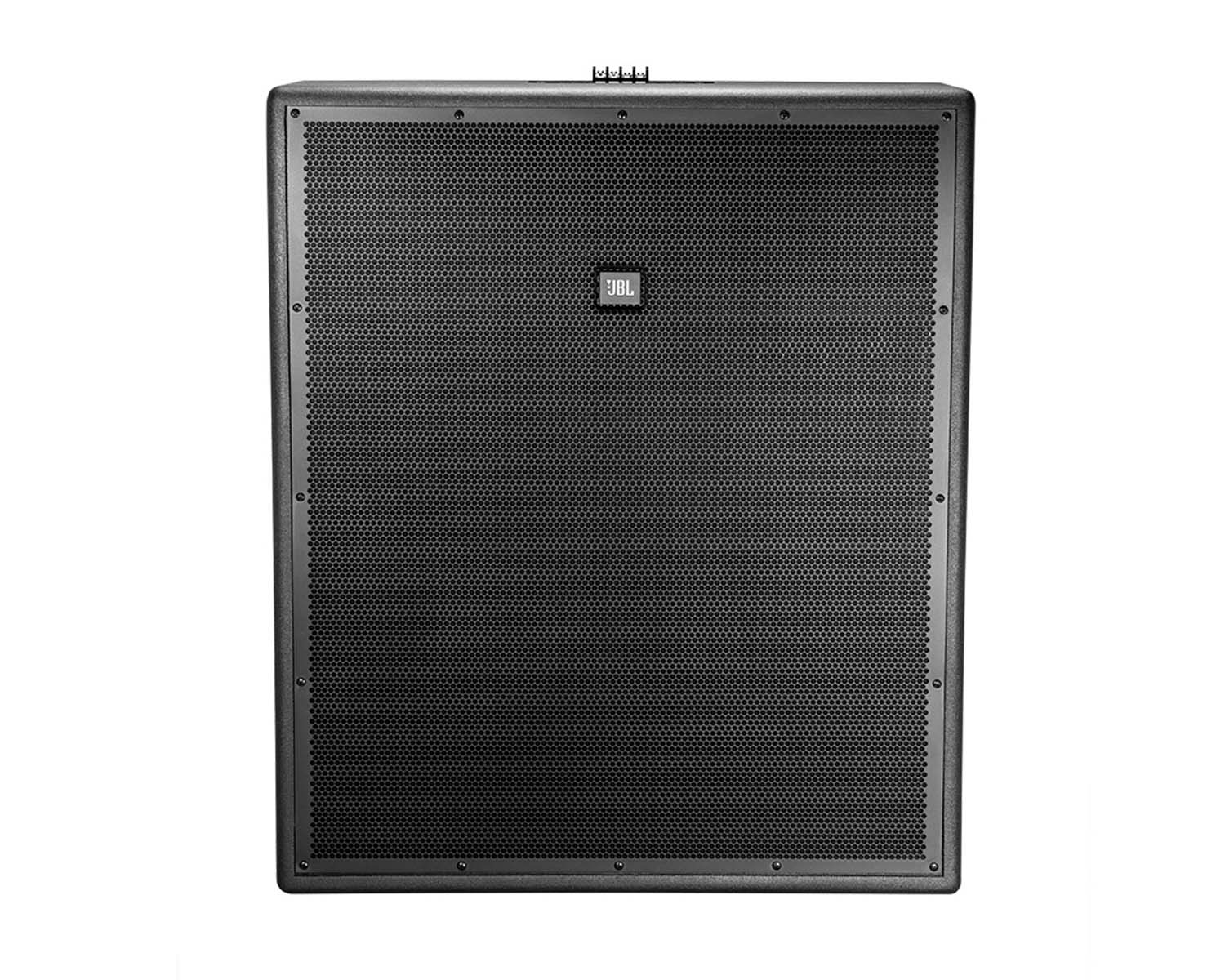

JBL9350 - JBL 9350 15inch 3 Way High Output Cinema Surround Speaker 390W Image 3

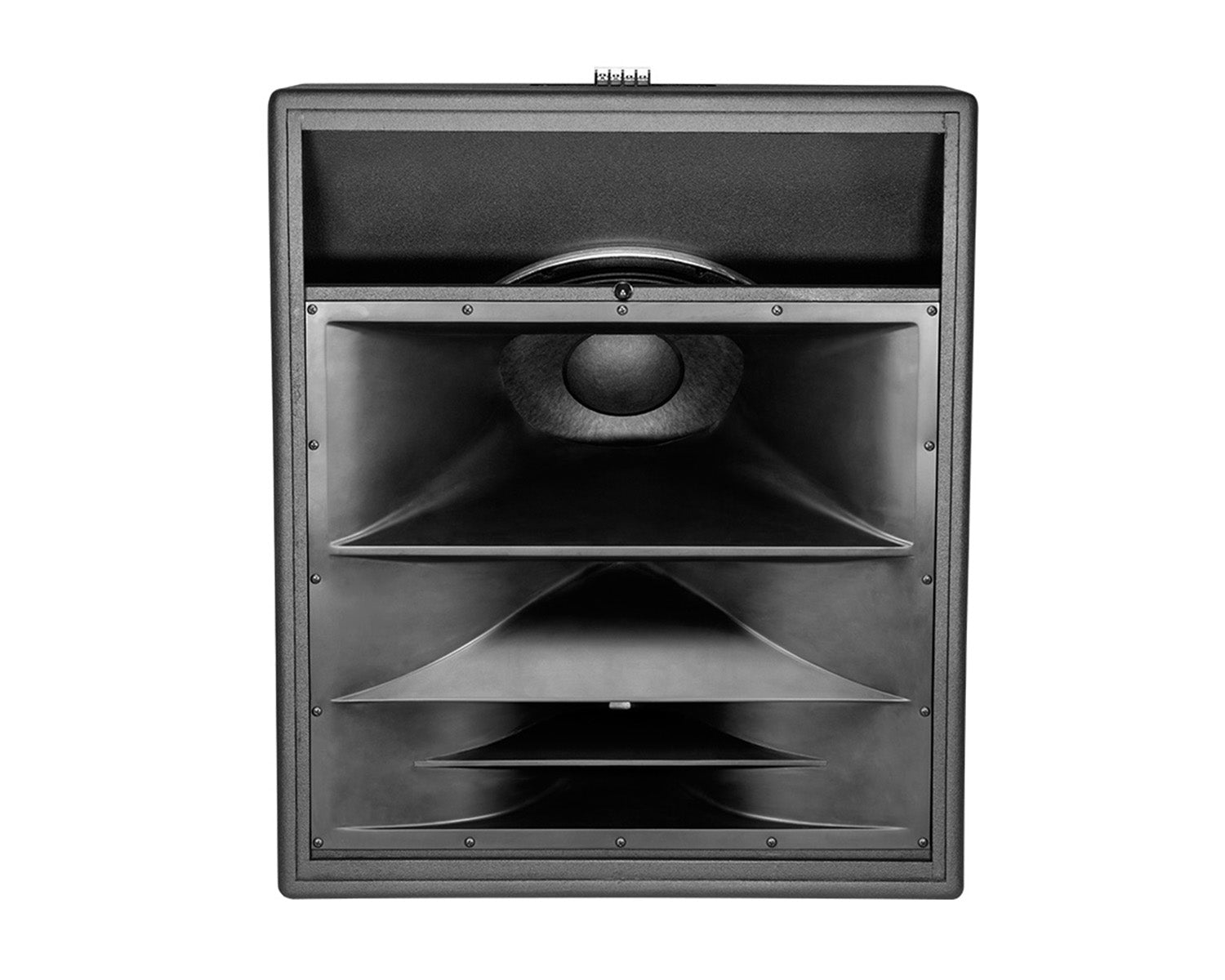

JBL9350 - JBL 9350 15inch 3 Way High Output Cinema Surround Speaker 390W Image 4

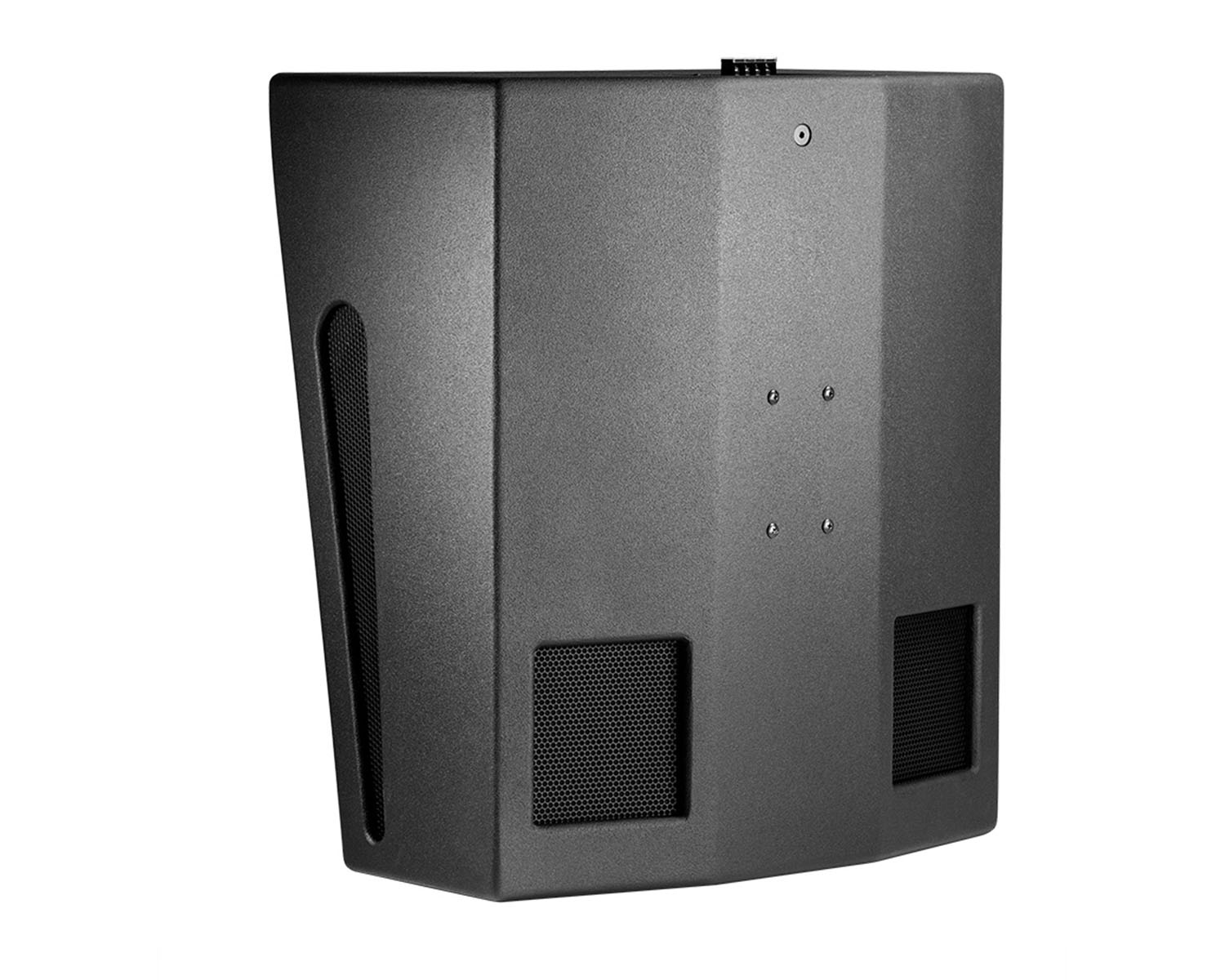

JBL9350 - JBL 9350 15inch 3 Way High Output Cinema Surround Speaker 390W Image 5

Today’s immersive cinema systems can place sounds at any location in the theatre by routing unique content to each speaker—front, rear, ceiling and sides. This requires surround speakers to be just as capable as screen array speakers and use technology not available in traditional surrounds. To deliver a surround speaker more than worthy of today’s immersive systems, HARMAN engineered the JBL9350 Cinema Surround Loudspeaker—a high-efficiency, high-output 3-way system with configurable coverage patterns, a 15” Differential Drive woofer, Acoustic Divider Waveguide and Dual Dissimilar Array.

The 9350 packs a sonic punch and delivers extraordinary sound quality and coverage through its advanced engineering, including three patent-pending JBL technologies. Each loudspeaker generates a sculpted coverage pattern, selectable with the flick of a switch, to provide the appropriate coverage when mounted as a side or rear surround. The 9350 further enhances sound quality and coverage thanks to its advanced waveguide and wall decoupling features. And the optimized built-in passive crossover network means that only one amplifier channel is required for each loudspeaker.

The result? Premium performance, broader coverage and outstanding left/right balance—an accomplishment unheard of in cinema. The sonic sweet spot just got a whole lot bigger, and that detailed, impactful sound now fully immerses every seat in the theatre, for an audio experience like no other. The 9350 is the ideal complement to screen array loudspeakers, for a dynamic and immersive sonic performance that excites

Product Features

Unique 3-way design with 15” low frequency driver and passive crossover network
390-watt (56 Vrms) power rating (AES 2-hour, IEC/pink)
Dual Dissimilar Arraying:
- Creates line array pattern control with just two horns
- Provides a sculpted coverage pattern, easily selectable using a switch, for side or rear wall mounting
- Extends HF output power and pattern control a full octave in both frequency spectrum extremes
Acoustic Divider Waveguide:
- Greatly improves midrange performance of the 15” Differential Drive® woofer
- Provides smooth crossover transition by using very tight driver spacing and controlling breakup mode energy
Bi-pole wall decoupling
- Creates a low frequency acoustic bi-pole using the Acoustic Divider Waveguide
- Reduces wall reflection notching typical of surrounds by shaping rear hemisphere energy

Product Specifications

System

Frequency Range (-10 dB): 50 Hz – 25 kHz (2pi)
Frequency Range (-3 dB): 60 Hz – 20 kHz (2pi)
Power Handling (AES 100-Hour Rating): 200 W (40 Vrms), pink/IEC
Power Handling (AES 2-Hour Rating): 390 W (56 Vrms), pink/IEC
Free-Field Sensitivity: 99 dB, 1 W @ 1m, ref 2.83 V
Configurable Coverage Patterns: Side / Rear
Calculated Max Output: 128 dB SPL (134 dB SPL peak)
Nominal Impedance: 8 ohms
Minimum Impedance: 7 ohms @ 200 Hz
Hor. Coverage Angle (-6 dB):
Side Pattern: 70º
Rear Pattern: 90º
Vert. Coverage Angle (-6 dB):
Side Pattern: 40º asymmetrical
Rear Pattern: 25º asymmetrical
Crossover Frequency: 2200 Hz

Transducers

Low Frequency: 265H-1
High Frequency: 1 x HF 2408H, 1 x 2414H
265H-1 Dimensions: Nominal Diameter: 38.1 cm (15 in)
2408 Dimensions: Nominal Diameter: 3.8 cm (1.5 in)
2424 Dimensions: Nominal Diameter: 2.5 cm (1 in)

Physical Specifications

Downward Firing Angle: 10º for enclosure face
Enclosure Material: Plywood
Grille Colour: Black
Input Connectors: Barrier strip
Dimensions (H x W x D): 769.6 mm x 647.7 mm x 419.1 mm (30.3 in x 25.5 in x 16.5 in)
Net Weight: 64 lb (29.03 kg)
Mounting Bracket Compatibility: JBL 2520
