Today’s premier cinemas require perfect coverage in every seat of the auditorium, wide dynamic range and extended bandwidth, as well as inaudible levels of distortion. Digital soundtracks, especially those associated with the latest digital cinema requirements, require sound systems that can accurately reproduce the sound exactly as recorded. Designed for cost-effective film sound reproduction, the 3722 and 3722N ScreenArray provides smooth and accurate reproduction of cinema soundtracks in a compact and very cost-effective system. The ScreenArray horn features a panted design that compensates for high-frequency spreading caused by perforated screens for greatly improved audience coverage. The 3722 and 3722N next generation ScreenArray is enhanced by advanced engineering. JBL’s latest technical innovations are integrated into a system design that provides superior coverage, maximum power handling, and uniform acoustic power output, along with extremely low distortion. The ScreenArray design provides ideal power response and directivity control with seamless transitions between acoustic sections.

Product Features

• Two-way ScreenArray® design for maximum output, optimal coverage and minimum distortion
• Bi-amplified operation
• SSC™ Screen Spreading Compensation
• Molded Optimized Aperture Waveguide technology for ultra-low distortion and extremely uniform frequency response
• Low frequency section features dual 15” transducers with ribbon wire voice coils for low distortion and high efficiency
• Flat front waveguide design for easy baffle wall installation
• Shallow profile for minimum behind-screen depth requirements

Product Specifications

System

• Frequency Range: 30 Hz – 18 kHz
• System Sensitivity: 104 dB, 2.83V @ 1 m (3.3 ft)
• Passive Nominal Impedance: 4 ohms
• LF Nominal Impedance: 4 ohms
• HF Nominal Impedance: 8 ohms
• LF Sensitivity: 105 dB, 2.83 V @ 1m
• HF Sensitivity: 105 dB, 2.83 V @1m
• Rated Maximum SPL: 127 dB, @ 1 m (3.3 ft), 133 dB peak
• Passive System Input Power Handling: 400 W
• Bi-Amp System Input Power Handling
• LF: 500 W
• HF: 50 W
• Nominal Coverage: 90° horizontal, -30°, +20° vertical
• Crossover Frequency: 1300 Hz
• HF Bracket Tilt Range: ±30° horizontal, ±10° vertical
• Dimensions (H x W x D): 1265 mm x 762 mm x 450 mm (49.8 in x 30 in x 17.75 in)
• Net Weight: 62.2 kg (137 lb)
• Shipping Weight: 76.3 kg (168 lb)

LF Component Electronics – Model 3739

• Low Frequency Transducers: 2 x M115-8A 380 mm (15 in) dia., 61 mm high (2.5 in) edgewound ribbon voice coil transducers mounted in a 4509 LF enclosure
• Dimension (H x W x D): 883 mm x 762 mm x 450 mm (34.75 in x 30 in x 17.75 in)
• Net Weight: 54.9 kg (121 lb)
• Shipping Weight: 63.6 kg (140 lb)

HF Component Electronics – Model 3722-HF

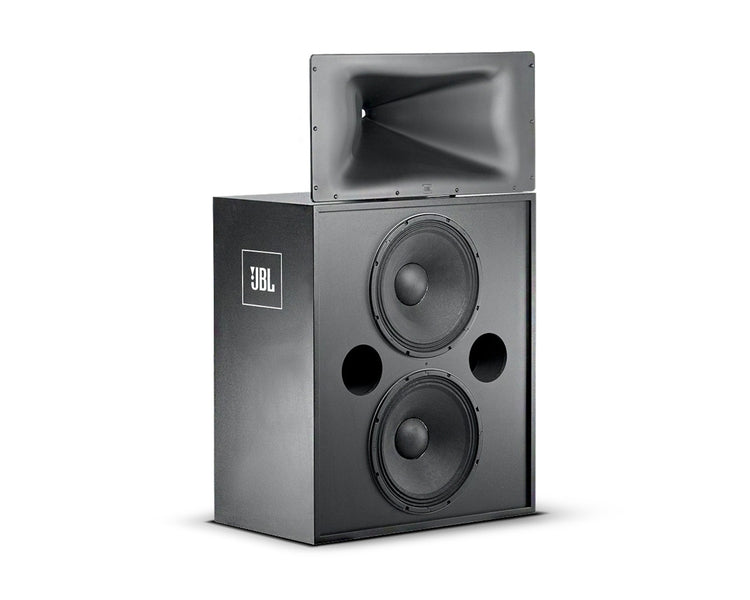

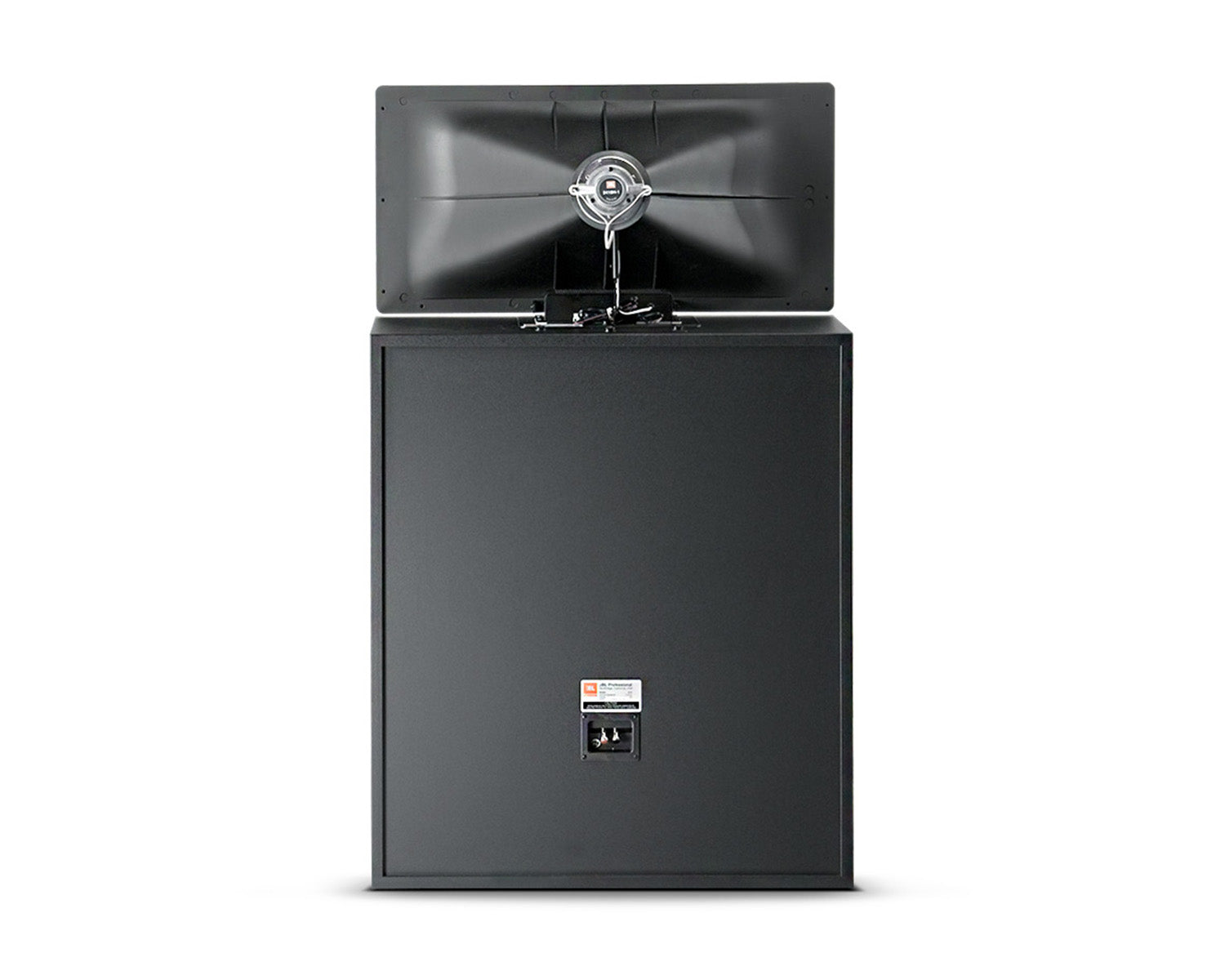

• High Frequency Transducer (Ships Fully Assembled): 1 x 2418H-1 compression driver, 1 x 2374 HF horn, 1 x adjustable bracket
• Dimension (H x W x D): 381 mm x 762 mm x 381 mm (15 in x 30 in x 15 in)
• Net Weight: 7.3 kg (16 lb)
• Shipping Weight: 12.7 kg (28 lb)
