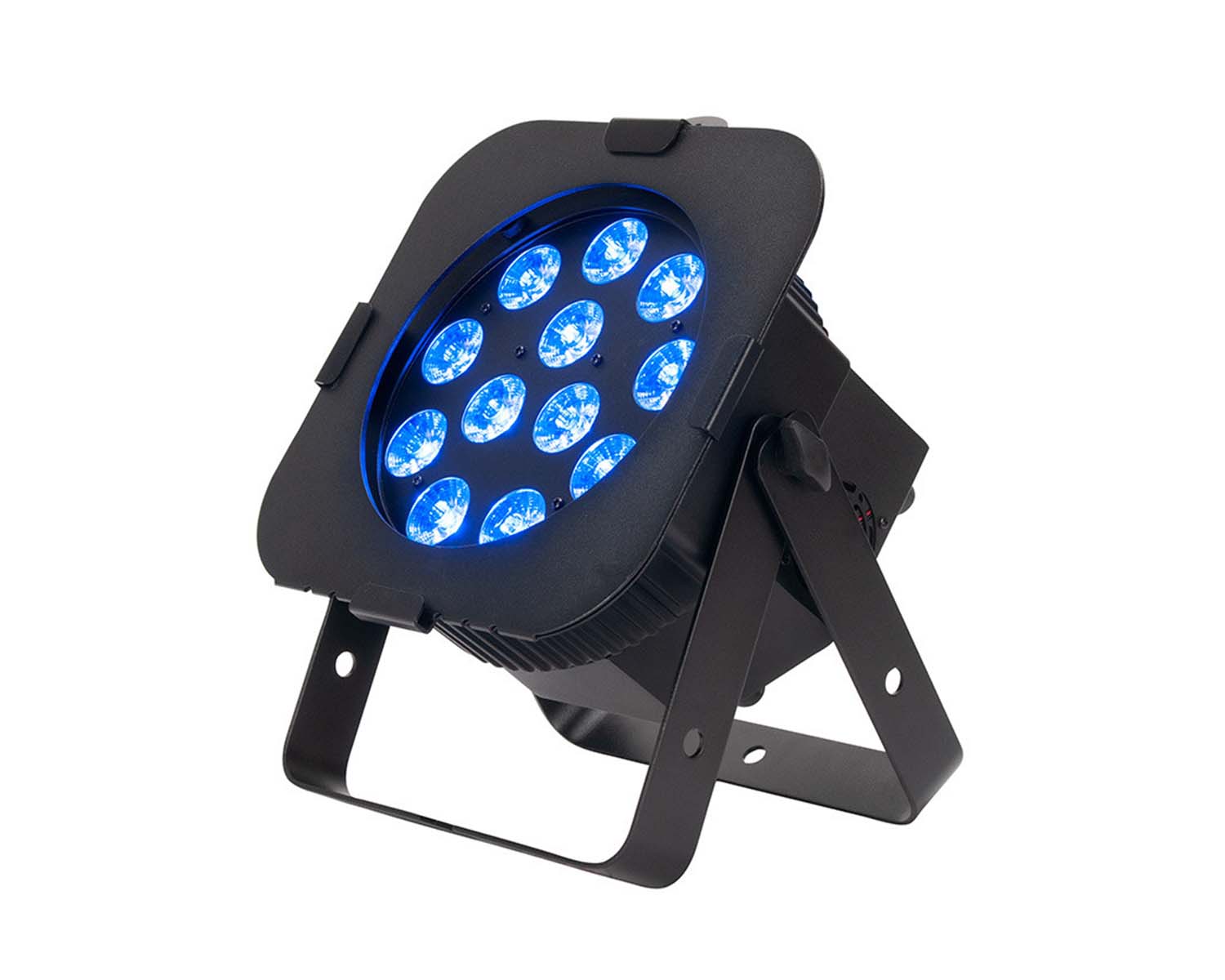

ADJ1226100365 - ADJ 12PX HEX PAR Can with 12x12W RGBAW and UV LEDs Black Image 1

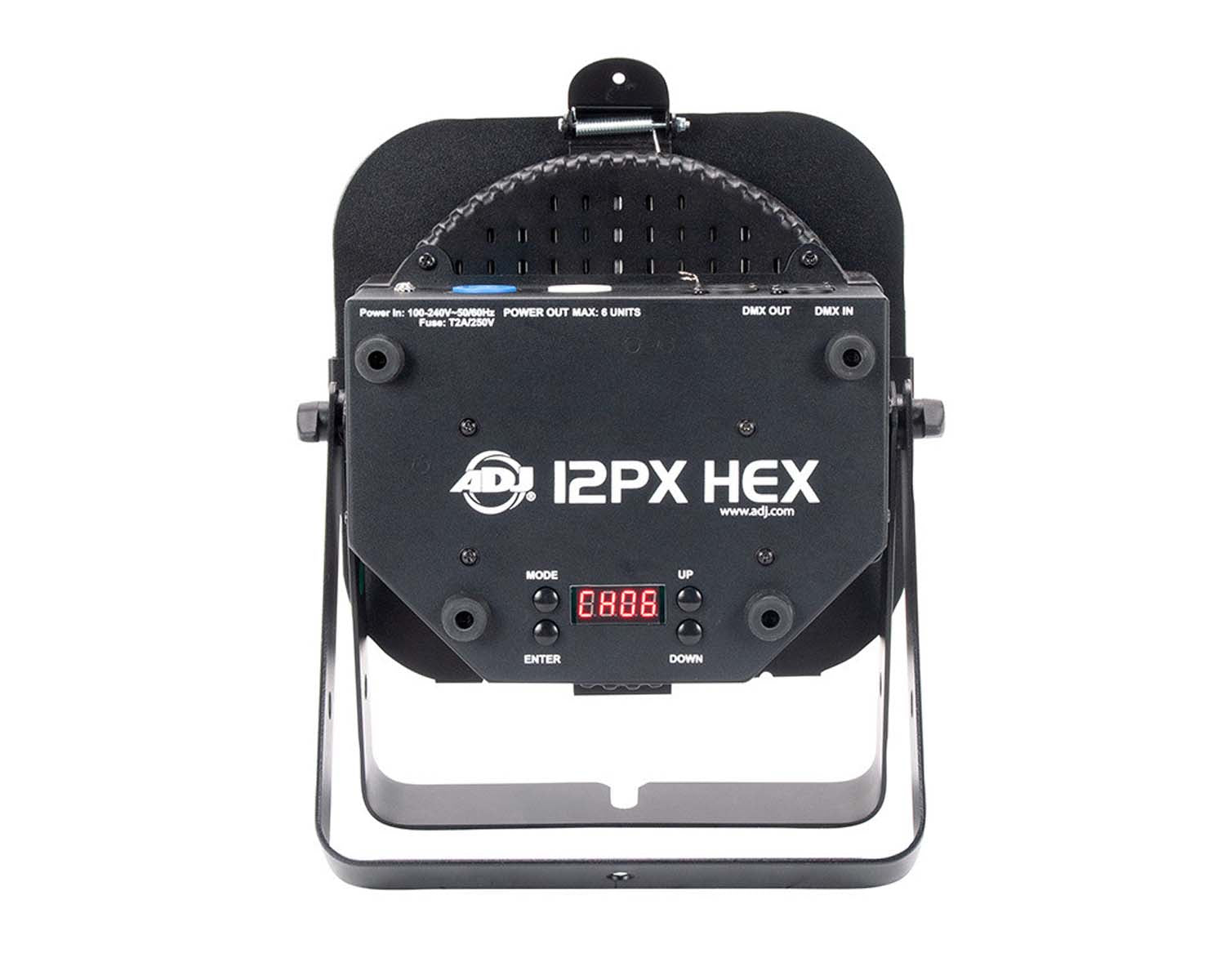

ADJ1226100365 - ADJ 12PX HEX PAR Can with 12x12W RGBAW and UV LEDs Black Image 2

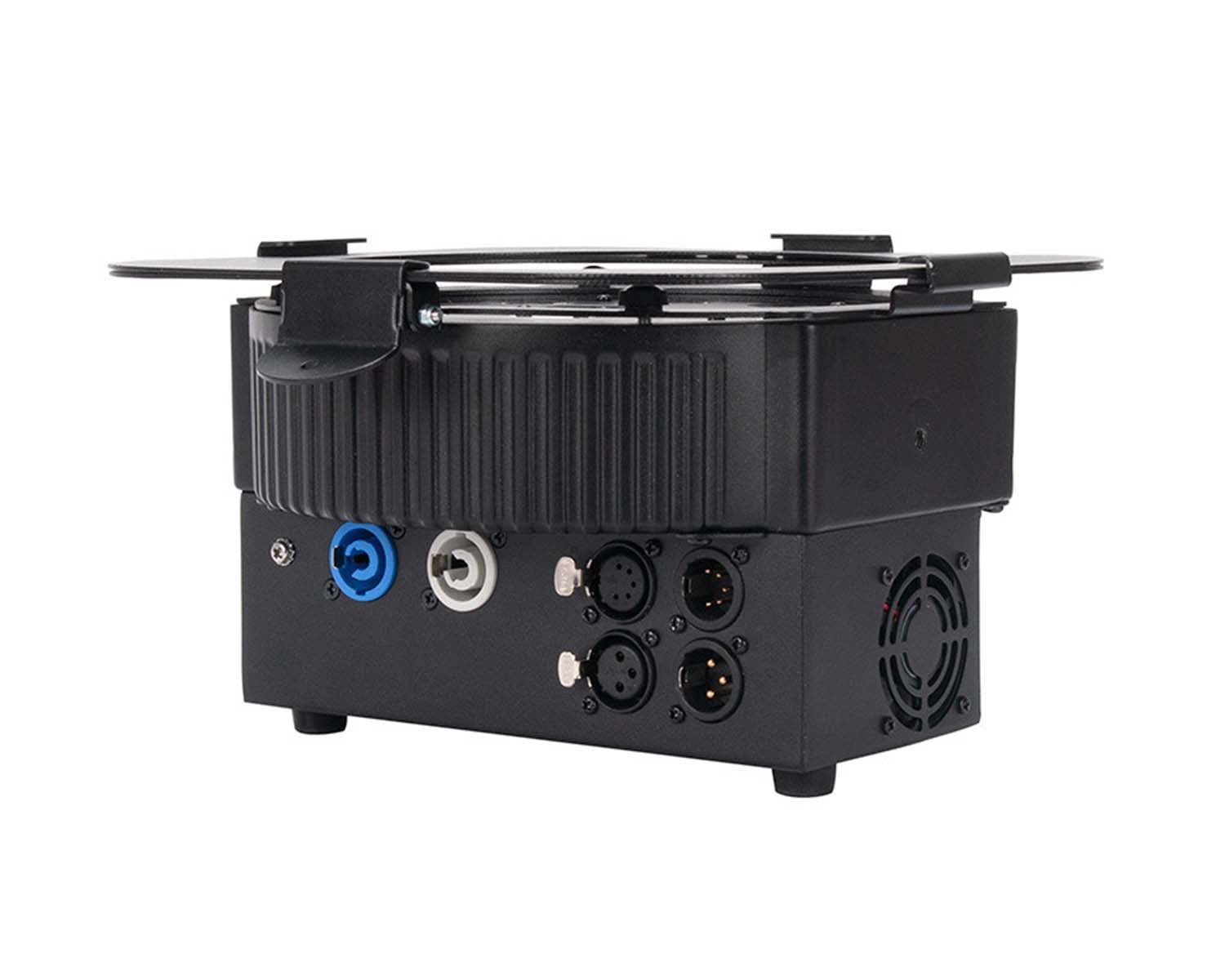

ADJ1226100365 - ADJ 12PX HEX PAR Can with 12x12W RGBAW and UV LEDs Black Image 3

The ADJ 12PX HEX is a versatile LED Par fixture with 12 x 12-Watt, 6-IN-1 HEX LEDs made from all metal construction. With a 30-degree beam angle, users may produce wide washes with smooth color mixing from 63 built-in color macros utilizing red, green, blue, amber, white and UV LEDs. Not only is this LED Par great for stage lighting, but with its patent pending, intelligently designed, power and DMX connectors, it’s great for uplighting a venue, or used as a stage wash.

12PX HEX professional features include: 4 DMX modes (6, 7, 8, & 12 channel), 5 operational modes, 5 dimming curves, flicker free operation and a 4-Button DMX menu with digital display. Users may choice 3-pin or 5-pin DMX connectors

The 12PX HEX is compatible with the Dotz Par RF, easy-to-use, wireless RF remote (Sold Separately). Alternatively, the fixture may be operated via a DMX controller or the unit built-in programs.

Product Features

12PX HEX PAR Can
Versatile LED Par fixture
12 x 12-Watt, 6-IN-1 HEX LEDs
powerCON In/Out
3-pin and 5-pin DMX In/Out
Compatible with the Dotz Par RF

Product Specifications

General

OPTICAL:
- Light Source: 12 x 12-Watt RGBAW + UV LEDs (Red, Green, Blue, Amber, White & UV)
- LED life rated at approximately 50,000 hrs.
- Beam angle: 30-degree
CONTROL:
- 4-button, DMX digital display on rear panel
- Compatible with Dotz Par RF wireless remote control (sold separately)
- 7 Built-In Programs
- 63 built-in Color Macros
- 4 DMX Modes: 6, 7, 8, & 12 channel
- 5 Operational modes: Static Color Mode, RGBAW & UV Dimmer Mode, Program Mode, Sound Active Mode and DMX Controlled
CONNECTIONS:
- Data linkable via 3-pin or 5-pin DMX connections
- Daisy chain power from powerCON In/Out connection
- With Wired Digital Communication Network
ELECTRICAL:
- Multi-voltage operation: AC 100-240V, 50/60Hz (powerCON power In/Out)
