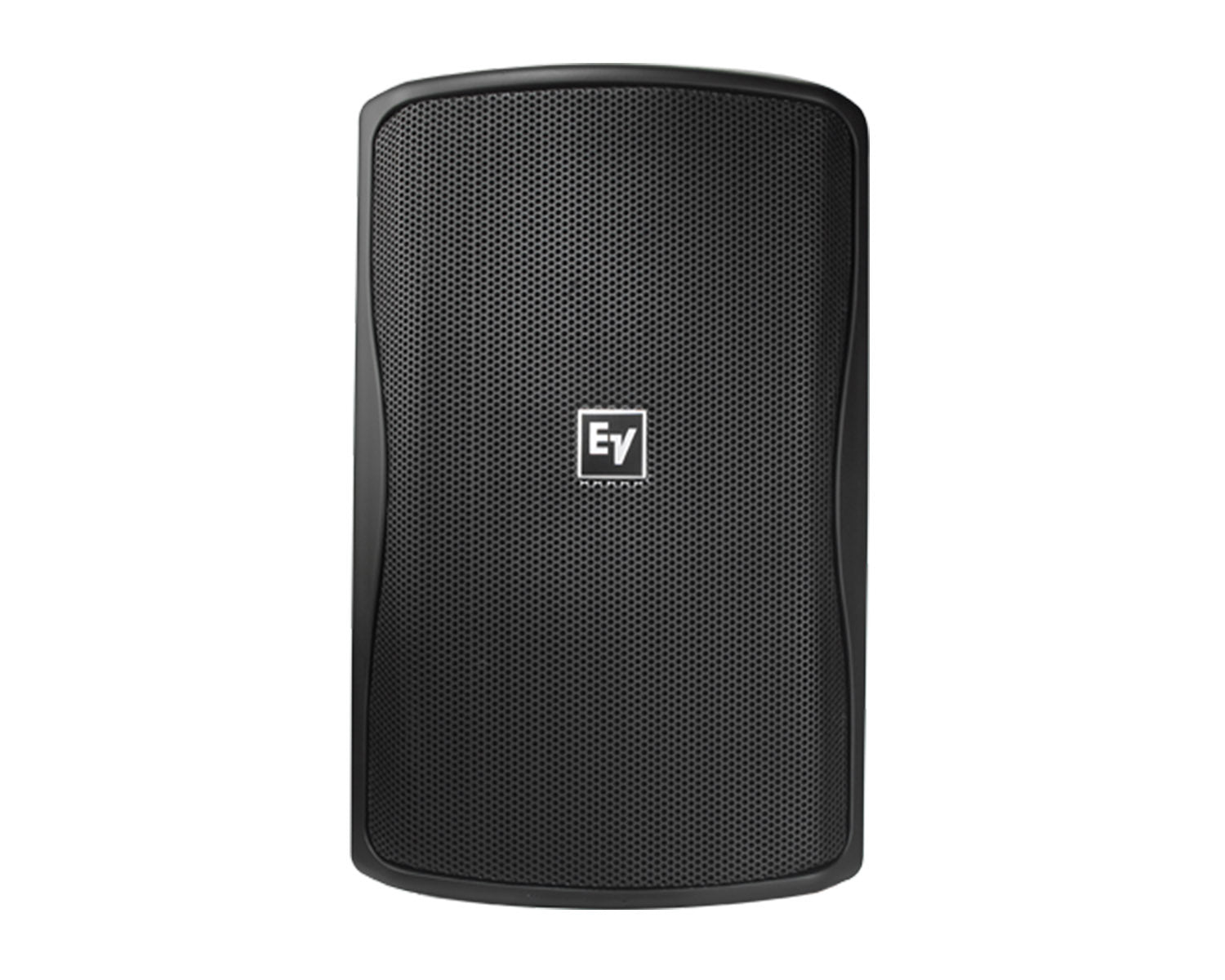

The Electro-Voice® ZX1i is the new standard of no compromise audio performance and versatility in an easy to install, compact sound reinforcement package.

The high-tech enclosure uses injection-molded high-impact polypropylene to make the ZX1i extremely durable. The enclosure geometry has been engineered to provide maximum rigidity and acoustic performance. The velocity compensated port design overcomes the limitation of many small cabinet loudspeakers and enables exceptional low-frequency response without vent noise.

ZX1i installation is incredibly simple with the included QuickSAMTM mounting system. The QuickSAMTM is a unique, integrated mounting bracket which is virtually foolproof. It allows the installer to simply snap the speaker onto the bracket, then tighten it to the desired position. For array mounting, there is an optional array bracket kit available which allows multiple units to be mounted together for a variety of configurations.

TCZX Outdoor Terminal Cover for ZX1i-100 is sold separately.

Product Features

• Integrated QuickSAMTM Heavy-Duty Strong-Arm Mounting Bracket Included
• Indoor/Outdoor Design - Meets IEC 529, IP55
• ASCTM Automatic Saturation Compensation
• EV8L 8” Weatherized Cone High-Output LF Transducer
• DH2005 1” Exit True Compression Driver
• 90° x 50° or 100° x 100° Coverage Patterns
• Rotatable Horn Design
• 200W Continuous, 800W Peak Power Handling
• High Sensitivity, 121 dB Maximum SPL

Product Specifications

General

• Input Connections: 4-pin Phoenix
• Nominal Impedance: 8 Ω
• Speaker Type: Full-range, Mid-High, Two-Way
• Frequency Response (-3 dB): 60 - 20000 Hz
• Frequency Response (-10 dB): 48 - 20000 Hz
• Internal Crossover: Yes
• Recommended High-Pass Frequency: 40 Hz
• Sensitivity 1 W/1 m: 94 (90x50), 92 (100x100) dB
• Max. SPL/1m (calc): 123 (90x50), 121 (100x100) dB
• Coverage (Nominal -6 dB) H: 90/100 ° Rotatable
• Coverage (Nominal -6 dB) V: 50/100 ° Rotatable
• Rotatable Horn: Yes
• System Power Handling (Continuous/Program/Peak): 200/400/800 Watts
• LF Transducer: EV8L 8-inch Weatherized Cone
• HF Transducer: DH2005 1-in Exit True Compression Driver
• Crossover Frequency: 1700 Hz
• Minimum Impedance: 6 Ω
• Enclosure Material: High Impact Polystyrene
• Flying: Yes
• Outdoor: Yes
• Grill: Polyester Powder Coated, 18GA Galvanized Steel

Physical & Dimensions

• Height: 451mm
• Width: 282mm
• Depth: 263mm
• Weight: 8.4kg
