Professional equipment in mission-critical applications is all about reliability and confidence. So Theatrixx started with a clean sheet, and built what might soon become your most trustworthy piece of equipment. Introducing the world’s first video converters truly designed for the road. Video converters nowadays are used everywhere on professional A/V events, presentations, live shows and tours and often have a critical role. Yet, they are often the weakest link in the signal chain. Low quality connectors, weak enclosure, external consumer-grade power supply, and overall barebones design that all contribute to a generally unreliable piece of equipment. Theatrixx wanted to change that, so they designed the xVision Video Converters.

Product Features

• Integrated power supply with locking PowerCON Connector. Never rely on a cluster of wall-warts again.
• Built-in convenience AC outlet to power nearby projector, TV, laptop, small video projector… Power bar to power both the converter and device not required anymore.

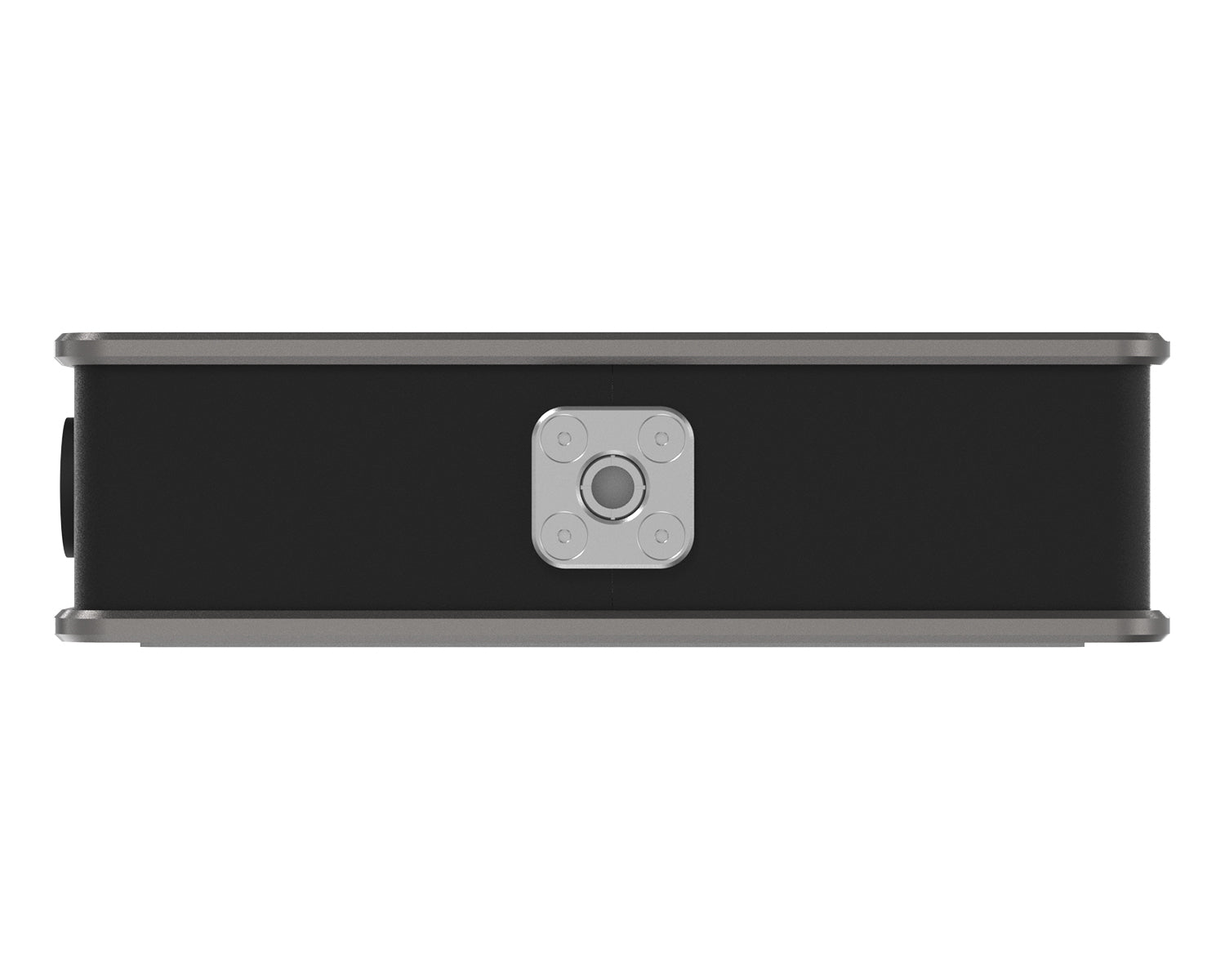

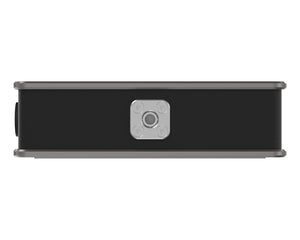

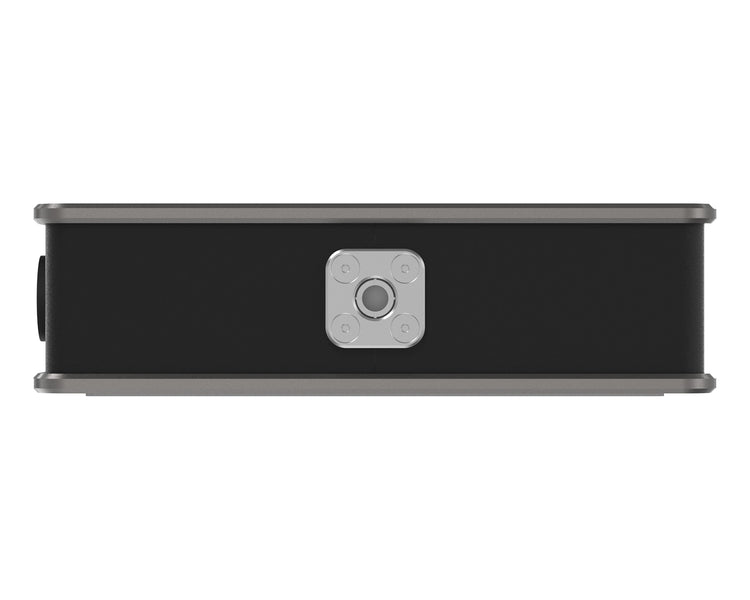

• Magnetic stacking system and non-skid rubber pad for table top application. Saves at least 10 gaffer tape rolls a year.
• Multiple mounting options: C-Clamp, wall-mount adapter, LCD mount adapter and belt adaptor.
• Rugged, Tour-ready and aesthetic enclosure
• Plug-n-play operation; No dipswitches, buttons or menus to fumble with : It just works.
• Clear and ample status LED indicators for quick troubleshooting.
• Easy on-the-field identification with unique colour and alphabetic coding system.
• SFP-based video transmission for interoperability with standard SDI over fibre devices.
• Reclocked and amplified SDI loop thru
• Proudly designed and assembled in Canada.

Product Specifications

Connections

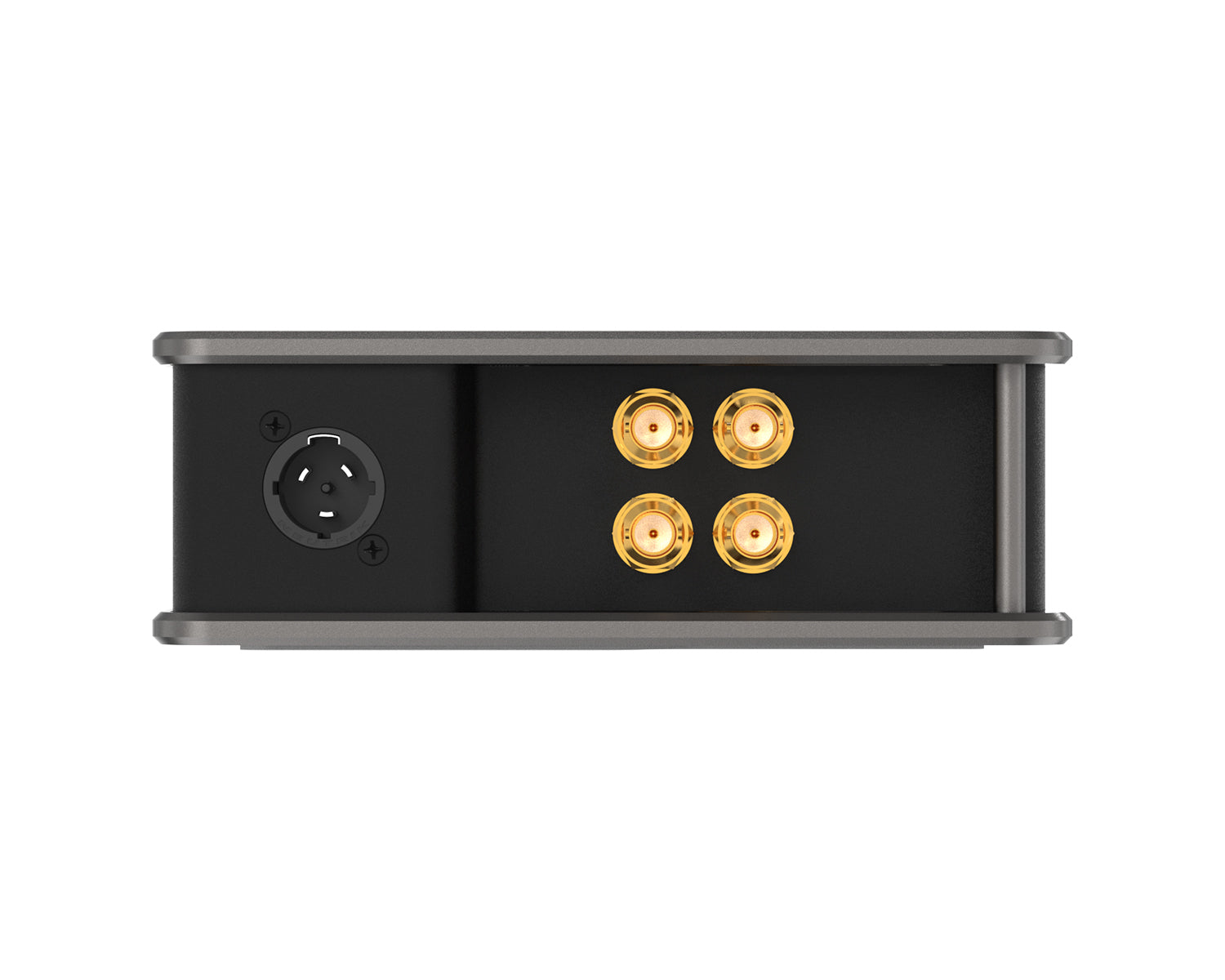

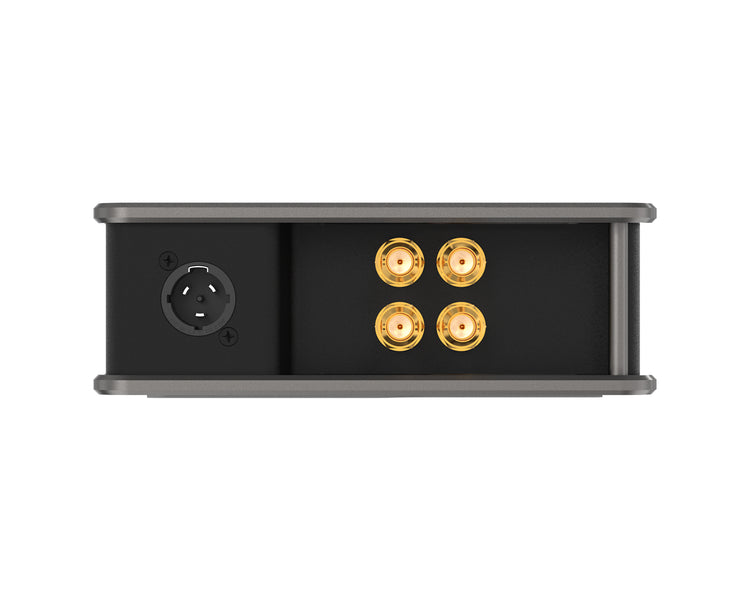

• Video Input: 2 x 12G/6G/3G/HD/SD SDI BNC
• Loop-thru: 2 x 12G/6G/3G/HD/SD SDI BNC

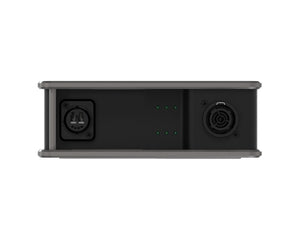

• Video Output: Multimode Optical SDI on OpticalCON DUO

Supported Signals

• Video Format: 12G/6G/3G-SDI Level A and B, HD-SDI, SD-SDI with embedded audio
• SMPTE Standards: 2082-1, 2082-10, 425 M Level A & B, 424 M, 292 M, 259 M

Physical

• Height: 62 mm (2.44 in)
• Depth: 180 mm (7.08 in)
• Width: 221 mm (8.7 in)
• Weight: 2 kg (4.4 lbs)

Environmental

• Relative Humidity: 0% to 90% non-condensing
• Operating Temperature: 0-40 °C

Power Requirements

• Power Supply:
  • Built-in power supply
  • PowerCon True1 input
  • PowerCON True1 output (loop-thru)
• Power Consumption: 45W max.
• Operational Voltage Range: 100-240V, 50-60Hz
• Courtesy Outlet: Max 10 A, same voltage as input

What's in the Box?

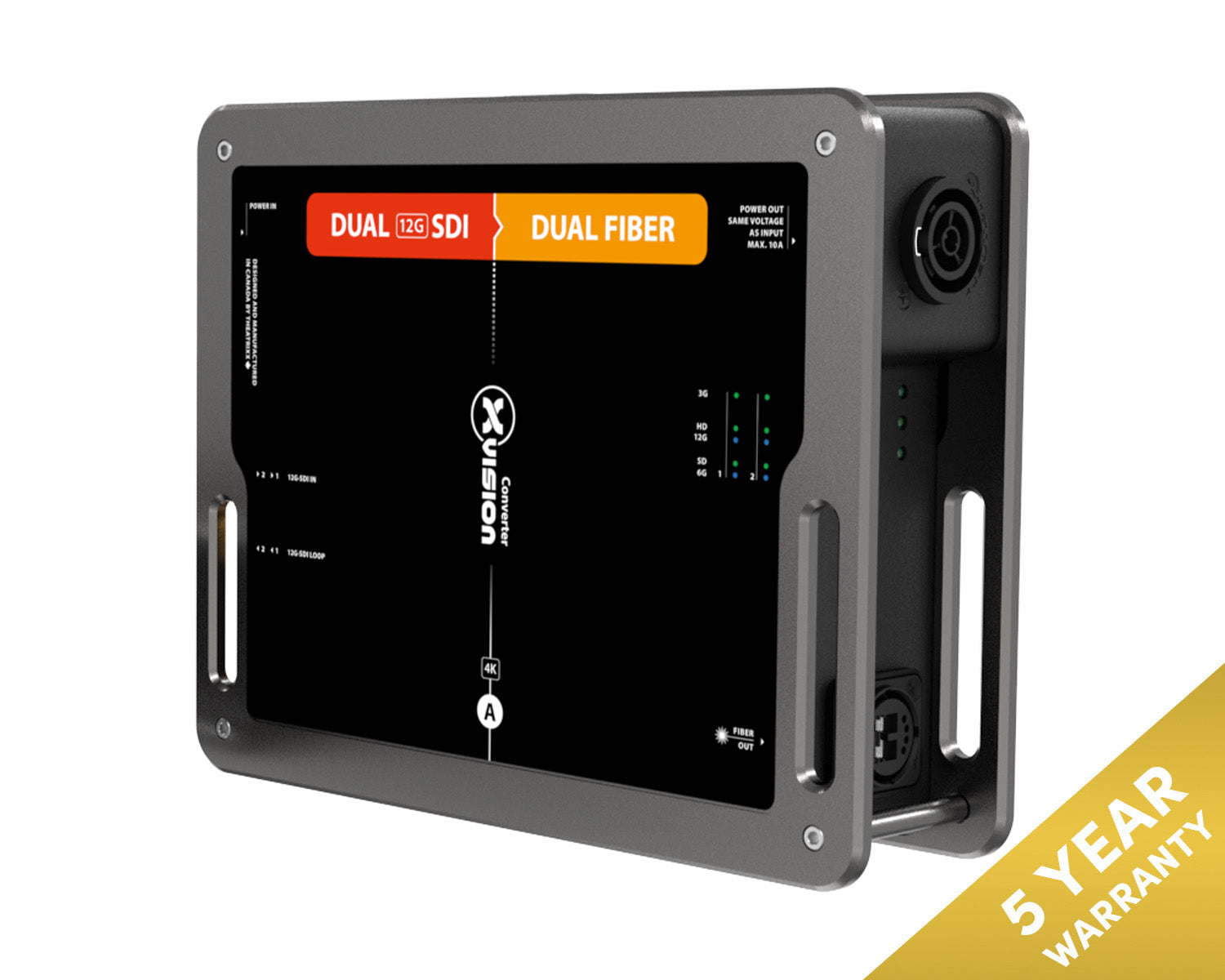

• xVision Converter Dual 12G-SDI to Dual Fibre
• Power Cable
