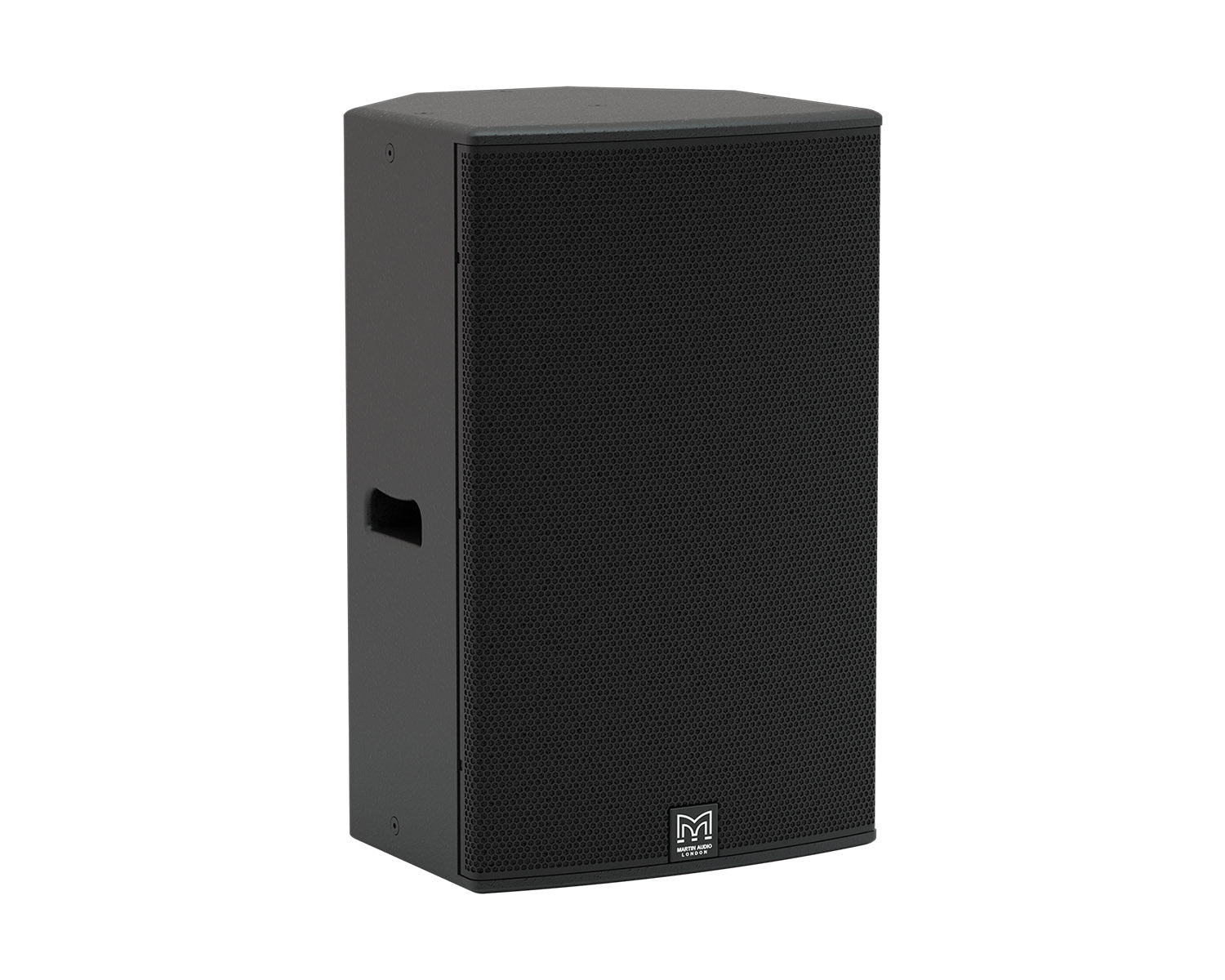

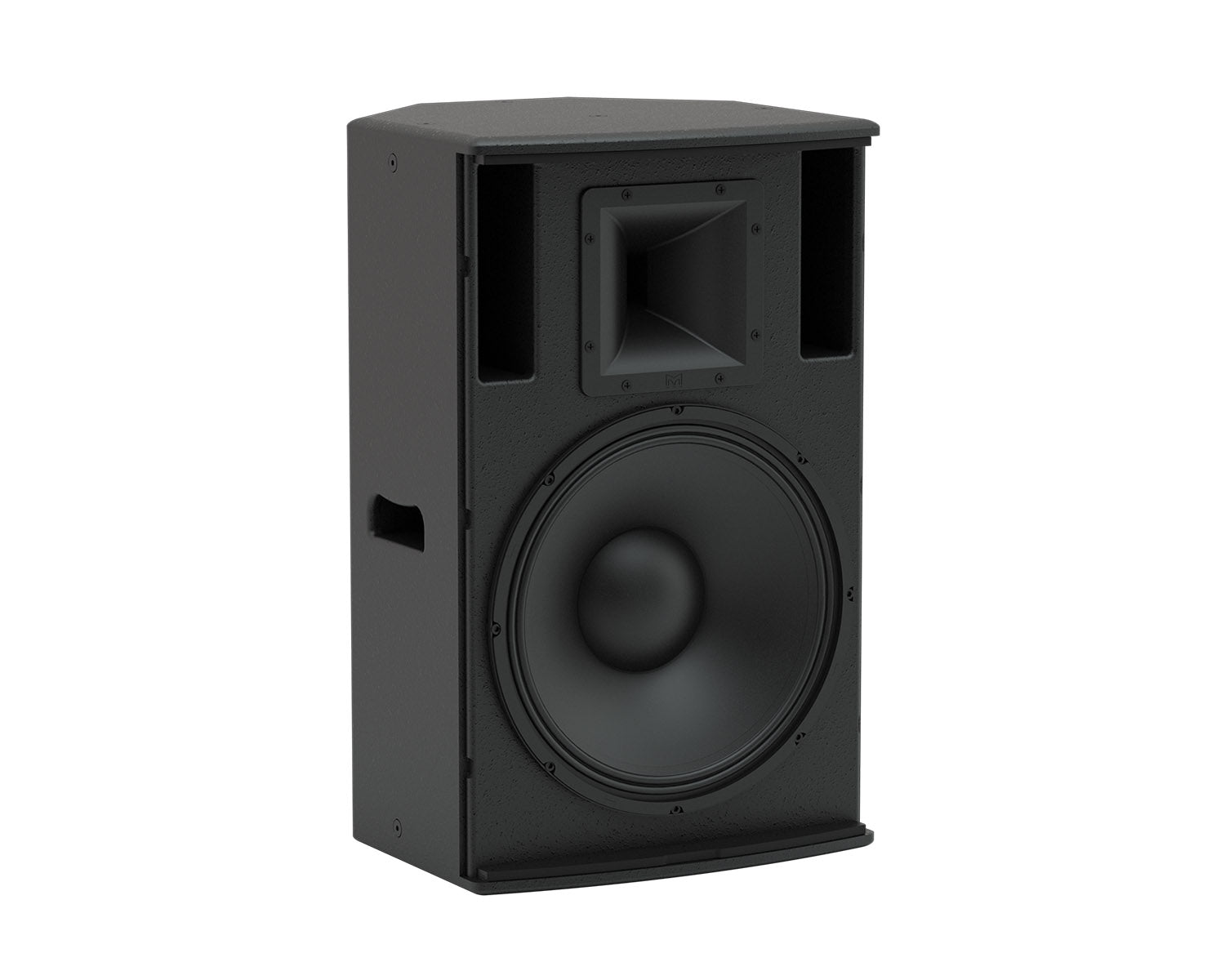

The XP15 is a self-powered two-way system designed by leading acoustic engineers for indoor portable applications and installations that require powerful performance from a single portable loudspeaker. It features a 15” (380mm)/3” (75mm)voice coil LF drive unit, and a 1” (25mm) exit HF compression driver with a 1.75” (44mm) polyimide diaphragm. With an accurately-defined 80° x 50° coverage pattern, it combines very high output capability with exceptional sonic performance and low frequency impact.

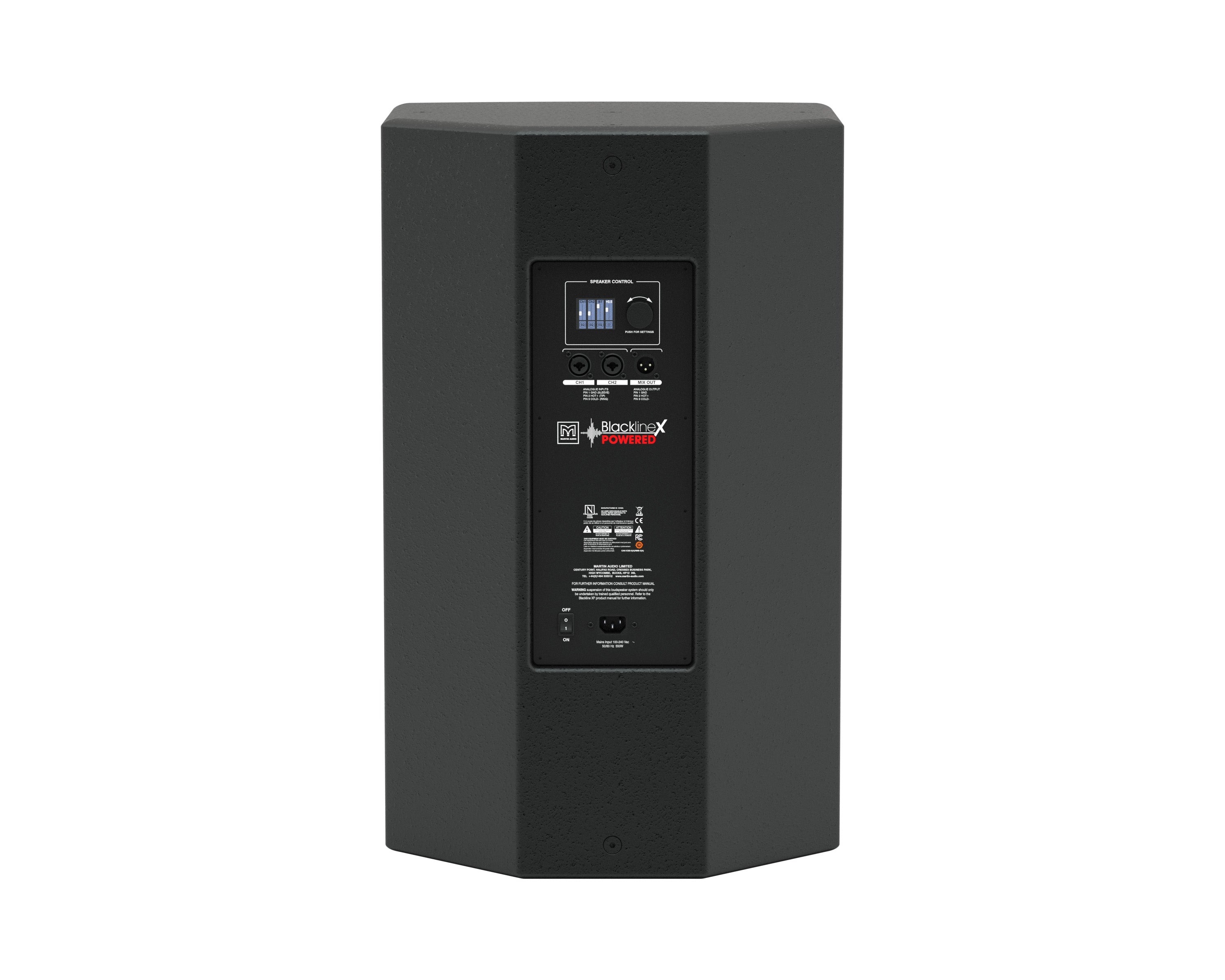

Its Class D amplifier module delivers 1000W LF + 300W HF peak output to the drivers, which are independently protected by RMS and peak limiters. On-board DSP functions are controlled by a rotary encoder interface and multi-function, easy-to-use colour display on the rear panel. DSP features include crossover function, a three-channel mixer with three band EQ on each input channel and a choice of three voicing resets and operating modes for flexible operation without external processing.

The symmetrical, multi-angle enclosure is manufactured from birch and poplar plywood and finished in textured black paint. It is fitted with M8 inserts for eyebolt suspension plus a pole-mount socket with a removable cap. Its cloth-backed protective steel grille is a spring-fit into the sides of the enclosure for easy access to rotate the HF horn.

Product Features

• High output, self-powered, portable two-way system
• 1300W of Class D amplification
• Global power supply with PFC (Power Factor Correction)
• Onboard DSP with rotary control interface
• Multi-function display for metering, control and function selection
• Three-channel mixer
• Three-band channel EQ, plus HPF (Ch1/2)
• Independent LF and HF peak and RMS limiters
• Three speaker mode and voicing presets
• Bluetooth® control and streaming option
• Durable plywood enclosure
• User-rotatable 80° x 50° HF horn
• Vertical and horizontal mounting options

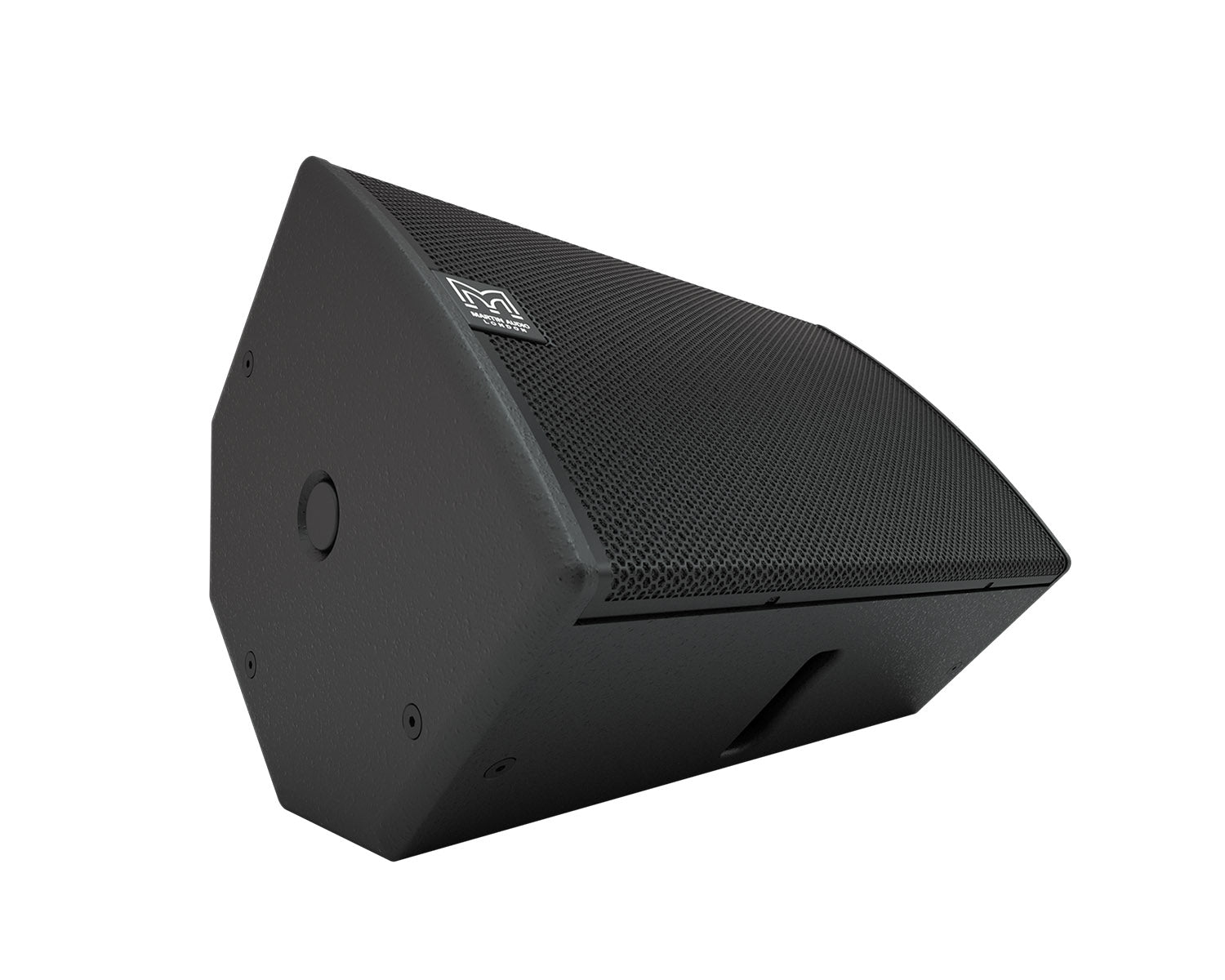

• Symmetrical multi-angle enclosure for PA or stage monitor use
• Screw-free, cloth-backed steel grille
• Integral ergonomic handles

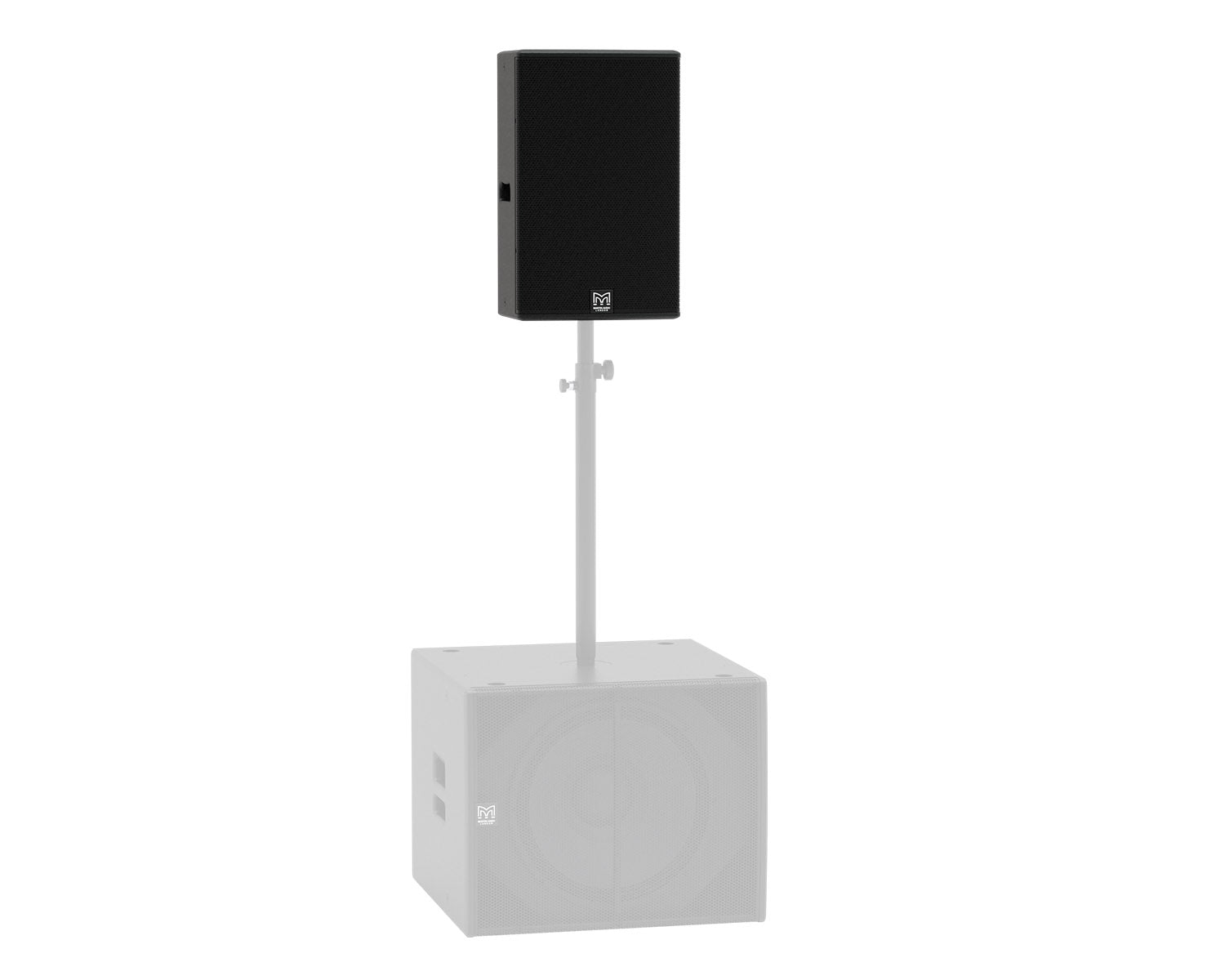

• Mounting options include pole-mount, wall bracket and flying inserts

Product Specifications

Acoustics

• Type: High output, self-powered two-way system
• Frequency response
  • 55Hz – 20kHz ±3dB
  • -10dB @ 45Hz
• Drivers
  • LF: 15” (380mm)/3” (75mm) voice coil ferrite motor system
  • HF: 1” (25mm) exit/1.7” (44mm) voice coil, polyimide dome compression driver
• Maximum SPL: 125dB continuous / 131dB peak
• Dispersion: 80° H x 50° V (user-rotatable)
• Crossover: 2kHz active, 24dB/octave

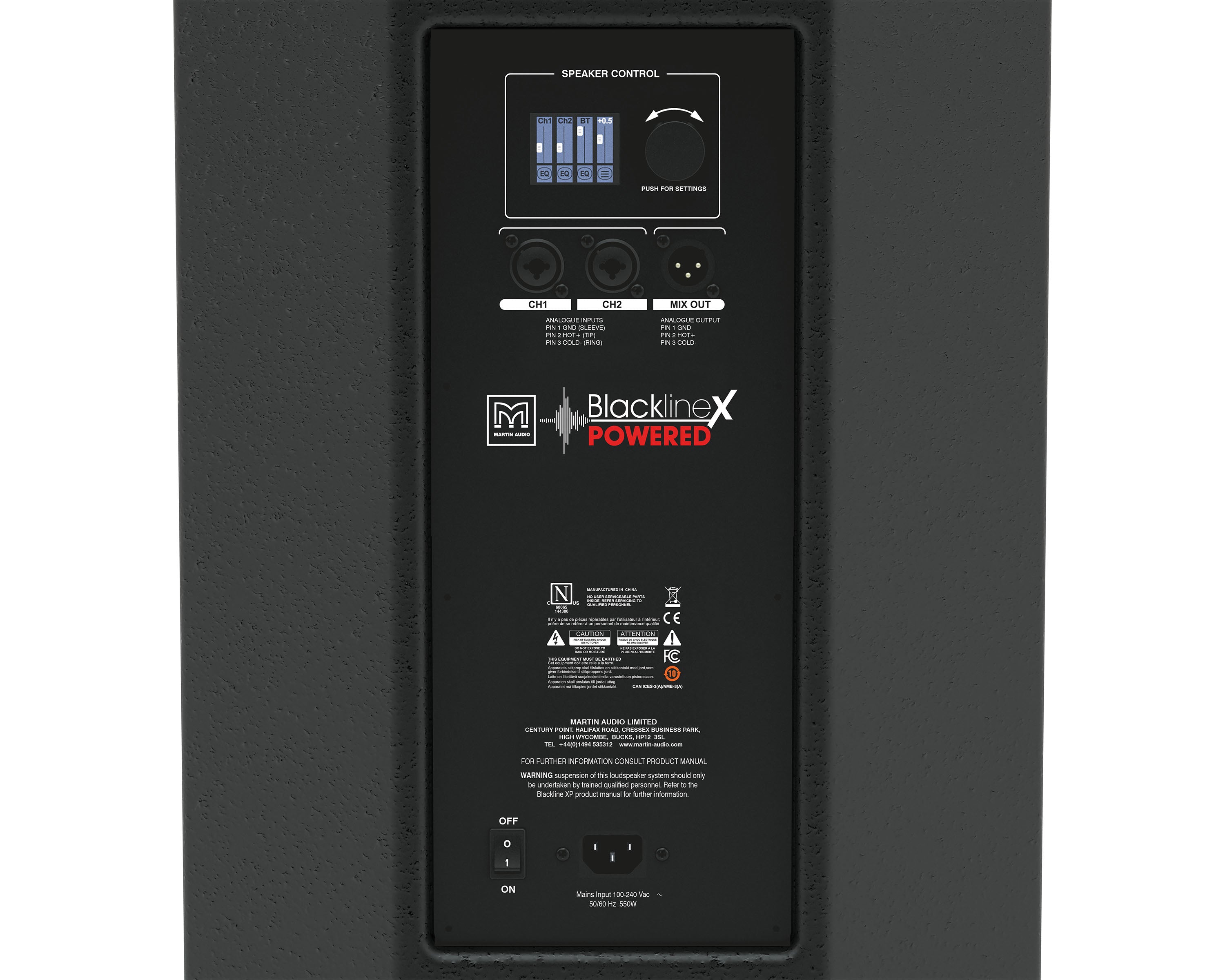

Audio In/Out

• Input connectors: 2 x female XLR/ ¼” jack combo
• Mic/line input impedance: 8 kΩ balanced
• ¼” Jack ts input impedance: 1 MΩ unbalanced
• Mix output connector: 1 x male XLR
• Mix output impedance: 600Ω balanced

Internal Processing

• Input channel EQ: 3-band on each channel plus HPF (Ch1/2)
• Speaker EQ: 3 speaker mode/voicing presets
• Protection: LF and HF Peak and RMS limiting, amplifier thermal protection

Amplifier Module

• Type: 2 channel switch-mode, Class D
• Peak output power
  • 1300W total
  • 1000W LF, 300W HF
• Average efficiency: 89%
• Cooling: External convection cooled
• Maximum ambient temperature: 35°C (95°F) for full output

Power Supply

• TYPE: Switch-mode, fixed frequency with PFC
• AC input operating range: 100-240V ~ AC, 50 - 60Hz
• Power factor: > 0.98
• Nominal power consumption: 550W Max
• Mains connector: 3-pin IEC

Physical & Dimensions

• Enclosure: Multi-angle birch/poplar ply
• Finish: Black textured paint
• Protective grille: Black perforated steel with scrim cloth backing
• Fittings: 13 x M8 inserts, pole-mount socket, 2 x pocket handles
• Dimensions
  • (W) 427mm x (H) 690mm x (D) 407mm
  • (W) 16.8in x (H) 27.2 x (D) 16.0in
• Weight: 26kg (57lbs)
