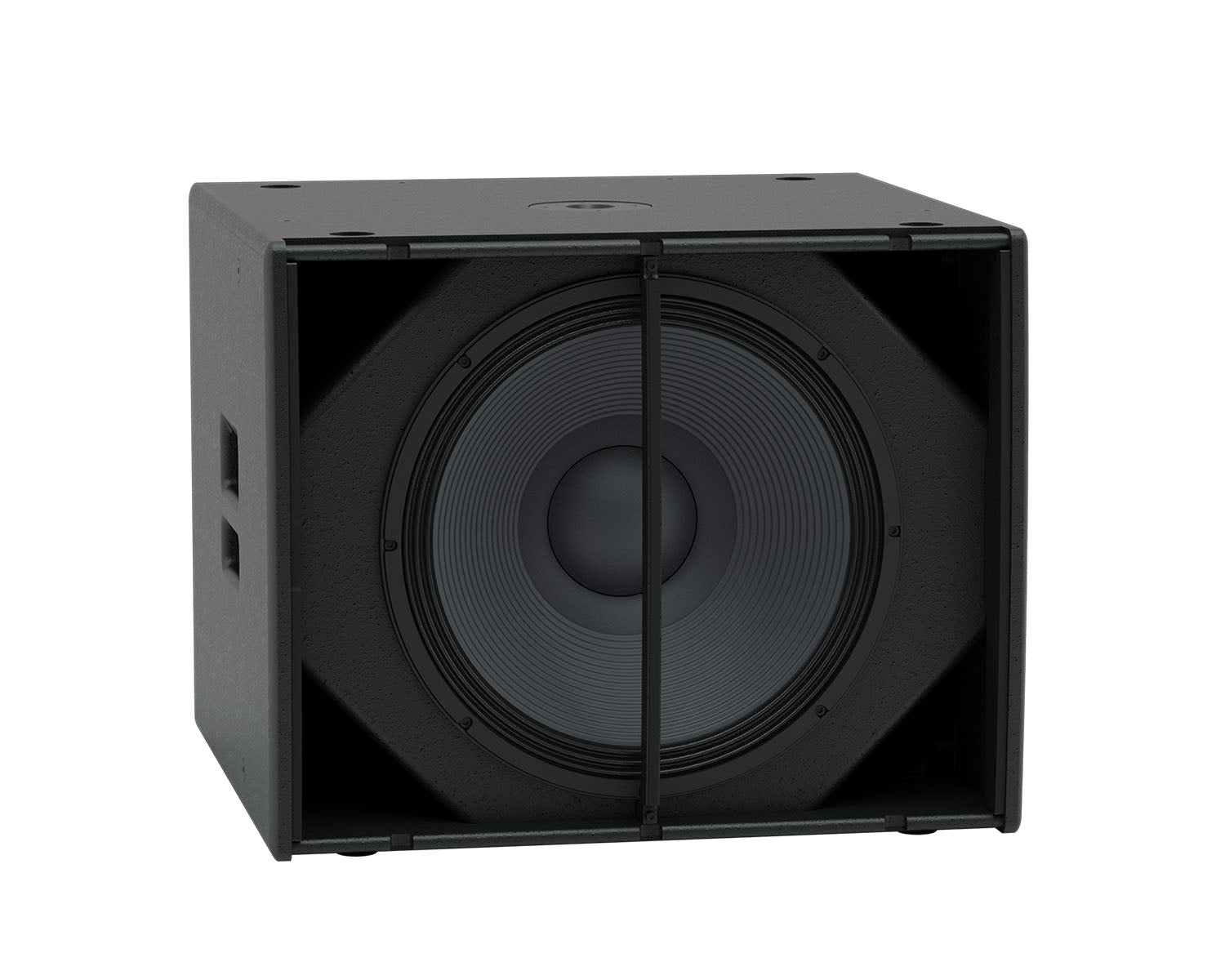

The XP118 is a compact, high performance subwoofer for indoor use with the XP12 and XP15 full-range loudspeakers. It extends the low frequency operating range of the combined system down to 42Hz and can be used singly, stacked in omni or cardioid mode, or flown via integral M10 insets. It features a long-excursion 18” (460mm)/4” (100mm) voice coil driver in a compact enclosure that has four reflex ports with a large frontal area to reduce turbulent air noise at very high levels.

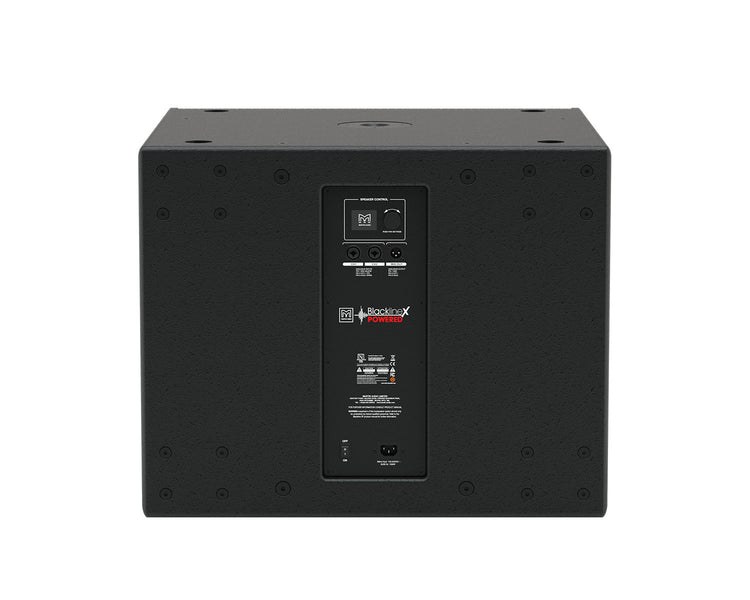

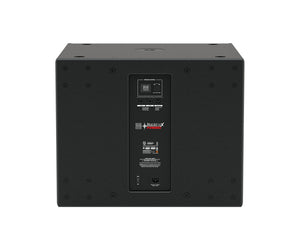

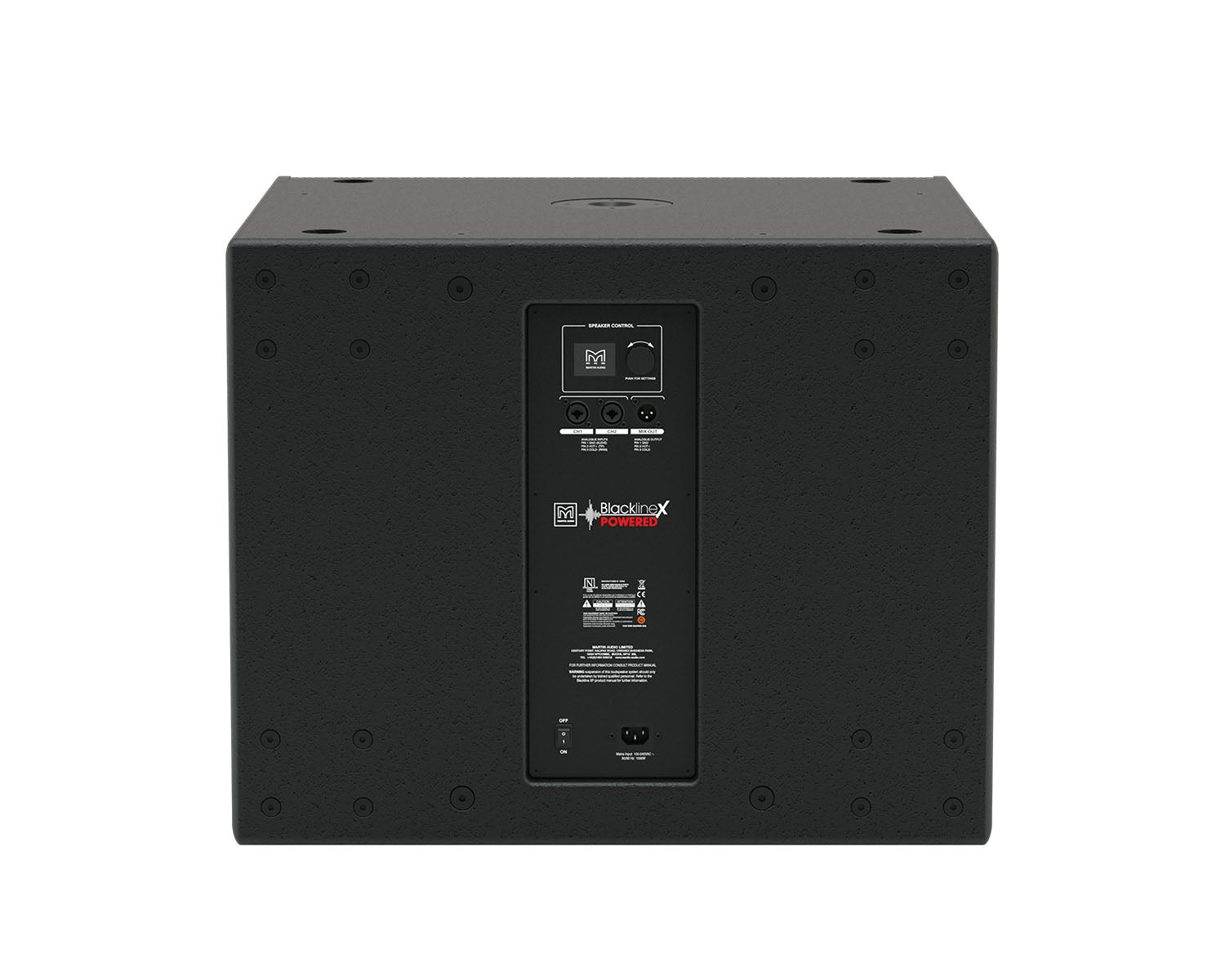

A convection-cooled Class D amplifier module delivers 2000Wpeak output to the driver for maximum low frequency extension and chest-thumping punch. Crossover, EQ, metering and control functions are provided by on-board DSP via a rotary encoder interface and multi-function colour screen on the rear panel.

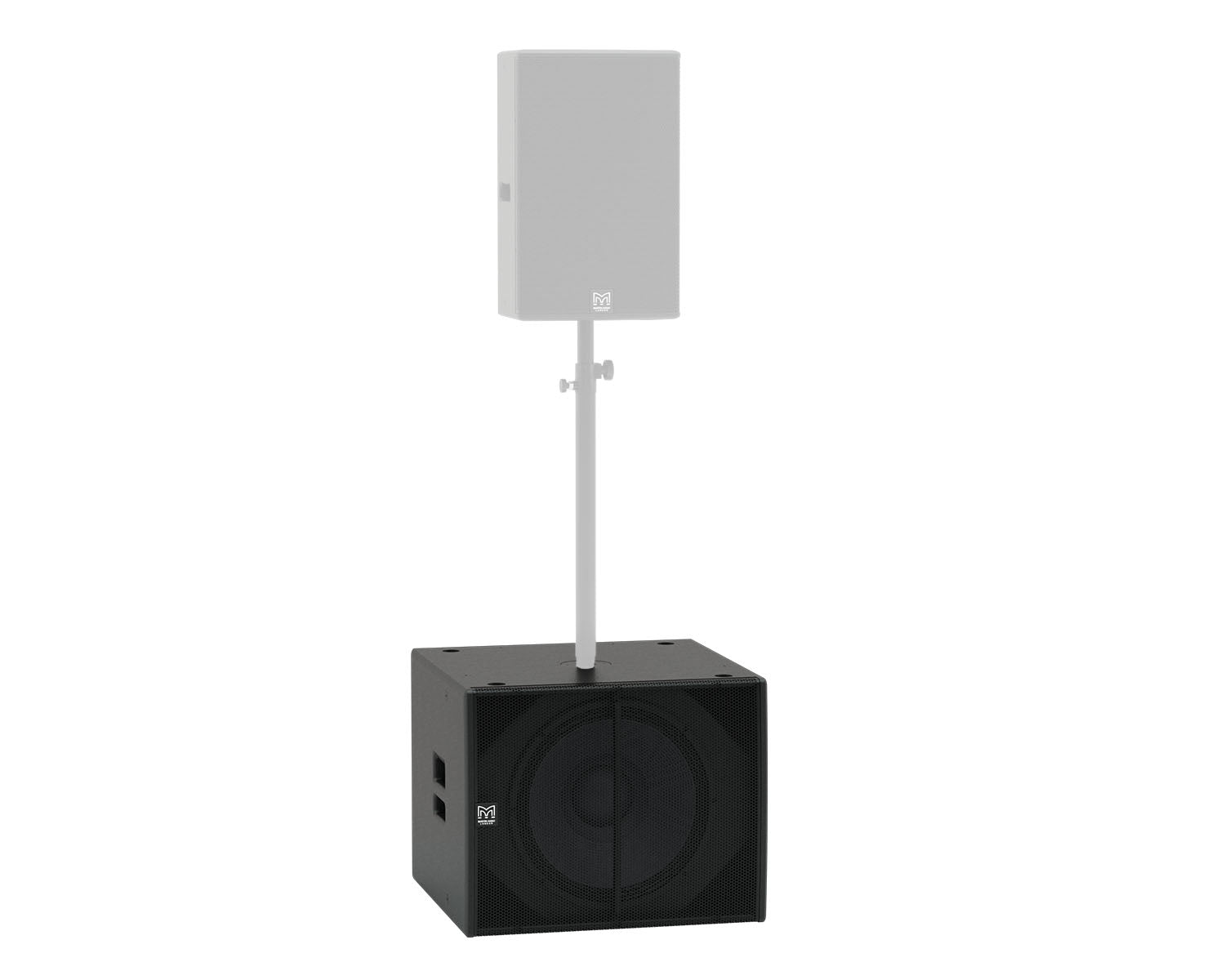

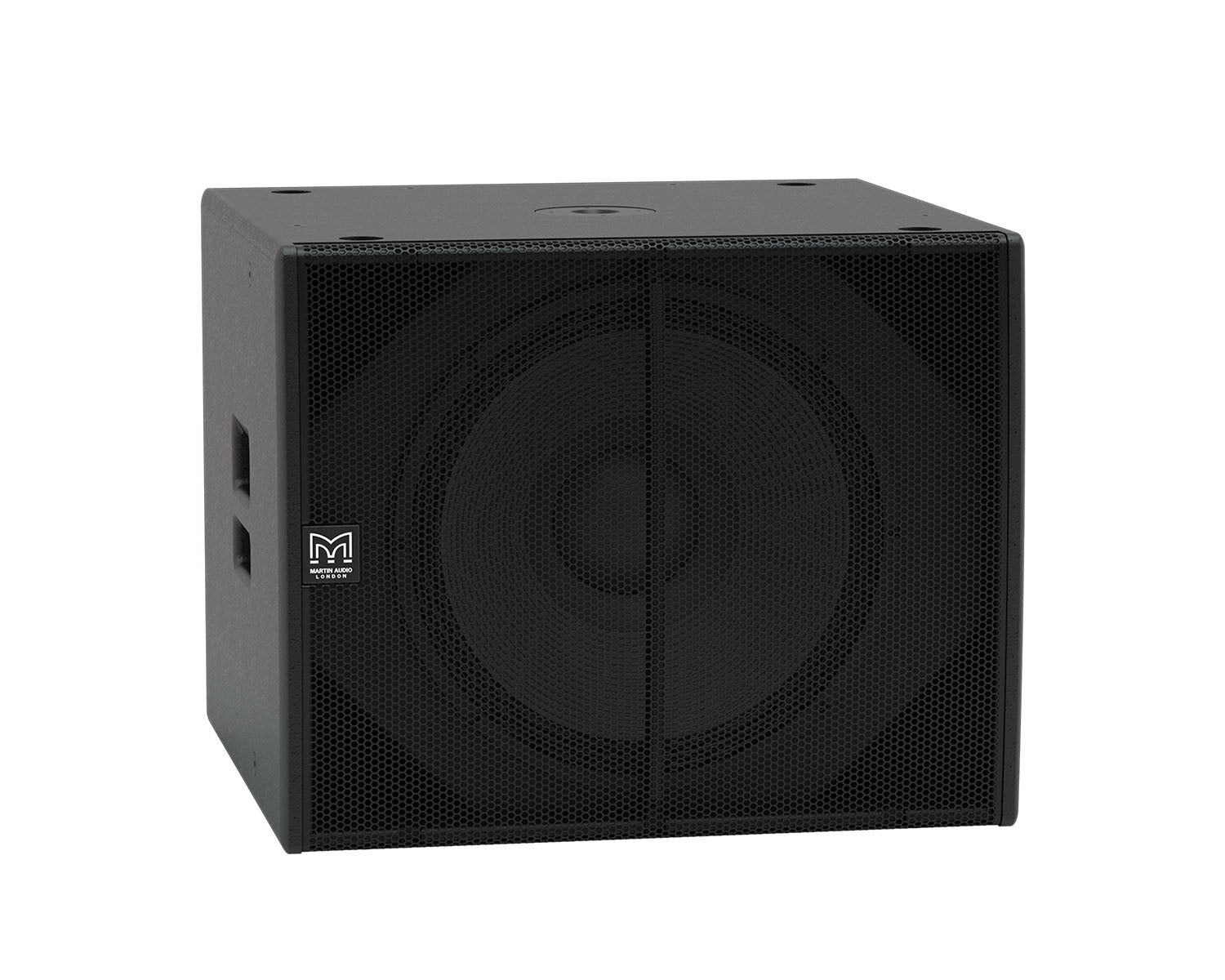

The XP118 enclosure is built for the road, constructed from durable plywood and finished in textured black paint. A perforated steel grille protects the driver, and the enclosure has a 35mm pole-mount socket in the top surface and two ergonomic side handles.

Product Features

• Compact, self-powered subwoofer
• 1 x 18” (460mm) driver with 4” (100mm) voice coil
• 2000W of Class D amplification
• Global power supply with PFC (Power Factor Correction)
• On-board DSP with rotary control interface
• Multi-function display for metering, control and function selection
• Peak and RMS limiters
• Bluetooth® control and streaming option
• Durable plywood enclosure
• Screw-free, perforated steel grille
• Integral ergonomic handles
• 35mm pole-mount socket

Product Specifications

Acoustics

• Type: Compact self-powered subwoofer
• Frequency response
  • 42Hz – 150kHz ±3dB
  • -10dB @ 38Hz
• Driver
  • LF: 18” (460mm)/4” (100mm) voice coil, long excursion, ferrite magnet
• Maximum spl: 131dB continuous, 137dB peak (Half space)
• Dispersion (-6DB): Omnidirectional
• Crossover: 100Hz, active

Audio In/Out

• Input connectors: 2 x female XLR/ ¼” jack combo
• Mic/line input impedance: 8 kΩ balanced
• ¼” Jack ts input impedance: 1 MΩ unbalanced
• Mix output connector: 1 x male XLR
• Mix output impedance: 600 Ω Balanced

Internal Processing

• Input channel EQ: 3-band
• Speaker EQ: 4 presets, including cardioid mode
• Protection: Peak and RMS limiting, amplifier thermal protection

Amplifier Module

• Type: Class D, Bridged Tied
• Peak output power: 2000W total
• Average efficiency: 89%
• Cooling: Convection
• Maximum ambient temperature: 35°C (95°F) for full output

Power Supply

• Type: Switch-mode, fixed frequency with PFC
• Ac input operating range: 100-240V ~ AC, 50 - 60Hz
• Power factor: > 0.98
• Nominal power consumption: 1000W Max
• Mains connector: 3-pin IEC

Physical & Dimensions

• Enclosure: Birch/poplar ply
• Finish: Black textured paint
• Protective grille: Black perforated steel
• Fittings: 16 x M10 inserts, pole-mount socket, 2 x bar handles, provision for castors
• Dimensions
  • (W) 662mm x (H) 536mm x (D) 640mm
  • (W) 26.1in x (H) 21.1in x (D) 25.2in
• Weight: 44kg (97lbs)
