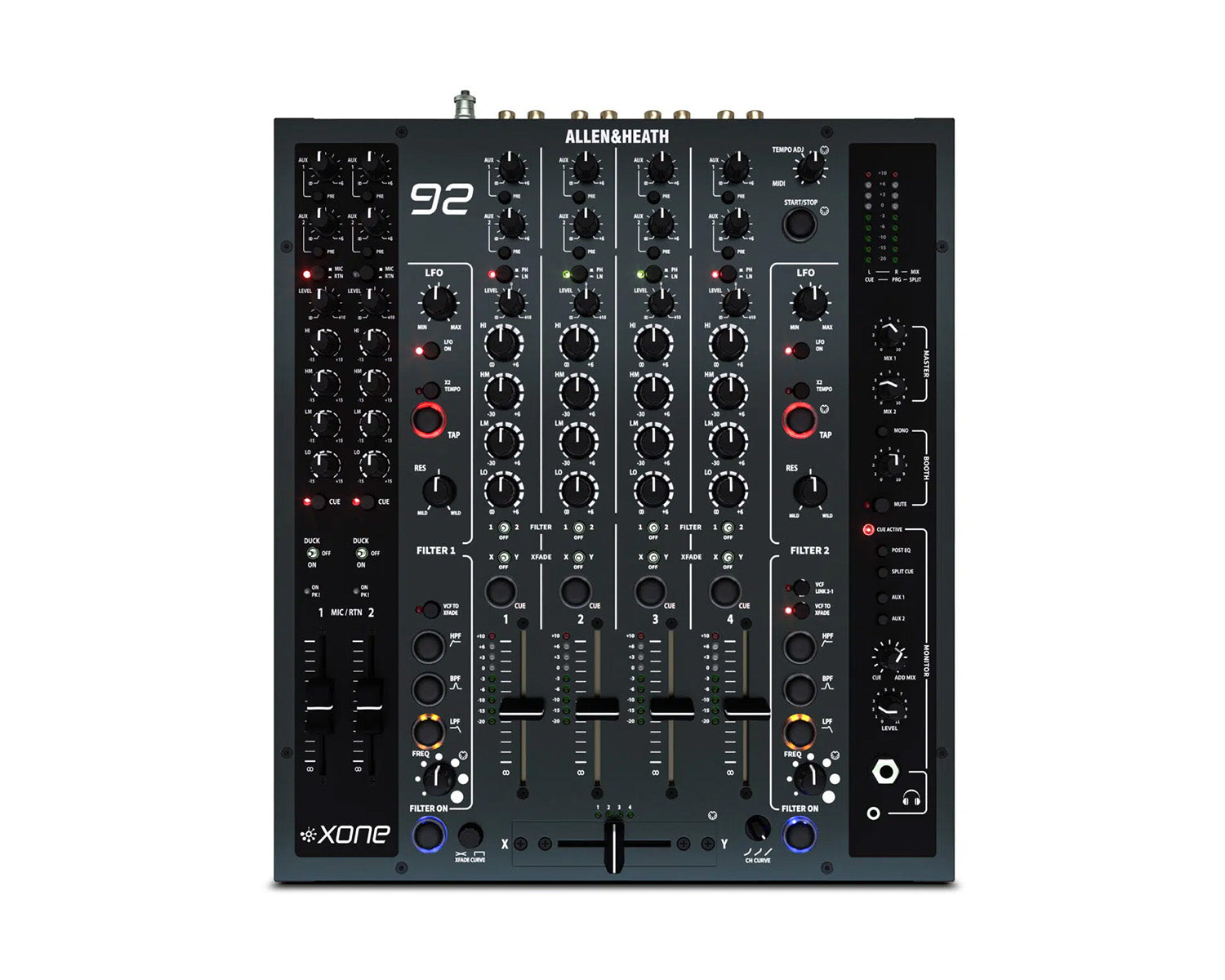

ALLXONE922X - Allen & Heath XONE 92 4 and 2Ch Analogue Club Mixer innoFADER Crossfader or 4 Band EQ Image 1

Building on the Xone:92’s revered legacy and featuring hardware enhancements from the acclaimed Xone:92 Limited Edition, we’ve added silent VCF switching, a new custom innoFADER® crossfader, and a collection of precision upgrades that preserve the legendary 92 DNA while improving performance.

Product Features

4 Phono/Line Channels + 2 Mic/Line Channels
100% analogue circuitry and mix bus summing
Dual analogue Filters with silent switching
Precision 4-band EQ control
Custom mini innoFADER® Pro for smoother mixing
Updated storm grey colourway and refocused UV legend
New 3-way, global Channel fader curve switch
Improved Channel 1-4 Input Level and source-matching
Refined Xone:VCF tapers for enhanced control
Optimized RIAA preamps
Removable dual-ground adaptor
Rear panel Mic clean feed switches

Product Specifications

Type: Analogue
Channels: 6 + 2
EQ: 4-Band: CH 1-4 | MIC/RTN 1 | MIC/RTN 2
Booth: Stereo/Mono | Mute | Level
Phono Inputs: 4xRCA: CH 1-4
Earth Ground Terminals: x1+2 [Dual Ground Terminal Adapter]
Stereo Line Inputs: 4xRCA [CH 1-4] | 2X 1/4"TRS [RTN 1 / RTN 2] mono/stereo
Mic Input: 2 x XLR [MIC 1 / MIC 2]
MIX 1 Output: 1 x XLR [MIC 1 / MIC 2]
MIX 2 Output: 1 x 1/4" TRS [unbalanced]
Booth Output: 1 x 1/4"TRS [unbalanced]
Record Output: 1 x RCA [unbalanced]
Stereo Send/Return: I/O 2 x 1/4" TRS: AUX1 ¦ AUX2 [Mono/Stereo] | 2 x 1/4" TRS: RTN 1 ¦ RTN 2 [Mono/Stereo]
Aux Sends: 2 x CH 1 - 4 ¦ MIC/RTN 1 ¦ MIC/RTN 2 [selectable Pre/Post]
Filters: 2 x Stereo analogue Voltage Controlled Filters | HPF / BPF / LPF Response Select ¦ ON/OFF [soft switched] | Adjustable FREQ / RES / LFO | Assignable CH 1- 4 [soft switched]
Channel 1 - 4 Faders: 60mm linear Voltage Controlled Amplifier
Channel 1 - 4 Fader: Curve Switched ¦ 3-way Global
Cross Fader: mini innoFADER Pro standard ¦ 45mm linear VCA ¦ User replaceable
Cross Fader: Curve Rotary ¦ Progressive transition to Fast-cut
MIDI Assignable: Yes: MIDI CC ¦ MIDI Note ON/OFF
MIDI Out: 1 x 5-pin DIN
Power Supply: Internal switch mode power unit [SMPS] with auto sensing mains input
AC Mains: 100 to 240V AC ¦ 50/60Hz | Consumption 30W max | Rear panel mounted ON/OFF switch
Mains Adaptor: 3 pin IEC socket with cable clamp. Molded AC plug [supplied]
Internal headroom: Channels + 22dB
Frequency response: LINE IN to MST out +1/-0.5dB from 20Hz to 30kHz
Distortion: Typically 0.01% @ 1kHz 0dBu (THD+Noise 22Hz to 22kHz)
Crosstalk: < -90dB inter-channel @ 1kHz +10dBu
Mic Gain: +30dB, EIN = -126dB (@ 40dB gain with 150R source)
RIAA Gain: +35dB @ 1kHz (14mV RMS= 0VU @ 1kHz)
Channel Meters: 9 LED - 20dBu to + 10dBu
Master Meters: 9 LED - 20dBu to + 10dBu
Channel faders: 1-4 60mm VCA control individually replaceable. < -82dB shutoff @1kHz +10dBu
Cross-fader: 45mm innoFADER VCA control. Plug in replacement - user replaceable (A&H part#: AI11470 )
Filters: Dual, stereo, analogue Voltage Controlled Filters.
Panels: Steel
PSU: Internal. Switch-mode
Mains Input: 3 pin IEC socket Power Lead: country dependant.
AC mains: 100V to 240V AC @ 47/63Hz`
Consumption: 30W max Fuse rating 100-240V AC T500mA L | [0dBu = 0.775 Volts rms / +4dBu = 1.23V rms / 0dBV = 1 Volt rms / -10dBV = 316mV rms
