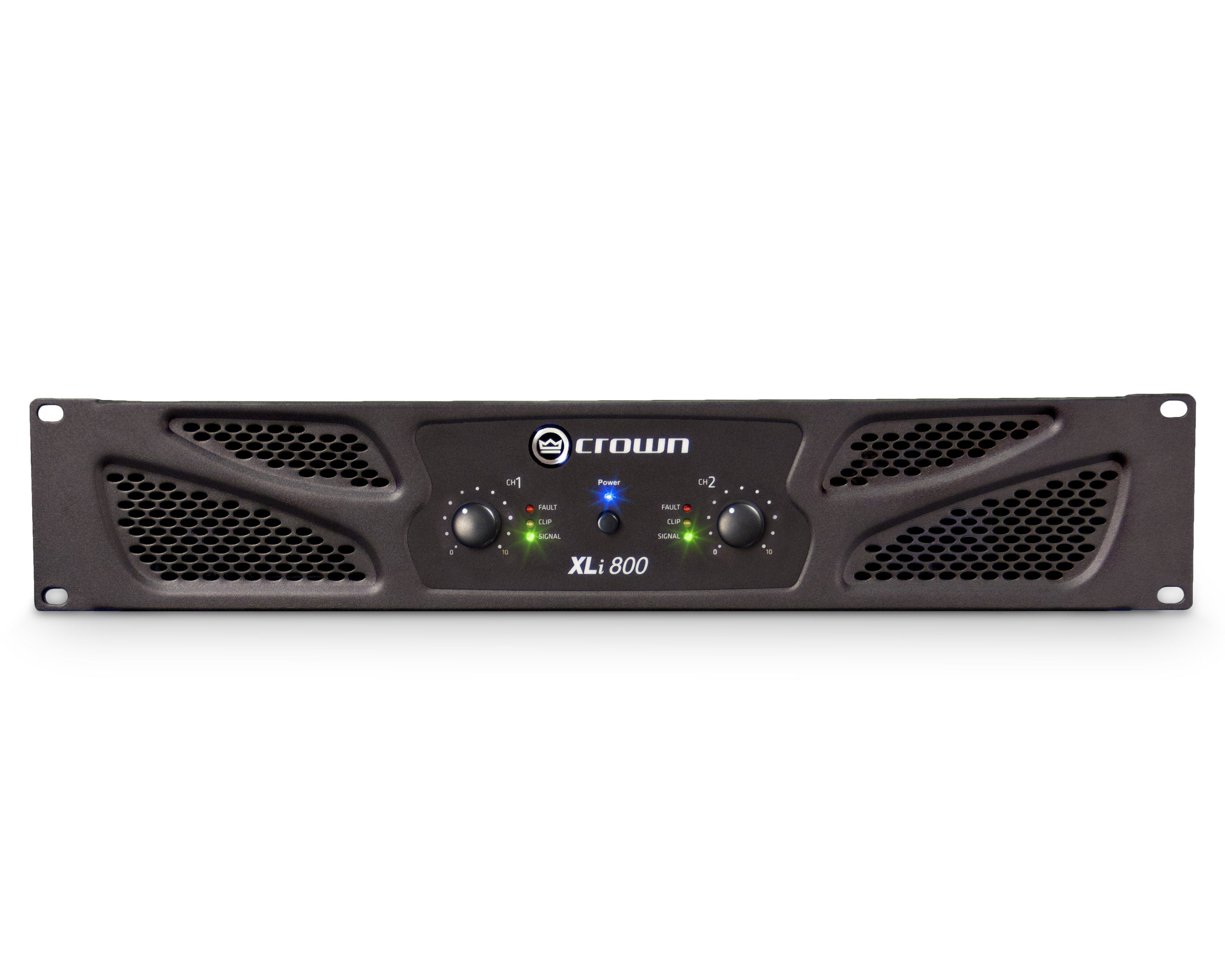

CROXLI800 - Crown XLi 800 Rugged Power Amp 2 x 300W @ 4ohm 2U Image 1

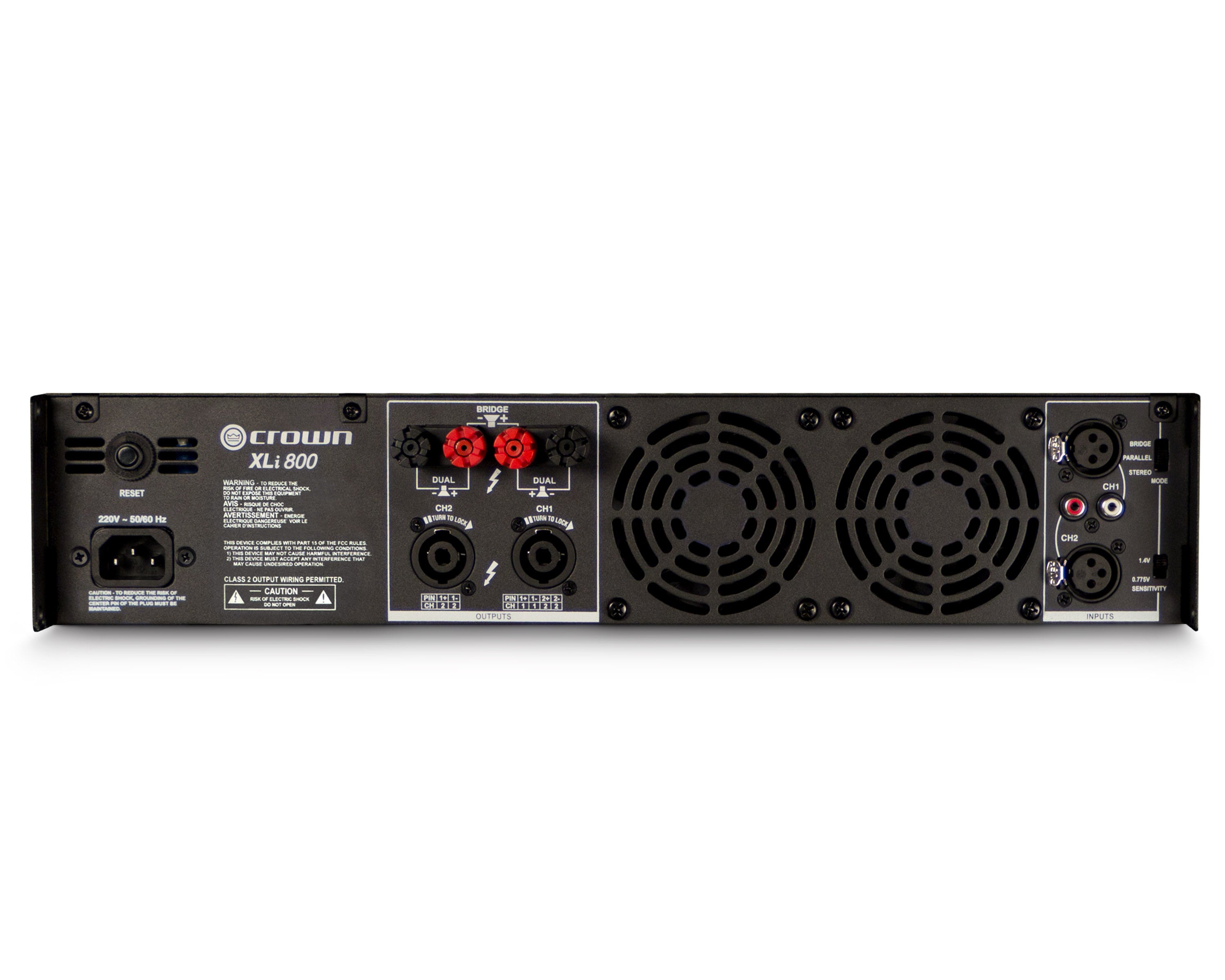

CROXLI800 - Crown XLi 800 Rugged Power Amp 2 x 300W @ 4ohm 2U Image 2

The XLI Series of power amplifiers from Crown represents a new era in affordable, quality power amplification. All four models in the series are powerful, rugged and reliable. They are suited for musicians, DJs, and entertainers as well as houses of worship, discos, and pubs.

The four models in the series are the XLi800, XLi1500, XLi2500 and XLi-3500. They are identical except for output power.

Features include RCA and XLR inputs, user selectable input sensitivity of 0.755V or 1.4V, Speakon and binding post outputs, stereo/parallel/bridge-mono mode, power/fault/signal presence/clip indicators, forced-air cooling; and protection against shorts, no-load, on/off thumps and radio-frequency interference.

With over six decades of experience designing and building rock-solid products, Crown is the standard in amplifier technology. So check out the affordable Crown XLI Series. They are a powerful argument for quality and value!

Product Features

Stereo/parallel/bridge-mono mode
User selectable input sensitivity - 0.775V and 1.4V
Electronically balanced RCA & XLR inputs; binding post and Speakon outputs
Efficient forced-air cooling prevents excessive thermal buildup
Two level controls, power switch, power LED, and six LEDs which indicate signal presence, clip and fault for each channel
Protection against shorts, no-load, on/off thumps and radio-frequency interference

Product Specifications

General

4-ohm Dual (per ch.): 300W
8-ohm Dual (per ch.): 200W
8-ohm Bridge-Mono: 600W
Channels: 2
Sensitivity (full rated power at 8 ohms): 0.775V or 1.4V
Signal to noise ratio (below rated power 20Hz to 20kHz, A-Weighted): >100dB
Total Harmonic Distortion (THD) (20Hz-20kHz): <0.5%
Inter Modulation Distortion (60Hz and 7kHz at 4:1 form full rated output to -40dB): =/<0.35%
Frequency response (at 1W, 20Hz-20kHz): 0dB, -1dB
Crosstalk (below rated power) (at 1kHz): -75dB, (at 20kHz): -59dB
Damping factor (from 10Hz to 400Hz at 8 ohms): >200
AC line voltage and frequency configurations (± 10%): (120VAC) 60Hz, (220VAC) 50/60Hz, (230-240VAC) 50/60Hz
