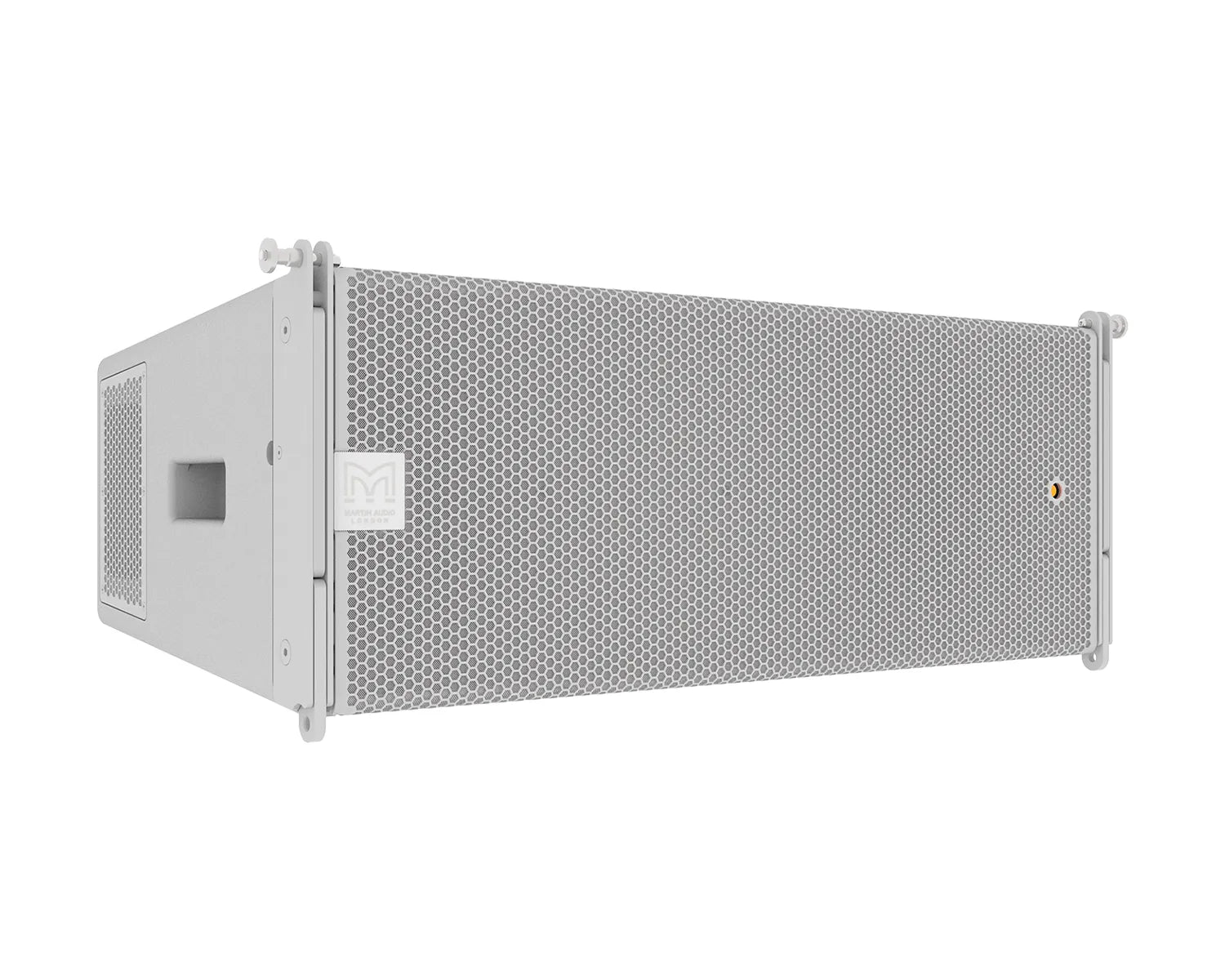

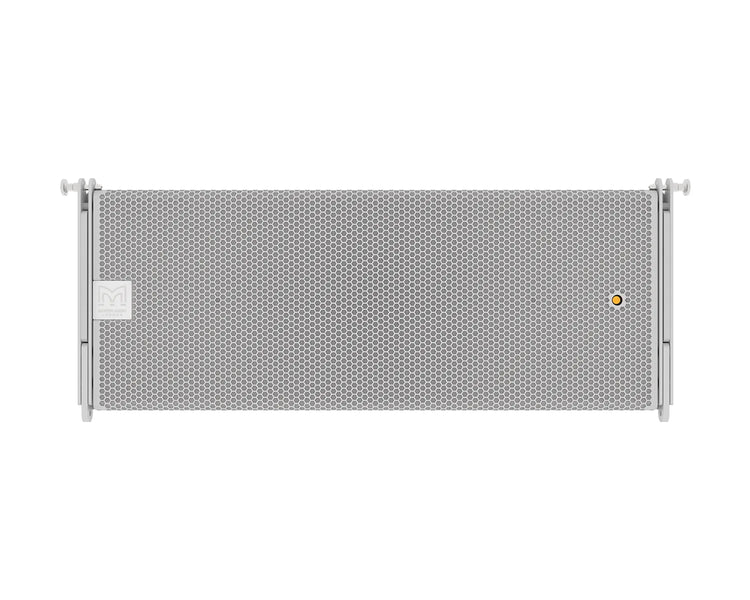

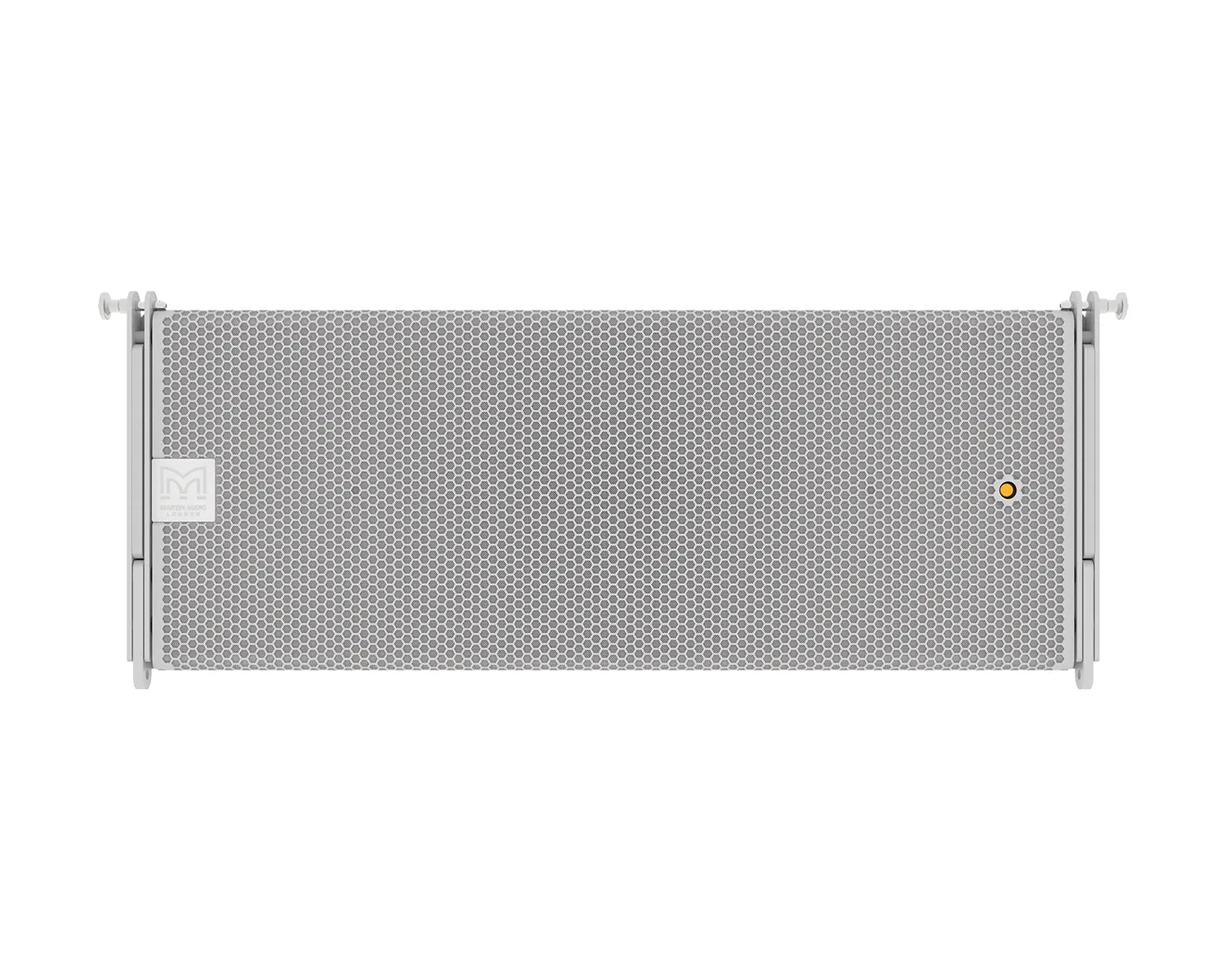

WPC is a medium-format, three-way bi-amped line array that delivers premium Wavefront Precision performance to a wider range of users, applications and budgets. Sitting at the heart of the series, WPC combines innovative horn-loaded acoustics, excellent output-to-weight ratio, and scalable resolution optimisation to give rental partners and integrators a system that punches far above its footprint.

From Q2 2026, WPC systems are designed to withstand tougher environmental conditions, feature LED circuit visibility, and enjoy blazing-fast DISPLAY 3 optimisation software with enhanced LF control.

Designed for tours, festivals, live venues, sports grounds, and large-scale corporate or House of Worship installations, WPC offers the control, consistency and projection normally associated with larger systems — but with the truck space, weight and budget profile of a compact array.

With a peak output of 135 dB (141 dB with crest factor 4) and the ability for a 12-box hang to project over 60 metres (200 ft) while delivering full rock-and-roll levels to a 5,000-seat audience, WPC is the definition of medium-format done right.

If fidelity, precision and ROI matters, this is the moment to choose WPC.

Product Features

• 3-way bi-amp, 2 x 10” compact line array
• Scalable resolution for advanced array control
• External, dedicated, multi-channel Class D amplification
• Industry-leading DISPLAY software interacts with DSP for highly-accurate results

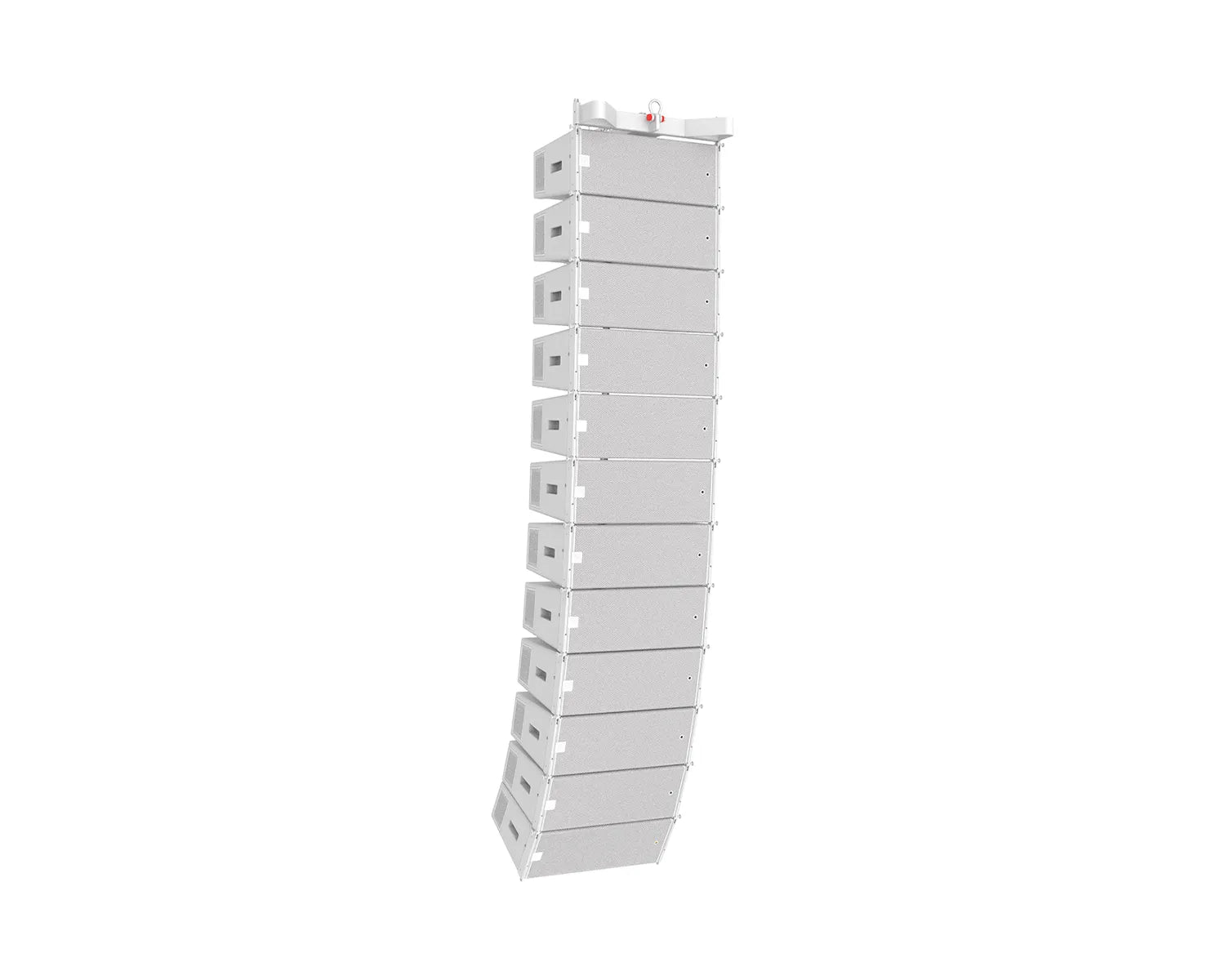

• Fast, integral 3-point flying systems for up to 16 enclosures
• Side and rear handles for ease of handling and setting splay angles
• 100° horizontal constant directivity pattern control

Product Specifications

• Type:  Three-way, bi-amp line array element
• Frequency Response:  65Hz-18kHz ± 3dB
• Drivers:
  • LF: 2 x10” (250mm)/2.5” (63mm) voice coil, long excursion, vented pole, neodymium magnet drivers, Hybrid® slot-horn loaded
  • MF: 2 x 5” (125mm)/1.5” (38mm) coil, neodymium magnet drivers, horn loaded
  • HF: 4 x 0.7” (19mm) exit neodymium magnet compression drivers, horn loaded
• System Amplifier:  iKON iK42
• System Resolution:  1 to 3 enclosures per pair of amplifier channels (Bi-amp)
• Rated Power:
  • LF: 500 W AES, 2000 W peak

  • MF/HF: 180 W AES, 720 W peak
• Maximum SPL:  135dB peak
• Nominal Impedance:  LF: 8 ohms, MF + HF: 8 ohms
• Dispersion:  100º horizontal (-6dB), 130º horizontal (-10dB), 10° vertical
• Crossover:  440Hz active, 4.4kHz internal passive
• Enclosure:  Vertical trapezoid with 5º wall angle, multi-laminate birch and poplar-ply construction
• Finish:  Black or white hardwearing paint
• Protective Grille:  Black or white HEX perforated steel with network LED
• Environmental Testing:
  • IP 54
  • MIL-STD-810H
  • ISO 4892-2 Solar Radiation
  • ISO 12944-6 Category C3 Corrosion resistance
• Connectors:  2 x NL4 type
• Pin Connections:  LF: 1+/1-, MF + HF: 2+/2-
• Fittings:
  • 3-point rigging system
  • 2 x side pocket handles
  • 2 x rear grip handles
• Flown Array Maximum:  16 enclosures in single array
• Dimensions:  (W) 772mm x (H) 319mm x (D) 421mm
• Weight:  35kg
