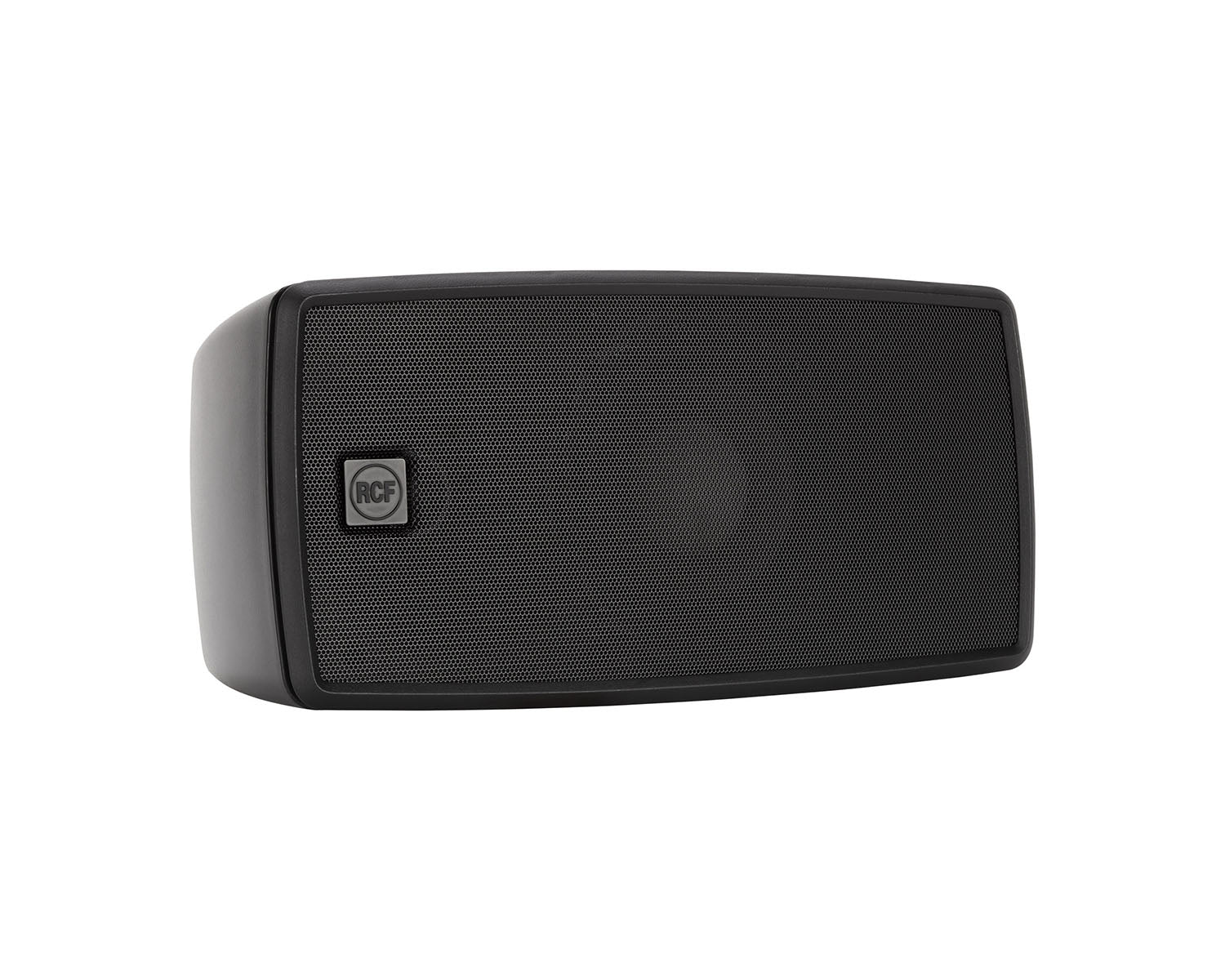

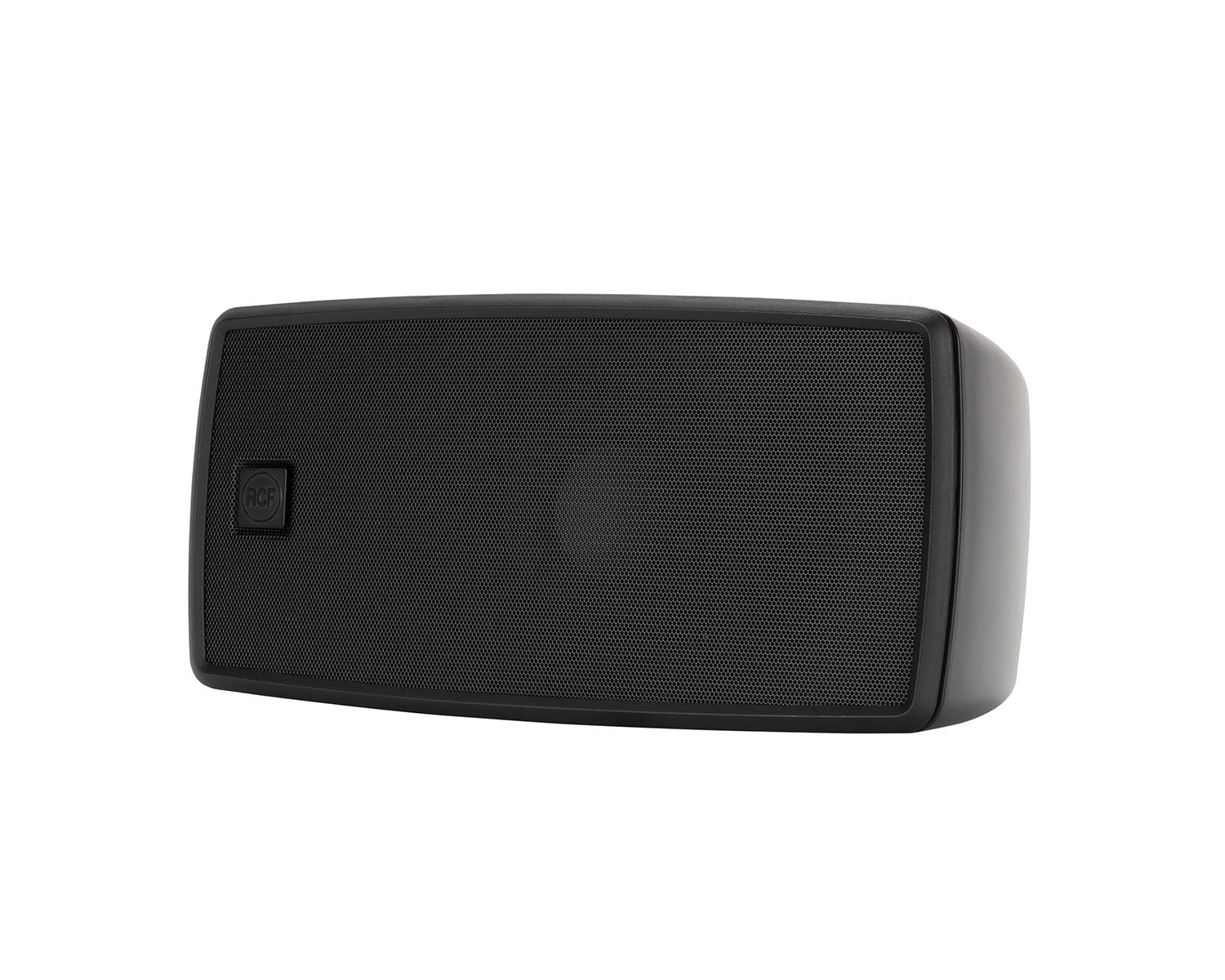

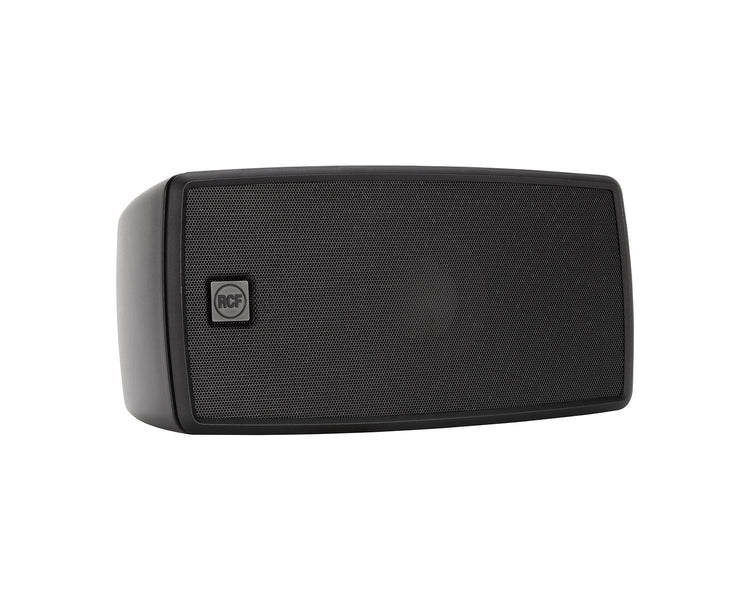

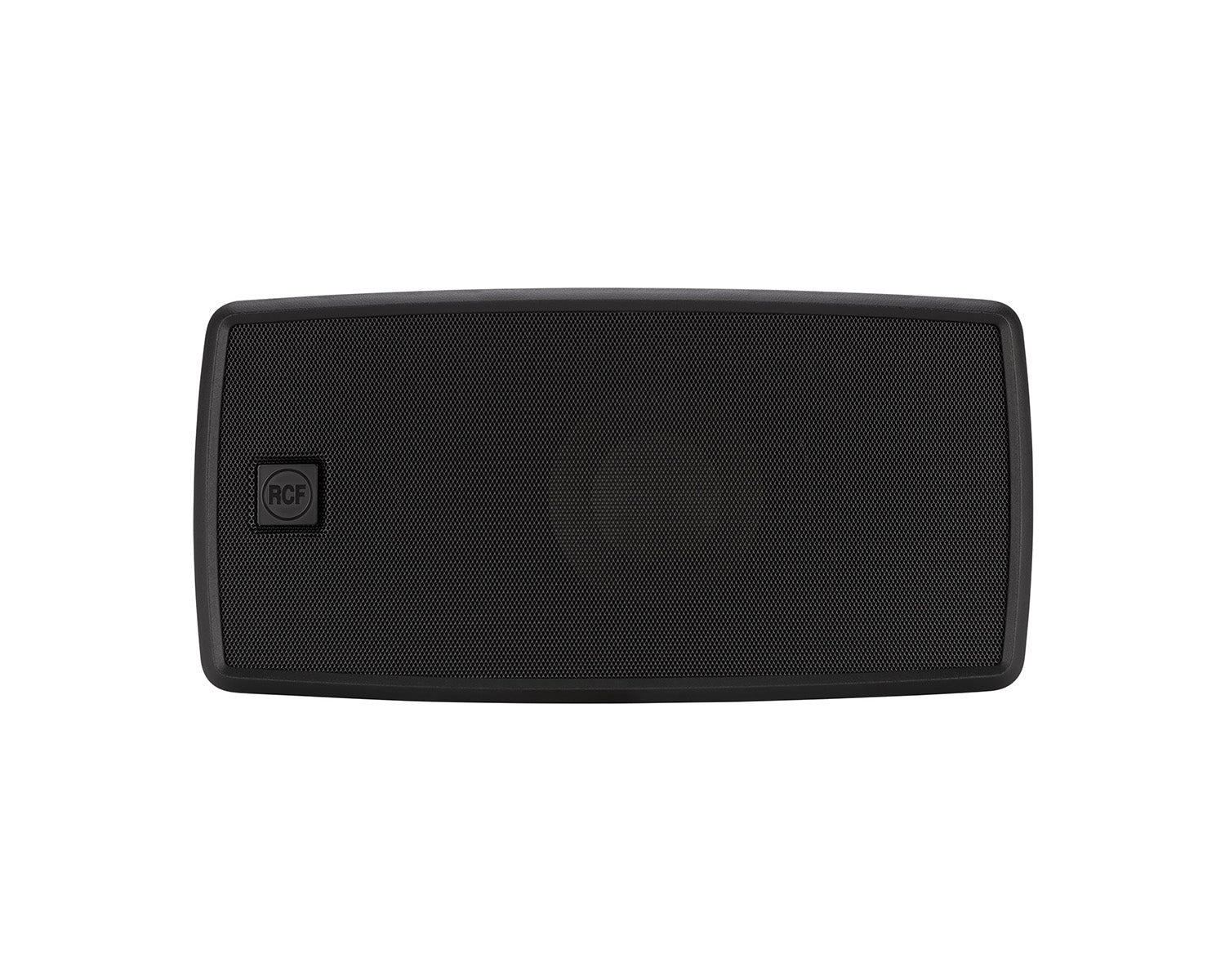

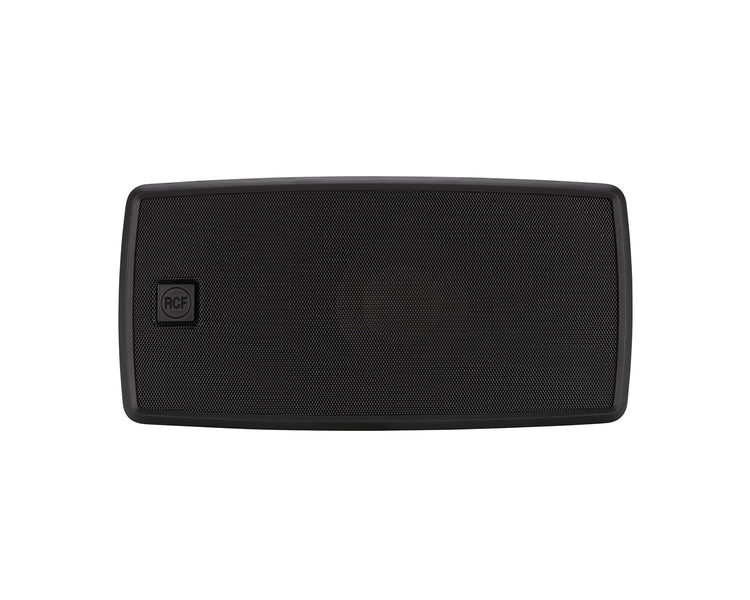

WMR 50T is a multipurpose two-way wall-mounted speaker, suitable for a wide range of applications. Thanks to its elegant and discreet design and accurate details, WMR 50T pairs any building aesthetic. The high-quality transducers guarantee a precise music reproduction of the entire frequency band and provide impressive sound pressure levels for such a compact enclosure. The installation is easy thanks to the dedicated connection board inside the (included) wall mount support, which allows the installer to set the desired tilt first, fix the speaker, and finally quickly connect it without the need for any tooling.

Product Features

• 40W RMS power handling
• 110 dB max SPL
• 80 ÷ 20000 Hz frequency range
• 140° x 100° constant directivity coverage angle
• 5" high power woofer
• 1" neodymium dome tweeter
• Self-extinguishing plastic cabinet and steel front grille

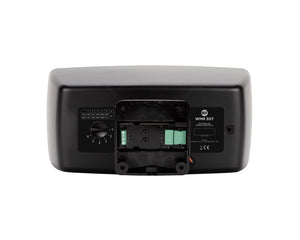

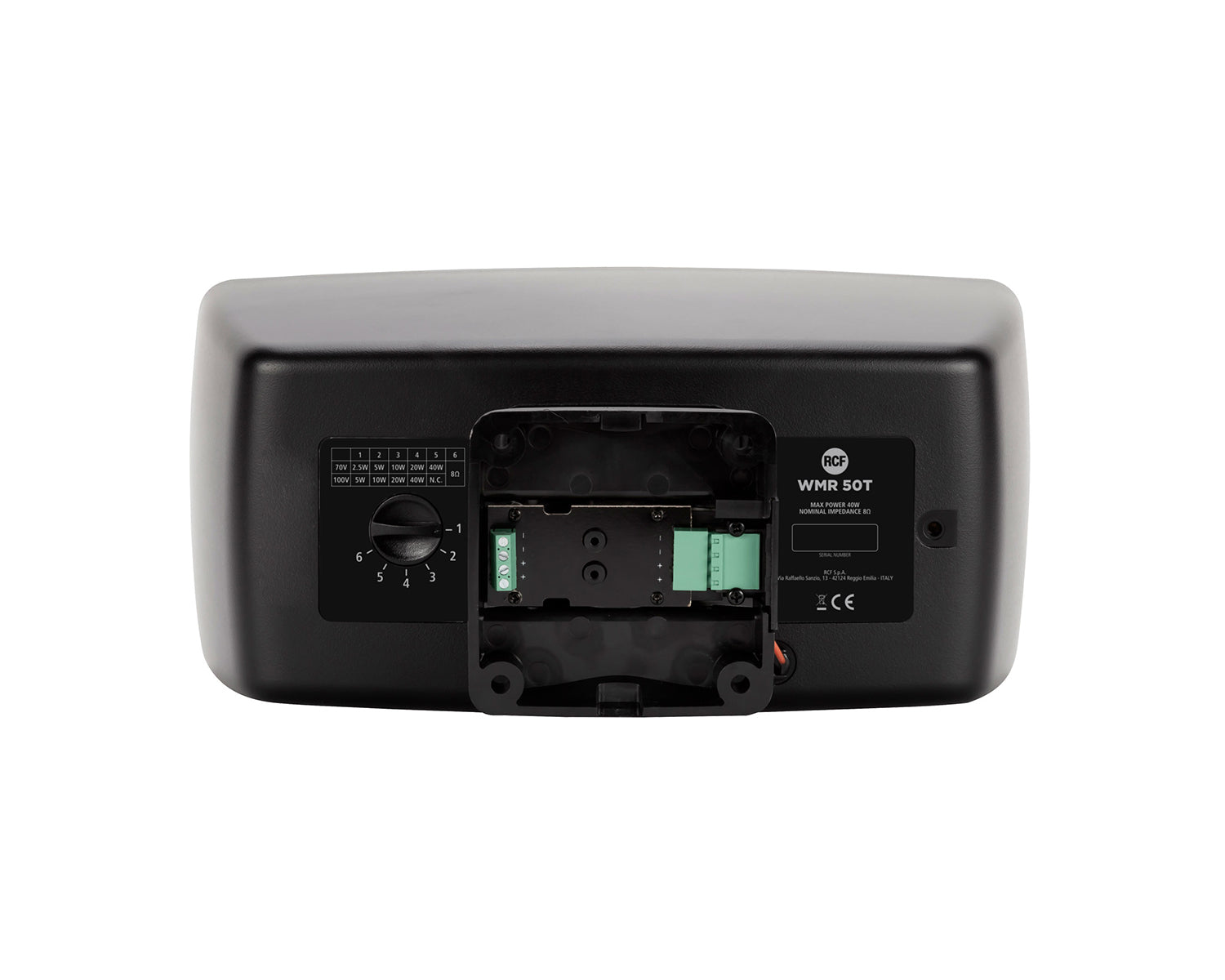

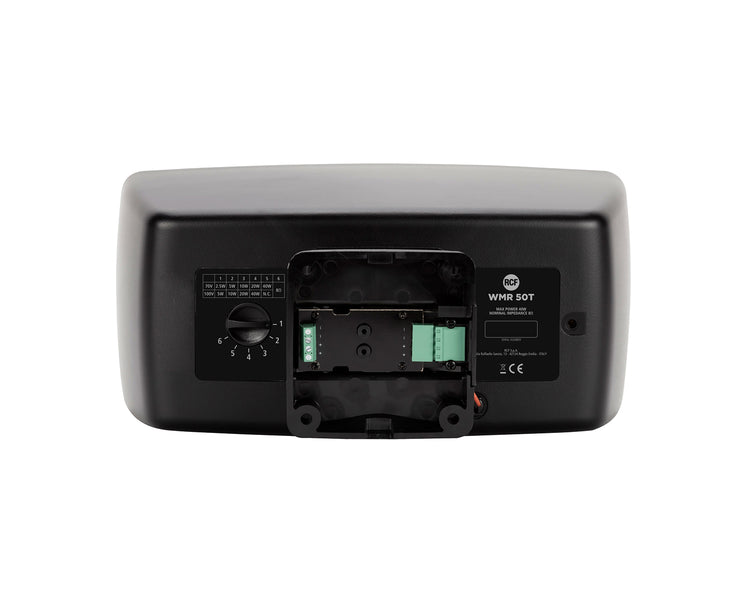

• Connection board integrated into the wall support
• 4 pole EUROBLOCK connector (audio input and parallel link output)
• 5 different power levels selectable

Product Specifications

Acoustical specifications

• Frequency Response (-10dB): 80 Hz ÷ 20000 Hz
• Max SPL @ 1m: 110 dB
• Horizontal coverage angle: 140°
• Vertical coverage angle: 100°
• System Sensitivity: 88 dB

Power section

• Amplification: Full Range
• Nominal Impedance: 8 ohm
• Power Handling: 40 W RMS
• Peak Power Handling: 160 W PEAK
• Recommended Amplifier: 80 W
• Protections: Bulb lamp
• Crossover Frequencies: 2500

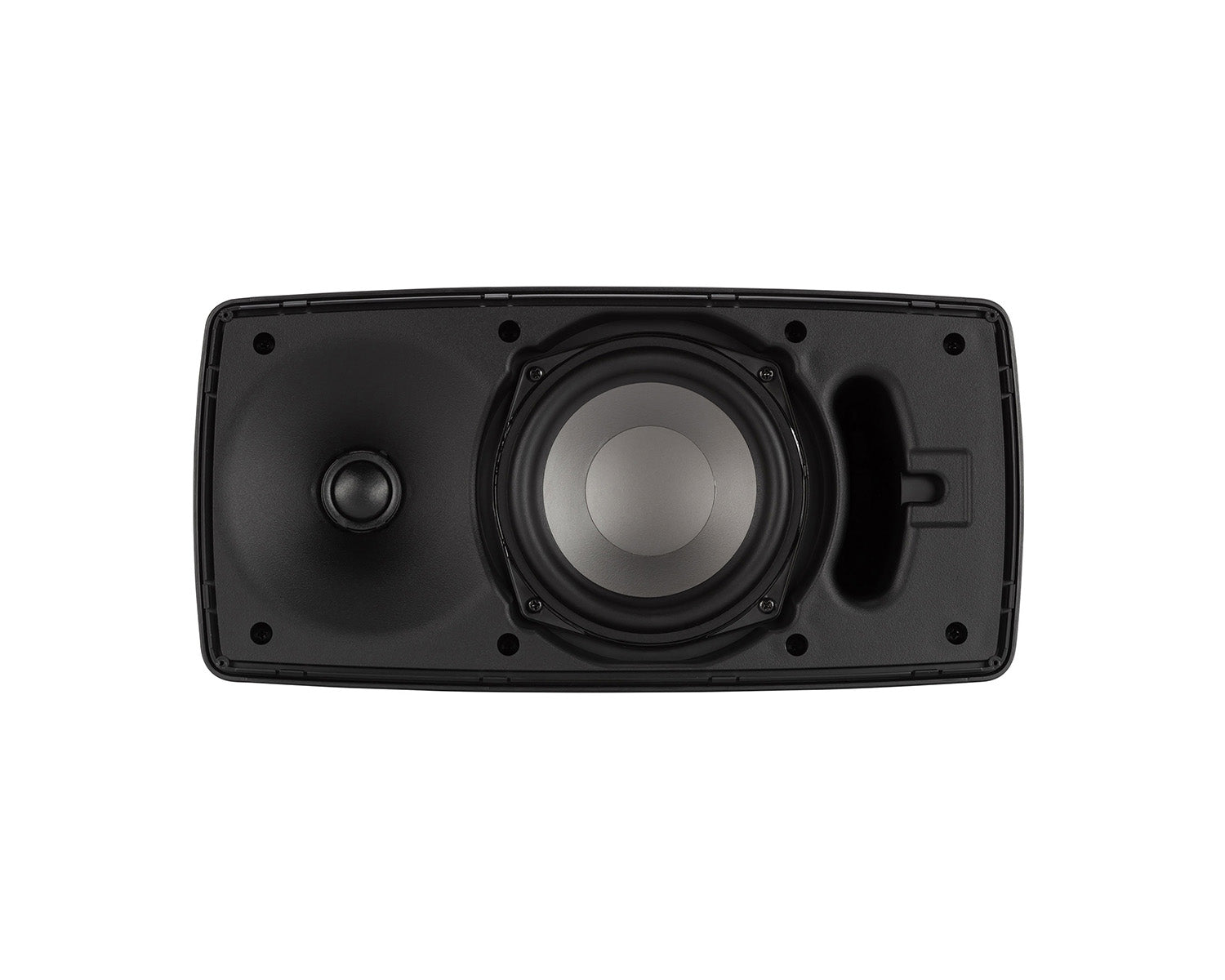

Transducers

• Dome Tweeter: 1.0\'\' neo, 1.0\'\' v.c
• Woofer: 5.0\'\', 1.0\'\' v.c

Input/Output section

• Input connectors: Euroblock
• Output connectors: Euroblock
• Constant Voltage Transformer: 70/100 V
• Power selection 1: 40 W - 250 ohm
• Power selection 2: 20 W - 500 ohm
• Power selection 3: 10 W - 1000 ohm
• Power selection 4: 5 W - 2000 ohm
• Power selection 5: 2.5 W - 4000 ohm

Standard compliance

• CE marking: Yes

Physical specifications

• Cabinet/Case Material: ABS

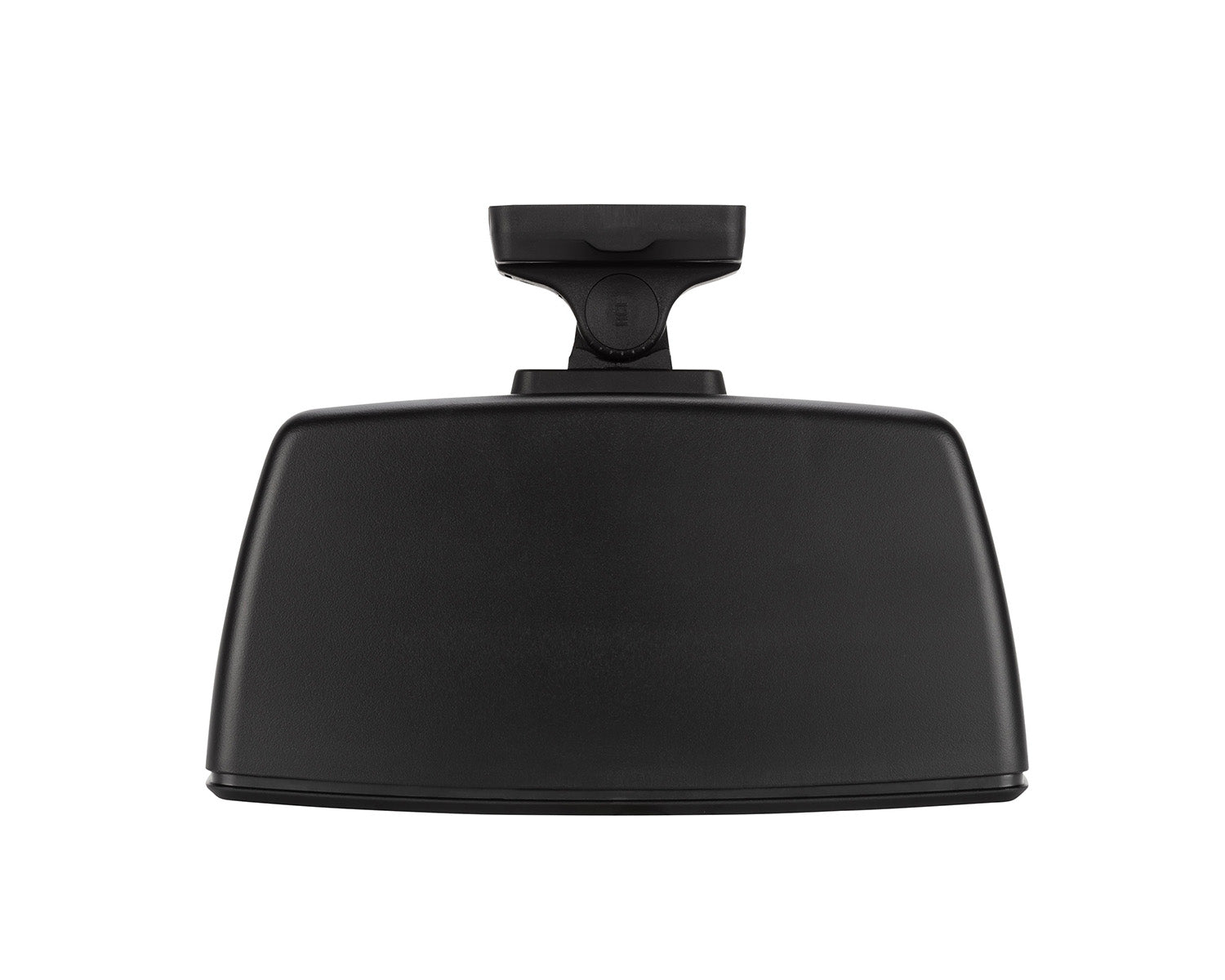

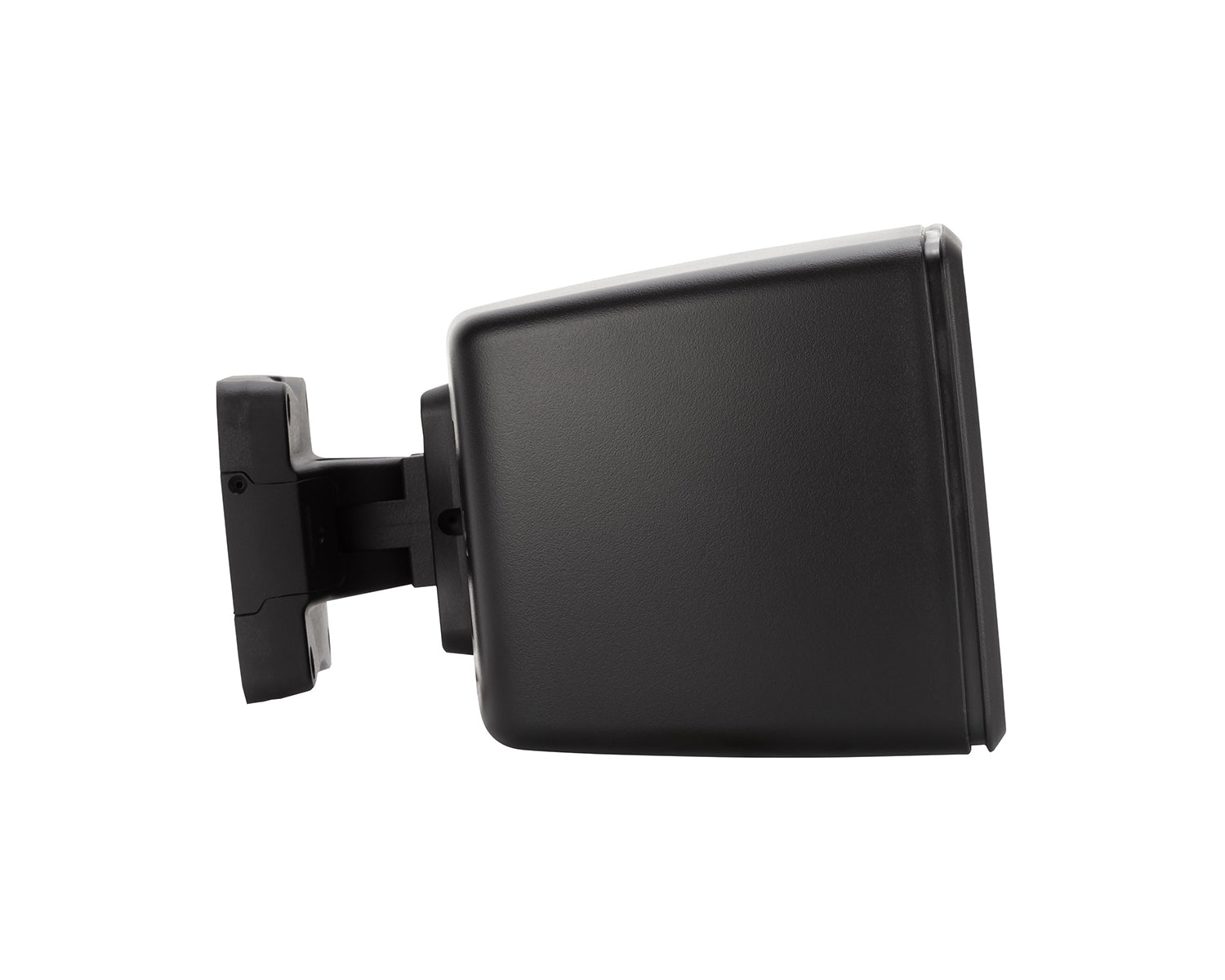

• Hardware: Wall mount bracket
• Grille: Steel
• Colour: Black - RAL 9005

Physical & Dimensions

• Height: 349 mm / 13.74 inches
• Width: 170 mm / 6.69 inches
• Depth: 253 mm / 9.96 inches
• Weight: 4.2 kg / 9.26 lbs
