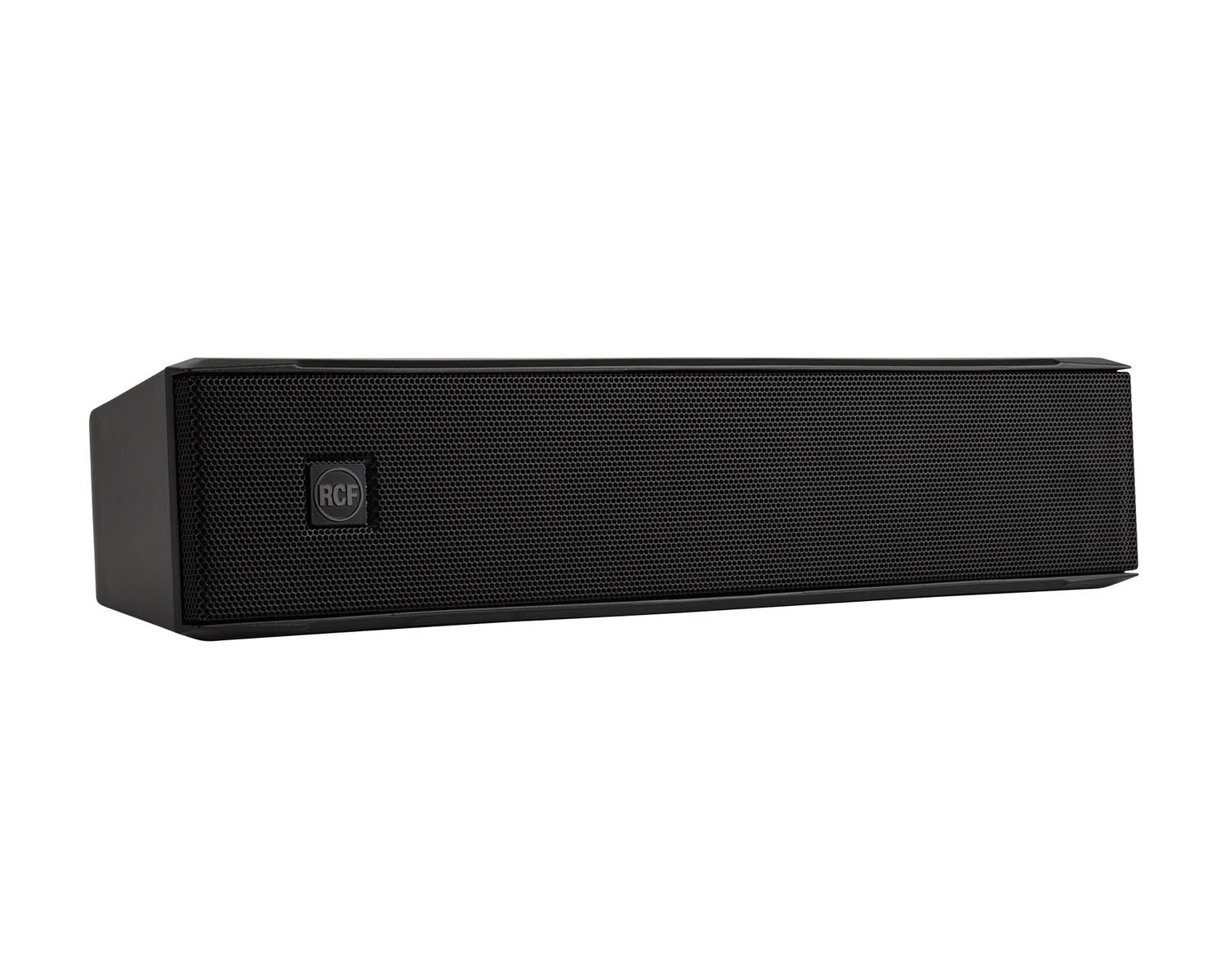

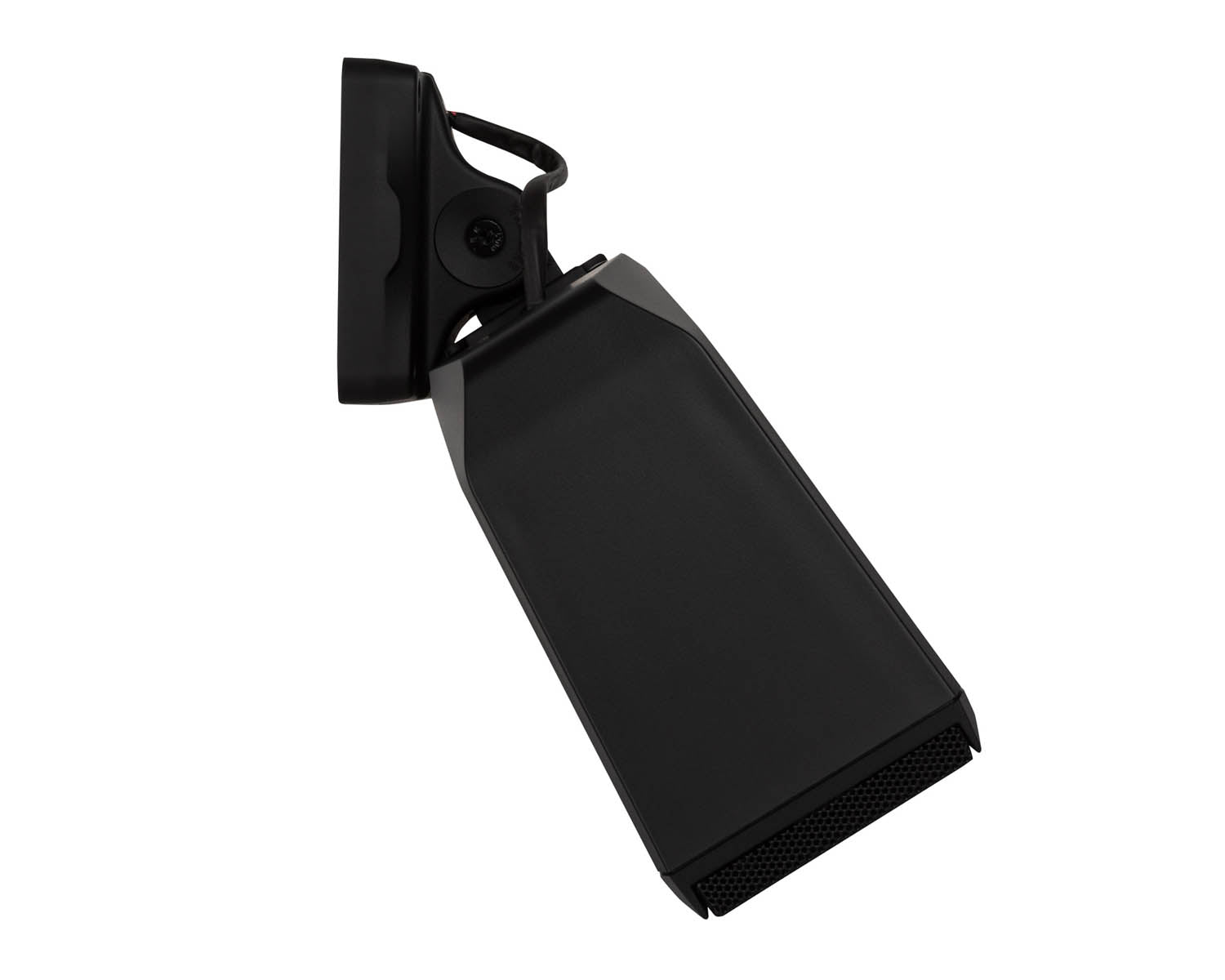

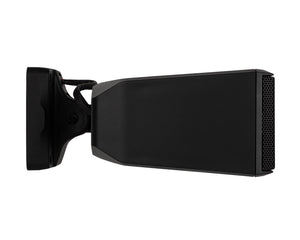

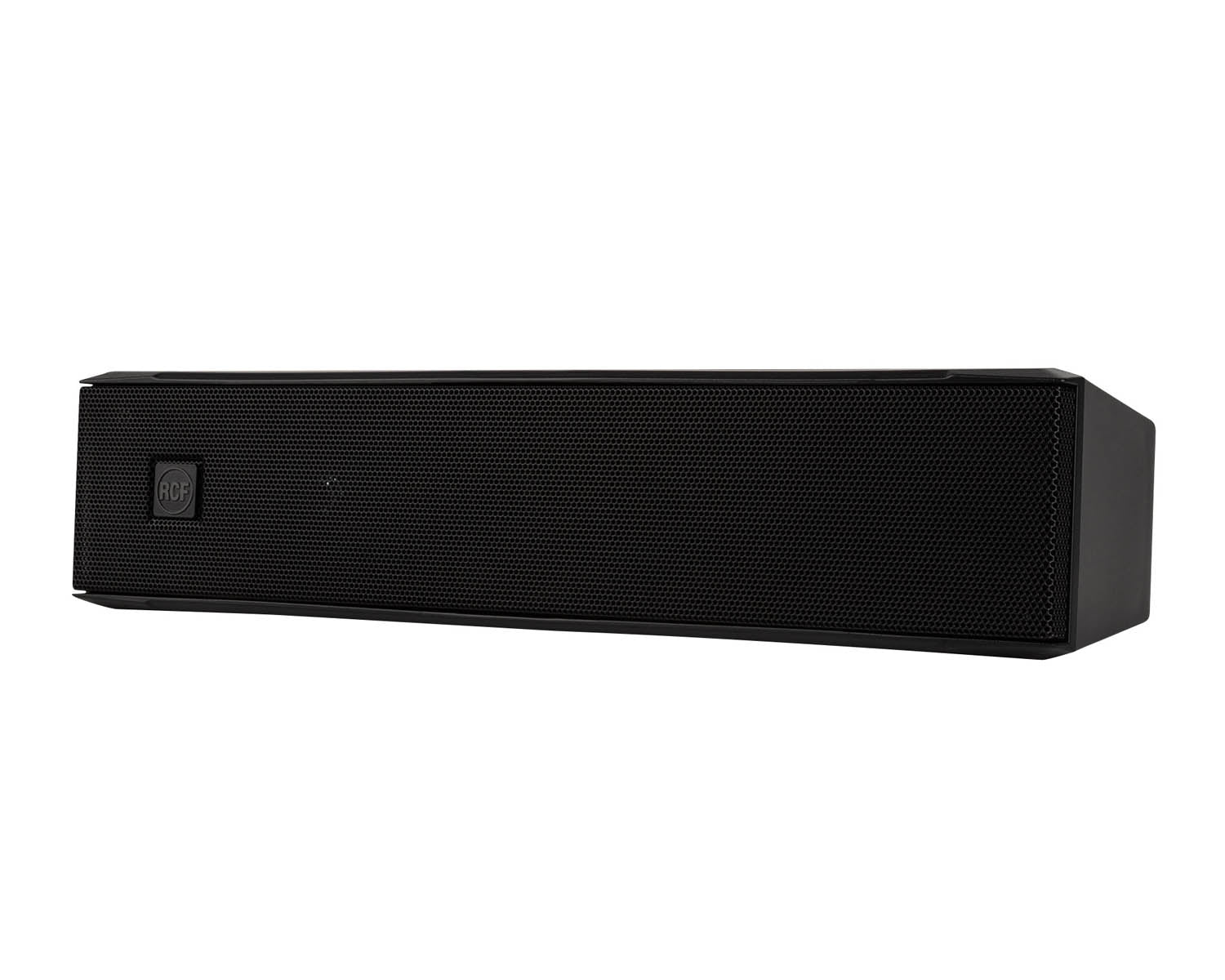

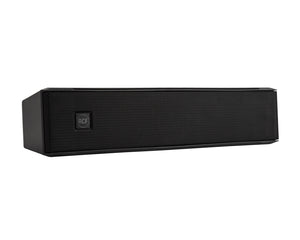

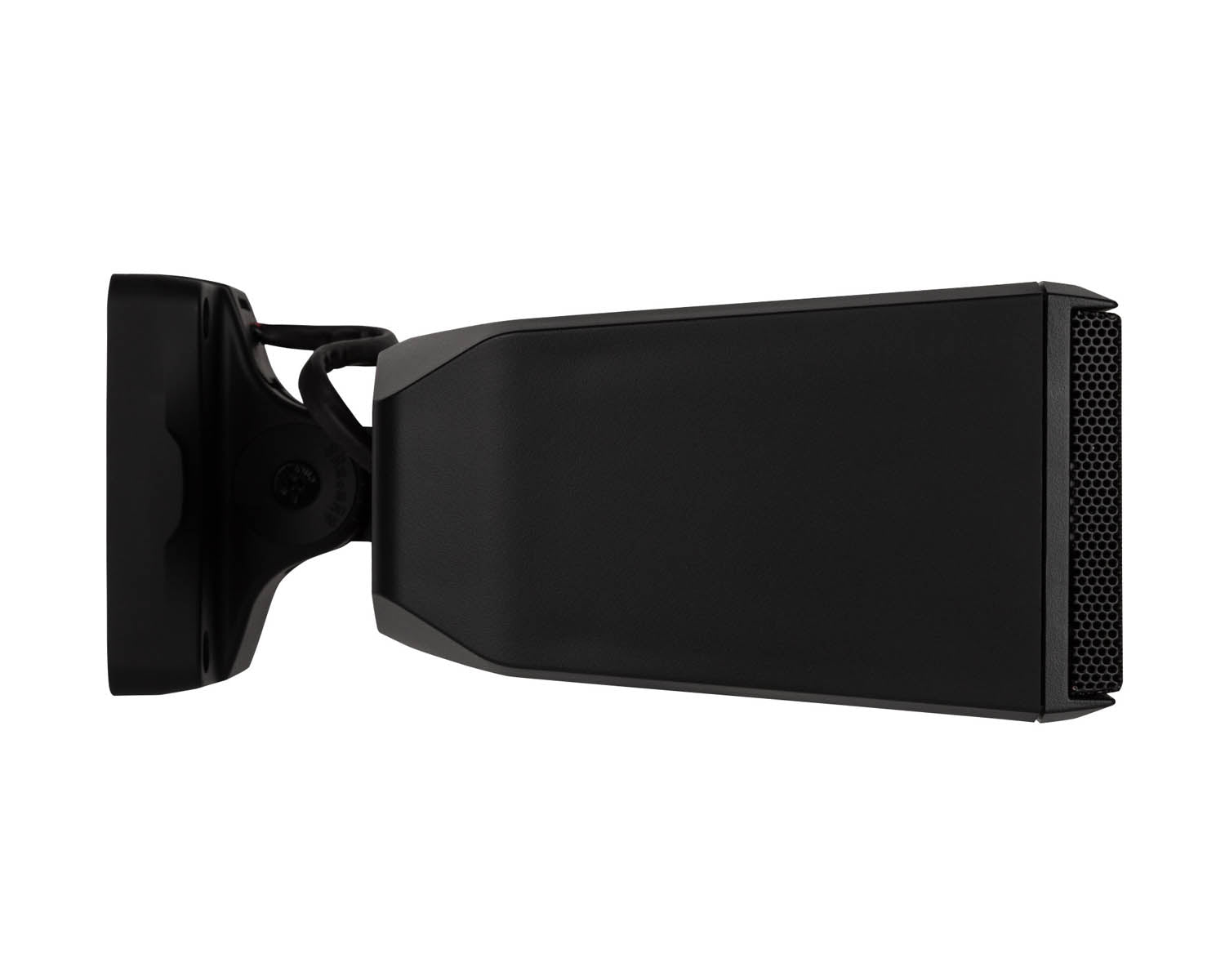

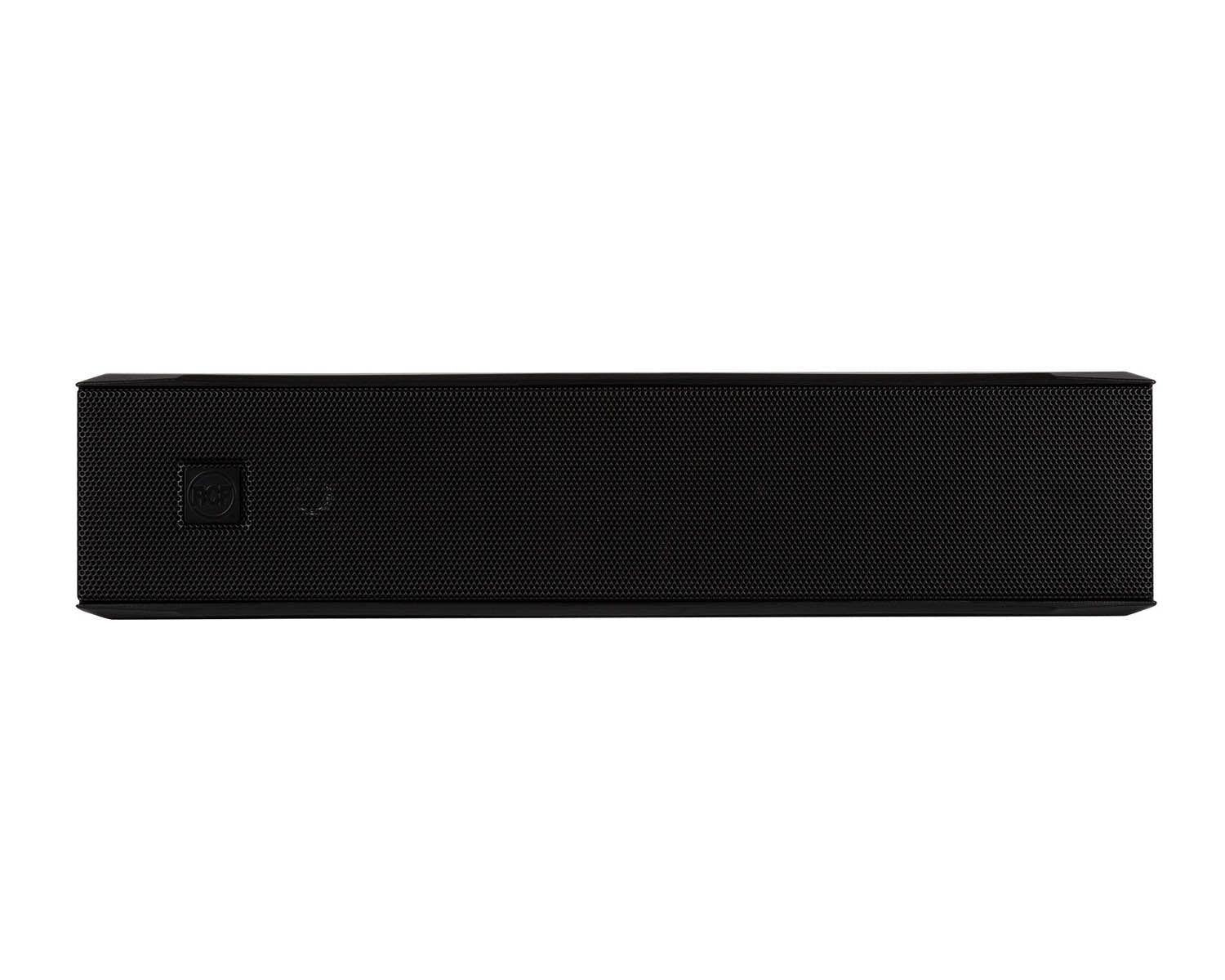

WMF 33EN is a two-way wall mount speaker designed for both horizontal and vertical installation. It is especially suitable for broadcasting background music into commercial spaces, but also alarm messages thanks to the highly intelligible voice reproduction and the EN 54-24 certification. It features a plastic cabinet with steel magnetic grille and is extremely easy to install thanks to its smart support system. The terminal connection blocks, for input and output flameproof cables, are made of ceramic material. A thermal fuse protects the integrity of the line in case of heat affecting the speaker.

Product Features

• 2-Way Passive Wall Mount Loudspeaker

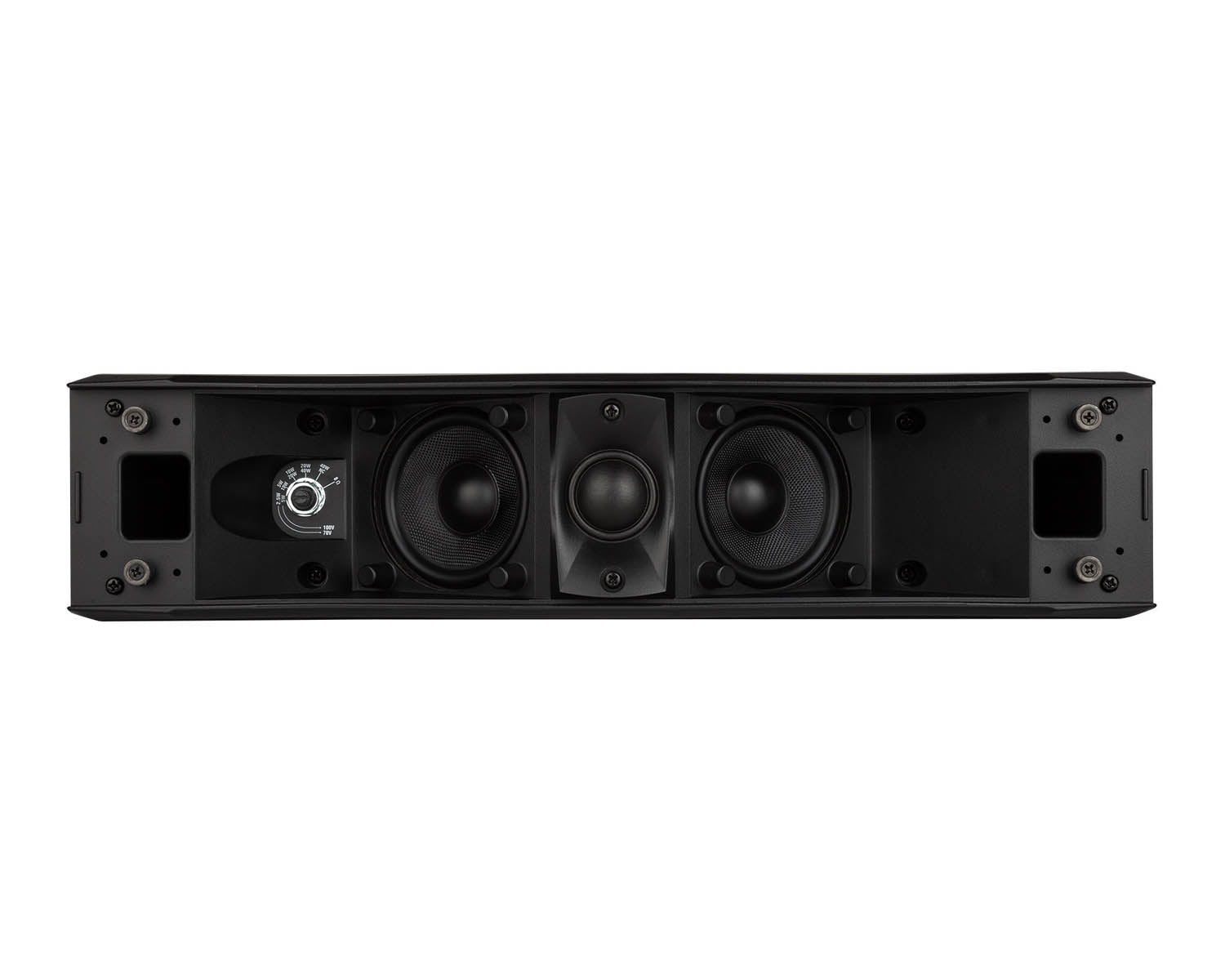

• 2 x 3" full-range transducers with 1" dome tweeter

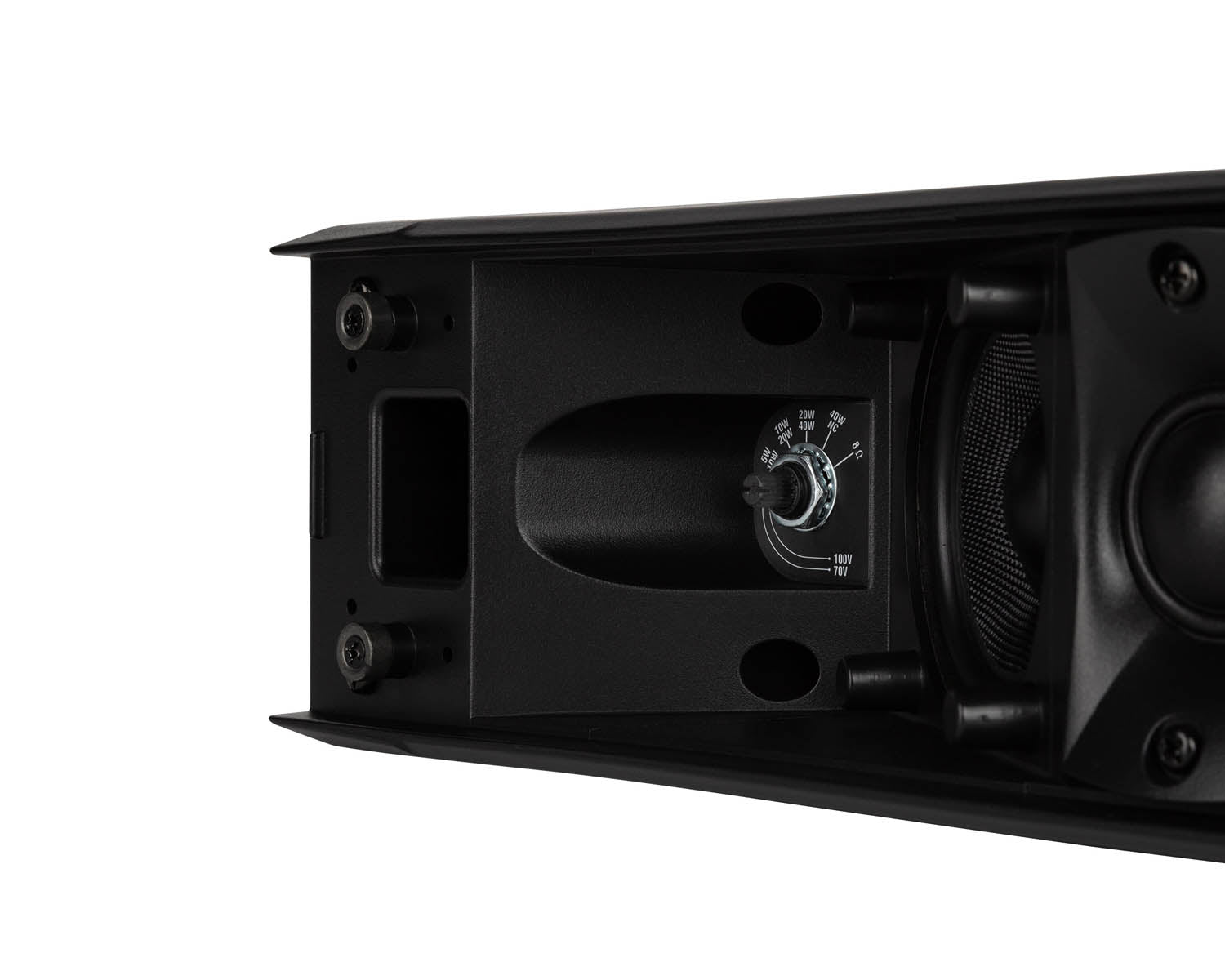

• Power selectable (70 V / 100 V): 40 W – 20 W – 10 W – 5 W – 2.5 W
• 88 dB sensitivity
• Colour: black RAL 9005
• Flameproof ABS body, steel grille
• In/out ceramic terminal block
• Thermal fuse protection

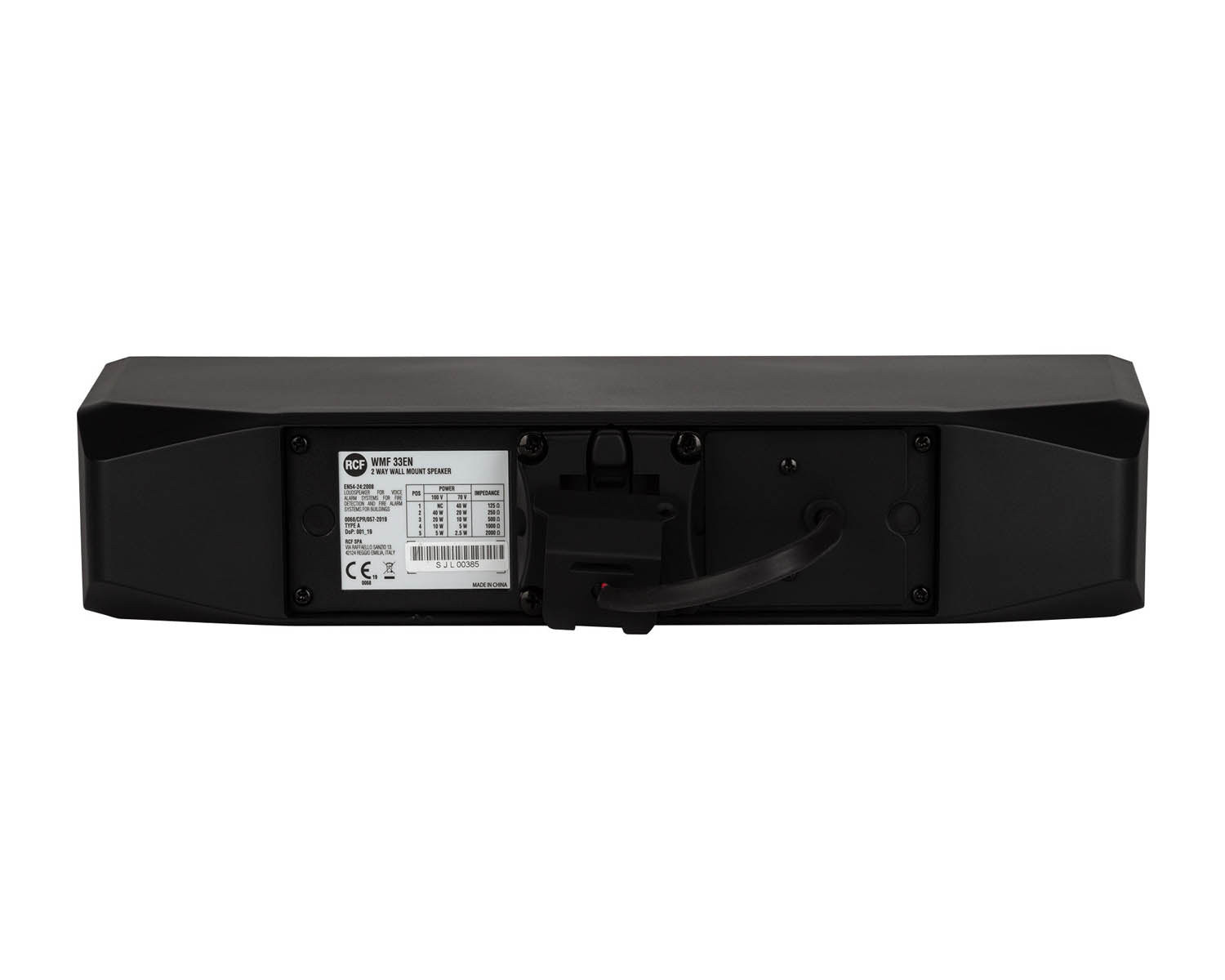

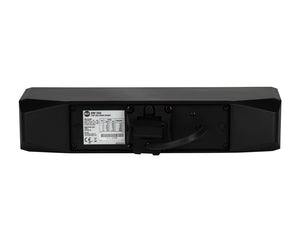

• Connections integrated in the wall support

Product Specifications

Acoustical specifications

• Frequency Response (-10dB): 80 Hz ÷ 22000 Hz
• Max SPL @ 1m: 105 dB
• Max SPL @ 4m: 93 dB
• Horizontal coverage angle: 100°
• Vertical coverage angle: 160°
• System Sensitivity: 88 dB
• System Sensitivity 1W @ 4m: 76 dB

Power section

• Nominal Impedance (ohm): 8 ohm
• Power Handling: 40 W RMS
• Peak Power Handling: 160 W PEAK
• Recommended Amplifier: 80 W
• Protections: Thermal fuse - PTC
• Crossover Frequencies: 2500

Transducers

• Dome Tweeter: 1.0\'\' neo, 1.0\'\' v.c
• Nominal Impedance (ohm): 8 ohm
• Input Power Rating: 15 W AES, 30 W PROGRAM POWER
• Sensitivity: 90 dB, 1W @ 1m
• Woofer: 2 x 3.0\'\', 1.0\'\' v.c
• Nominal Impedance (ohm): 16 ohm
• Input Power Rating: 20 W AES, 40 W PROGRAM POWER
• Sensitivity: 85 dB, 1W @ 1m

Input/Output section

• Input connectors: Ceramic screw terminals
• Output connectors: Ceramic screw terminals
• Constant Voltage Transformer: 70/100 V
• Power selection 1: 40 W - 250 ohm
• Power selection 2: 20 W - 500 ohm
• Power selection 3: 10 W - 1000 ohm
• Power selection 4: 5 W - 2000 ohm
• Power selection 5: 2.5 W - 4000 ohm

Standard compliance

• EN54-24 certified: Yes
• CE marking: Yes
• CPR number: 0068/CPR/057-2019

Physical specifications

• Cabinet/Case Material: ABS
• Hardware: Wall mount bracket
• Grille: Steel
• Color: Black - RAL 9005

Size

• Height: 399 mm / 15.71 inches
• Width: 92 mm / 3.62 inches
• Depth: 236 mm / 9.29 inches
• Weight: 5 kg / 11.02 lbs

Shipping information

• Package Height: 186 mm / 7.32 inches
• Package Width: 596 mm / 23.46 inches
• Package Depth: 276 mm / 10.87 inches
• Package Weight: 7 kg / 15.43 lbs
