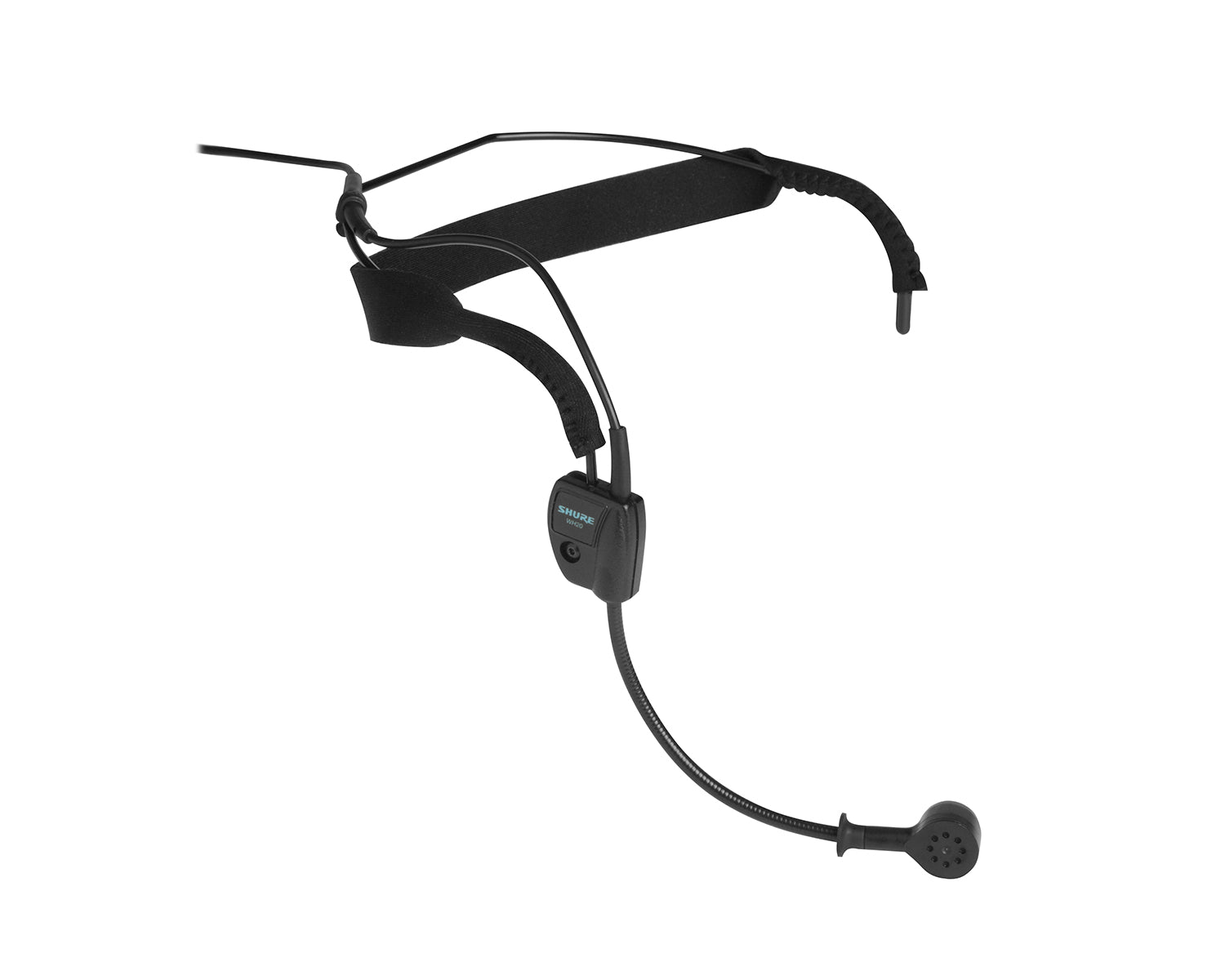

The Shure Model WH20 is a rugged, light-weight, cardioid dynamic headset microphone that provides high-quality voice pickup. It fits securely for active microphone users, such as aerobics instructors and musicians, or for any voice communications application where comfort and reliability are required. An integrated elastic headband secures the headset comfortably. The headband, wireframe, and gooseneck are adjustable to accommodate any head size or shape. The WH20 is supplied with a foam windscreen and clothing clip.

The cardioid (unidirectional) pickup pattern provides greater gain-before-feedback and isolation from ambient noise and other unwanted sound sources. A carefully shaped frequency response includes a voice-frequency presence peak and a low-frequency roll-off to compensate for the proximity effect inherent in cardioid mics during close-talk operation.

Product Features

• Three-pin male XLR connector with a convenient detachable belt clip
• Lightweight wireframe and elastic headband adjust for a secure, comfortable fit
• Extra-strong, small-diameter attached microphone cable resists breakage
• Collapsible microphone boom for easy storage and transportation
• Smooth, natural frequency response comparable to high-quality dynamic hand-held vocal microphones
• High input clipping level eliminates overload distortion
• Reliable at temperature and humidity extremes
• Supplied foam windscreen and clothing clip

Product Specifications

• Type: Dynamic (moving coil)
• Frequency Response: 50 to 15,000 Hz
• Polar Pattern: Cardioid
• Output Impedance: EIA rated at150 Ω (200 Ωactual)
• Output Configuration: −67.0 dBV/Pa(0.45minimum)
• Sensitivity (at 1 kHz,open circuit voltage): 38.4 dB SPL
• Polarity: Positive pressure on diaphragm produces positive voltage on pin 2 with respect to pin 3
• Weight: Net: 0.63 kg (0.137 lbs)
• Connector: 3-pin male XLR
• Environmental Conditions: Operating Temperature: 18 to 60° C (0 to 140° F ) Storage Temperature: -29 to 74° C ( -29 to 165° F ) Relative Humidity: 0 to 95%

What's in the Box?

• 1 x RK318WS Black Windscreens
• 2 x Clothing Clip
• 1 x RK200BC Connector Belt Clip
