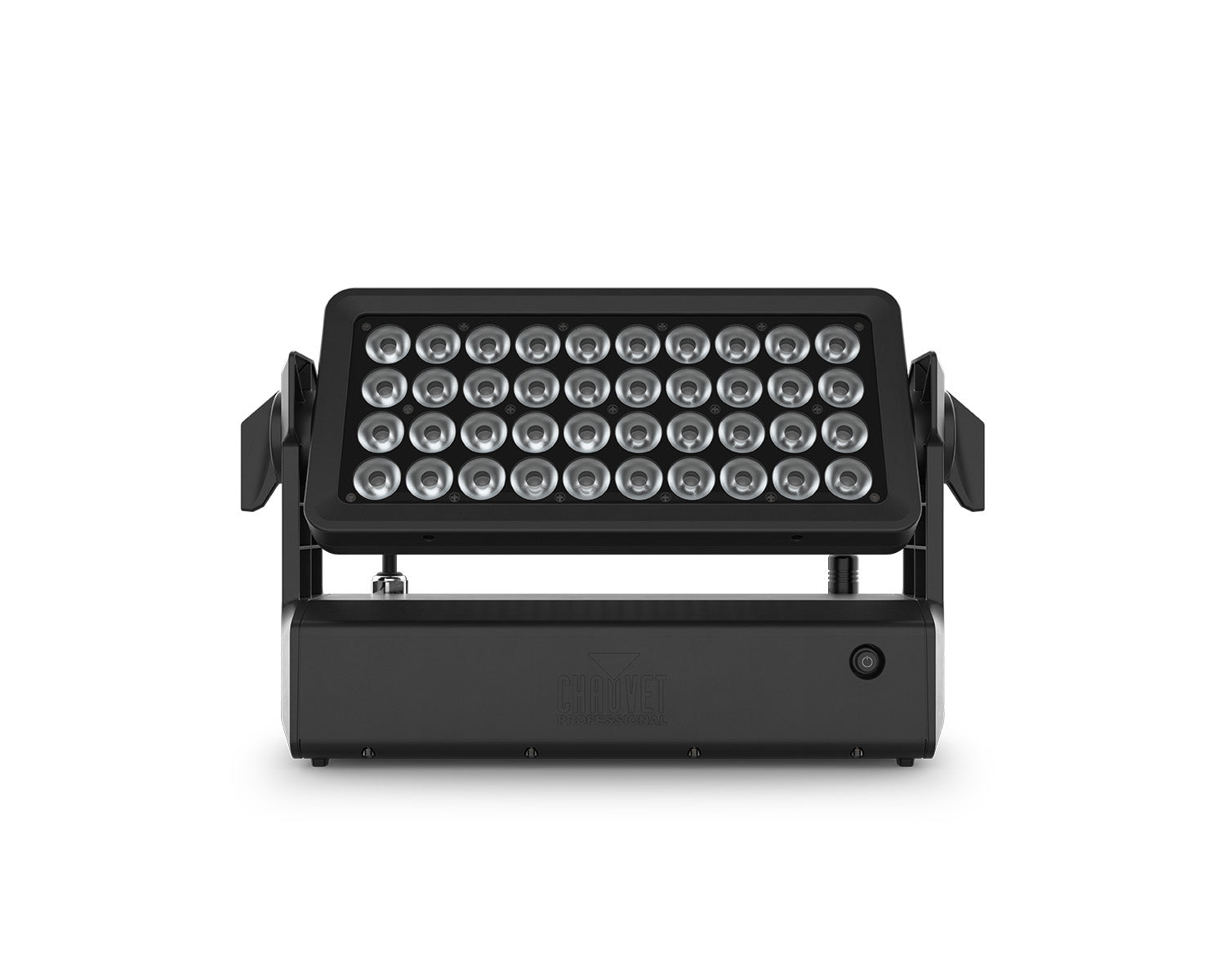

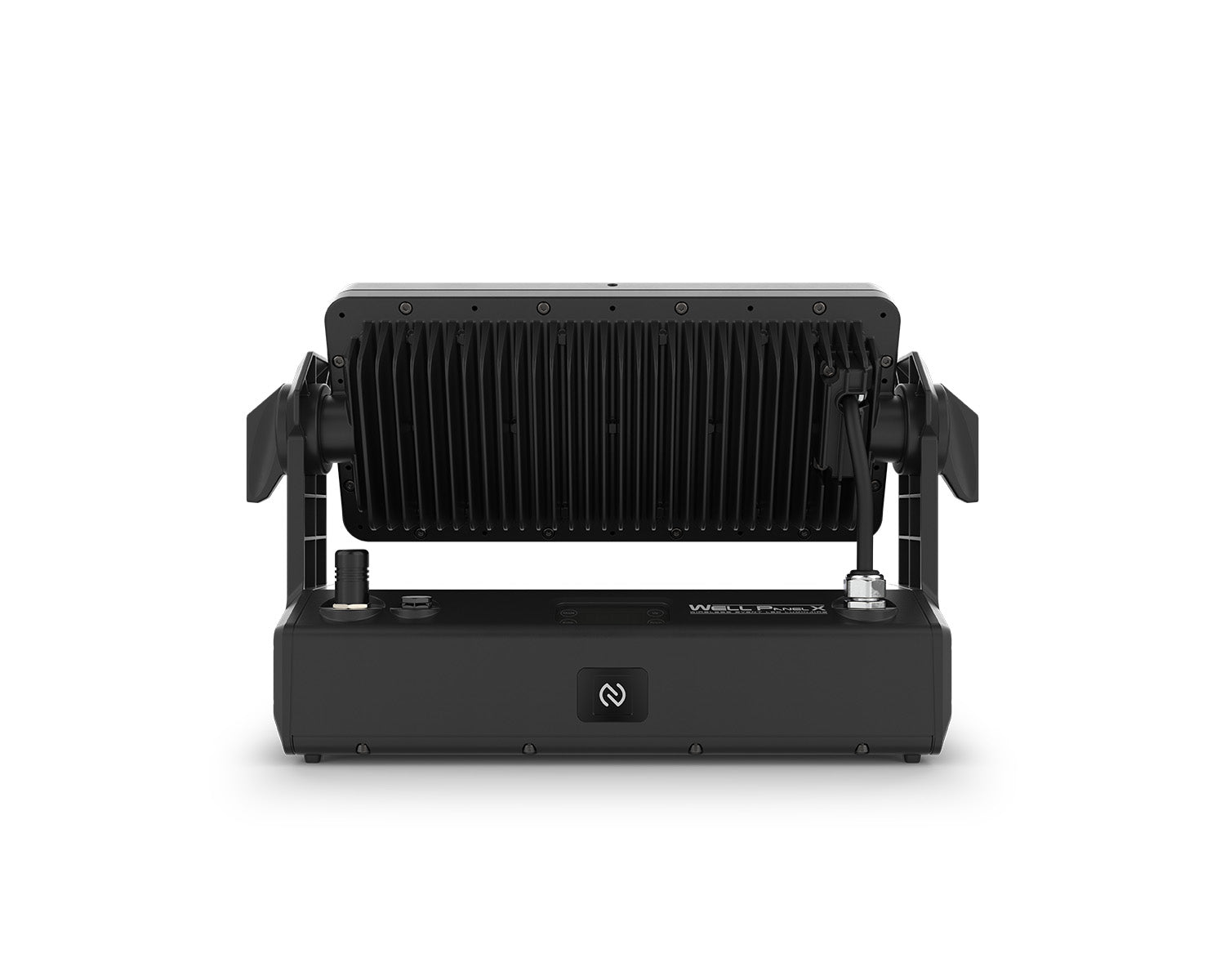

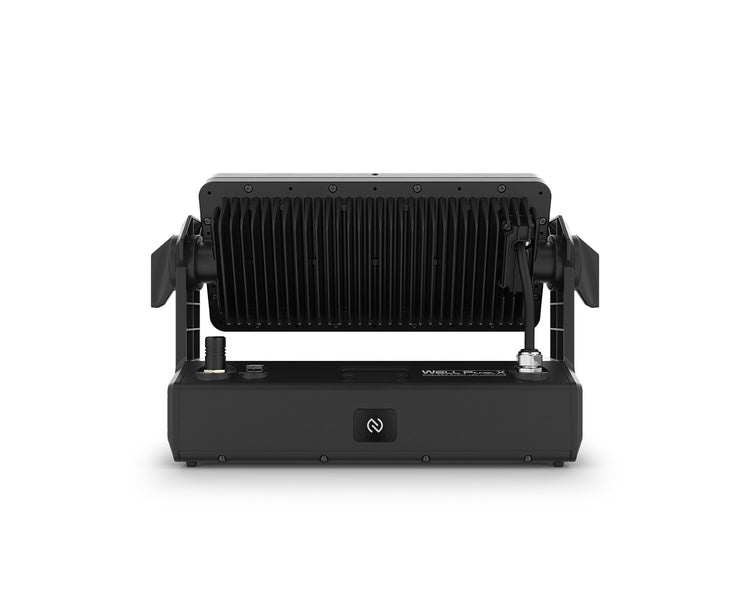

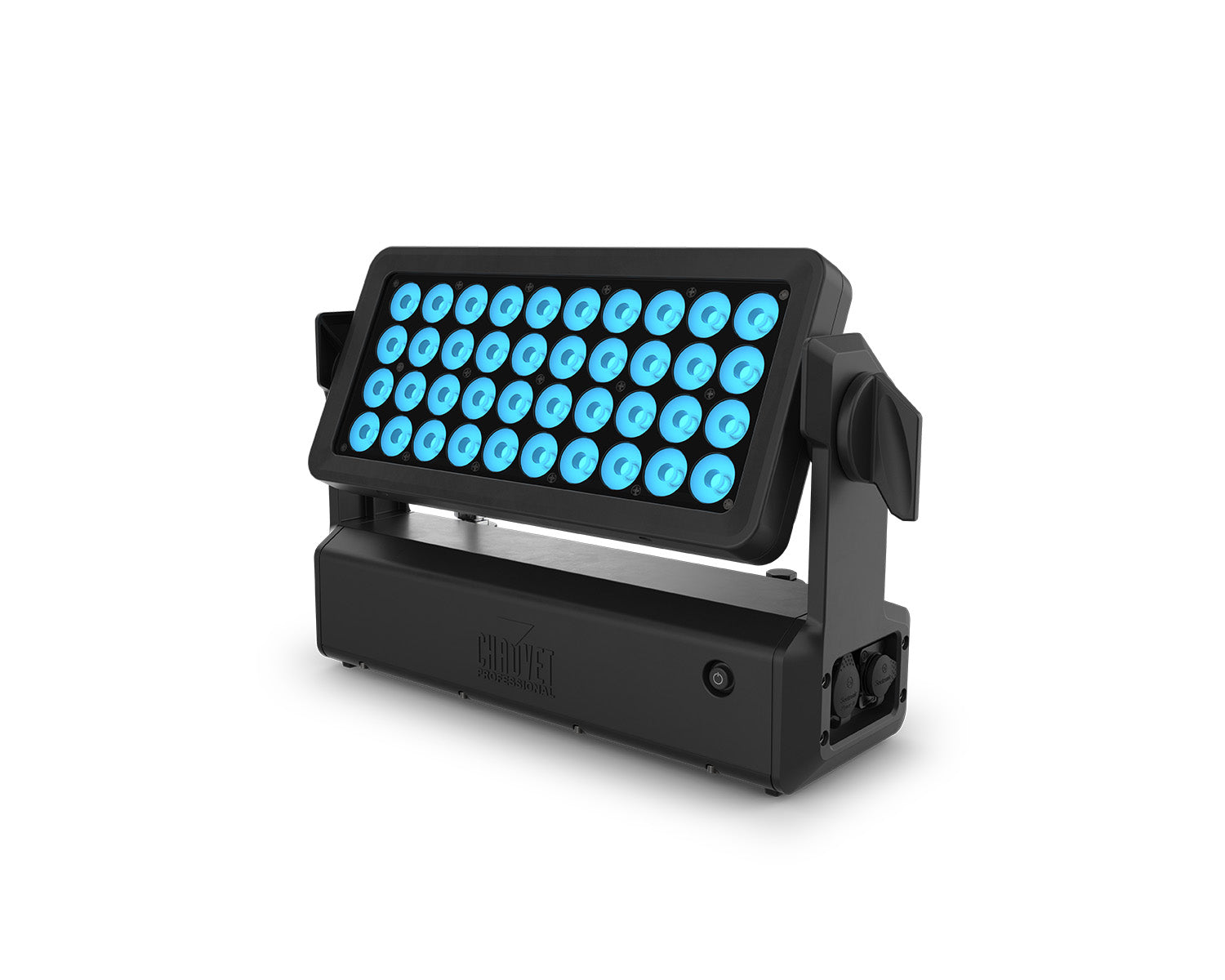

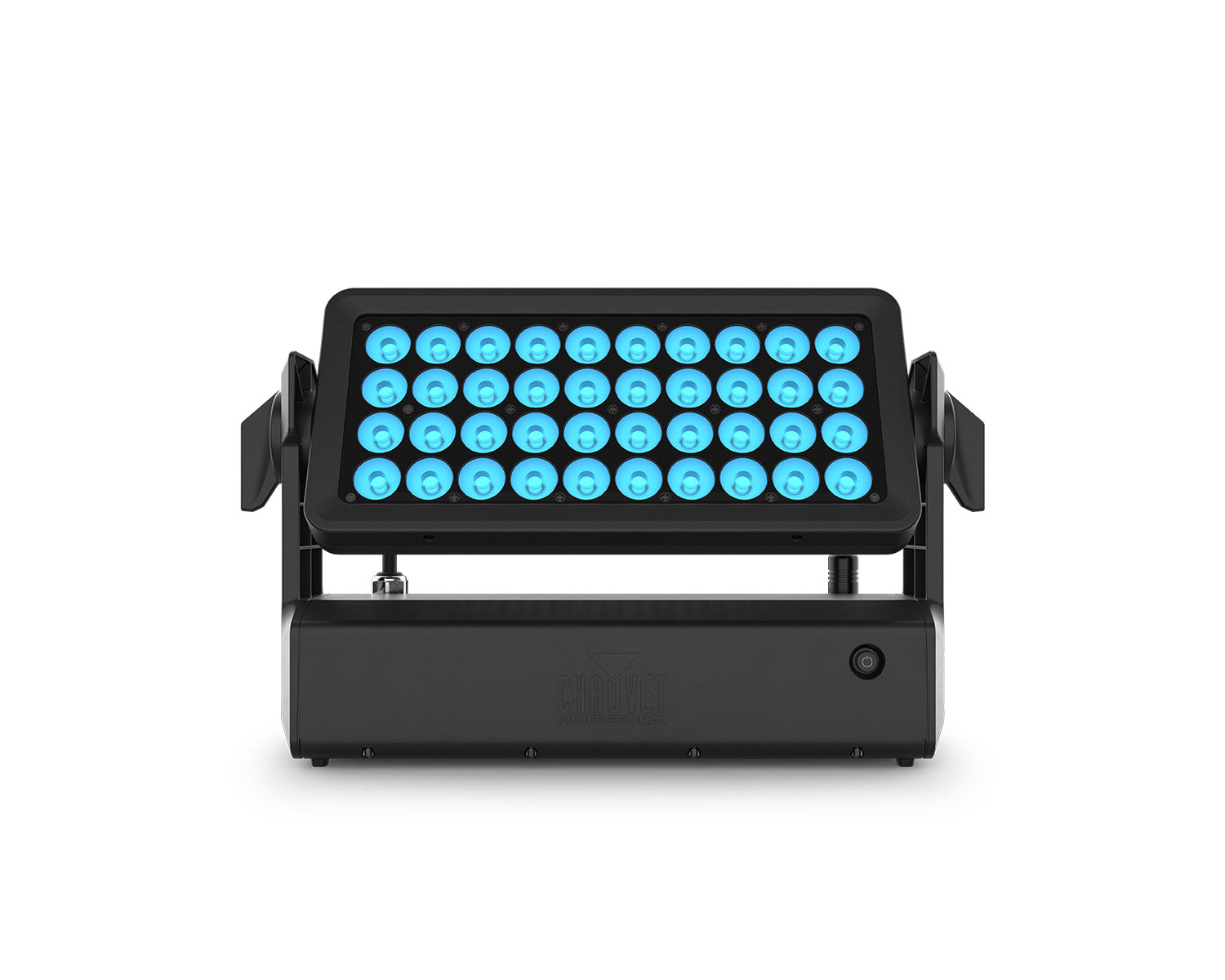

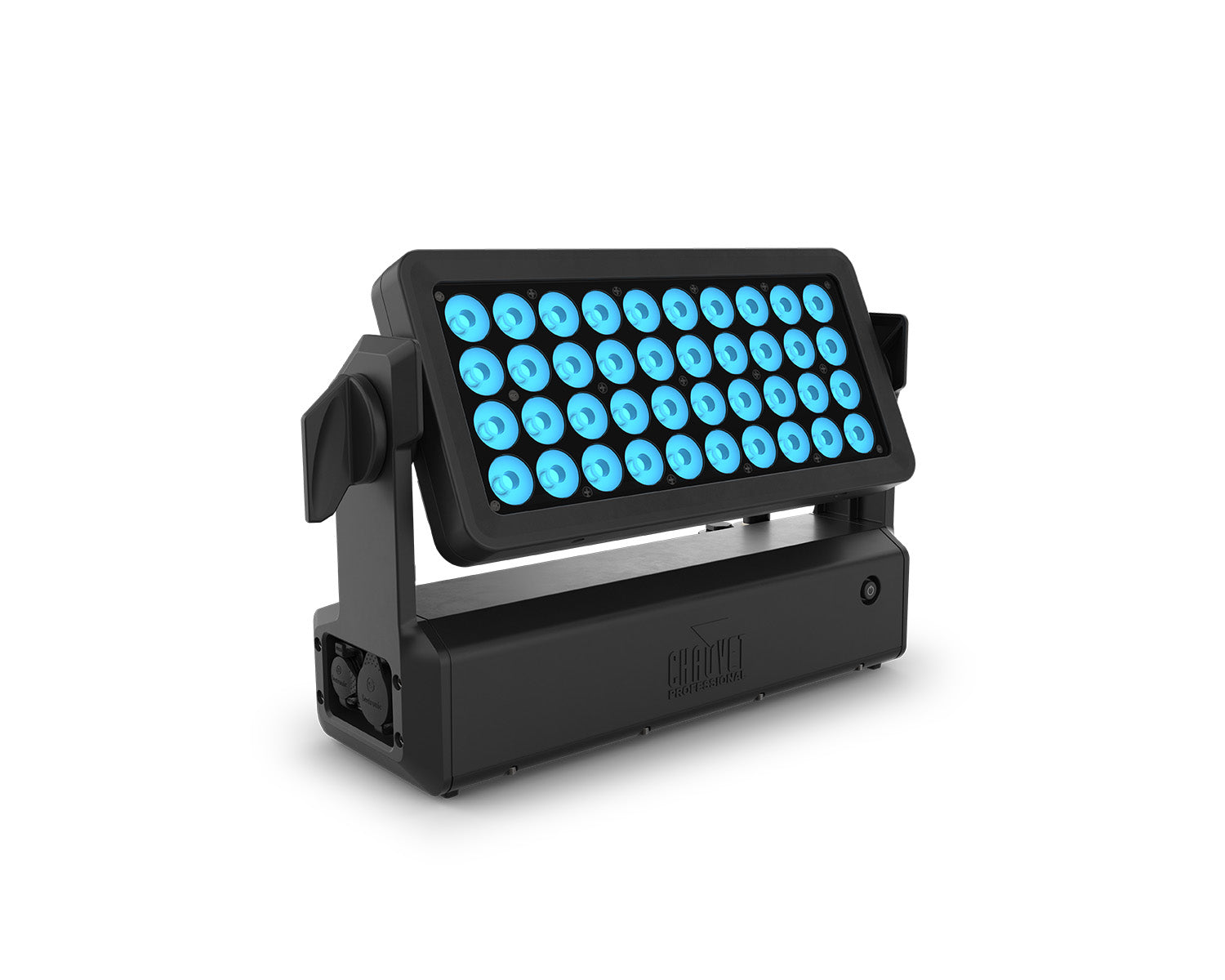

WELL Panel X x4 is the ideal addition to any rental package, offering an easily deployed and controlled fixture with high CRI that renders skin tones beautifully and make this panel an excellent key light. A higher quantity of smaller LEDs in this design ensures better colour mixing than ever before. Up to 18 hours of battery life from a fixture engineered to meet the needs of lighting professionals working in environments where quick setup and flexibility are crucial. Roll into any production, indoors or out, with a fully-realized road-worthy four-unit kit with built-in charging capability.

Product Features

• A fully realized kit of (4) battery operated black IP65-rated panel style fixtures, with (40) RGB warm white LEDs and a beam angle of 10.8 degrees
• Battery run time selections of 5, 8, 12, and 18 hours of operation at full output
• Built-in battery charger allows fixture to operate while charging
• Built-in IP65 5-pin DMX in/out allows for wired data
• Built-in Seetronic IP65 PowerKon input/output
• Control over DMX, CRMX, RDM, or RF
• Easy connection to WELL COM and WELL COM 2 boxes for app control
• Removable split yoke for both hanging and floor standing
• Pressure equalizing M12 Gore valve
• Built-in safety cable attachment point
• Easy-to-read OLED display
• Built-in PWM adjustment
• Included RF remote

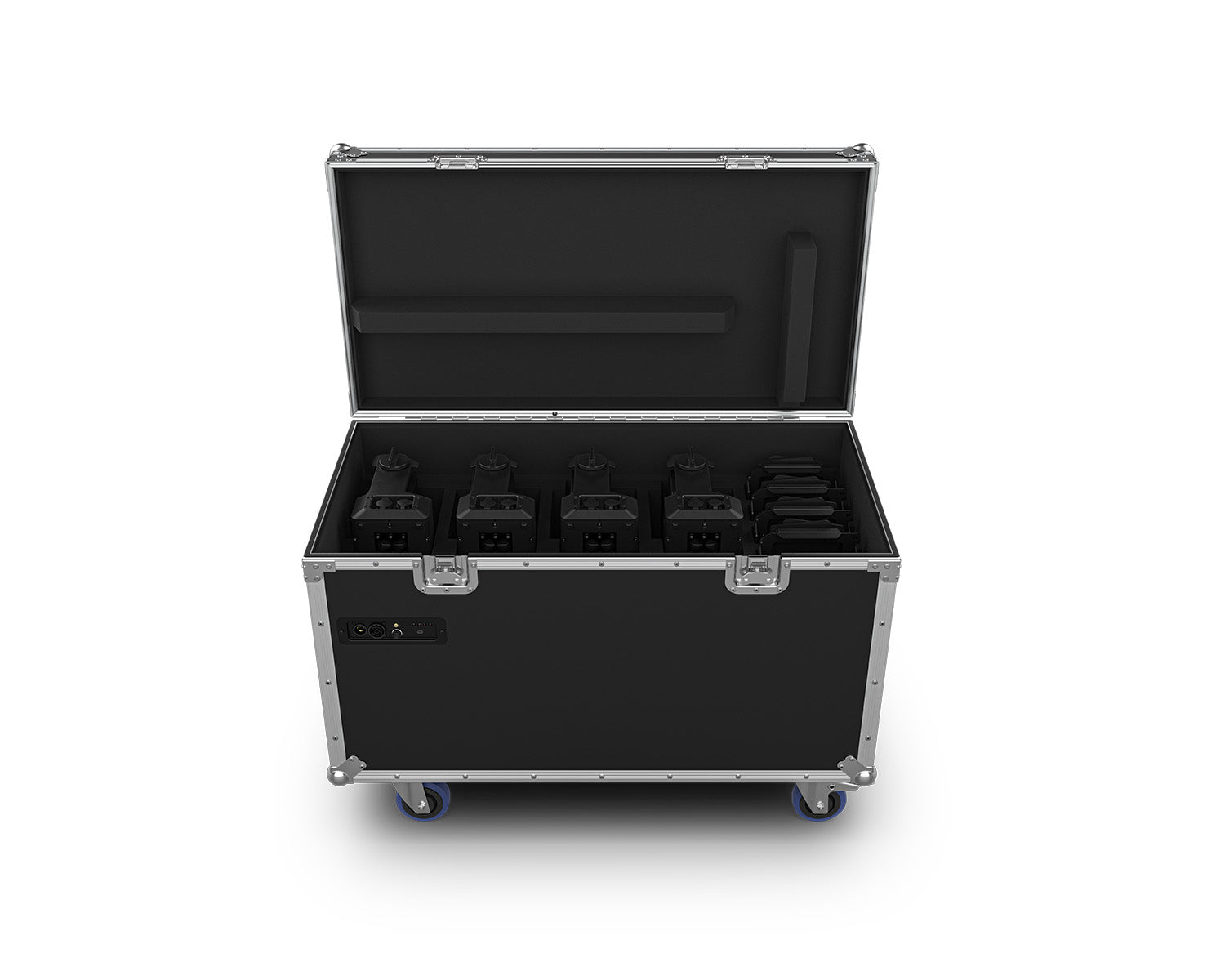

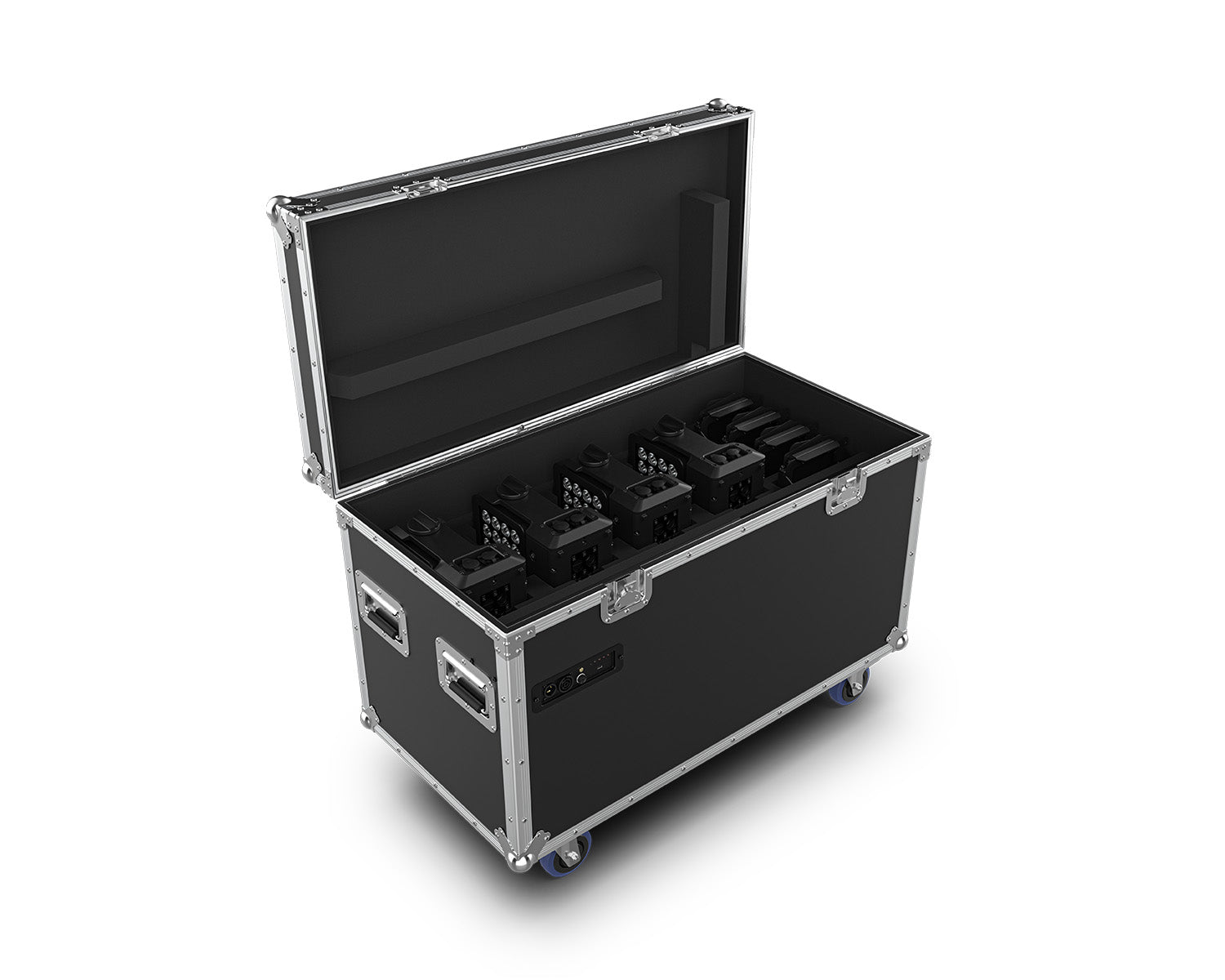

• Included 4 pack charging case

Product Specifications

Optical

• Light Source:  40 LEDs (RGBWW) 13.6 W, (678 mA), 50,000 hours life expectancy
• Colour Temperature (range):  2800 to 6500 K
• Installed optics:  11.6°
• Beam Angle:  21.4°
• Field Angle:  31.7°
• Lumens:  6865 lm (AC power)
• Illuminance:  4575 lux @ 5 m (AC power)
• Lumens:  6615 lm (OFF battery setting)
• Illuminance:  4269 lux @ 5 m (OFF battery setting)
• Lumens:  2886 lm (5-hour battery setting)
• Illuminance:  1867 lux @ 5 m (5-hour battery setting)
• Lumens:  1807 lm (8-hour battery setting)
• Illuminance:  1194 lux @ 5 m (8-hour battery setting)
• Lumens:  1189 lm (12-hour battery setting)
• Illuminance:  769 lux @ 5 m (12-hour battery setting)
• Lumens:  851 lm (18-hour battery setting)
• Illuminance:  548 lux @ 5 m (18-hour battery setting)
• Selectable PWM:  600 Hz, 1,200 Hz, 2,000 Hz, 4000 Hz, 6,000 Hz, 25000

Dynamic Effects

• Dimmer:  Electronic
• Shutter/Strobe:  Electronic
• Strobe Rate:  0 to 30 Hz
• Standalone Colour Mixing:  Yes
• Colour Temperature Presets:  Yes
• Dim Modes:  4
• Dim Curves:  4
• Built-in Automated Programs:  Yes
• Customisable Programs:  No
• Recall Custom Programs:  No

Electrical

• Input Voltage:  100 to 240 VAC, 50/60 Hz (auto-ranging)
• Single unit:
  • Power Linking:  11 units @ 120 V; 19 units @ 208 V; 21 units @ 230 V
  • Power and Current:  162 W, 1.35 A @ 120 V, 60 Hz
  • Power and Current:  166 W, 0.8 A @ 208 V, 60 Hz
  • Power and Current:  161 W, .0.7 A @ 230 V, 50 Hz
• 4 pack case:
  • Power and Current:  606 W, 5.2A @ 120 V, 60 Hz
  • Power and Current:  600 W, 3 A @ 208 V, 60 Hz
  • Power and Current:  590 W, 2.6 A @ 230 V, 50 Hz
  • 4 Pack Case Fuse – T6.3A. 250V

Battery

• Battery type:  Lithium Ion
• Rechargeable:  Yes
• Battery Charge Time:  4 hours
• Battery Life:  5, 8, 12,18 hours
• Battery Power:  44.4 V, 6600 mAh

Certifications / Qualifications

• CE, FCC, UKCA
• IP Rating:  IP65, temporary outdoor/wet use
• Temperature (Ambient):  -4 °F to 113 °F (-20 °C to 45 °C)

Connections

• Power Connection:  Edison (local) plug to Seetronic Powerkon IP65
• Power Input (fixture and charging case):  Seetronic Powerkon IP65
• Power Output (fixture and charging case):  Seetronic Powerkon IP65
• Data Connectors:  5-pin XLR
• Cable Length (power):  5 ft (1.5 m)

Control

• Control Protocol:  RDM, CRMX, NFC, RF
• DMX Channels:  5,8,9,12,16 channels
• Modes/Personalities:  5 personalities (5Ch, 8Ch, 9Ch, 12 ch, 16 ch)
• Wireless WDMX “G” Compatibility:  G4S
• Wireless Lumen Radio Compatibility:  CRMX

Construction / Physical

• Dimensions:  17.17 x 5.31 x 10.24 in (436 x 135 x 260 mm)
• Dimensions case:  36.4 x 20.7 x 21.5 in (925 x 525 x 545 mm)
• Weight:  20.8 lb (9.43 kg)
• Weight case:  184 lb (83.5 kg)
• Exterior Colour:  Black
• Housing Material:  Aluminium diecast

What's in the Box?

• 4 x WELL Panel X
• 1 x 4 slot charging case
• 1 x basic RF controller
• 4 x Seetronic PowerKon IP 65 power cords
• 4 x Omega Brackets
• 1 x QRG
