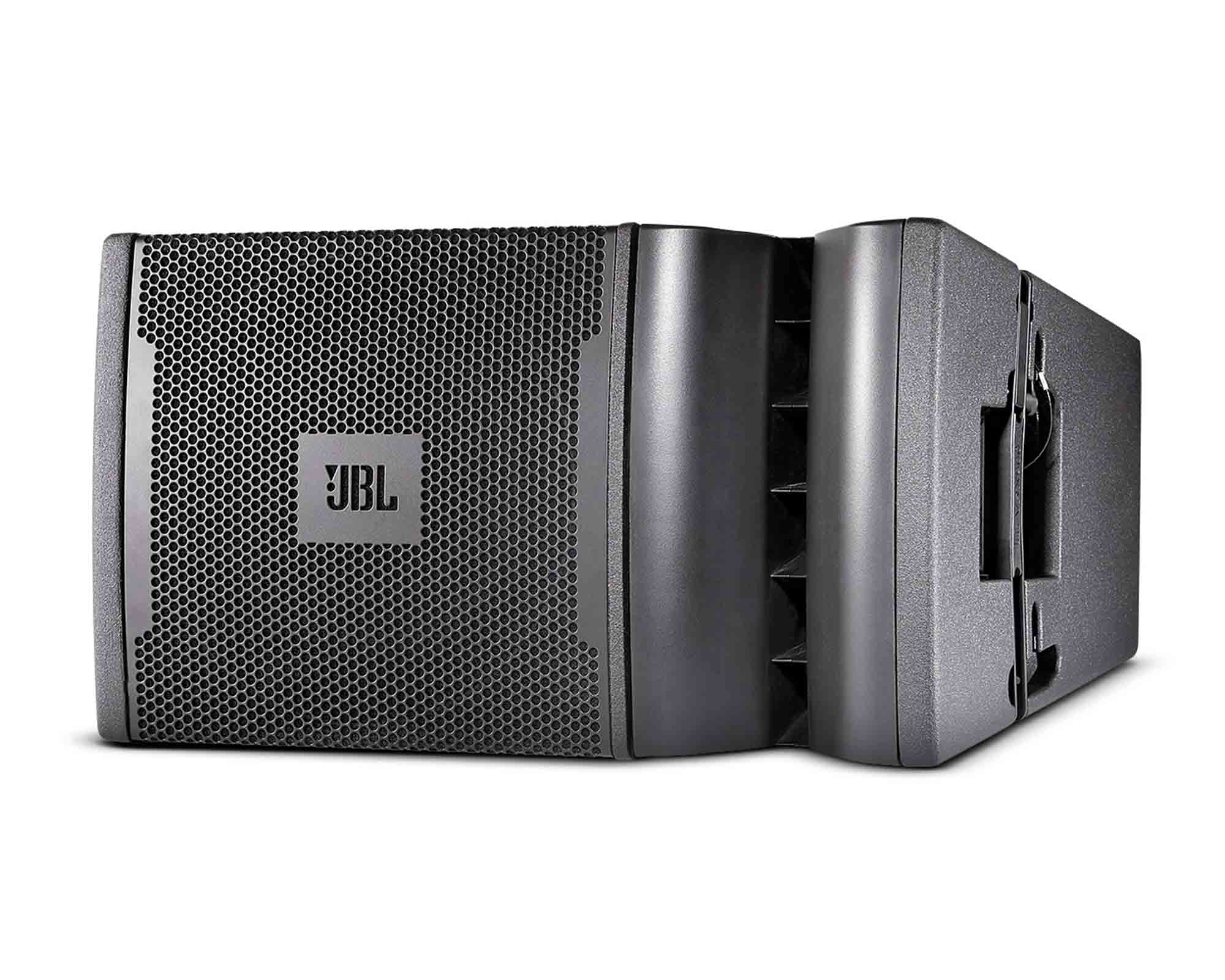

The VRX932LA-1 is a light-weight (46 lb / 21 kg) compact 12" two-way line array speaker system designed for use in arrays of up to six units. VRX932LA-1 is the ideal choice when line array performance is needed but the venue size doesn’t call for the very long-throw characteristics of larger line arrays such as JBL’s VERTEC®.

The Constant Curvature waveguide mounts three compression drivers on a continuous arc. When additional VRX932LA-1 speakers are added to the array the uninterrupted arc continues. In effect, all the drivers work together as if they were a single driver on a very long waveguide. Since there are three drivers in each VRX932LA-1, the combined power handling and acoustic output of the system is far greater than a single driver could achieve.

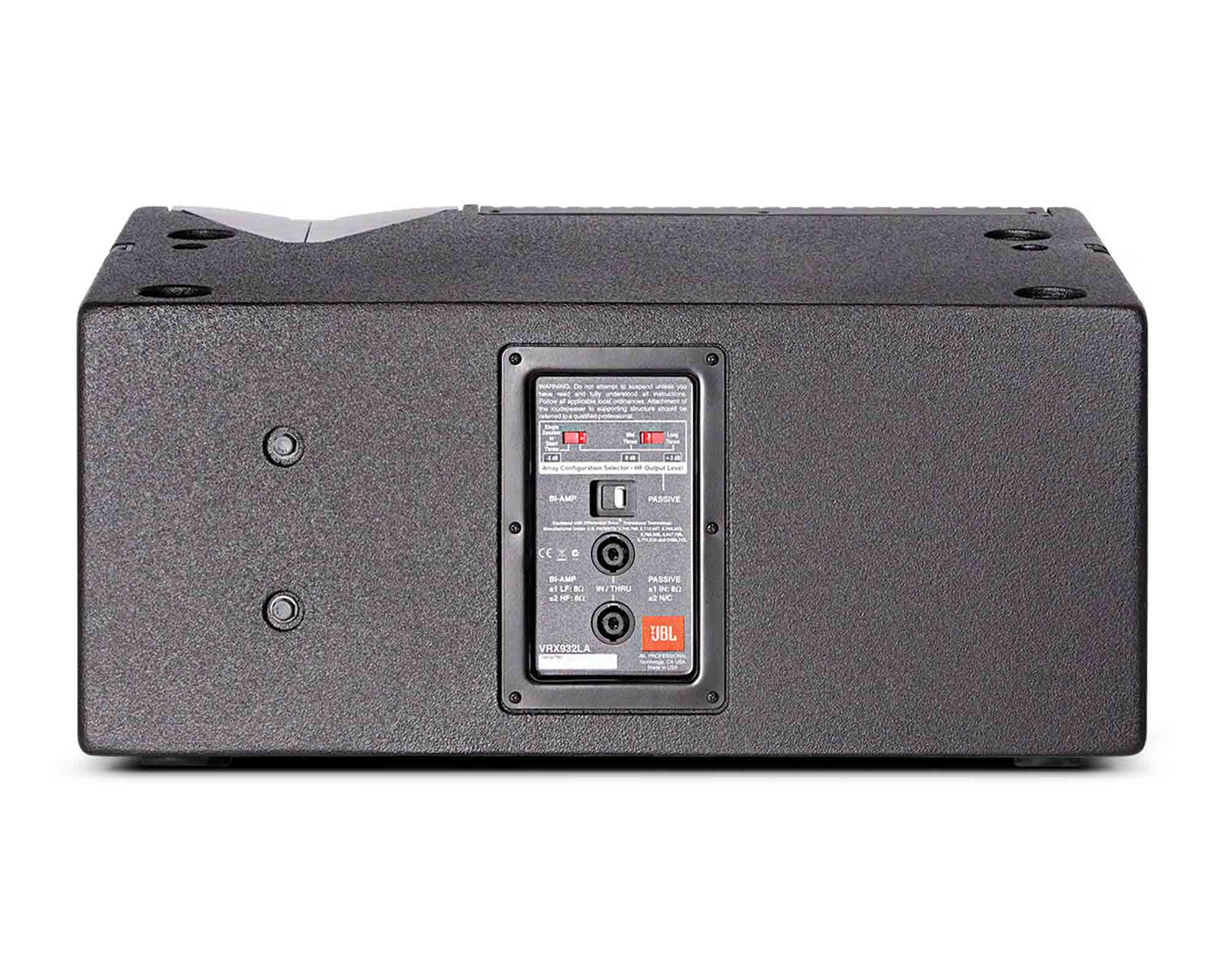

VRX932LA-1 uses “amplitude shading” to shape the coverage of the array. Switches on the input plate allow, for example, the upper box in an array to reach a distant balcony while the lower HF section is shaded back to reduce excessive level at the front of the listening area.

One or two VRX932LA-1’s may also be used on a tripod or over subwoofers. The integral rigging hardware is used to securely lock the array together while the dual-angle pole socket provides aiming flexibility.

As many as six VRX932LA-1 speaker systems may be suspended in a single array for a nominal vertical coverage of up to 90°. Suspended applications require the JBL VRX-AF array frame (available separately). For applications in which the array must be aimed sharply down, a second array frame may be installed to the bottom of the array serving as a pull-back.

VRX918S subwoofers are the ideal choice for a ground-stacked or flown VRX932LA-1 system. The SRX718S subwoofer is also compatible when suspension is not required.

Product Features

• JBL’s exclusive neodymium magnet Differential Drive® woofer for high-power capacity and light-weight.
• VRX932LA-1 features 3 x 2408J Annular Ring Diaphragm HF drivers. The 2408 represents the latest in JBL Professional compression driver design.
• Constant Curvature waveguide for unprecedented array coherence.
• Dual angle pole socket for aiming flexibility. One or two speakers may be mounted to a 35 mm pole or
• tripod stand.
• Integral rigging hardware for simple connection of enclosures and optional array frame. Arrays of up to six enclosures may be flown.
• Array Configuration Selector permits “array shading” in passive mode.

Product Specifications

General

• Power Rating: 800 W / 1600 W / 3200 W
• Frequency Range: 57 Hz - 20 kHz (-10 dB)
• Frequency Response: 75 Hz - 20 Hz (+/-3db)
• Coverage Pattern: 100 x 15 nominal
• Crossover Modes: Bi-amp / passive, externally switchable
• Crossover Frequency: 132 dB SPL peak 1.2 kHz
• System Maximum SPL: Passive: 130 dB SPL peak , Bi-amp LF: 130 dB SPL peak
• System Sensitivity (1w @ 1m ): Passive: 95 dB SPL Bi-amp LF: 95 dB SPL Bi-amp HF: 114 dB SPL
• LF Driver: 1 x JBL 2262H 305 mm (12 in) Differential Drive® woofer with neodymium magnet, dual voice-coils, and dual magnetic gaps.
• HF Driver: 3 x JBL 2408J, 38 mm (1.5 in) voice-coil, neodymium compression driver
• Nominal Impedance: Passive: 8 ohm Bi-amp LF: 8 ohm Bi-amp HF: 8 ohm
• Enclosure: 18 mm, 11-ply birch plywood
• Suspension / Mounting: Optional VRX932LA-AF line array frame kit
• Finish: Black DuraFlex™ finish
• Grille: Power coated, black, 16-guage perforated steel with with acoustically transparent foam
• Input Connectors: Neutrik® Speakon® NL-4 (x2)

Physical & Dimensions

• Height: 343mm
• Width: 597m
• Depth: 376mm
• Weight: 21kg
